Issue 5
1 947797
SURFACE MOUNT, FLUSH MOUNT, AND
SLOPED BACKBOX
INTRODUCTION

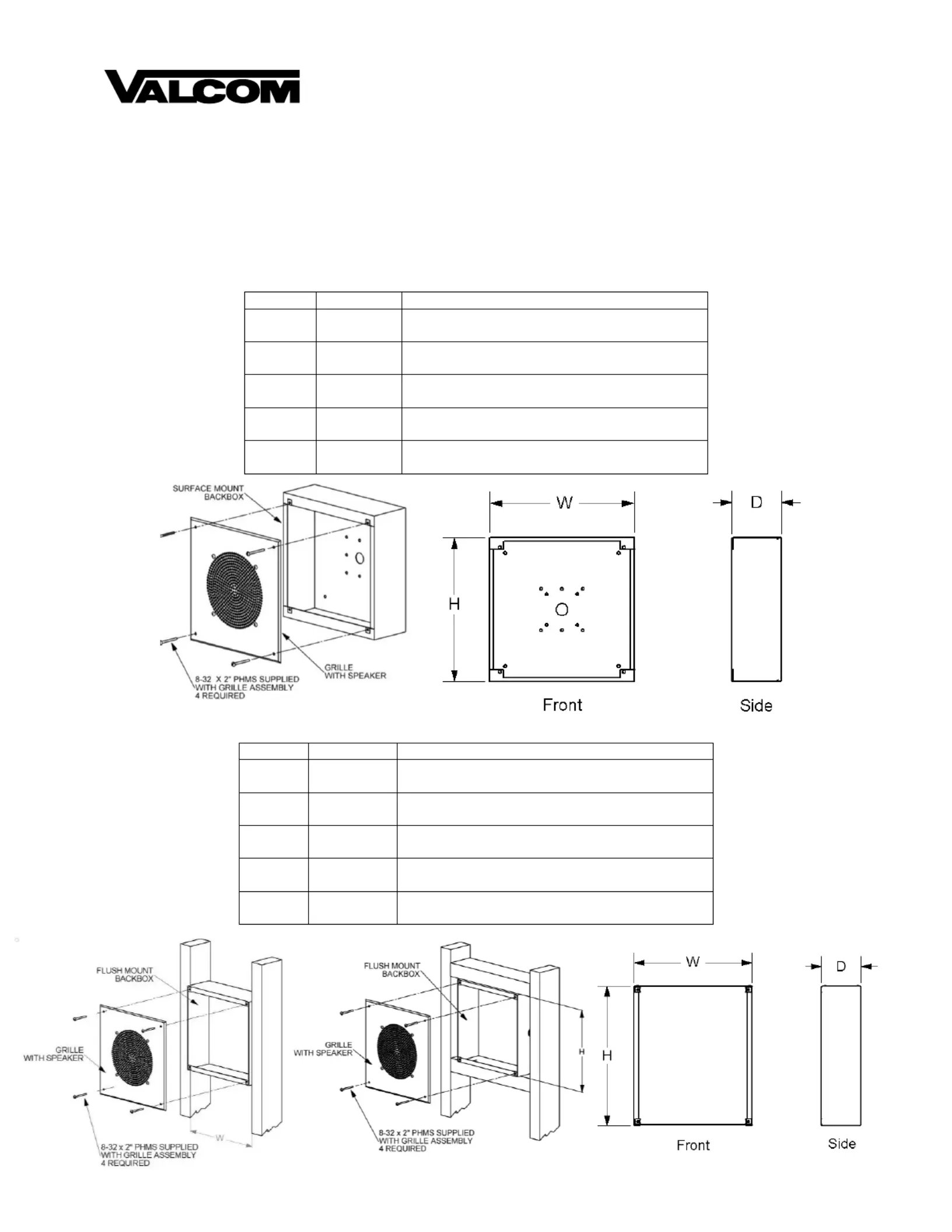

The Surface Mount Backbox and the Clocks Flush Mount Backbox are designed to facilitate easy
installation of Valcom grille speakers.
SURFACE MOUNT BACKBOX SELECTION CHART
TYPE:
DIMENSIONS:
11
VB-S11
11.63” H x 11.63” W x 3.94” D
GRILLE HOLE DIMNS: 10.00 x 10.00”
14
VB-S14
10.00” H x 12.25” W x 3.94” D
GRILLE HOLE DIMNS: 9.00 x 11.25”
18-D
VB-S18-D
11.00” H x 11.00” W x 5.94” D
GRILLE HOLE DIMNS: 10.00 x 10.00”
20
VB-S20
20.18” H x 14.27” W x 2.78” D
GRILLE HOLE DIMNS: 18.50 x 10.00”
23
VB-S23
14.63” H x 13.13” W x 3.94” D
GRILLE HOLE DIMNS: 12.50 x 10.50”
FLUSH MOUNT BACKBOX SELECTION CHART
TYPE:
PART NO:
DIMENSIONS:
12
VB-R12
10.75” H x 10.75” W x 3.94” D
GRILLE HOLE DIMNS: 10.00 x 10.00”
16
VB-R16
7.50” H x 9.84” W x 3.94” D
GRILLE HOLE DIMNS: 6.50 x 9.00”
17-D
VB-R17-D
9.63” H x 9.63” W x 5.94” D
GRILLE HOLE DIMNS: 8.88 x 8.88”
19
VB-R19
19.25” H x 10.75” W x 3.75” D
GRILLE HOLE DIMNS: 18.50 x 10.00”
22
VB-R22
13.25” H x 11.25” W x 3.75” D
GRILLE HOLE DIMNS: 12.50 x 10.50”
2 947797

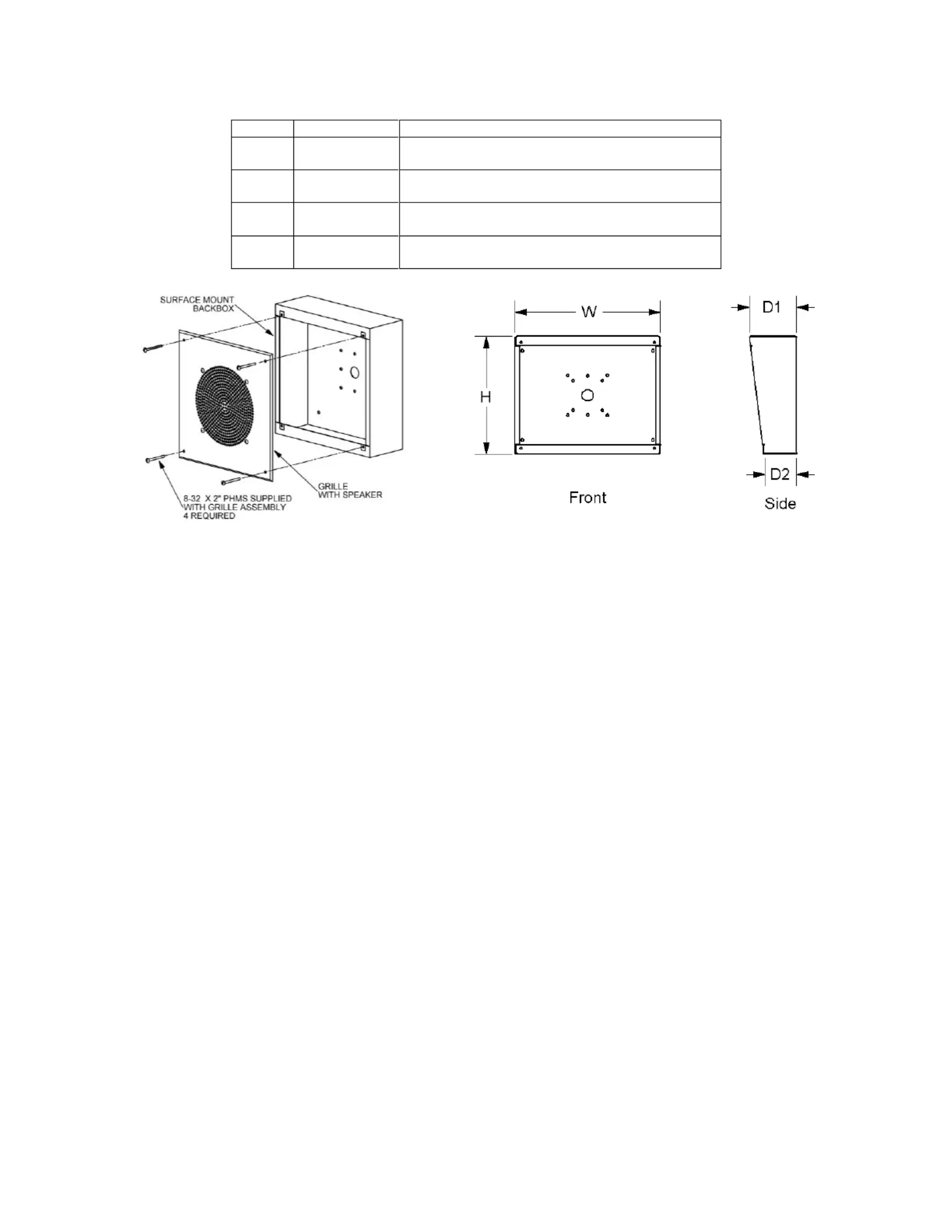

SLOPED MOUNT BACKBOX SELECTION CHART
TYPE:
PART NO:
DIMENSIONS:
13
VB-A13
11.54” H x 11.63” W x 4.60” D1 x 3.15”D2
GRILLE HOLE DIMNS: 10.00 x 10.00”
15
VB-A15
9.92” H x 12.25” W x 3.94” D1 x 2.66”D2
GRILLE HOLE DIMNS: 9.00 x 11.25”
21
VB-A21
19.88” H x 14.27” W x 6.27” D1 x 2.72”D2
GRILLE HOLE DIMNS: 18.50 x 10.00”
24
VB-A24
14.48” H x 13.13” W x 5.00” D1x 2.97” D2
GRILLE HOLE DIMNS: 12.50 x 10.50”
TECHNICAL ASSISTANCE
Assistance is available from the factory when
problems are encountered. Call (540) 563-2000
and press 1 for Technical Support or visit our
website at http://www.valcom.com.
Valcom equipment is not eld repairable.
Valcom, Inc. maintains service facilities in
Roanoke, VA. Should repairs be necessary,
attach a tag to the unit clearly stating company
name, address, phone number, contact person
and the nature of the problem. Send the unit to:
Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
WARRANTY
Warranty information may be found on our
website at www.valcom.com/warranty.
