Issue 2
1 947048
VL522BK-F-FC, VL522M-F-FC
IP DOUBLE-SIDED WALL AND CEILING MOUNT TEXT
SIGN WITH SPEAKER AND FLASHERS
INTRODUCTION
The VL522-F-FC IP Double-Sided Wall and
Ceiling Mount Text Sign with Speaker and
Flashers provides highly visible message output
and audio paging over an Ethernet network.
Audio and Text messages are created and
delivered from an Engineered Solutions server.
Audio only messages can be created from any
Valcom IP Paging source.
SIP (Session Initiation Protocol) compatibility
allows flexibility for talkback/intercom
connections. An optional call switch can be
used to initiate intercom calls from the VL522-F-
FC to a Valcom or SIP destination.
SPECIFICATIONS
Features
• SIP compatible
• Easy to read, high visibility
• Font size options
• Seven LED color options
• English and Spanish text support
• Power over Ethernet:
(PoE+) 802.3at compatible
• Speaker output and LED display can be
activated together or separately
• Display can operate as a clock or provide
other message during idle periods
• Text modes include adjustable-speed
scrolling or static display
• Contact Closure input connection for
optional Call switch
• Relay output connection for optional
equipment
• Bright LED flashers that can be activated
based on page priority
• Available in Black matte (VL522BK-F-FC) or
Metallic finish (VL522M-F-FC)
Dimensions / Unit Weight
• 22.5” L x 5.4” W (top) / 3.8” W (bottom) x
5.55” H (dimensions without bracket)
(57.2cm L x 13.7cm W (top) / 9.7cm W
(bottom) x 14.1cm H)
• 7.0 lb. (3.1kg)
• Mounting Bracket:
7.25” W x 8.0” H x 1.4” D
(18.4cm W x 20.3cm H x 3.6cm D)

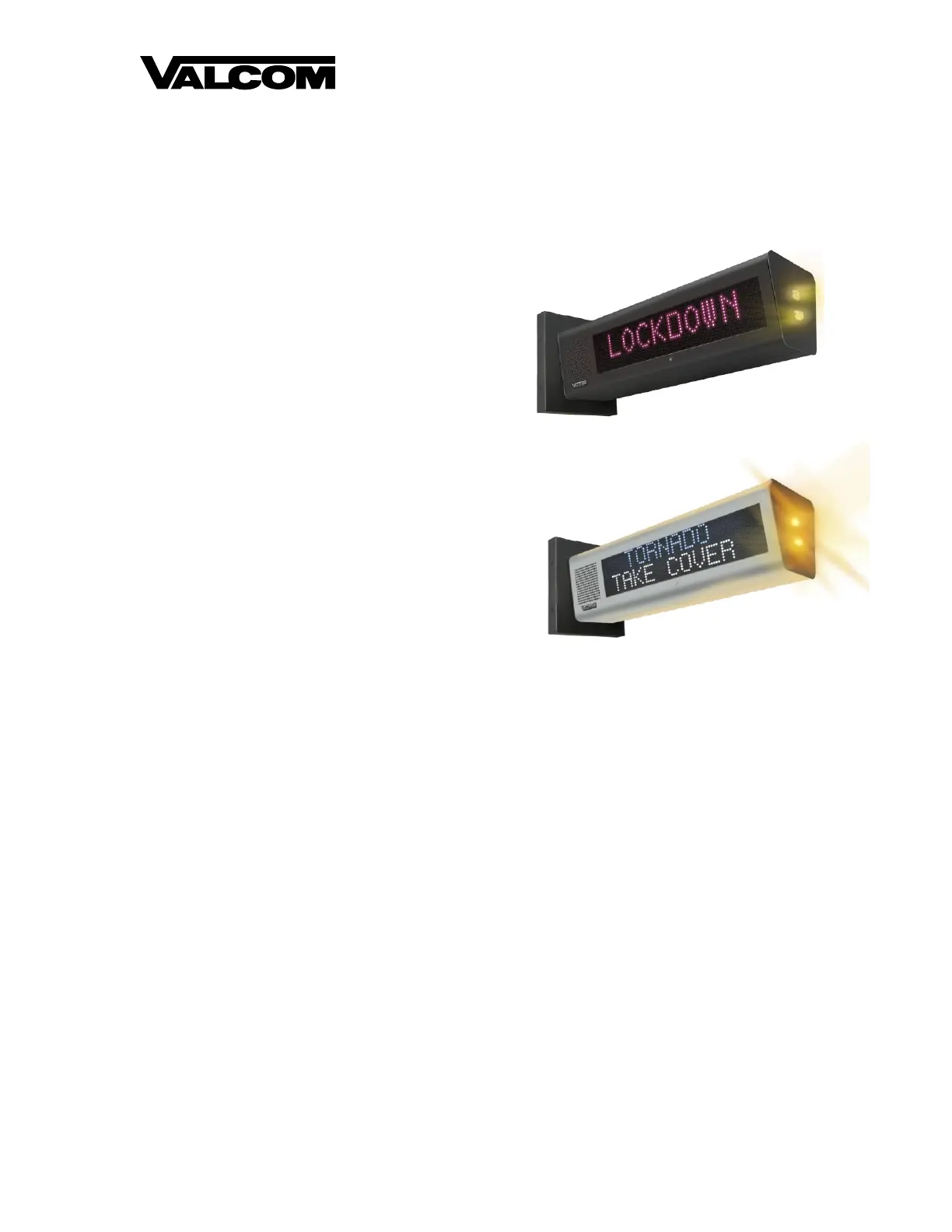

VL522BK-F-FC
VL522M-F-FC
Nominal Power Requirements
• 802.3at (PoE+) Class 4
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
These products are intended for use with a UL
Listed power source marked “Class 2” or “LPS”
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building
Precautionary Designations
• WARNING: To Reduce The Risk Of Fire
Or Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
• AVERTISSEMENT: Afin de réduire les
risques d'incendie ou de décharge
électrique, évitez d'exposer le système
à la pluie ou à l'humidité.
• Apparatus shall not be exposed to
dripping or splashing and no objects
