WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

Page 1 / 2

241024

1. Remove the two set screws (D), separate the mounting plate unit (A) from the backplate.

2. Attach mounting plate unit (A) to the outlet box using two mounting screws (B).

3. Pull out the source wires from the outlet box. Make wire connections using wire

connectors (C) as follows:

---Connect the hot wire (black insulation) from the power source to the black

wire from the fixture.

---Connect the neutral wire (white insulation) from the power source to the white wire from the fixture.

---Attach the fixture ground wire (green insulation or bare wire) to the mounting plate unit (A) with the

green ground screw, or connect to the source ground wire if available.

Carefully put the wires back into the outlet box.

4. Attach the backplate to the mounting plate unit (A) by aligning holes, secure the two set screws (D) from the side hole

of the backplate into the side hole of the mounting plate unit (A).

Turn off the power at fuse or circuit box.

Installation Steps

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

W0503

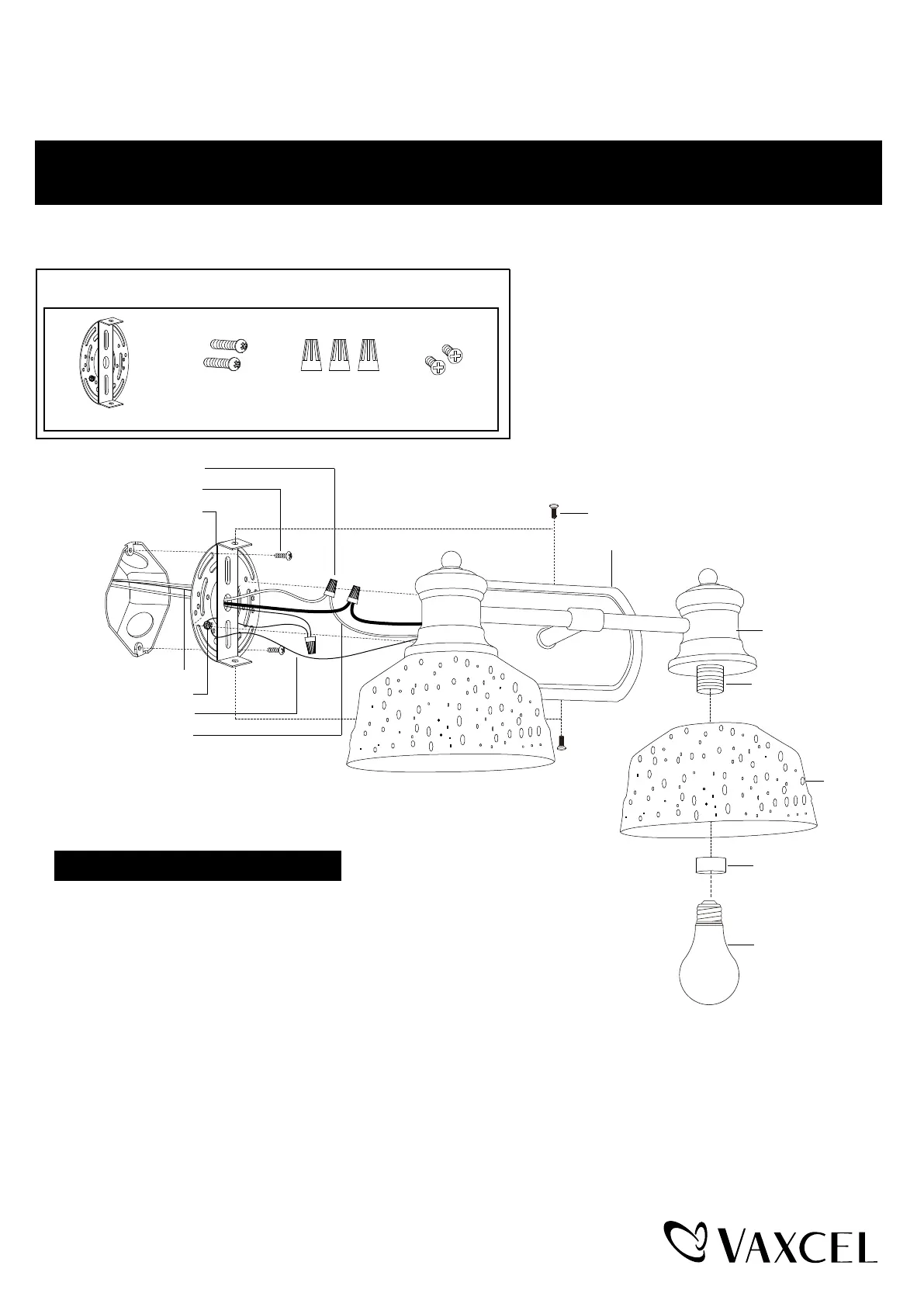

Hardware Package (included):

Mounting Screw (B) Wire Connector (C) Set Screw (D)Mounting Plate Unit (A)

Wire Connector (C)

Green Ground Screw

Mounting Plate Unit (A)

Mounting Screw (B)

Set Screw (D)

Backplate

Socket Ring

Max. 60W Medium Base

Bulb (not included)

Glass Shade

Socket

Fixture

Fixture Ground Wire

House Ground Wire

Fixture Wire
