1. Unscrew two bolt nuts (D) and remove mounting strap unit (A) from
the canopy.
2. Loosen the plastic headless screw on the canopy by using a
flat head screwdriver (not included) .
3. Thread the cord through the canopy and strain relief. Measure the
desired length of the cord (F) from the canopy to the glass shade and
leave additional 9" cord (G) above the canopy (include the canopy),
and then cut off the unnecessary cord. (See Fig.1)
4. Adjust strain relief at 9" position from the top of the cord.
5. Mark the 3" cord (H) from the top of the cord (G). Use a knife to peel
off the insulation of the cord (H) carefully to show the 3 inside wires
out. (See Fig. 1)
Caution : Cutting too deep may cut off three inside wires and
destroy the insulation surface of the three inside wires.
6. Peel off the 3 wires from the top about 3/8" long (I) to expose the
copper for wiring.
7. Attach the mounting
strap unit (A)
to outlet box by using two mounting
screws
(B)
.
8. Pull out the source wires from the outlet box,
make wire connections using wire connectors (C) as follows:
---Connect the hot wire (black insulation) from the fixture to the
black wire from the power source.
---Connect the neutral wire (white insulation) from the fixture to
the white wire from the power source.
---Connect the fixture ground wire from the fixture to the house
ground wire from the power source.
Carefully put the wires back into the outlet box.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instruction.
P0407
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.

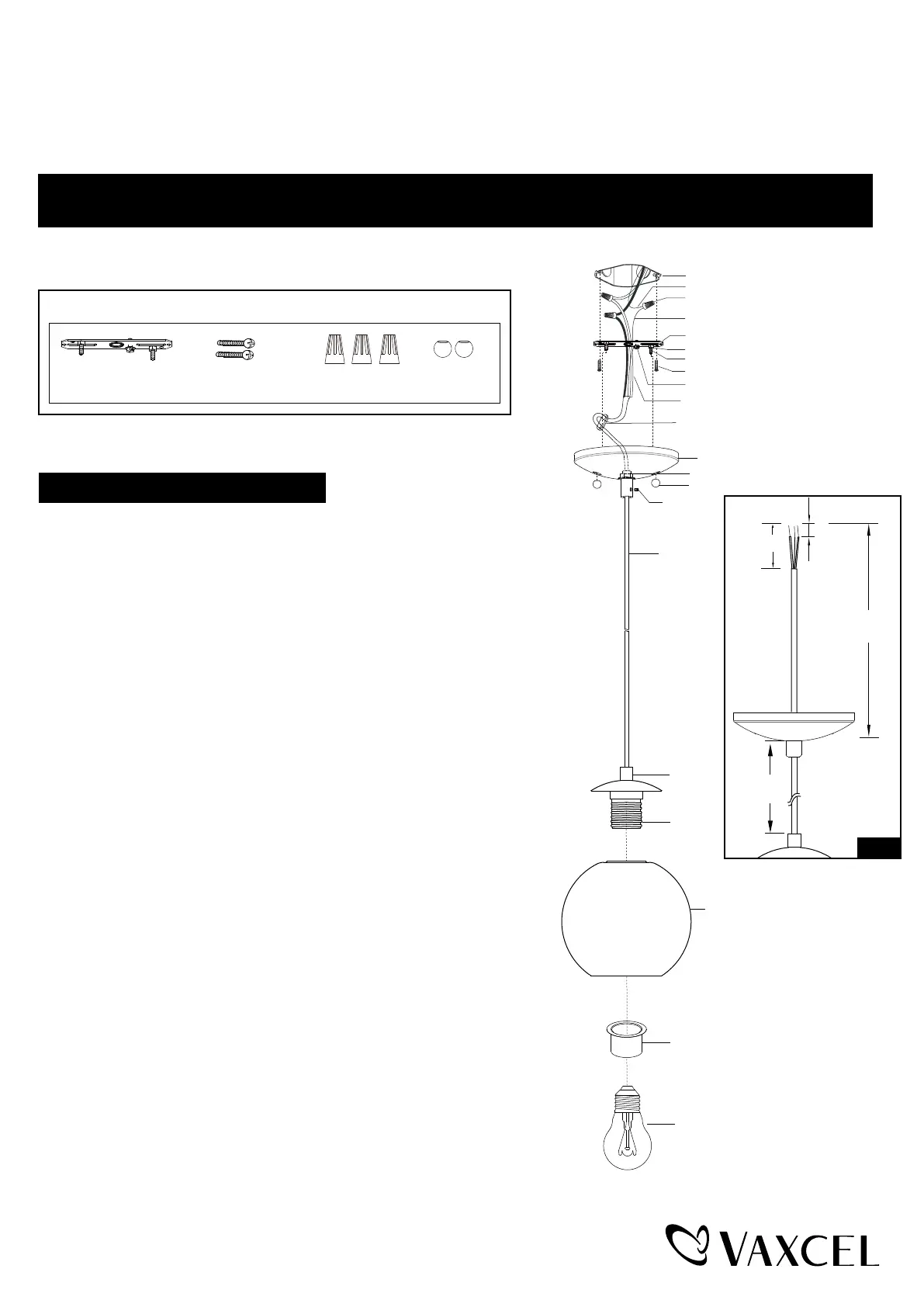

Fig.1
Installation Steps
Fixture
Glass Shade
Socket
Canopy
Bolt Nut (D)
Cord (E)
Hex Nut
Socket Ring
Max. 60W Medium Base Bulb
(not included)
Strain Relief
Fixture Wire
F
H (3")
I (3/8")
G (9")
Plastic
Headless
Screw
Outlet Box
House Ground Wire
Fixture Mounting Screw
Mounting Strap Unit (A)
Green Ground Screw
Lock Nut
Mounting Screw (B)
Wire Connector (C)
Fixture Ground Wire
Bolt Nut (D)
Mounting Screw (B) Wire Connector (C)
Mounting Strap Unit (A)
Page 1 / 2
