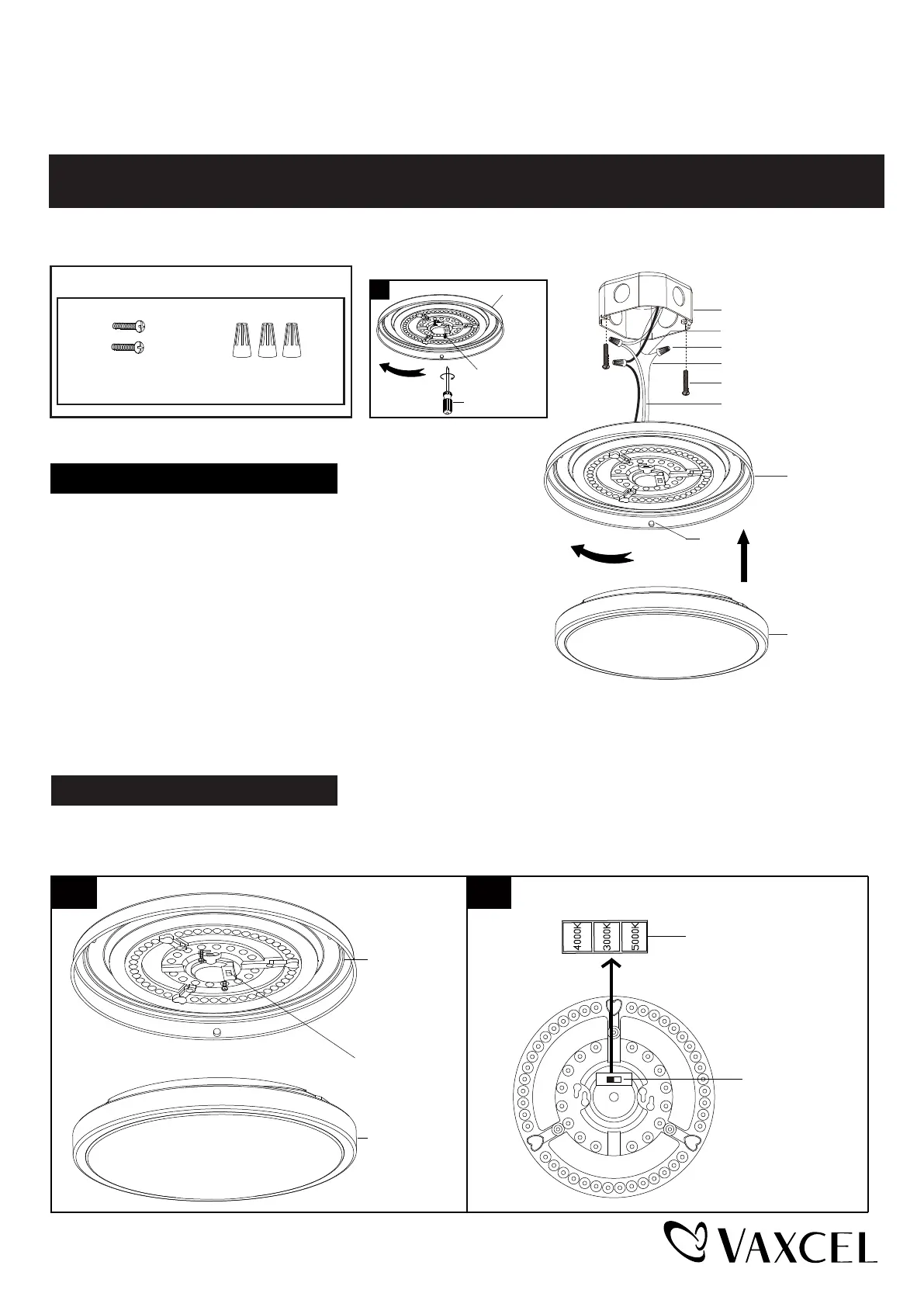

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

C0315

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Page 1 / 2

Ceiling Pan

Screwdriver

Mounting Screw (A)

240109

Turn on the power at fuse or circuit box

1. Attach the two mounting screws (A) to the holes on outlet box,

thread them in part way: 2 to 3 turns only.

2. Connect the black wire to black (power) wire, white wire to white

(neutral) wire and fixture ground wire to house ground wire with

supplied wire connectors (B).

Tuck all wires into outlet box.

Attach the ceiling pan to the outlet box by inserting two mounting

screws (A) head into the keyholes, then rotate the ceiling pan until

it is locked in place, finally secure the mounting screws (A) tightly

with screwdriver (not included) (See Fig.1).

4. Attach the shade to the ceiling pan by aligning studs and slots, then turn it clockwise until it is locked in place.

1-a 1-b

Color Temperature

View Fig.1-b

Toggle Switch

Ceiling Pan

Plastic Shade

Adjus�ng the correlated color Temperature (CCT) of the Light

Customize the correlated color temperature (CCT) of the LED light by moving the toggle switch (For Reference).

Turn off the power at fuse or circuit box

Installation Steps

Hardware Package (included):

Wire Connector (B)Mounting Screw (A)

Outlet Box

Fixture Ground Wire

Fixture Wire

Shade

Ceiling Pan

Mounting Screw (A)

Wire Connector (B)

House Ground Wire

Stud
