ASSEMBLY AND INSTALLATION

INSTRUCTIONS

T0212

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

Ceiling Pan

Socket

Metal Frame

End Cap (D)

Set Screw

Rubber Pad (E)

Side Glass Panel

Bottom Glass Panel

Max. 60W Vintage Bulb

(not included)

End Cap (D) Rubber Pad (E)

Turn on the power at fuse or circuit box

Turn off the power at fuse or circuit box.

Installation Steps

1. Attach mounting strap unit (A) to the outlet box

using two mounting screws (B).

2. Pull out the source wires from the outlet box.

Make wire connections using wire connectors (C)

as follows:

• Connect the hot wire (black insulation) from the

fixture to the black wire from the power source.

• Connect the neutral wire (white insulation) from

the fixture to the white wire from the power source.

• Attach the fixture ground wire (bare wire) to the

mounting strap unit (A) with the green ground screw,

then depending on local code, connect it to the house

ground wire with the wire connector (C).

Carefully put all of the wires back into the outlet box.

3. Attach the ceiling pan to the mounting strap unit (A) by inserting threaded pipe into the center holes of the ceiling

pan and screw it with the end cap (D).

NOTE: Depth of threaded pipe may need to be adjusted to properly fit end cap.

4. Install the bulbs (not included). Check relamping label at socket area or packaging for maximum wattage allowed.

5. Attach the metal frame to the ceiling pan by aligning two holes, then secure it with two rubber pads (E) and two

set screws.

Page 1 / 2

230804

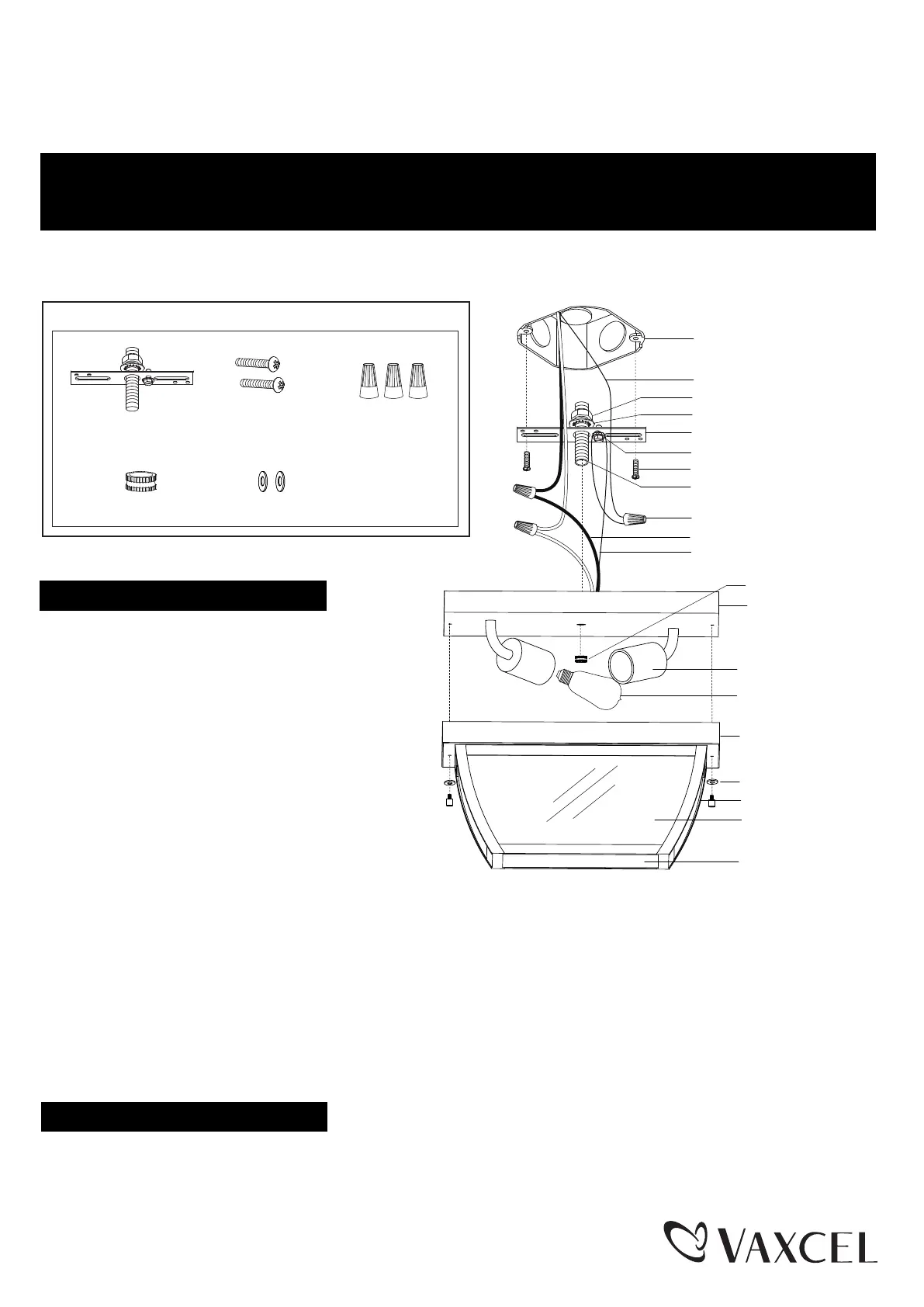

Hardware Package (included):

Mounting Screw (B) Wire Connector (C)Mounting Strap Unit (A)

Mounting Screw (B)

Green Ground Screw

Wire Connector (C)

House Ground Wire

Fixture Ground Wire

Outlet Box

Fixture Wire

Threaded Pipe

Mounting Strap Unit (A)

Hex Nut

Washer
