ASSEMBLY AND INSTALLATION

INSTRUCTIONS

T0773

Set screw (D) Mounting Screw (B) Wire Connector (C)Mounting Plate Unit (A)

Rubber Pad (E)

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

Turn off the power at fuse or circuit box

Installation Steps

1. Unscrew the two set screws (D), remove the two rubber pads (E) and the mounting

plate unit (A) from the backplate.

2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B).

Note: Make sure that two set holes are lined up horizontally to make the fixture

level.

3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:

• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.

• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.

• Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green ground screw, then

connect it to the house ground wire with the wire connector (C).

Carefully put all of the wires back into the outlet box.

Page 1 / 2

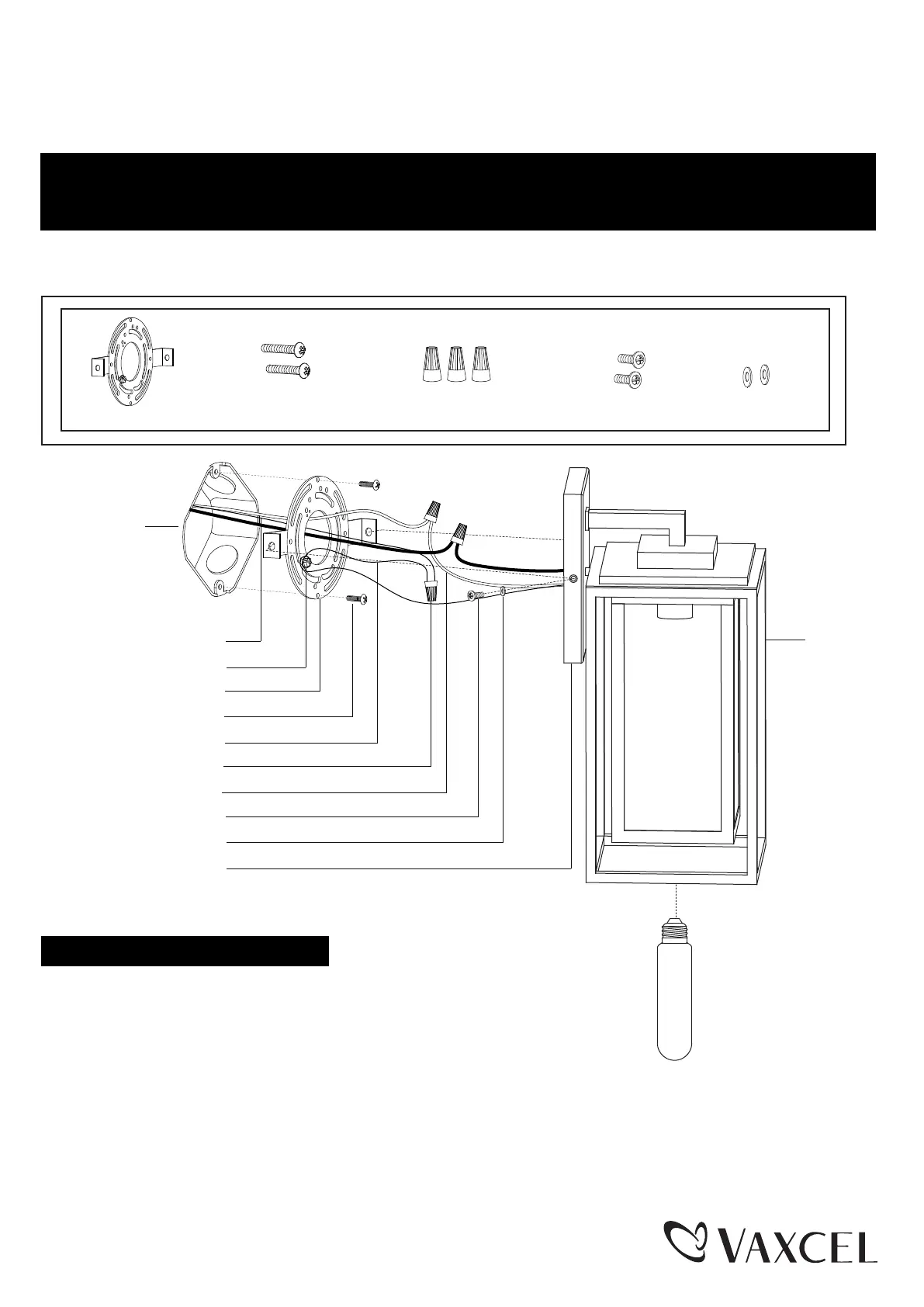

Fixture

Fixture Ground Wire

Wire Connector (C)

Mounting Plate Unit (A)

House Ground Wire

Green Ground Screw

Outlet Box

Fixture Wire

Set Screw (D)

Mounting Screw (B)

Rubber Pad (E)

Backplate

Max. 60W Type T10 Bulb

(not included)
