ASSEMBLY AND INSTALLATION

INSTRUCTIONS

T0778

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

Page 1 / 2

Turn off the power at fuse or circuit box.

Turn on the power at fuse or circuit box.

Installation Steps

1. Unscrew the two set screws (D) partly around 2 turns only,

remove the ceiling pan from the mounting strap unit (A).

2. Attach the mounting strap unit (A) to the outlet box by using two

mounting screws (B).

3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:

• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.

• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.

• Attach the fixture ground wire (bare wire) to the mounting strap unit (A) with the green ground screw, then

depending on local code, connect it to the house ground wire with the wire connector (C).

Carefully put all of the wires back into the outlet box.

4. Attach the ceiling pan to the mounting strap unit (A) by inserting two set screws (D) into the key holes on both sides,

then rotate the ceiling pan until it is locked in place, finally secure the two set screws (D) tightly with screwdriver

(not included).

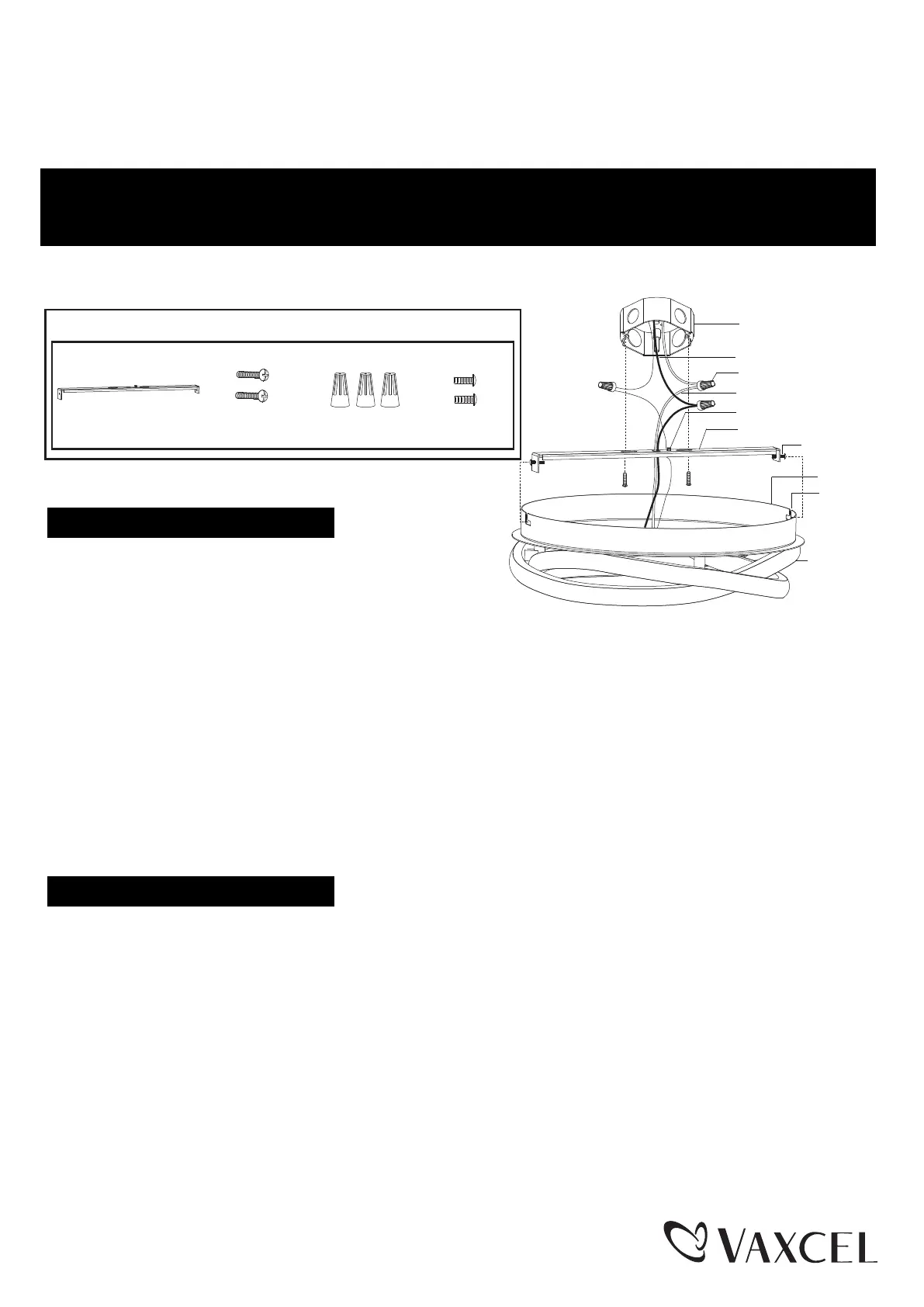

Hardware Package (included):

Wire Connector (C)Mounting Screw (B)Mounting Strap Unit (A) Set Screw (D)

Outlet Box

House Ground Wire

Wire Connector (C)

Fixture Wire

Mounting Strap Unit(A)

Green Ground Screw

Set Screw (D)

Mating Slot

Fixture

Pan

Note: This fixture is dimmable with a forward phase electronic dimmer. Dimmers tested to be compatible

with this fixture are the Lutron: TGCL-153PH, MACL-153MH, SCL-153P, DVWCL-153PH.

If you are unfamiliar with electrical installations, it is recommended you have a qualified electrician

for your installations.
