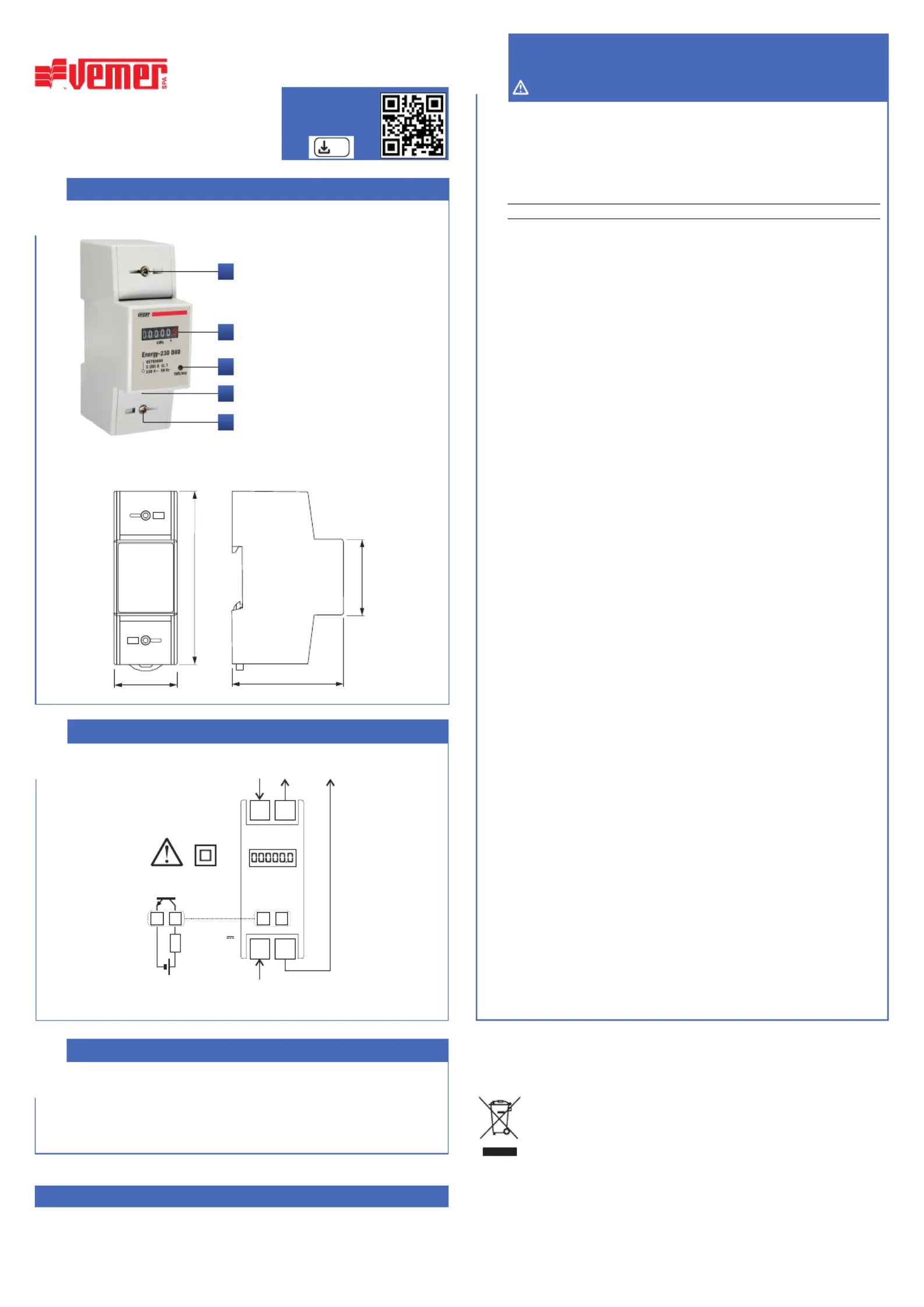

Mod. Energy-230 D80

In normal operation the LED and the pulse output (terminals 20 and 21)

emit a signal with a frequency proportional to the measured energy

(1000 flashes every kWh).

The counter increments every 0,1 kWh

OPERATION

CONNECTION DIAGRAM

03-2025

REFERENCE STANDARDS

Compliance with Community directives:

2014/35/EU (LVD) e 2014/30/EU (EMCD)

is declared in reference to the following harmonised standards:

• EN 62052-11 • EN 62053-21 • EN 61010-1

Manuals

download

PDF

User Manual

SINGLE-PHASE ACTIVE ENERGY METER

Read all the instructions carefully

The Energy-230 D80 static energy meter is a device for internal use, for

counting active energy in single-phase 230 Vac systems. Current insertion

is direct for values up to 80 A. It has a pulse output for remote energy

counting.

Code Model

Description

VE799000 Energy-230 D80 Single-phase active energy meter 80A

SAFETY WARNINGS

During product installation and operation it is necessary to observe the

following instructions:

1) The product must be installed by a qualified person, strictly in observance

of the connection diagrams shown in this manual.

2) The product must be installed and activated in compliance with current

electric systems standards

3) After installation inaccessibility to the terminals without using dedicated

tools must be guaranteed

4) Do not use the product for anything other than the indicated purpose.

5) The product must be installed in an adequately protected closed electrical

panel.

6) In the supply network there must be a bipolar disconnection.

7) In the electrical system upstream of the product must be installed a

protection device against the overcurrents.

8) Before accessing the connection terminals, make sure that the leads

are not live.

9) Do not connect or feed the product if any part of it is damaged.

10) The product can be used in environments with Measurement Category III

and Pollution degree 2, according to the Standard EN 61010-1.

TECHNICAL SPECIFICATIONS

• Power supply:230 Vac 50 Hz

• Absorption ≤ 10VA (≤ 2W)

• Starting current: I

= 20 mA

• Reference current: I

ref

= 5 A

• Maximum current: I

max

= 80 A

• Insertion type: direct for current inputs

• Signal LED: Flashing LED (1000 flashes per kWh)

• Display: 6-digit electromechanical pulse counter

• Energy display resolution: 0,1 kWh (full scale: 99999,9 kWh)

• Optoisolated pulse output for remote reading of counts

(1000 pulses/ kWh)

• Pulse characteristics:

- Pulse duration = 80 ms

- Maximum voltage: 30 Vdc

- Maximum current: 27 mA

• Container: 1 DIN modules

• : IP20/IP51 Degree of protection on the front

• Class index: 1

• Operating temperature: -10 ÷ 45 °C

• Storage temperature: -20 ÷ 70 °C

• Average relative humidity: ≤75% non-condensing

• Maximum humidity ≤95%

INSTRUMENT DESCRIPTION and DIMENSIONS

100.5

information to users pursuant to art. 14 of the directive

2012/19 / EU of the european parliament and of the council

of 4 july 2012 on waste electrical and electronic equipment (WEEE)

If the crossed-out bin symbol appears on the equipment or packaging,

this means the product must not be included with other general waste

at the end of its working life.

The user must take the worn product to a sorted waste center,

or return it to the retailer when purchasing a new one.

Products for disposal can be consigned free of charge (without any new purchase obligation)

to retailers with a sales area of at least 400 m

, if they measure less than 25 cm.

An efficient sorted waste collection for the environmentally friendly disposal of the used device, or its

subsequent recycling, helps avoid the potential negative effects on the environment and people’s health,

and encourages the re-use and/or recycling of the construction materials.

1 Terminals for direct insertion

of measuring conductors

2 Electromechanical numerator

with 5+1 digit

3 LED indicator of absorbed energy

(ashing with frequency

1000 imp/kWh)

4 Pulse output terminals

2021

V = 30 V

max

I = 20 mA

max

1 Wh/pulse

2021

LOAD
