User Manual

SINGLE-PHASE ACTIVE ENERGY METER

Read all the instructions carefully

The Energy-230 M50 micro static energy meter is a device for internal use

for counting active energy in single-phase 230V~ systems.

The current insertion is direct for values up to 50 A. The meter is compliant

with the directive (2014/32/EU) and is intended for use in mechanicalMID

environment of type M1 with low intensity shocks and vibrations and in

electromagnetic environment of type E2.

Code

Model

Description

VE798900 Energy-230 M50 micro Single-phase active energy meter 50A MID

SAFETY WARNINGS

During product installation and operation it is necessary to observe the

following instructions:

1) The product must be installed by a qualified person, strictly in observance

of the connection diagrams shown in this manual.

2) The product must be installed and activated in compliance with current

electric systems standards

3) After installation inaccessibility to the terminals without using dedicated

tools must be guaranteed

4) Do not use the product for anything other than the indicated purpose.

5) The product must be installed in an adequately protected closed electrical

panel.

6) The device must be installed inside a panel that guarantees a degree

of protection IP51 according with to EN 60529 standard

7) In the supply network there must be a bipolar disconnection.

8) In the electrical system upstream of the product must be installed a

protection device against the overcurrents.

9) Before accessing the connection terminals, make sure that the leads

are not live.

10) Do not connect or feed the product if any part of it is damaged.

TECHNICAL SPECIFICATIONS

• Power supply: 230 Vac 50 Hz

• Absorption: 10 VA (1W)

• Starting current: I

= 20 mA

• Minimum current: I

min

= 0,25 A

• Reference current: I

ref

= 5 A

• Maximum current: I

max

= 50 A

• Insertion type: direct for current inputs

• Signal LED: Flashing LED (1000 flashes per kWh)

• Display: LCD a 7 digit

• Energy display resolution: 0.01 kWh (full scale: 99999.99 kWh)

• Optoisolated pulse output for remote reading of counts

(1000 pulses/kWh)

• Pulse characteristics:

- Pulse duration = 80 ms

- Maximum voltage: 30 Vdc

- Maximum current: 27 mA

•

Container: 1 DIN module

• Class index: B

• Operating temperature: -25 ÷ 55 °C

• Storage temperature: -30 ÷ 70 °C

• Average relative humidity: ≤75% non-condensing

• Maximum humidity ≤95%

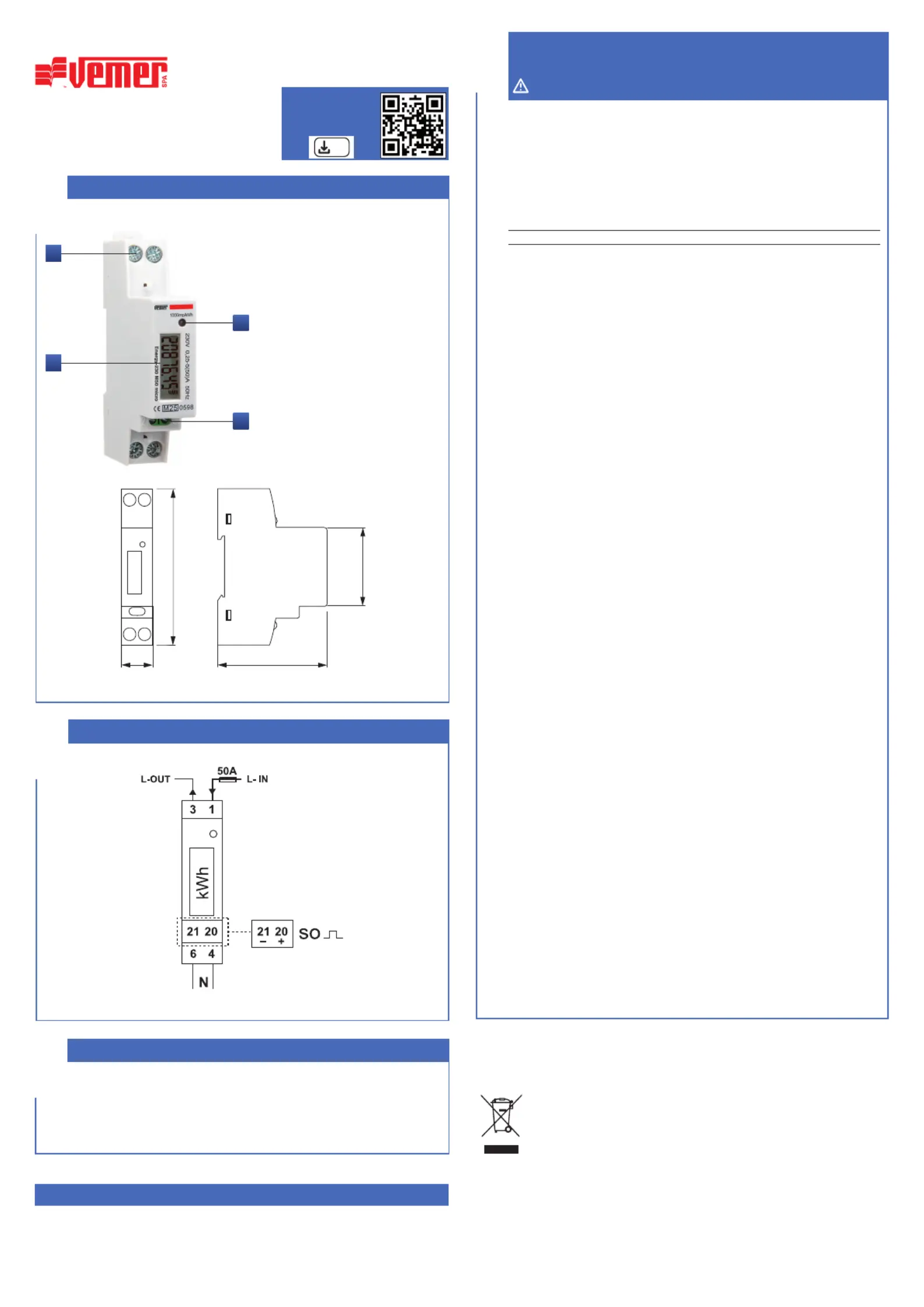

INSTRUMENT DESCRIPTION and DIMENSIONS

1 Terminals for direct insertion

of measuring conductors

2 LCD display with 5+2 digit counter

3 Pulse output terminals

4 LED indicator of absorbed energy

(ashing with frequency

1000 imp/kWh)

88*

* with installed contact covers height of 116 mm

Manuals

download

PDF

In normal operation the LED and the pulse output (terminals 20 and 21)

emit a signal with a frequency proportional to the measured energy

(1000 flashes every kWh).

The counter increments every 0.01 kWh

OPERATION

CONNECTION DIAGRAM
