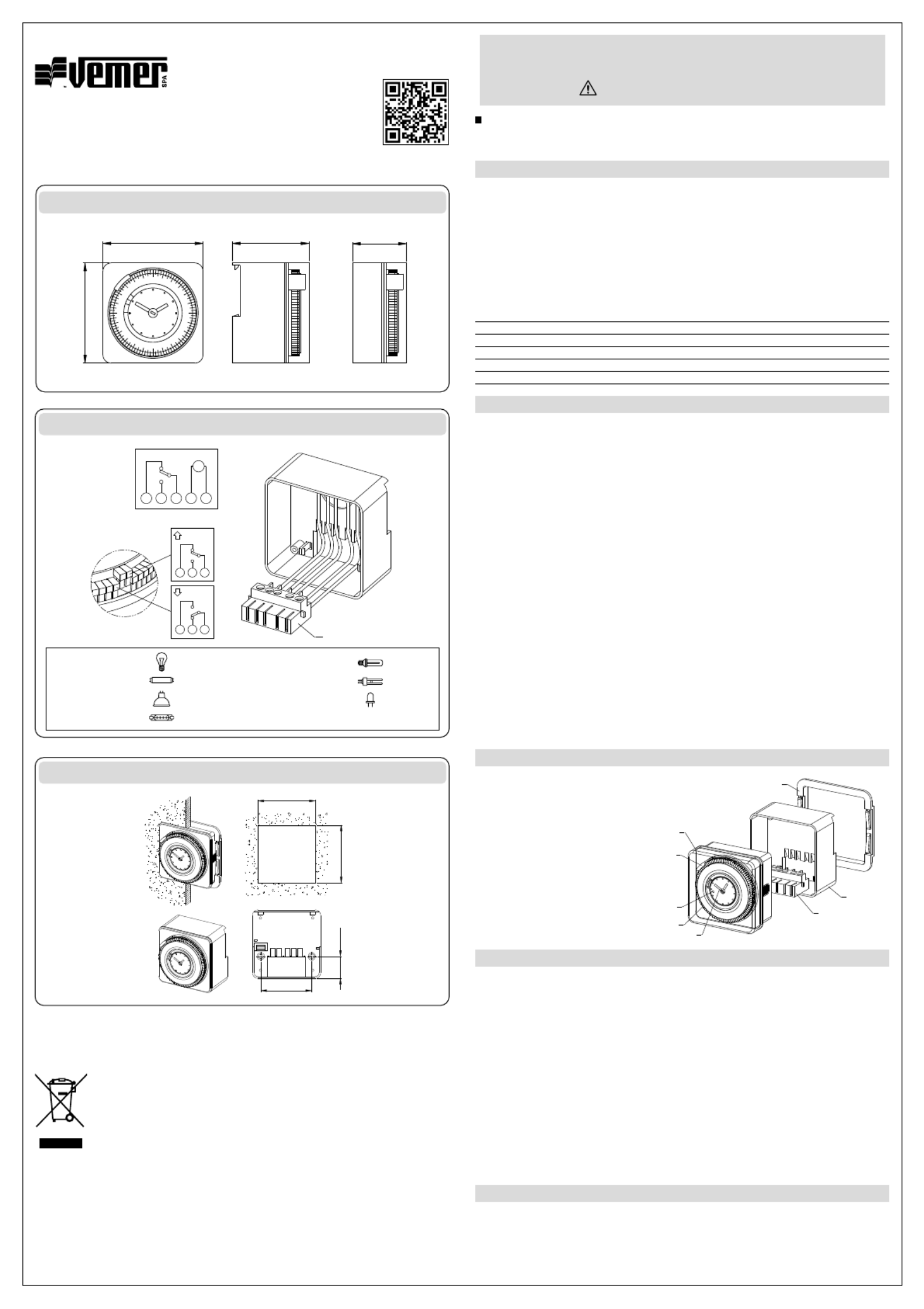

USER MANUAL

ELECTROMECHANICAL TIME SWITCH WITH TRIPPERS

Read carefully all instructions

The NAPA time switches are devices to cont rol any electrical load by means of daily (NAPA-D,

NAPA-RD, NAPA-ED) or weekly (NAPA-W, NAPA-RW) programs. They are designed for

household and similar operation with normal pollution levels.

SAFETY WARNINGS

1) The device must be installed and activated by qualified personnel, following the

connection diagrams provided in this manual scrupulously

2) After installation, it must be made impossible to access the terminals without

specific tools

3) Before accessing the connection terminals, verify that the leads are not live

4) Do not connect or power the device if any part of it is damaged

5) The device must be installed and activated in compliance with current electric

systems standards

6) Do not use the device for purposes other than those indicated.

Code Model Description

VP884100

NAPA-D

Electromechanical time switch with t rippers - daily

VE049300

NAPA-ED

Electromechanical time switch with t rippers - daily

VP886600

NAPA-RD

Electromechanical time switch with t rippers - daily

VP885800

NAPA-W

Electromechanical time switch with t rippers - weekly

VP887400

NAPA-RW

Electromechanical time switch with t rippers - weekly

TECHNICAL CHARACTERISTICS

• Power supply: 230 V~ 50/60 Hz

• Power consumption: 1.8 W

• Contacts capacity: 0.5 W

• Actions type: 1B

• Operating accuracy: ± 1 second/day at 23°C

• Type of dial:

- NAPA-D, NAPA-RD, NAPA-ED: 96 trippers

- NAPA-W, NAPA-RW: 84 trippers

• Minimum time of functioning:

- NAPA-D, NAPA-RD, NAPA-ED: 15 minutes

- NAPA-W, NAPA-RW: 2 hours (120 minutes)

• Switching accuracy:

- NAPA-D, NAPA-RD, NAPA-ED: 5 minutes

- NAPA-W, NAPA-RW: 30 minutes

• Manual control by 3 positions selector:

0 - Permanent disconnected (the set programming will be ignored)

» - Automatic operation

I - Permanent connected (the set programming will be ignored)

• Power reserve: 100 hours after an uninterrupted 48 hours power (not available on the NAPA-ED)

• Operating temperature: -10°C ÷ +45°C

• Protection class: II

• Protection category: IP20

• Installation:

- NAPA-RD, NAPA-RW: panel

- NAPA-D, NAPA-ED, NAPA-W: panel, DIN-rail or wall

DESCRIPTION

1 - Selector switch

2 - Indicator

3 - Trippers for programming

4 - Hours and minutes hands

5 - Accessory for panel mounting

6 - Transparent protection cover

7 - Extractable terminal block

8 - Accessory for wall or

DIN rail installation (only NAPA)

PROGRAMMING

• Remove the transparent protection cover on the front of the time switch.

• The possible operating modes are selectable through the manual control on the front:

I - Permanently closed circuit (terminals contact 3-2 in ON).

 » - Automatic operation.

O - permanently open circuit (terminals contact 3-2 OFF).

• For automatic operation of the inserter, position the selector in correspondence of the symbol .»

• Move upward all trippers of the external dial.

• Program the clock intervention by moving down the trippers in correspondence of the desired

intervention time. The number of the trippers downward, determines the duration of stay in

ON position of the contact between terminals 3 and 2. Each tripper corresponds to 15 minutes

(NAPA-D, NAPA-RD, NAPA-ED) or 2 hours (NAPA-W, NAPA-RW) of functioning.

• Set the current time and minutes by acting directly on the external dial, turning it clockwise.

• Place the transparent protection cover in its casing

• Give power to the time switch.

REFERENCE STANDARDS

Compliance with Community Directives: (LVD); (EMCD)2014/35/UE 2014/30/UE

is declared in reference to the harmonized standard: EN 60730-2-7

Vemer S.p.A.

ISCOM056-2111 Mod. NAPA-D ED RD/ /

Mod. NAPA-W RW/

NAPA NAPA-R

DIMENSIONS

72 38

CONNECTION DIAGRAM

1 2 3 4 5

N L

ON 1-3

1 2 3

ON 2-3

Incandescent

3000 W

Fluorescent (neon)

1200 VA

Low voltage halogen

2000 VA

Halogen 230 V

~ 3000 W

Low consumption (CFL) 1000 VA

Low consumption (CFL)

900 VA

Led

200 VA

Extractable terminal block

NAPA

NAPA-R

DIME HOLE

information to users pursuant to art. 14 of the directive

2012/19 / EU of the european parliament and of the council

of 4 july 2012 on waste electrical and electronic equipment (WEEE)

If the crossed-out bin symbol appears on the equipment or packaging,

this means the product must not be included with other general

waste at the end of its working life.

The user must take the worn product to a sorted waste center,

or return it to the retailer when purchasing a new one.

Products for disposal can be consigned free of charge (without any new purchase obligation)

to retailers with a sales area of at least 400 m

2, if they measure less than 25 cm.

An efﬁcient sorted waste collection for the environmentally friendly disposal of the used device

or its subsequent recycling, helps avoid the potential negative effects on the environment

and people’s health, and encourages the re-use and/or

recycling of the construction materials.
