Side 1/4

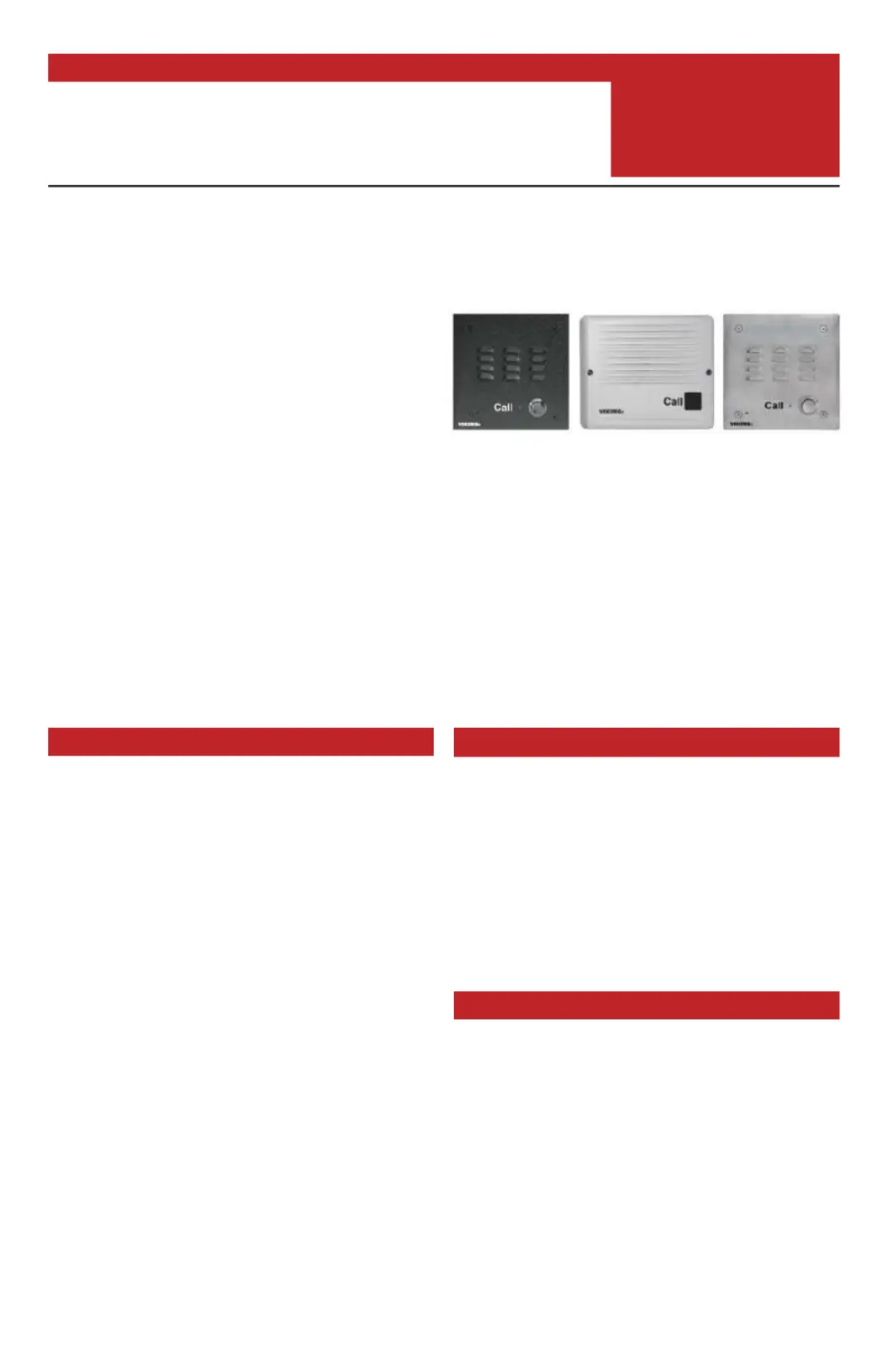

PRODUCT MANUAL

Designed, Manufactured and Supported in the USA

C O M M U N I C AT I O N & S E C U R I T Y S O L U T I O N S

Answer Your Door or Gate from the Safety of

Any Phone in Your Home or Business

Features

The W-Series handsfree doorboxes are available in

three different chassis configurations. The W-1000

has an aluminum faceplate with black textured powder

paint and call progress LED. The W-2000A provides

a surface mount light grey UV stable plastic chassis.

The W-3000 provides an attractive vandal resistant

stainless steel faceplate and call progress LED. The

W-Series are designed to interface directly with an

unused analog telephone line input of phone system.

One or two doorboxes can also share an existing

phone line when used with a doorboxC-1000B

controller.

When the “ “ button is pressed, the doorboxCall

generates a standard or custom ring cadence of an

adjustable number of rings. For noisy environments,

the doorbox’s new louder speaker output and

“Push-to-Talk” feature can be used.

The EWP versions share all of the features of the

standard W-Series in addition to Enhanced Weather

Protection (EWP) for outdoor installations where the

unit is exposed to precipitation or condensation. EWP

products feature foam rubber gaskets and boots,

sealed connections, gel-filled butt connectors, as well

as urethane or thermal plastic potted circuit boards

with internally sealed, field-adjustable trim pots and

DIP switches for easy on-site programming. For more

information, see .DOD 859

• W-1000 Faceplate: Vandal resistant 12 gauge

louvered aluminum with weather resistant black

textured powder paint and UV stable white silk

screened graphics.

• W-2000A Chassis: Impact resistant, UV stable, light

grey Geloy plastic with black UV stable pad printed

graphics. Surface mount only.

• W-3000 Faceplate: Vandal resistant 14 gauge

louvered 316 marine grade stainless steel with #4

brushed finish and permanent laser etched graphics.

• Connect to a phone system’s unused trunk input, FXO

port or a Viking ControllerC-1000B

• Marine grade 316Weather Resistant Features:

stainless steel screws and push button switch

(W-1000/W-3000). Switch internally sealed per IP67.

Mylar speaker. Self-draining mic mount. Faceplate,

mic and speaker gaskets.

• Blue call progress / night light LED (W-1000/W-3000)

• High output speaker amplifier with volume adjustment

• Microphone volume adjustment POT

• 40 volt talk battery

• 20 Hz ring generator (6.0 REN ring load maximum)

• Selectable ring cadence (standard, double,

short/short/long, or short/long/short)

• Selectable number of rings (2, 3, 10 or 30)

• Selectable “Push-to-Talk” feature for noisy

environments

• Operating temperature range: -15°F to 130°F

• EWP versions are designed to meet IP66 Ingress

Protection Rating (see for more info)DOD 859

• Ideal for noisy locations in “Push-to-Talk” mode

• Commercial, industrial or residential door security

• Door or gate communication

• Truck stop/gas station fuel island communication

• Use with the controller for single lineC-1000B

residential systems or when the operation of door

strikes or gate openers is necessary (see )DOD 155

Power: 120V AC/13.8V AC 1.25A UL listed adapter provided

W-1000/W-3000 Dimensions: Overall - 5.0” x 5.0” x 2.25”

(127mm x 127mm x 57.2mm) Plastic Rough-In Box - 4.0” x

4.0” x 2.12” (102mm x 102mm x 54mm)

W-2000A Dimensions: 5.5” x 4.5” x 1.7” (140mm x 115mm x

43mm)

Shipping Weight: 4 lbs (1.81 Kg)

Operating Temperature: -15°F to 130°F (-26°C to 54°C)

Humidity - Standard Products: 5% to 95% non-condensing

Humidity - EWP Products: Up to 100%

Ringer Output: 20 Hz, 6.0 REN load maximum

Maximum Line Loop Length with 24 AWG Twisted Pair:

6300 ft (1.9 Km)

Maximum Power Run Length with CAT5 Wire: 1 pair =

150ft, 2 pair = 300ft, 3 pair = 450ft Note: Power run length

may be increased, see sectionWiring

Connections: (4) gel filled butt connectors

W-Series

Vandal Resistant

Handsfree Doorboxes

January 4, 2019

Applications

Specifications

www.VikingElectronics.com

Information: 715-386-8861

VIKING

W-1000/

W-1000-EWP

Flush Mount

Black Powder

Painted Aluminum

W-2000A/

W-2000A-EWP

Surface Mount Light

Grey UV Stable

Plastic Chassis

W-3000/

W-3000-EWP

Flush Mount

Brushed 316

Stainless Steel

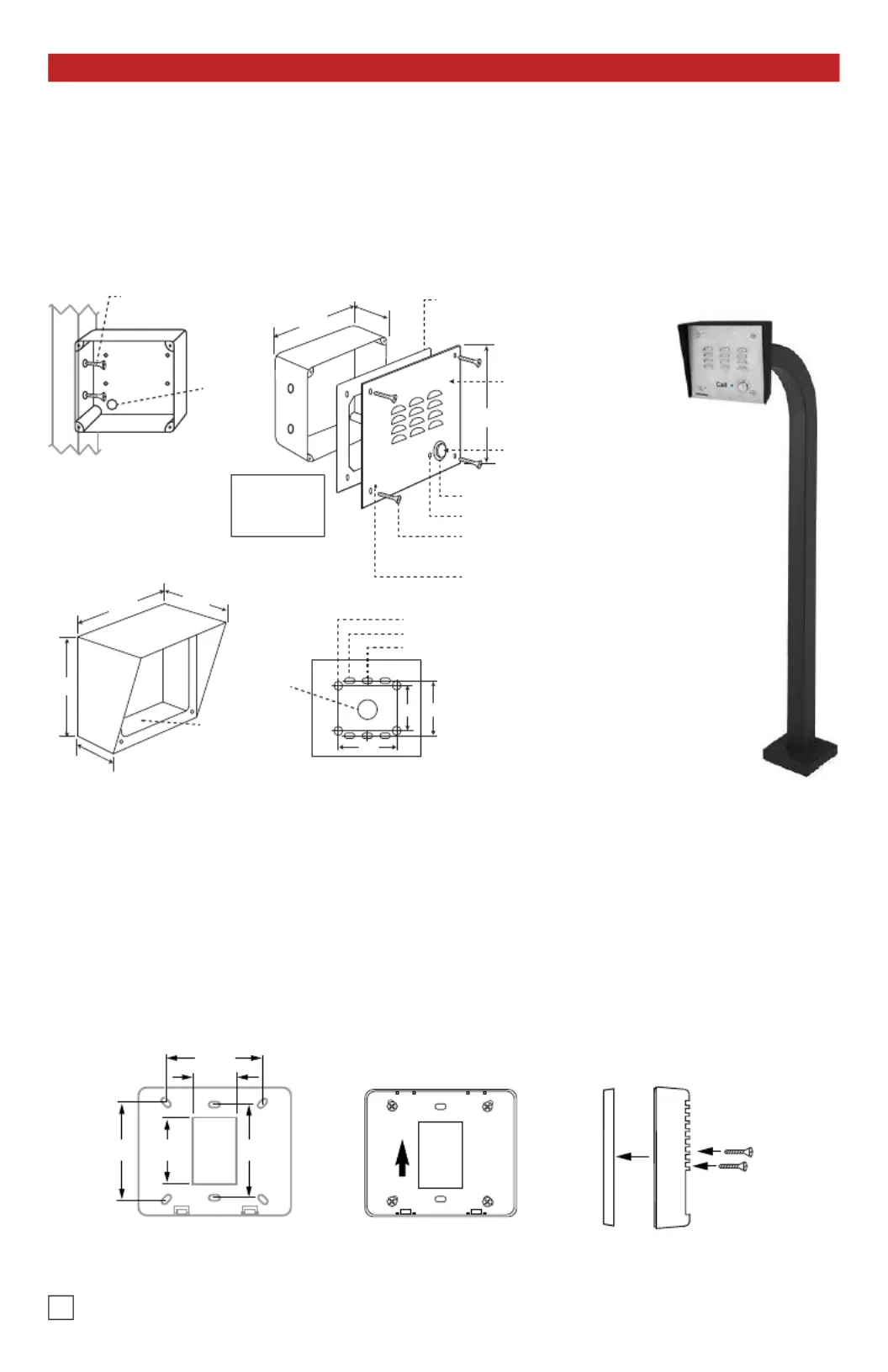

Installation

IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges from both the AC

outlet and the telephone line. It is recommended that a surge protector be installed to protect against such surges.

Caution: When warm air comes in contact with cold surfaces, such as outside walls, it causes condensation. To

help prevent condensation from accumulating inside the , bring conduit into the bottom of the unit.W-1000/3000

If this is not possible, drill a 1/4” diameter hole in the bottom of the plastic rough-in box.

A. Mounting the W-1000 and W-3000

Front View of Optional

VE-5x5 Surface Mount

Box (not included)

2.25”

Condensation

Drain Hole

5.14”

5.22”

3.25”

Call

4.0"

Rear View of VE-5x5

(not included)

5.0” Typical

W-3000-EWP

shown with

optional

Viking Model

VE-5X5

Surface

Mount Box

and

VE-GNP

Gooseneck

Pedestal

(4) 0.38” diameter (for gooseneck mounting)

(4) 0.2 x 0.43 slots for double gang box

(2) 0.2 x 0.43 slots for single gang box

(1) 0.74"

diameter

3.0” 3.3”

3.0”

2.1”

Wall Stud

*Included Plastic

Rough-In Box

(part # 259576)

Wire

knock-out

Push to Call Button

Blue Call Progress/Nightlight LED

(4) 6-32 X 3/4” Marine grade 316 stainless

steel, flat head, T-10 Torx head security

screws and drive bit (included)

Condensation Drain Hole

* Note: www.vikingelectronics.comThe plastic rough-in box (part # 259576) may be purchased separately in advance. Go to

and click on “spare parts”. Note that (1) plastic rough-in box comes with the unit.

The optional Surface Mount Box is VE-5x5

designed to be surface mounted to a single

gang box, double gang box or VE-GNP

gooseneck pedestal (right). For more

information on the and see VE-5x5 VE-GNP

DOD# 424.

1/8" thick foam gasket (included): Peel off paper

liner and adhere gasket to the back of the faceplate,

centering it over the four corner mounting holes.

Marine grade 316 stainless

steel faceplate (W-3000 only)

Marine grade 316 stainless

steel push button switch

(sealed per IP67)

Important: The

W-1000 W-3000 or

will mount to NOT

a standard double

gang box.

(2) Standard flat head

dry wall (sheet rock)

screws (not included)

Optional VE-5x5 Surface

Mount Box (not included)

3.40”

3.30”

2.35”3.40”

1.55”

Mount the back panel to a

wall, a single gang box or

a 4” x 4” junction box with

the arrow pointing up.

Attach the cover to the

base with the two included

screws as shown.

Internal View of the back panel

W-2000A / W-2000A-EWP

Side View of the

W-2000A / W-2000A-EWP

Rear View of the

W-2000A / W-2000A-EWP

Mounting Specifications

B. Mounting the W-2000A

The and W-2000A W-2000A-EWP are designed to be surface mounted to a single gang box (not included), a

standard 4” x 4” electrical junction box (not included), or directly to a wall or flat sided post.

Note: For outdoor applications apply a bead of caulk between back panel and wall.
