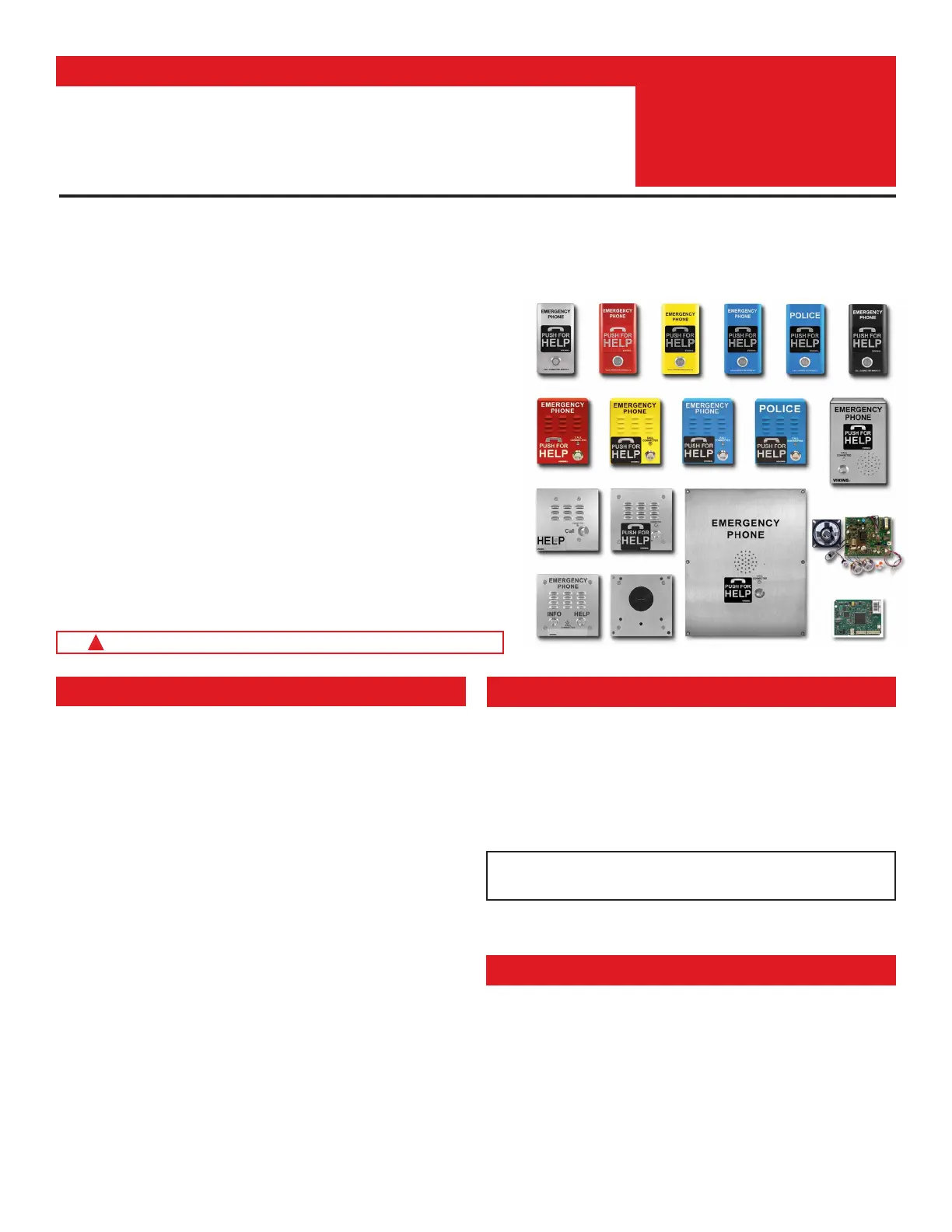

Side 1/34

Features Applications

Specifications

www.VikingElectronics.com

• Automatic polling and programming software included

• 2 Amp relay contacts for door/gate or SL-2 strobe light control

• SIP compliant (see page 2 for more information)

• Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging

• PoE powered (class 1, <4 Watts)

• Automatic Noise Canceling (ANC) feature for proper operation in noisy areas

• VoIP eliminates the need for “Push to Talk” mode

• Network downloadable firmware

• Meets ADA requirements for Emergency Phones:

- Automatically lights the Red “Call Connected” LED

- Transmits a unique location I.D. code or voice announcement

- Grade 2 Braille label for the visually impaired

• Non-volatile digital voice announcer with 28 seconds of voice memory

• Handsfree operation

• Marine grade 316 stainless steel prevents corrosion on the stainless steel models

• Laser etched graphics on stainless steel models

• Dials up to 5 emergency numbers

• , E-1600-20-IP E-1600-22-IP, E-1600-52-IP, E-1600-TP2IPEWP and dial up to 5

non-emergency “INFO” numbers

• Cycles through backup phone numbers on busy or no-answer

• Optional Enhanced Weather Protection (EWP), EWP products are designed to meet

IP66 Ingress Protection Rating, see DOD 859

• Hangs up on busy signal, time-out or touch tone command

• Extended temperature range (-40°F to 140°F)

• 11 different chassis or board only available

• Available in 42” tower phone model E-1600-BLTIPEWP DOD 249 ( )

• Optional LV-1K Line verification Panel (DOD 246 )

• Optional Polling System available ( ) PB-100 DOD 232

• Optional or strobe light kit available ( ) SL-2 BLK-4-EWP DOD 242/654

• Optional Pedestal Mounting Kit ( ) E-1600A-MK-GNP DOD 227

• Optional Panic Button Kit ( ) PB-1 DOD 233

• Diagnostics for testing microphone, speaker, and relay

Power: PoE class 1 (<4 Watts)

Maximum Sound Pressure: 95 dB SPL @ 1m

Dimensions: See Installation and Specifications

Operating Temperature: -40°F to 140°F (-40° C to 60° C)

Humidity - Standard Products: 5% to 95% non-condensing

Humidity - EWP Products: Up to 100%

Audio Codecs: G711u, G711a, G722

Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with

auto cross over

Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A

Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors

* Americans with Disabilities Act of 1992 contains federal

regulations regarding elevator telephones (Public Law 101-336).

• Elevators

• Parking ramps/lots

• Emergency pool phones

• ATM machines

• Medical centers

• Silent hold-up alarm dialer

with an optional Panic PB-1

Button Kit ( )DOD 233

• Area of refuge locations

• Lobbies

• Entryways

• Campus emergency stations

• Stadiums

• Convention centers

• Public access areas

ADA & CE Compliant VoIP Emergency Phones

with Built-In Dialer and Digital Voice Announcer

The 1600-IP Series of ADA Compliant VoIP Emergency Phones are designed to

provide quick and reliable handsfree communication for SIP VoIP phone systems

with PoE. All phones meet ADA requirements for elevator or1600-IP Series

emergency telephones, and can be programmed from any touch tone phone or

PC on the same LAN or remotely using a static IP address. The phones can dial

up to 5 programmable emergency numbers. In addition, the E-1600-20-IP,

E- -1600 22-IP E-1600-52-IP E-1600-TP2IPEWP INFO, and feature a second " "

button that will dial up to 5 non-emergency numbers. Two amp relay contacts are

provided for strobe light, camera, door/gate control, etc.

The 1600-IP Series phones can be programmed to automatically deliver a digital

announcement to identify the location of the emergency call. Alternatively, a DTMF

touch tone code may also be delivered. A “Call Connected” LED can be initiated

manually or automatically. All programming parameters, including phone numbers

and location numbers, are stored in non-volatile memory, requiring no batteries.

All units are PoE powered.

For outdoor installations where the unit is exposed to precipitation or condensation,

select 1600-IP Series phones are available with Enhanced Weather Protection

( EWP). EWP products are designed to meet IP66 standards and may feature foam

rubber gaskets, sealed connections, gel-filled butt connectors, as well as potted

circuit boards with internally sealed, field-adjustable trim pots and DIP switches for

easy onsite programming. For more information on EWP, see DOD 859.

PRODUCT

MANUAL

Designed, Manufactured and Supported in the USA 1600-IP Series

ADA Compliant VoIP

Emergency Phones

October 2, 2023

SECURITY & COMMUNICATION

VIKING

E-1600-45-IPE-1600-IP

E-1600-03-IP

E-1600-20-IP E-1600-55-IP

E-1600-30-IP

E-1600-65-IP E-1600-60-IP

E-1600-32-IP

E-1600-SS-IP E-1600-RD-IP E-1600-YL-IP E-1600-BL-IP E-1600-BLP-IP E-1600-BK-IP

E-1600-02-IP/E-1600-TP-IPEWP

E-1600-TP2IPEWP/E-1600-GT-IPEWP

E-1600-50/52-IP

E-1600-53-IP

Installation requires a Network Administrator / IT Technician

VoIP SIP System Compatibility

For compatibility and vendor specific detailed configuration instructions, see the Viking VoIP

SIP System Compatibility List, DOD 944. To open and download this PDF file:

1. Go to www.vikingelectronics.com

and enter in the search box 944

2. Click Application Note (DOD 944)

to open and download the PDF

Scan the QR code below to open

and download the Viking VoIP

SIP System Compatibility List - OR -

Important: Exclusion from this list means only that compatibility has not been verified, it does not mean

incompatibility. If you have questions, please call Viking Electronics at 715-386-8861.

Definitions

Client: A computer or device that makes use of a server. As an example, the client might request a particular file from the server.

DHCP: Dynamic Host Configuration Protocol. In this procedure the network server or router takes note of a client’s MAC address and assigns an IP

address to allow the client to communicate with other devices on the network.

DNS Server: A DNS (Domain Name System) server translates domain names (ie: www.vikingelectronics.com) into an IP address.

Ethernet: Ethernet is the most commonly used technology. An Ethernet Local Area Network typically uses twisted pair wires to achieve transmissionLAN

speeds up to 1Gbps.

Host: A computer or device connected to a network.

Host Name: A host name is a label assigned to a device connected to a computer network that is used to identify the device in various forms of network

communication.

Hosts File: A file stored in a computer that lists host names and their corresponding IP addresses with the purpose of mapping addresses to hosts or vice

versa.

Internet: A worldwide system of computer networks running on IP protocol which can be accessed by individual computers or networks.

IP: Internet Protocol is the set of communications conventions that govern the way computers communicate on networks and on the Internet.

IP Address: This is the address that uniquely identifies a host on a network.

LAN: Local Area Network. A LAN is a network connecting computers and other devices within an office or building.

Lease: The amount of time a DHCP server reserves an address it has assigned. If the address isn’t used by the host for a period of time, the lease can

expire and the address can be assigned to another host.

MAC Address: MAC stands for Media Access Control. A MAC address, also called a hardware address or physical address, is a unique address assigned

to a device at the factory. It resides in the device’s memory and is used by routers to send network traffic to the correct IP address. You can find the MAC

address of your phone printed on a white label on the top surface of the PoE LAN port. 1600-IP Series

Router: A device that forwards data from one network to another. In order to send information to the right location, routers look at IP Address, MAC

Address and Subnet Mask.

RTP: Real-Time Transport Protocol is an Internet protocol standard that specifies a way for programs to manage the real-time transmission of multimedia

data over either unicast or multicast network services.

Server: A computer or device that fulfills requests from a client. This could involve the server sending a particular file requested by the client.

Session Initiation Protocol (SIP): Is a signaling communications protocol, widely used for controlling multimedia communication sessions such as voice

and video calls over Internet Protocol ( ) networks. The protocol defines the messages that are sent between endpoints, which govern establishment,IP

termination and other essential elements of a call.

Static IP Address: A static IP Address has been assigned manually and is permanent until it is manually removed. It is not subject to the limitationsLease

of a Dynamic IP Address assigned by the DHCP Server. The 1600-IP Series has DHCP enabled by default. If it is not able to obtain an IP address from

the network server or router, it falls back to a last known IP address. If the network settings in the are reset using the call switch (See1600-IP Series

Section F on page 21) and the is not able to obtain an IP address from the network server or router, the forgets the last1600-IP Series 1600-IP Series

known IP address and falls back to a default static IP address of: 192.168.154.1

Subnet: A portion of a network that shares a common address component. On TCP/IP networks, subnets are defined as all devices whose IP addresses

have the same prefix. For example, all devices with IP addresses that start with 100.100.100. would be part of the same subnet. Dividing a network into

subnets is useful for both security and performance reasons. IP networks are divided using a subnet mask.

TCP/IP: Transmission Control Protocol/Internet Protocol is the suite of communications protocols used to connect hosts on the Internet. TCP/IP uses

several protocols, the two main ones being TCP and IP. TCP/IP is built into the UNIX operating system and is used by the Internet, making it the de facto

standard for transmitting data over networks.

TISP: Telephone Internet Service Provider

WAN: Wide Area Network. A WAN is a network comprising a large geographical area like a state or country. The largest WAN is the Internet.

Produkt Specifikationer

Mærke:	Viking
Kategori:	Intercomsystem
Model:	E-1600-53-IP
Kode for international beskyttelse (IP):	IP66
Bredde:	267 mm
Dybde:	51 mm
Højde:	330 mm
Vægt:	3180 g
Antal pr. pakke:	1 stk
Produktfarve:	Rustfrit stål
Produkttype:	Sæt med reservedele
Relativ luftfugtighed ved drift (H-H):	0 - 100 %
Driftstemperatur (T-T):	-26 - 54 °C
Husmateriale:	Rustfrit stål
Støjniveau:	62 dB
Forbindelsesteknologi:	Ledningsført
Certificering:	EWP\nIP66\nFCC Part 68\nFCC Part 15\nADA
Placering:	Væg
Nem at installere:	Ja
Antal knapper:	1
Antal udendørs enheder:	1
DC indgangsspænding:	30 V
Strøm over Ethernet (PoE):	Ja
