VIVO .TEK INC
6F, No.192, L ., C , Ne ipei Ci , 235, n, R.O.Cien-Cheng Rd hung-Ho w Ta ty Taiwa .
|T: + 6-88 2-82455282|F: + 2886-2-8245553 |E: sale vivo k.coms@ te
VI T A .VO EK US , INC
2050 ingwood venR A u a o 1e, S n J se, CA 9513
|T: 408-773-8686 |F: 408-773-8298 |E: s sus iv om ale a@v otek.c
VIVOT peEK Euro
Ra ad Almer h t rla sndst 22-133, 1316BW e, T e Ne he nd
- OR - - OR -
ConsoleNVRRouter / switch
100-240VAC
Power socket
Grounding screw
1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 6 UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz), for a max. consumption of 380W.

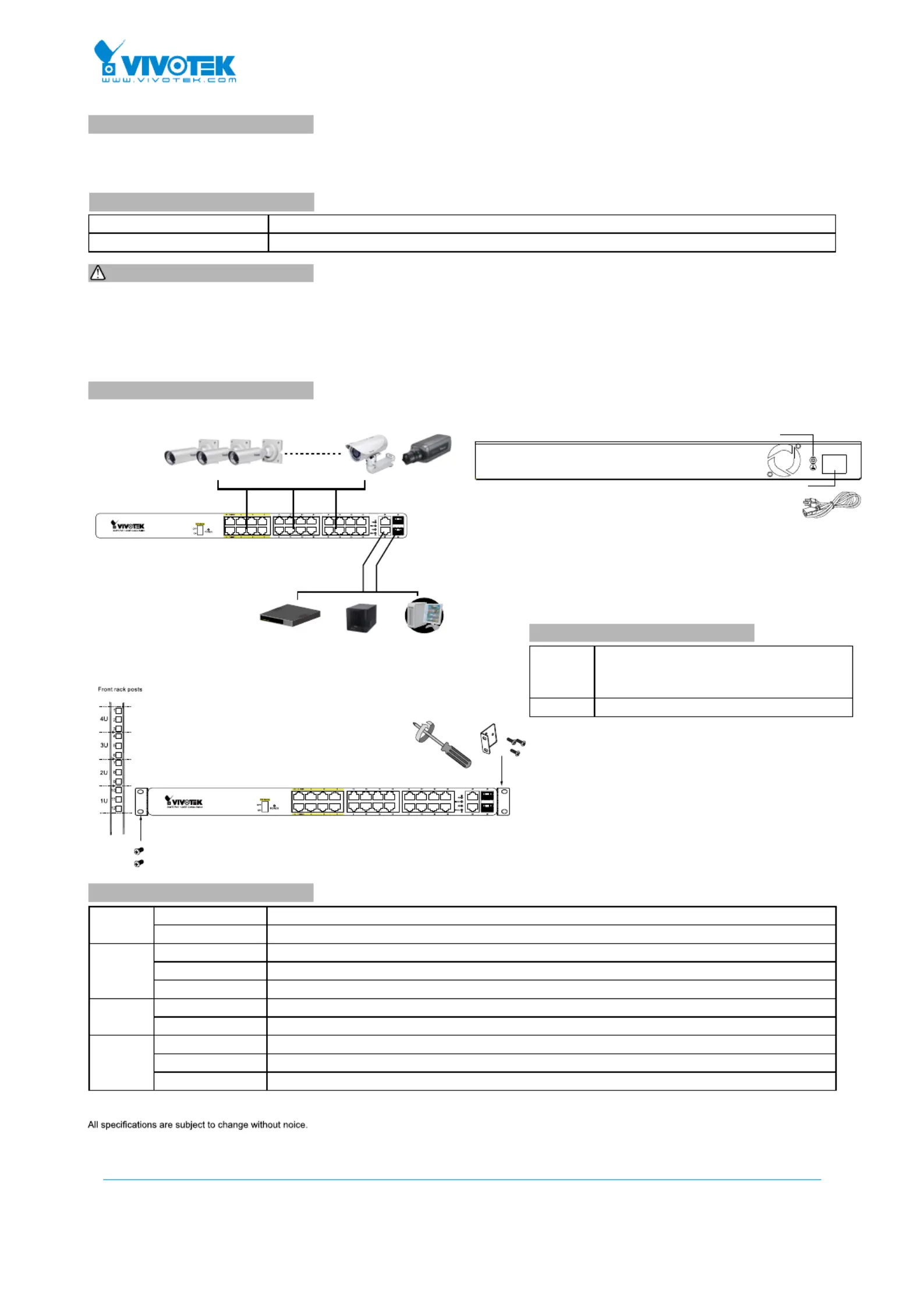

AW-FGT-260C-380 PoE Switch
Quick Installation Guide
The AW-FGT-260C is a 24 port 10/100BaseT unmanaged PoE switch capable of feeding 15.4/30W (54V max. per port)
power to Power over Ethernet (PoE) devices. It comes with another 2 GbE combo ports. The switch is capable of a total
of 370 Watts power budget.
IMPORTANT:
INTRODUCTION
LED DEFINITIONS
CONNECTION
* 1x PoE switch * 1x Quick Installation Guide
* 2x rack mount ears * 1x power cord (type by the shipped-to area)
PACKAGE CONTENTS
Front Panel Rear Panel
Copyright © 2017 VIVOTEK INC. All rights reserved.
POWER Orange ON Power is on and normal.
Orange Off Power is off.
Link/Act Green ON Ethernet port is connected.
Green Off No connection
Green Blinking Data is being transmitted or received.
GbE Green ON Link speed at 1000Mbps.
Green Off Link speed at 10/100Mbps.
PoE Orange ON Port is linked to a powered device.
Orange Off No device is connected.
Orange Blinking Abnormal power supply is detected.
EX ON Ports 1 ~ 8 up to 200m PoE distance.
When enabled, each port is isolated, but
is linked to the uplink ports.
EX OFF Normal communication for ports 1 ~ 24
• EX m a ( ): camera ode in 802.3 f/at 15.4W/30W
connection up to 200m@10Mbps via EXPoE ports
Restart the switch after changing the Extensive
mode.
EX mode DIP switch
The switch already comes with lightning protection mechanism.
You should always ground the switch through the PE (Protecting
Earth) cable of AC cord or with ground cable, not grounding the power
may cause the power input to damage the unit.

Produkt Specifikationer

Mærke: Vivotek
Kategori: Ikke kategoriseret
Model: AW-FGT-260F-380
