Side 1/4

IMPORTANT

For best performance and your safety, please read and familiarize yourself

with these instruction before using the tool.

1. Avoid dropping the tool or causing hard shocks as the ceramic burner or

fuel view window could be damaged.

2. Use an exhaust fan when using tool in an enclosed space.

3. Do not ﬁll tool with gas or store near open ﬂame, heater, furnace or

combustible materials.

4. Do not store in direct sunlight or anywhere that will exceed 40°C or 104°F.

5. Keep out of reach of children.

6. When not in use ensure the gas ON/OFF lever is in the OFF position.

7. Do not attempt to change soldering or hotblow tips or perform any kind of

maintenance while tool is still hot.

8. Do not misuse, abuse, alter or tamper with the tool in any way.

Only authorized people should carry out repairs.

9. Do not speed cool hot parts in water. Allow to cool naturally.

10. When operating at low temperatures, around 0°C or 32°F or lower, ignition

may be difﬁcult. Hold handle in warm hands for a few minutes until liquid

fuel gasses. Never use an open ﬂame or hot water to warm fuel.

11. Do not use alcohol or alcohol based cleaner on fuel window.

OPERATING PROCEDURE

1. It is most important to ensure that the exhaust opening in the tip is pointed

upwards, as above, when ﬁtting the tip. At all times ensure the opening is

facing away from hands and combustible materials when the tool is ignited

as the exhaust temperature is very high. The tip housing can aslo reach high

temperatures. Ignition problems will result if ignition is attempted with tip

or tip housing removed.

2. Set gas control lever to 3, set gas ON/OFF

lever to ON. In cold temperature or immediately

after ﬁlling gas, it may be necessary

to use a higher setting than 3.

3. Push the ignition button slowly to ignite the tool.

4. Wait until the window at the base of the tip goes

red. If the tool fails to ignite repeat step 3.

5. Adjust tip temperature with gas control lever.

6. To turn off slide the gas ON/OFF lever to the left

until it clicks OFF.

Note, the gas control lever will turn the toolnot

off.

It is recommended to leave the gas control set at

5 if the tool is not going to be used for long

periods. This will keep the fuel wick in good full

ﬂow condition.

SELF-IGNITING

CORDLESS PYROPEN

WPA2N / WSTA4

GAS-FILLING

Use Weller gas reﬁll part no T0051616099 only.

1. Check gas level through window in handle.

2. Be sure the gas ON/OFF lever is at "OFF" position.

3. Hold the Pyropen

handle with tip pointing downward and,

reﬁll nozzle in upright position. Insert nozzle of gas container

and press down.

4. As soon as the Pyropen

is ﬁlled, gas will overﬂow.

5. Conﬁrm the gas reservoir is full by checking gas level in

the sight glass.

TIP CHANGING PROCEDURE

1. Unscrew knurled tip housing nut clock-wise and remove

housing.

2. Remove old tip and postion new tip.

3. Slide housing in place and tighten housing nut.

Back off one turn then turn housing until igniter pin clicks

into slot in housing lip.

4. Position tip so that exhaust opening is facing up.

5. Tighten knurled housing nut.

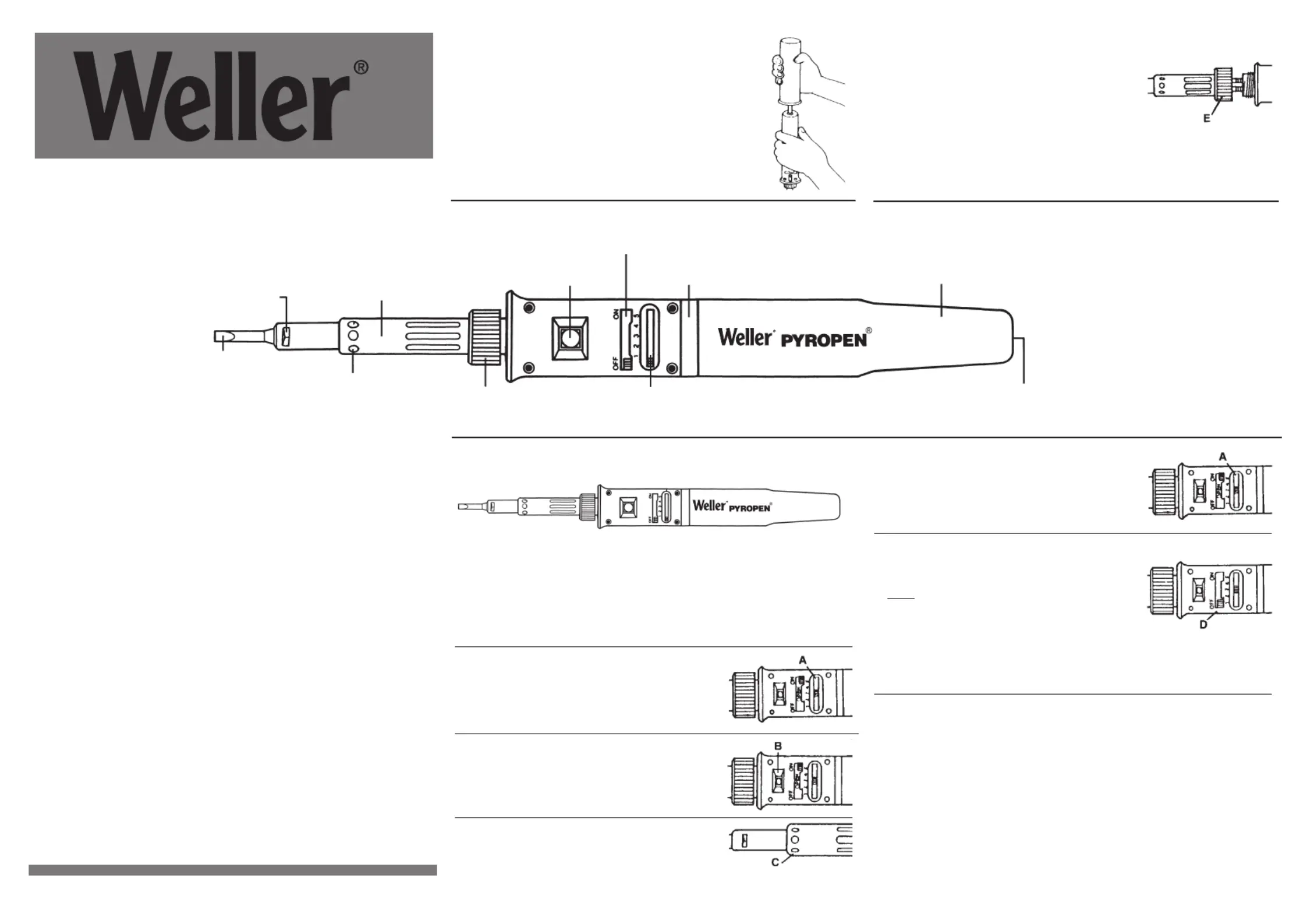

G Tip

Exhaust opening

F Tip housing

C Window

E Kurled nut

B Ignition button

D ON/OFF Lever

A Control Lever

1-5

Gas Lever window

Handle containing butane gas

Gas reﬁll nozzle

ACCESSORY TIPS

Soldering tips

Part No. Description

1 WPT-1 Tapered needle

2 WPT-2 Chisel

3 WPT-3 2.0 mm Ø spade

4 WPT-4 3.0 mm Ø spade

5 WPT-5 Tapered needle

6 WPT-6 Micro spade

7 WPT-7 Tapered pyramid

8 WPT-8 2.0.mm Ø, 35°, spade

9 WPT -9 3.0 mm Ø, 35°, spade

10 WPT-10 Offset tapered needle

11 WPT-11 High powered chisel, 8.0 mm width

12 WPT-12 High powered round head needle,

3.0 mm Ø

13 WPT-13 High powered long taper chisel,

5.0 mm width

14 WPT-14 8.4 mm Ø, Tip adapter

(with thread M4 e.g. for hot-knife)

Hot blow nozzles

Part No. O.D. (mm) I.D. (mm)

15 WHC-50 2.5 1.5

16 WHC-51 4.25 3.3

17 WHC-52 5.7 4.9

18 WHC-53 8.0 7.4

19 T0051615999 Shrinking attachment,

radius 6.0 mm/8.0mm

20 T0051637599 Ejector unit

HOW TO CHANGE BURNER / EJECTOR

To remove

Change ejector unit when gas does not flow,

ceramic burner is broken or used up after certain

time of use, etc.

1. Loosen knurled nut to remove tip and tip

housing.

2. Insert the accessory bar into the hole at ejector

turn clockwise. (Be careful not to damage the

white ceramic portion of the unit!)

To mount

1. Mount new ejector in the place of the removed

one and tighten with the accessory bar.

2. Mount the tip and tip housing and tighten

knurled nut.

HOW TO USE AS TORCH

1. To remove the soldering tip and tip receptacle,

undo the knurled nut.

2. Replace the soldering tip with the hot air nozzle. The ignition

system is the same as for the soldering iron.

SPECIFICATIONS

Length including soldering tip 265 mm / 10- 7/16"

Weight including gas ﬁlling 117 grams / 4.1 oz.

Temperature values Soldering Iron

250°-500°C / 482°-932°F

Hot Blow

650°C / 1202°F

Burning time per gas ﬁlling 2 hours with gas control lever

set at 2.

Filling quantity 28 cc / 1.71 cu. in.

If the tool is normally used in places of extreme temperature, either hot or

cold, or at high altitude, ignition may be difﬁcult. This is due to the extremes

affecting the gas pressure. Gas control settings will also be affected and

will vary from those under normal conditions. If difﬁculties are experienced

please contact your Weller Tools Service Centre for advice.

GERMANY

Weller Tools GmbH

Carl-Benz-Str. 2

74354 Besigheim

Phone: +49 (0) 7143 580-0

Fax: +49 (0) 7143-580-108

USA

Apex Tool Group, LLC

1000 Lufkin Road

Apex, NC 27539

Phone: +1 (866) 498-0484

Fax: +1 (919) 387-2639

AUSTRALIA

Apex Tool Group Pty Ltd

P.O. Box 366

519 Nurigong Street

Albury, N.S.W. 2640

Phone: +61 (02) 6058-0300

Fax: +61 (02) 6021 7403

Email: apextoolaus@apextoolgroup.com

Web: apextoolgroup.com.au

1. Loosen knurled nut to remove tip and tip

housing.

2. Replace with hot blolw nozzle.

Ignition is the same as for soldering.

HOW TO USE THE HOT BLOW NOZZLE TROUBLE-SHOOTING

Problem Possible reason Correction

Does not light. Empty tank. Reﬁll with butane gas.

Clogged ejector. Replace with new

ejector.

Gas pressure too high Slide control lever to

or too low. lower or higher position.

Tip does not Used-up catalyst. Replace with new tip.

heat up.

Insufﬁcient gas pressure Reﬁll with butane gas.

Clogged ejector. Replace with new

ejector.
