Side 1/15

Page1of15



©Copyright2018WESCOIndustrialProducts,LLC.Specificationssubjecttochange.Notresponsibleforerrorsoromissions



Table of Contents

1 General Information ............................................................................................................. 2

1.1 Description.............................................................................................................. 2

1.2 Specifications.......................................................................................................... 2

2 Pre-Operation Assembly....................................................................................................... 3

3 Safety Information...................………................................................................................... 3

4 Maintenance......................................................................................................................... 3

5 Operation.............................................................................................................................. 4

5.1 Transportation/Loading/Unloading........................................................................... 4

5.2 Lifting and Lowering the Platform............................................................................ 4

5.3 Battery...................................................................................................................... 4

5.4 Charger.................................................................................................................... 4

6 Trouble Shooting................................................................................................................... 5

7 Electrical Diagrams............................................................................................................... 6

7.1 Circuit Diagram

(Units Manufactured After June 2014)

........................................... 6

7.2 Electric Panel Diagram

(Units Manufactured After June 2014)

............................... 6

7.3 Circuit Diagram

(Units Manufactured Before June 2014).

....................................... 7

7.4 Electric Panel Diagram

(Units Manufactured Before June 2014)

............................ 7

8 Part Information

(Units Manufactured After June 2014)

......................................................... 8

8.1 Frame Part Diagram................................................................................................ 8

8.2 Frame Part List........................................................................................................ 9

8.3 Handle & Platform Part Diagram.............................................................................. 10

8.4 Handle & Platform Part List...................................................................................... 10

8.5 Electrical Box Diagram............................................................................................. 11

8.6 Electrical Box Part List............................................................................................. 11

9 Part Information

(Units Manufactured Before June 2014)

...................................................... 12

9.1 Frame Part Diagram................................................................................................ 12

9.2 Frame Part List........................................................................................................ 13

9.3 Electrical Box Part Diagram..................................................................................... 14

9.4 Electrical Box Part List............................................................................................. 15

WESCOINDUSTRIALPRODUCTS,LLC



InstructionManual

ElectricOfficeLift

PartNumber: 272468

Note: Operator MUST read and understand these operating instructions before using

this Lifter.

Page2of15

©Copyright2018WESCOIndustrialProducts,LLC.Specificationssubjecttochange.Notresponsibleforerrorsoromissions



Electric Office Lift

(Part # 272468)

Instruction Manual

ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO LIFTER, READ

THESE INSTRUCTIONS ENTIRELY BEFORE USING.

WARNING: The battery in this product contains lead. The State of California under

Proposition 65 has determined that exposure to lead is known to cause cancer or birth

defects or other reproductive harm. Please wash hands after use.

1. GENERA

L INFORMATION

1.1 DESCRIPTION

Thank you for purchasing a Wesco Electric Office Lift. This lifter is designed for transporting

and vertical lifting. The lift features a 1 year warranty covering manufacturing defects. Wesco reserves

the right to repair or replace defective parts or the entire unit as required to correct any defective

components. This warranty expressly excludes damage due to normal wear and or misuse.

1.2 SPECIFICATIONS

Model 272468

Capacity 220 lbs

Load Center (C) 9.25”

Lowered Height (H1) 5”

Raised Height (H2) 66”

Platform Size (L1 X W) 18” x 23”

Overall Dimensions (L X W X H ) 32” x 23.5” x 78”

Front Wheel (Ød) 2.75” x 1.25” (Hard Rubber)

Rear Wheel (ØD) 5” x 1.25” (Hard Rubber)

Battery 24V

Weight 147 lbs

Materials and specifications are subject to change without notice.

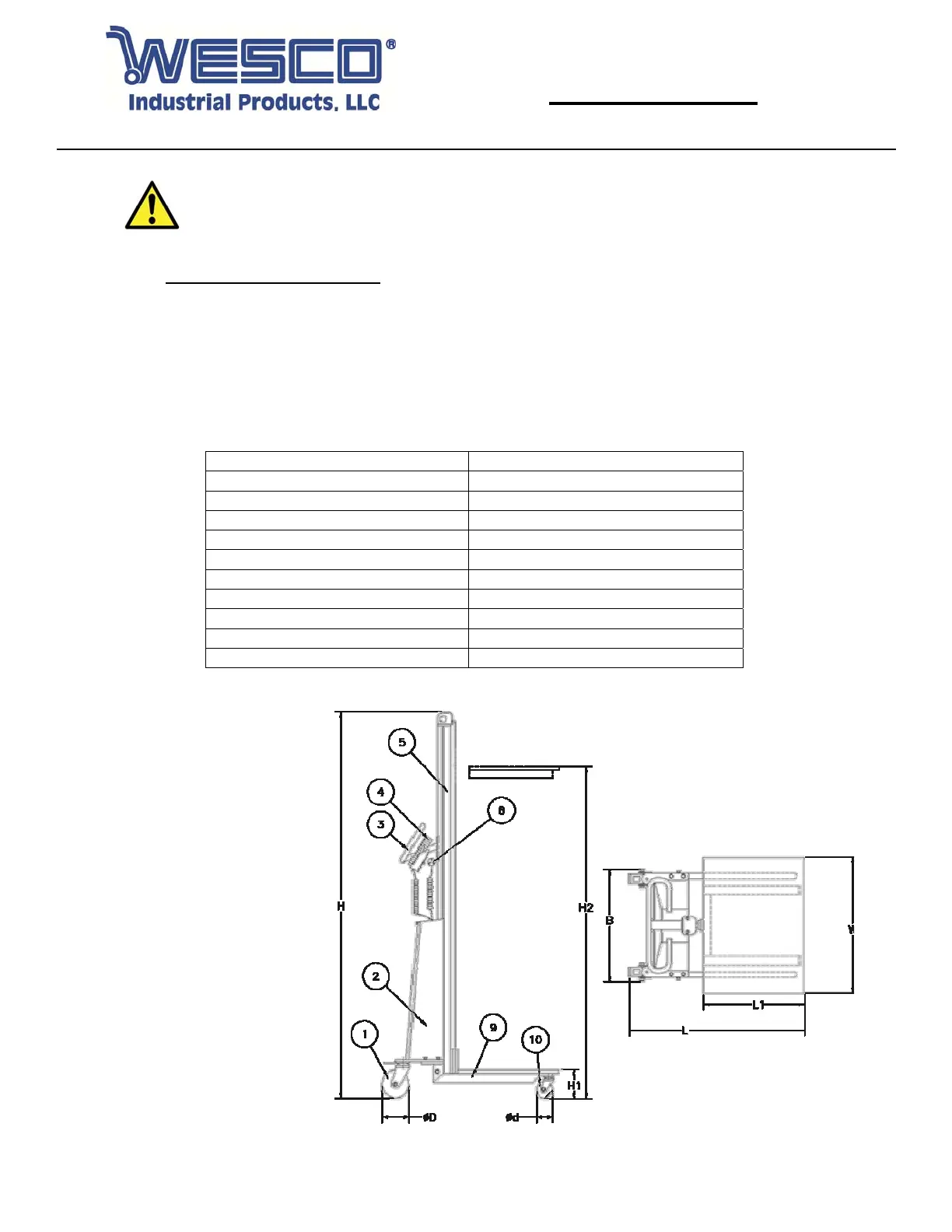

Figure1

Items in Figure 1

1. Rear Wheel

2. Electric Control of Transmission Box

3. Handrails

4. Movable Hand Panel

5. Aluminum Alloy Pole

6. Safety Belt

7. Platform (Various Accessories)

Socket for Charger

9. Chassis

10. Front Wheel
