InstructionManual

ElectricValueLift Stacker



PartNumber:

273203&273204



Note: Operator MUST read and understand these operating instructions before using this Lift.

Table of Contents

1 General Information ......................................................................................................... 1

1.1 Description.............................................................................................................. 1

1.2 Specifications.......................................................................................................... 2

2 Section Identification.......................................................................................................... 2

3 Safety Instructions............................................................................................................. 3

4 Inspection Before Use....................................................................................................... 3

5 Operation........................................................................................................................... 3

5.1 Lifting/Lowering the Platform (Fork)......................................................................... 6

5.1 How to Use Charger................................................................................................ 6

6 Maintenance...................................................................................................................... 4

7 Trouble Shooting............................................................................................................... 5

8 System Diagrams.............................................................................................................. 5

9 Part Information (Model Before May 2010)........................................................................ 6

9.1 General Assembly Part Diagram............................................................................. 6

9.2 General Assembly Part List..................................................................................... 7

9.3 Battery Compartment Part Diagram......................................................................... 8

9.4 Battery Compartment Part List................................................................................. 9

10 Part Information (Model After May 2010)........................................................................... 10

10.1 General Assembly Part Diagram............................................................................. 10

10.2 General Assembly Part List..................................................................................... 11

10.3 Battery Compartment Part Diagram......................................................................... 12

10.4 Battery Compartment Part List................................................................................. 13

Electric Value Lift Stackers

(Part # 273203 & 273204)

Instruction Manual

ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO VALUE LIFT

STACKER, READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.

Page2of13



©Copyright2018WESCOIndustrialProducts,LLC.Specificationssubjecttochange.Notresponsibleforerrorsoromissions.







Electric Value Lift Stackers

(Part # 273203 & 273204)

Instruction Manual

ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO VALUE LIFT

STACKER, READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.

WARNING: The battery in this product contains lead. The State of California under

Proposition 65 has determined that exposure to lead is known to cause cancer or birth

defects or other reproductive harm. Please wash hands after use.

1. GENERAL INFORMATION

1.1 DESCRIPTION

Thank you for purchasing a Wesco Electric Value Lift Stacker. This unit features, a chrome plated

handle and rails, adjustable forks and two 5” polyurethane swivel casters with brakes.

1.2 SPECIFICATIONS

Part Number 273203 273204

Model # VLP-47 VLP-59

Capacity 880 lbs 880 lbs

Fork W x L 4.25” x 25.5” 4.25” x 25.5”

Fork Thickness .237” .237”

Lift Height 3.5 ”- 47” 3.5” – 59”

Lowered Height 3.5” 3.5”

Adjustable Fork Width 8.5” – 21.5” 8.5” – 21.5”

Swivel Casters 5” Locking Polyurethane 5” Locking Polyurethane

Load Wheels 3” Rigid Polyurethane 3” Rigid Polyurethane

Load Center 12.75” 12.75”

Weight 269 lbs 280 lbs

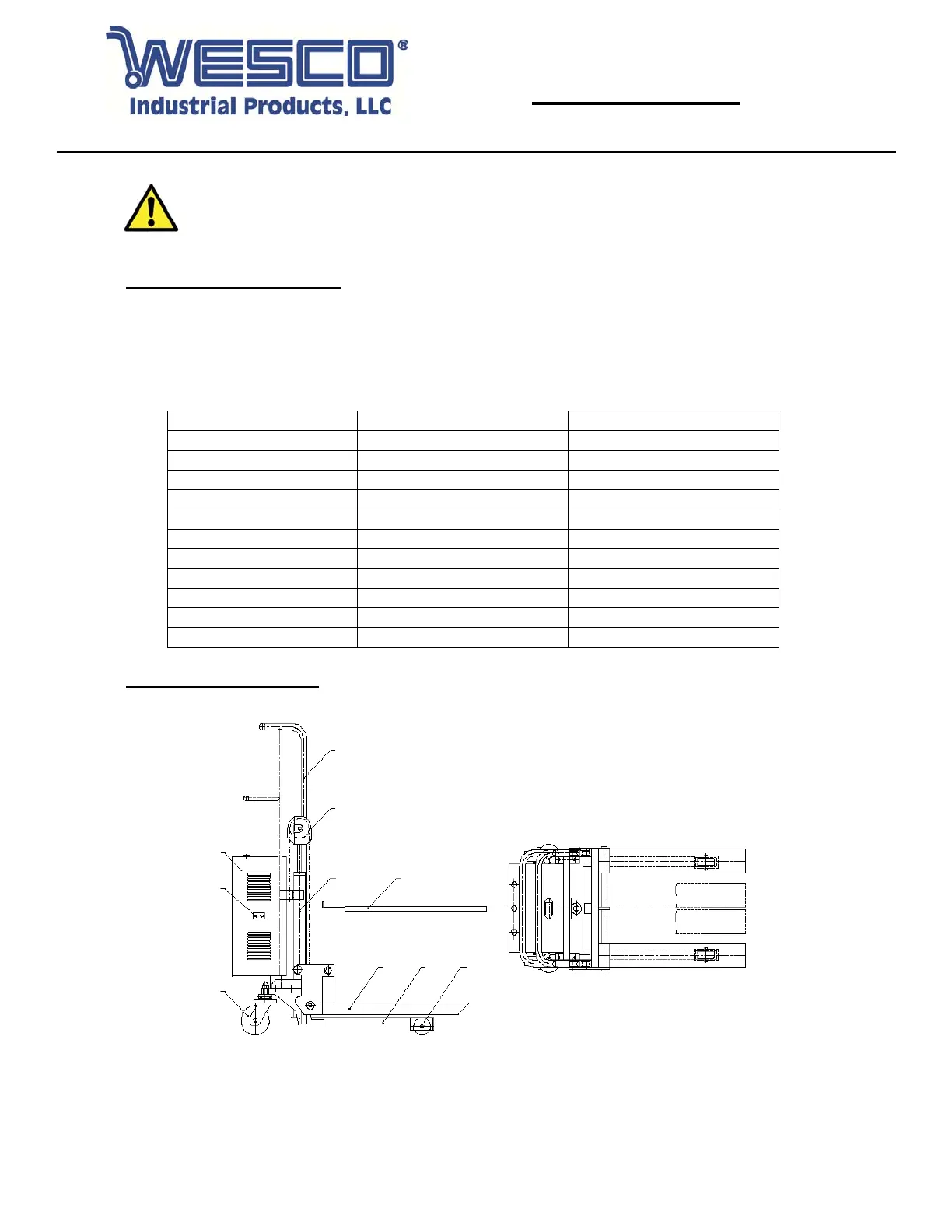

2. SECTION IDENTIFICATION

Figure 1

1. Front Wheel 2. Chassis 3. Fork Assembly (Drawer)

4. Optional Platform 5. Pump Assembly 6. Chain Wheel

7. Handle Rack 8. Electric Control Box 9. Charger Socket

10. Steering Wheel


