MOUNTING AND WIRING INSTRUCTIONS
NOTE: Underwriters Laboratories (UL) does not require all fixtures to have ground wires. These fixtures
meet all UL specifications.
1. Turn off power at circuit box to avoid possible electric shock.
2. Position flat side of mounting plate (C) against wall at mounting location and mark outer holes (O)
with a pencil using the mounting plate outer holes (T) as a guide.
3. Drill a 1/8 inch hole at each pencil mark then insert wall anchors (E) by gently tapping with a
hammer.
5. Position mounting plate (C) with outer holes (O) over wall anchors (E) and secure with screws (K)
or secure mounting plate (C) to outlet box (J) with outlet box screws (P) (if applicable).
6. Secure the fixture loop 1 (R1) to the nipple (L).Do not twist and kink wires.
7. Open one link on bottom end of chain (F). Attach to fixture loop 1 (R1). Securely close link on chain (F).
8. Lace wires up through every other link on chain (F) then through fixture loop 2 (R2) and face plate (A).
9. Open one link on top end of chain (F). Attach to top on . Securely close link on fixture loop 2 (R2)
chain (F).
10. Repeat steps 6 through 9 for the second fixture loop1 (R1) and chain (F).
11. Secure the decorative frame (M) to fixture arms (N) with cap nuts (Q) and screws (U).
12. Identify color coding of fixture wires.
13. Connect the black wire from the fixture with the black wire (live wire) from the outlet box (J) by
wire connector (G), and wrap the wire connector (G) with electrical tape for a more secure
connection.
14. Connect the white wire from the fixture with the white wire (neutral wire) from the outlet box (J)
by wire connector (G), and wrap the wire connector (G) with electrical tape for a more secure
connection.
15. Partially thread green grounding screw (H) into side hole (I) on mounting plate (C) (see fig.1).
16. Wrap the bare grounding wire from the fixture canopy around the green grounding screw stem
(H) on the mounting bar leaving enough excess wire. Connect the greenish grounding wires from
hanging cord and excess grounding wire from the fixture canopy with the grounding wire from
outlet box (J) by using a wire connector (G), then wrap the wire connector (G) with electrical tape
for a more secure connection.
17. Tuck wires inside outlet box (J).
FIXTURE ASSEMBLY INSTRUCTIONS
Warning: This fixture is for indoor use only.
1. Rep
lace face plate (A) over mounting plate (C) and secure into place with hex nuts (S) (if applicable)
and cap nuts (B).
2. Install lamp(s). Do not exceed recommended wattage.
3. Turn power back on at circuit box.
*NOT SUPPLIED

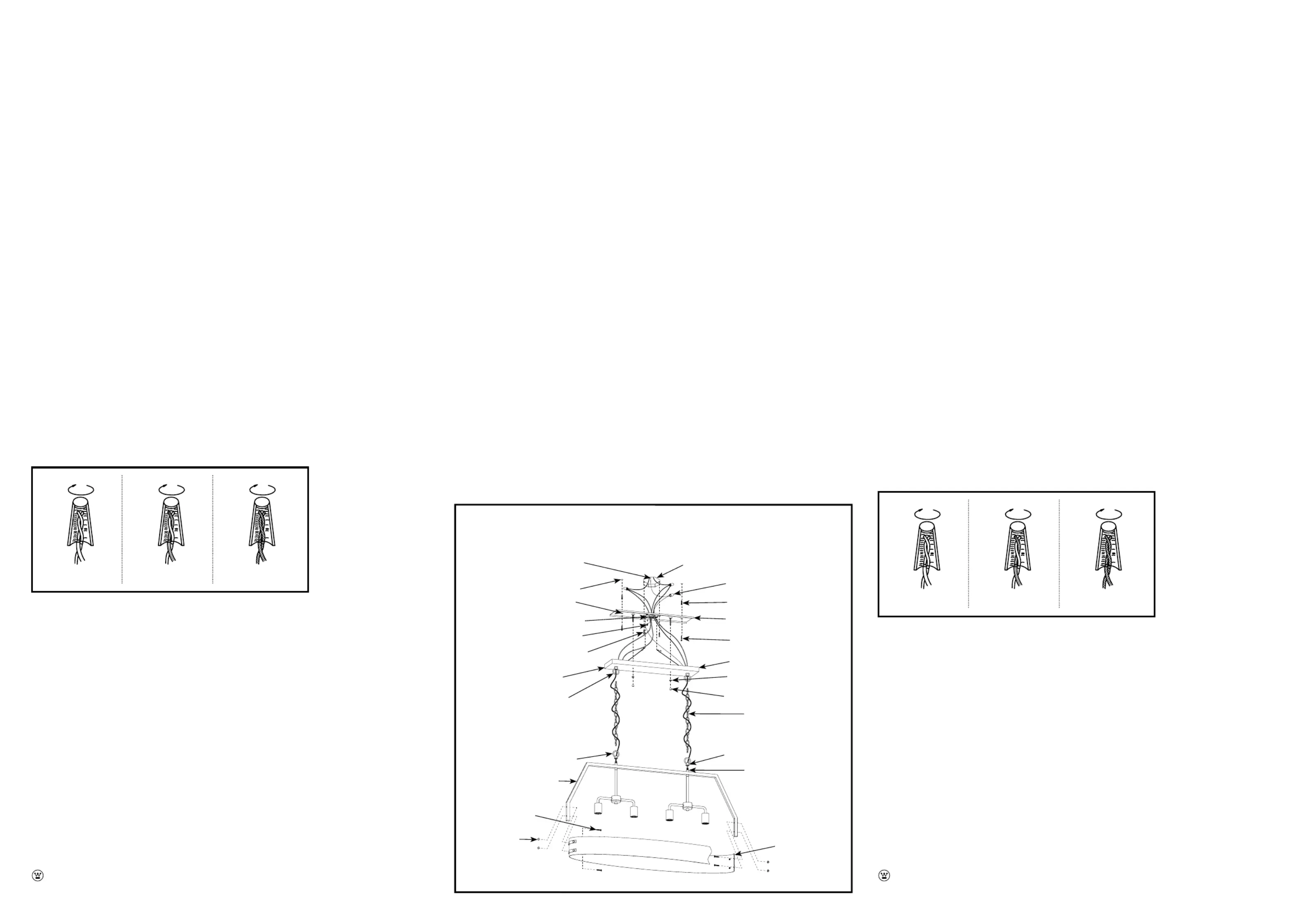

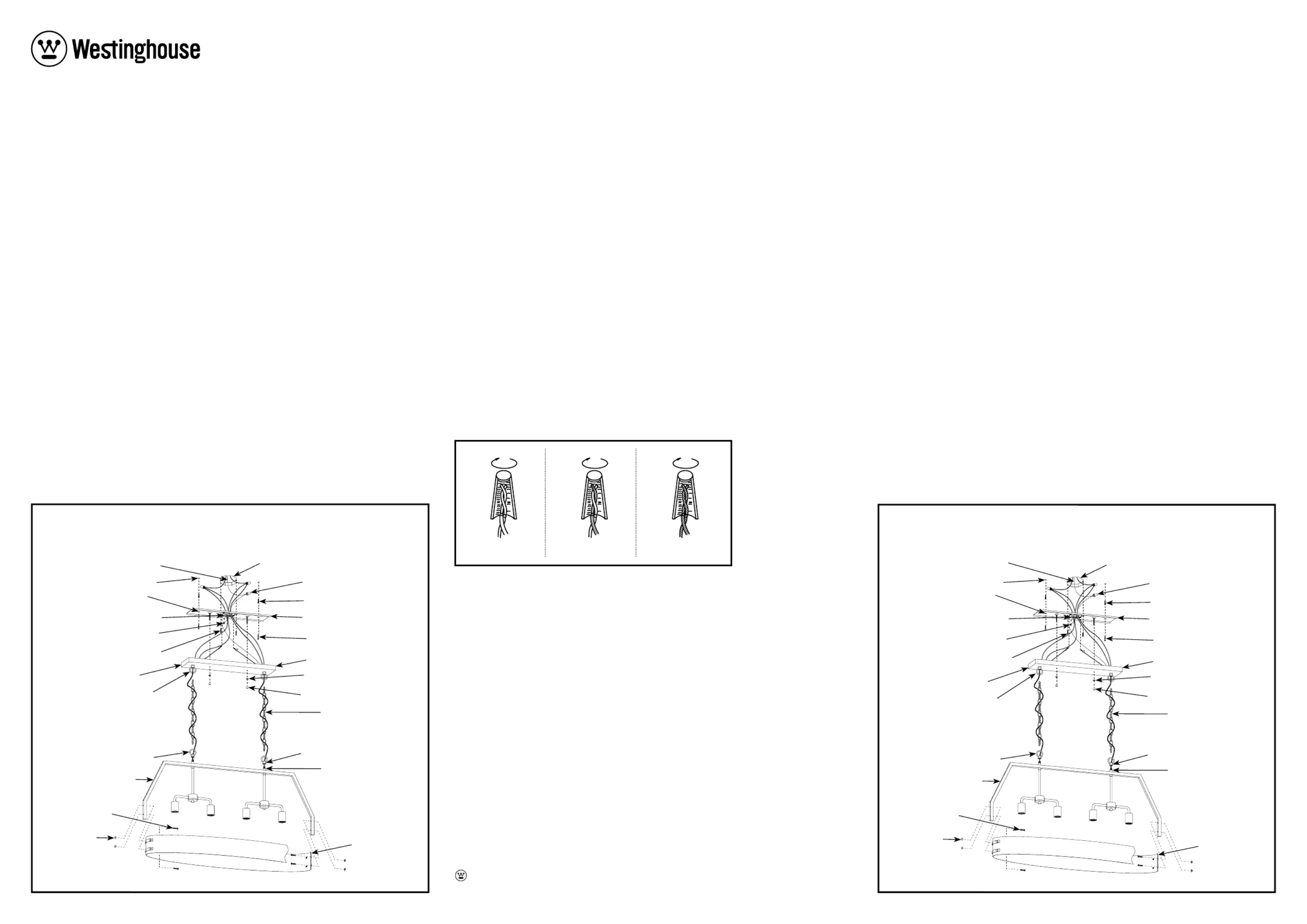

FIGURE 1.
SCREW (K)
OUTER HOLES (O)
*GROUND WIRE
*OUTLET BOX (J)
CAP NUTS (B)
CHAIN (F)
NIPPLE (L)
COLUMN (D)
HEX NUTS (S)
CANOPY (N)
*OUTLET BOX
SCREWS (P)
WALL ANCHORS (E)
MOUNTING PLATE (C)
MOUNTING PLATE
OUTER HOLES (T)
WIRE
CONNECTORS (G)
FACE PLATE (A)
FIXTURE LOOP 1 (R1)
CAP NUTS (Q)
FIXTURE ARMS (N)
DECORATIVE
FRAME (M)
SCREWS (U)
FIXTURE LOOP 2 (R2)
SIDE HOLE (I)
GREEN GROUNDING
SCREW (H)
ECROUS
CAPUCHONS (Q)
BRAS DE
FIXATION (N)
CADRE
DÉCORATIF (M)
VIS (U)
CHAINE (F)
MANCHON
FILETE (L)
COLUMN (D)
LA BOUCLE DE
L’APPAREIL
D’ECLAIRAGE 1 (R1)
LA BOUCLE DE L’APPAREIL
D’ECLAIRAGE 2 (R2)
*NON FOURNI
FIGURE 1.
VIS (K)
CHAPEAU (N)
L’ECROU HEXAGONAL (S)
TROUS
EXTERIEURS (O)
*FIL DE MISE
A LA TERRE
*BOITE DE SORTIE
DE COURANT (J)
ECROUS
CAPUCHONS (B)
*VIS DE LA BOITE DE
SORTIE DE COURANT (P)
PIECE D’ANCRAGE
MURALE (E)
PLAQUE DE FIXATION (C)
CONNECTEURS
DE FIL (G)
PLAQUE
AVANT (A)
TROU LATERAL (I)
*VIS DE MISE A LA
TERRE (VERTE) (H)
MARQUEZ LES ORIFICES
EXTÉRIEURS (T)
WARNING
Turn off electricity to the mounting site before beginning installation.
Mounting instructions must be followed exactly as shown for the fixture to be safely supported.
CLEANING AND CARE
To clean, wipe fixture with soft cloth. Clean glass with mild soap. Spray from chemical cleaners can
discolor the finish of fixture. Do not use scouring pads, powders, steel wool or abrasive paper to
clean this fixture.
ORDERING PARTS
Keep this manual for future reference, and in case replacement parts are needed. Available parts can
be ordered from place of purchase. Use exact wording from diagrams when ordering parts.
FIGURE 2.
FIXTURE
WIRES:
Smooth
HOUSE
WIRES:
Black
(Hot)
HOUSE
WIRES:
White
(Neutral)
HOUSE
WIRES:
Bare
Copper
(Ground)
FIXTURE
WIRES:
Bare
Copper
(Ground)
FIXTURE
WIRES:
Ribbed
Westinghouse Lighting, Philadelphia, PA 19154-1029, U.S.A. www.westinghouselighting.com
and Westinghouse are trademarks of Westinghouse Electric Corporation.
Used under license by Westinghouse Lighting. All Rights Reserved. Made in China
Guide d’utilisation
Instructions d’installation
Appareil d’éclairage pour utilisation intérieure
LES INSTRUCTIONS D’ASSEMBLAGE DE L’APPAREIL D’ÉCLAIRAGE POUR UTILISATION INTÉRIEURE
Félicitations ! Vous avez acheté un produit de Westinghouse Lighting. Cet appareil d’éclairage a été
conçu pour durer de nombreuses années. Si vous avez des questions ou des commentaires à
nous communiquer, veuillez visiter www.westinghouselighting.com/contact-us.
NOTA : Déballez soigneusement l’appareil d’éclairage et les pièces. Assurez-vous que toutes les pièces
y sont avant de mettre l’emballage au rebut (voir fig. 1).
GARANTIE LIMITÉE DE CINQ ANS
Ce luminaire Westinghouse est garanti pièces et main-d’oeuvre pour une période de Cinq ans à compter
de la date d’achat. Cette garantie remplace toute autre garantie, explicite ou implicite.
Cette garantie ne couvre pas les phénomènes naturels comme les dommages de la foudre, ni la corro-
sion ou la décoloration des composants, pas plus qu’elle ne couvre les dommages causés par les abus,
une installation inappropriée, les surtensions électriques ou les actes de tiers.
Cette garantie ne couvre pas les coûts de dépose et de pose du luminaire.
En cas de défaillance du produit, pour une raison quelconque, couverte par cette garantie, veuillez
nous contacter via www.westinghouselighting.com/contact-us.
MISE EN GARDE: L’ÉLECTROCUTION POURRAIT CAUSER DE GRAVES BLESSURES PERSONNELLES.
Lisez ces instructions et suivez-les exactement comme illustré. En cas de doute, ne commencez
pas l’installation. Consultez un électricien qualifié. Lisez toutes les instructions avant de com-
mencer l’installation. Un câblage approprié est essentiel au bon fonctionnement de cet appareil
d’éclairage. Lorsque vous faites une entaille ou que vous percez un trou dans un mur ou un
plafond, n’endommagez pas les câbles électriques, les canalisations de gaz ou d’eau. Si l’un des
composants de raccordement ou de l’appareil d’éclairage est endommagé, n’installez pas cet
appareil d’éclairage. Retournez-le à l’endroit où vous l’avez acheté.
Convient uniquement aux appareils comportant un avertissement indiquant que l’appareil
d’éclairage est doté d’un fil supportant une chaleur de 75°C ou 90°C. (Ces avertissements se
trouvent sur l’étiquette U.L. et sur l’emballage de l’appareil d’éclairage.)
W-762
042822
ASSEMBLY INSTRUCTIONS FOR INDOOR LIGHTING FIXTURE
Congratulations on your Westinghouse purchase. This fixture has been designed to give you many
years of beauty and service. For questions and comments, please visit www.westinghouselighting.
com/contact-us.
NOTE: Carefully unpack fixture and parts. Make sure all parts are included before discarding any pack-
ing materials (see figure 1).
Owner’s Manual
Indoor Lighting Fixture
Installation Instructions
FIXTURE WARRANTY
This Westinghouse lighting fixture is warranted against defects in material and workmanship for a period
of five years from purchase date. This warranty is in lieu of all other warranties expressed or implied.
This warranty does not cover acts of nature such as lightening damage, or corrosion and discoloration
of components, nor does it cover damages caused through abuse, improver installation, surges in
electric current, or acts of third parties.
This warranty does not cover the costs of removing and re-installing the lighting fixture.
If this product fails for any reason covered by this warranty, please contact us at www.westinghouse-
lighting.com/contact-us.
WARNING:
ELECTRICAL SHOCK CAN RESULT IN SERIOUS INJURY.
Read and follow instructions exactly as shown. If instructions are unclear, do not proceed.
Contact a qualified electrician. Read all instructions before beginning. Proper wiring is essen-
tial for safe operation of this fixture. When cutting or drilling into walls or ceilings, do not dam-
age electrical wiring, gas lines, or water lines. If any of the fixture or wiring components are
damaged, do not install fixture. Return to place of purchase.
For fixtures provided with 75° C or 90° C supply wire warning only. (These warnings are provid-
ed on the U.L. label and on the fixture carton.) Risk of fire. Most dwellings built before 1985
have supply wires rated 60° C. Consult a qualified electrician before installing.
Il est possible que le dessin illustré ici ne soit pas la reproduction exacte de l’appareil
d’éclairage contenu dans la boîte.
Les instructions d’installation demeurent cependant valables.
Line art shown may not exactly match the fixture enclosed.
However, the installation instructions do apply to this fixture.
