Side 1/2

Mini-Pendant Kit

Installation and Safety Instructions

Warning: Be sure the electricity to the wires you are working on is shut off; either the fuse is removed or the circuit breaker is shut off.

GENERAL

You don't need special tools to install this fixture. Be sure to follow the steps in the order given. Under no circumstances should

a fixture be hung on house electrical wires, nor should a swag type fixture be installed on a ceiling which contains a radiant type

heating system. Read instructions carefully. If you are unclear as to how to proceed, consult a qualified electrician.

WARRANTY

This fixture is warranted against defects in material and workmanship for a period of five years from purchase date. This warranty

is in lieu of all other warranties expressed or implied. This warranty does not cover acts of nature such as lightning damage, or cor-

rosion and discoloration of components, nor does it cover damages caused through abuse, improper installation, surges in electric

current, or acts of third parties. This warranty does not cover the costs of removing and re-installing the lighting fixture. If this

product fails for any reason covered by this warranty, please contact us at www.westinghouselighting.com/contact-us.

INSTALLATION

Important: Do not attach fixture directly to outlet box.

Step 1: Thread mounting screw (A) into the matching hole of mounting bar (B).

Step 2: Secure the mounting bar (B) to outlet box with outlet box screws (C) (not provided).

ADJUSTING LENGTH OF CORD (IF NEEDED)

These steps should only be performed by someone familiar with working with electrical wiring. Care must be taken when adjust-

ing the length of the cord to ensure insulation on internal wires is not damaged. If not familiar with these steps, seek the aid of a

qualified electrician.

Step 1: Loosen the screw in strain relief (Q) until cord slides easily, being careful not to completely remove screw. Slide canopy

down cord until the fixture is the desired distance below the canopy. Tighten the screw in the strain relief until cord

does not slide.

Cut excess cord approximately six to seven inches (6”-7”) above canopy. Step 2:

Step 3: Leaving at least one inch (1”) of outer insulation above the canopy, carefully cut through outer insulation of cord,

being careful not to damage inner insulation. Remove outer insulation. Strip inner insulation from end of both

wires, leaving approximately 1/2 inch of wire exposed.

Step 4: For cords without differently colored inner insulation, identify the tracer lines on the new ends of the inner wires

to match the labels on the original ends and connect to house wiring as described in the appropriate step listed

below in the Grounding and Wiring Instructions section.

GROUNDING AND WIRING INSTRUCTIONS

Step 1: Insert the green grounding screw (G) into the hole with two raised dimples on the mounting bar (B). Wrap the bare

grounding wire (F) from the fixture canopy (D) around the green grounding screw's stem (G) on the mounting bar (B)

leaving enough excess wire.

Step 2: Connect the green grounding wire (H) from hanging cord and excess grounding wire (F) from the fixture canopy (D)with

the grounding wire (I) from outlet box by using a wire connector (P), then wrap the wire connector (P) with electrical

tape for a more secure connection. WARNING: Never connect grounding wire to black or white power supply wires.

Step 3: Connect the black house wire with the black wire from the fixture by wire connector (P), and wrap the wire connector

(P) with electrical tape for a more secure connection.

Step 4: Con

nect the white house wire with the white wire from the fixture by wire connector

(P)

, and wrap th

e wire connector

(P) with electrical tape for a more secure connection.

Note: Try to gently pull the wire connectors (P) off of the wires. If you can pull the connector off, carefully repeat steps

2, 3 and 4 above, and check again for a firm connection. Make sure no bare wires can be seen protruding outside of

the wire connectors.

Tighten green grounding screw (G). Do not over tighten. Step 5:

FINAL ASSEMBLY

Step 1: After wires are connected, tuck them carefully inside outlet box. Raise canopy (D) allowing the mounting screw (A) to

protrude through the hole in the canopy (D), and secure with ball nut (E).

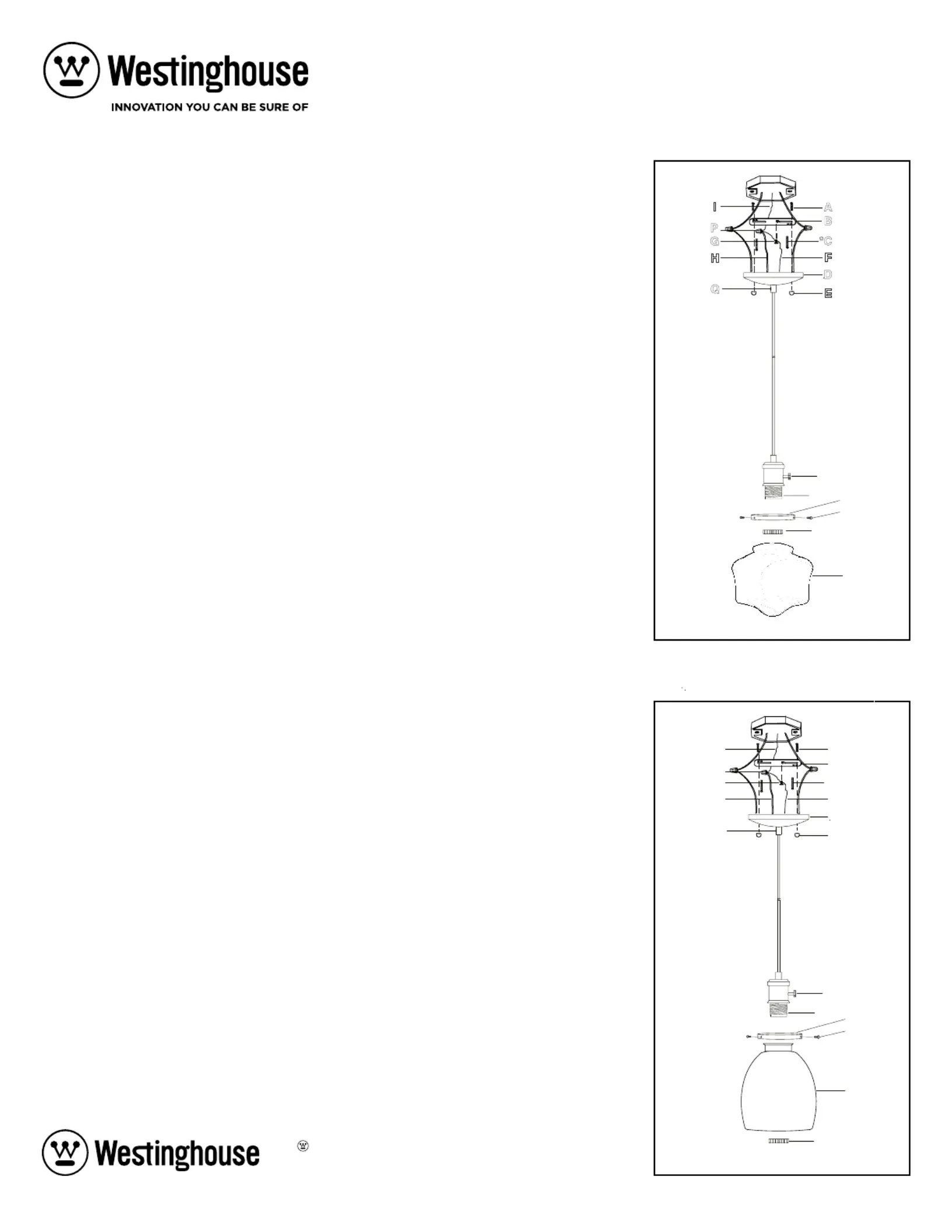

***For shade with a closed bottom, please follow below instruction (see figure 1):

Step 2a: Take off the retaining ring (L) from the socket (J). Install adaptor (M) to socket (J) with retaining ring (L) (if applicable).

Step 3a: Install lamp (not included). (Please do not exceed the maximum lamp wattage recommended on the socket).

Step 4a: Install the shade (Ka) to adaptor (M) and secure it by using thumb screws (N).

Step 5a: Turn on the switch (O) on the socket (if applicable).

***For shade with open bottom, please follow below instruction (see figure 2):

Step 2b: Take off the retaining ring (L) from the socket (J). Secure the adaptor (M) onto the shade (Kb) with thumb screw(s) (N)

(if applicable).

Step 3b: Install the shade (Kb) and adaptor (M) assembly onto the socket (J) and secure the retaining ring (L).

Step 4b: Install lamp (not included). (Please do not exceed the maximum lamp wattage recommended on the socket).

Step 5b: Turn on the switch (O) on the socket (if applicable).

CLEANING

To clean, wipe fixture with a soft cloth. Clean glass with a mild soap. Do not use abrasive materials such as scouring pads or pow-

ders, steel wool or abrasive paper.

Westinghouse Lighting, Philadelphia, PA 19154-1029, U.S.A.

www.westinghouselighting.com

, WESTINGHOUSE, and INNOVATION YOU CAN BE SURE OF

are trademarks of Westinghouse Electric Corporation.

Used under license by Westinghouse Lighting.

Made in China

W-562

082819

*NOT SUPPLIED

FIGURE 1.

FIGURE 2.
