USER'S MANUAL
HD Ready Digital LCD TV
Please read this manual carefully before
using your television and keep this manual
In a good place for future reference.
MODEL:
L15T11W-A, L15T11W-C,L19T11W-A,
L19T11W-C, L20T11W-A,L20T11W-C,
L19T12W-A, L19T12W-C, L20T12W-A,
L20T12W-C,L22T11W-A,L22T11W-C



CONTENT
Safety Notice ............................................................................................
Front Panel Control...................................................................................
Connection ..............................................................................................
Remote Control ........................................................................................
Remote Control ......................................................................................
Installing Batteries..................................................................................
Connection Instructions.............................................................................
Grounding..............................................................................................
External equipment connections..............................................................
Antenna Connection.............................................................................
VGA Input.............................................................................................
YPbPr Input...........................................................................................
S-VIDEO Input....................................................................................
SCART Input.......................................................................................
HDMI Input.........................................................................................
Basic Operating Instructions.......................................................................
Turn on the LCD-TV.................................................................................
Audio Control..........................................................................................
Mute......................................................................................................
Select the TV Channel ............................................................................
Picture Mode...........................................................................................
Program Swap.........................................................................................
Program Scan.........................................................................................
Menu Operations.......................................................................................
Picture Menu Options...............................................................................
Audio Menu Options................................................................................
Function Menu Options.............................................................................
Adjust Menu Options................................................................................
Tuning Menu Options..............................................................................
DVB-T Main Menu Operations....................................................................
Channel List...........................................................................................
Favourite List..........................................................................................
Now/Next EPG........................................................................................
Timers....................................................................................................
Settings..................................................................................................
TELE TEXT...............................................................................................
Basic Playback..........................................................................................
Advanced Playback...................................................................................
Special Function Playback.........................................................................
JPEG DISC PLAYBACK............................................................................
SCREEN SAVER FUNCTION....................................................................
DVD System SETUP...................................................................................
General Setup Process.............................................................................
General Setup Page...................................................................................
Preferencel Page.....................................................................................
Playable Discs..........................................................................................
Disc Protection and DVD Characteristics.....................................................
Troubleshooting Guide...............................................................................
Specifications...........................................................................................
1
2
3
4-5
6
6
7
7
7
7
8
8
9
10
10
11
11
11
11
12
12
12
12
13
13
14
16
18
19
21
21
22
22
23
23
26
28
29
30
30
30
31
31
31
33
35
36
37
38
Note: DVD instruction in this manual is just for the special models which have the DVD slot.
(DVD is only available in some models, please see the real)

Safety Notice
To prevent fire or electric shocks please read the instruction before
installing, using and cleaning the television.
lPlease read all the instructions before operation;
lPlease keep the manual for future reference ;
lDo not use any accessories that not recommended by manufacturer:
lBefore operation, make sure the operating voltage of this unit is corresponds
with your house electricting supply;
lDo not place the unit on unstable, dusty and humid places;
lNever put the unit in direct sunlight or near heat sources;
lAllow enough space for proper ventilation;
lPlease keep water away from the LCD-TV . If water comes in contact with the
LCD-TV, disconnect the power cord from the power source, then wipe the set
with a dry soft cloth;
l Do not remove the back cover. If services were need, please refer to
customer helpline.
Customer helpline:0845 604 0105

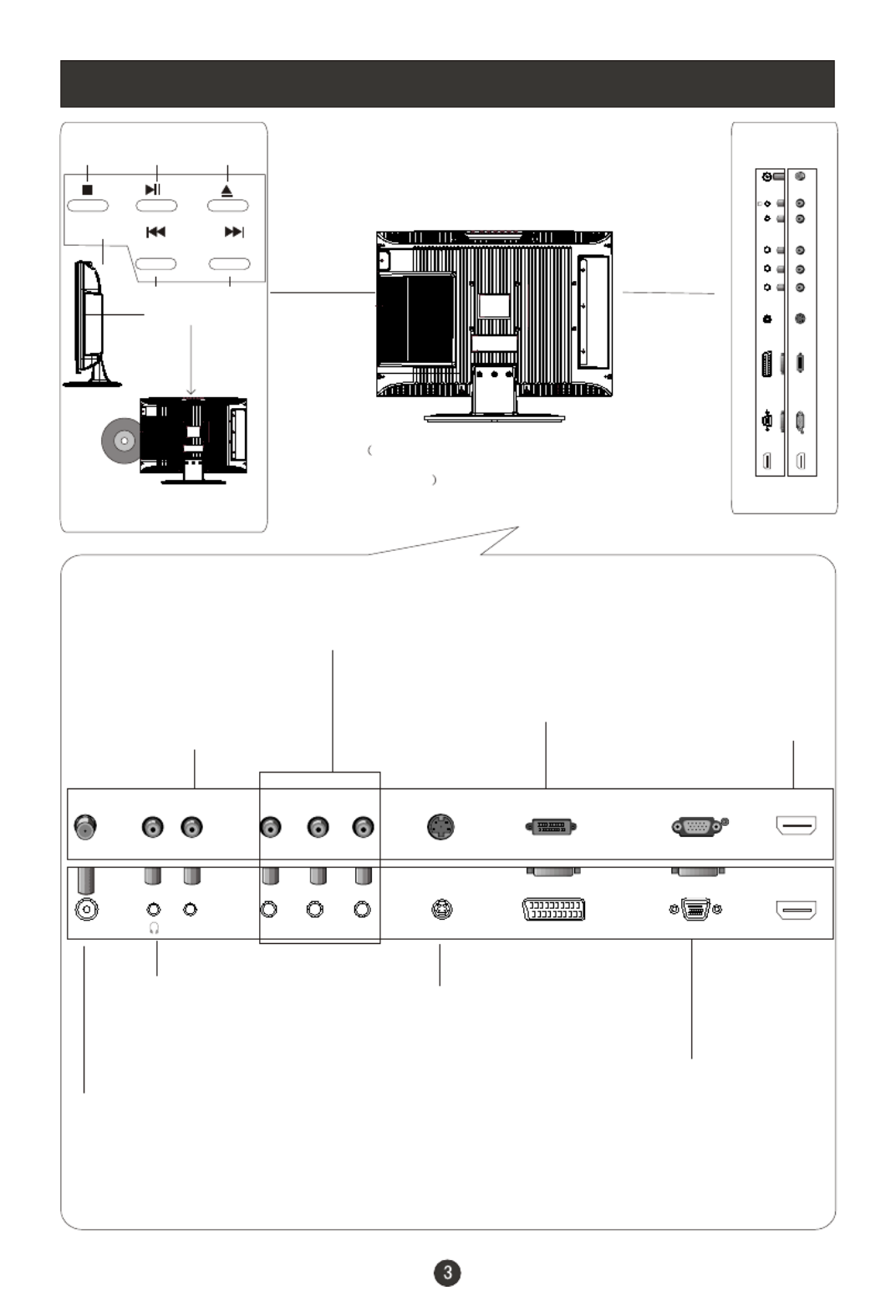

Connection Options
COMPONENT Input
Connect a component
video/audio
device to these jacks
VGA Input
Connect to the VGA
15PIN analog output
connector of the PC
display card for PC
display purpose
S-Video Input
Connect S-Video out
from an S-Video device
to the jacks.
Antenna Input
Connect cable or
antenna signals to
the TV, either direc-
tly or through your
cable box.
Earphone port
VGA /COMPONENT/
SVIDEO Audio Input
Connect the PC output
connector from a PC to
the audio input port
SCART
Connect to the DVD/
VCR/broadcasting
receiver or other
equipment
ANT IN Y
Pr S-VIDEO TV SCART VGA IN AUDIO IN Pb HDMI
HDMI
Connect to HDMI
output of other
equipment
ANT IN YPr S-VIDEO TV SCART VGA IN AUDIO IN Pb HDMI
The above figure is for reference only,
connections may differ depending upon
the models
DVD
STOP PLAY/PAUSE OPEN/CLOSE
PREV NEXT
DVD insert
Please see the real set of the
DVD position
Customer helpline:0845 604 0105

Remote Control Key Functions

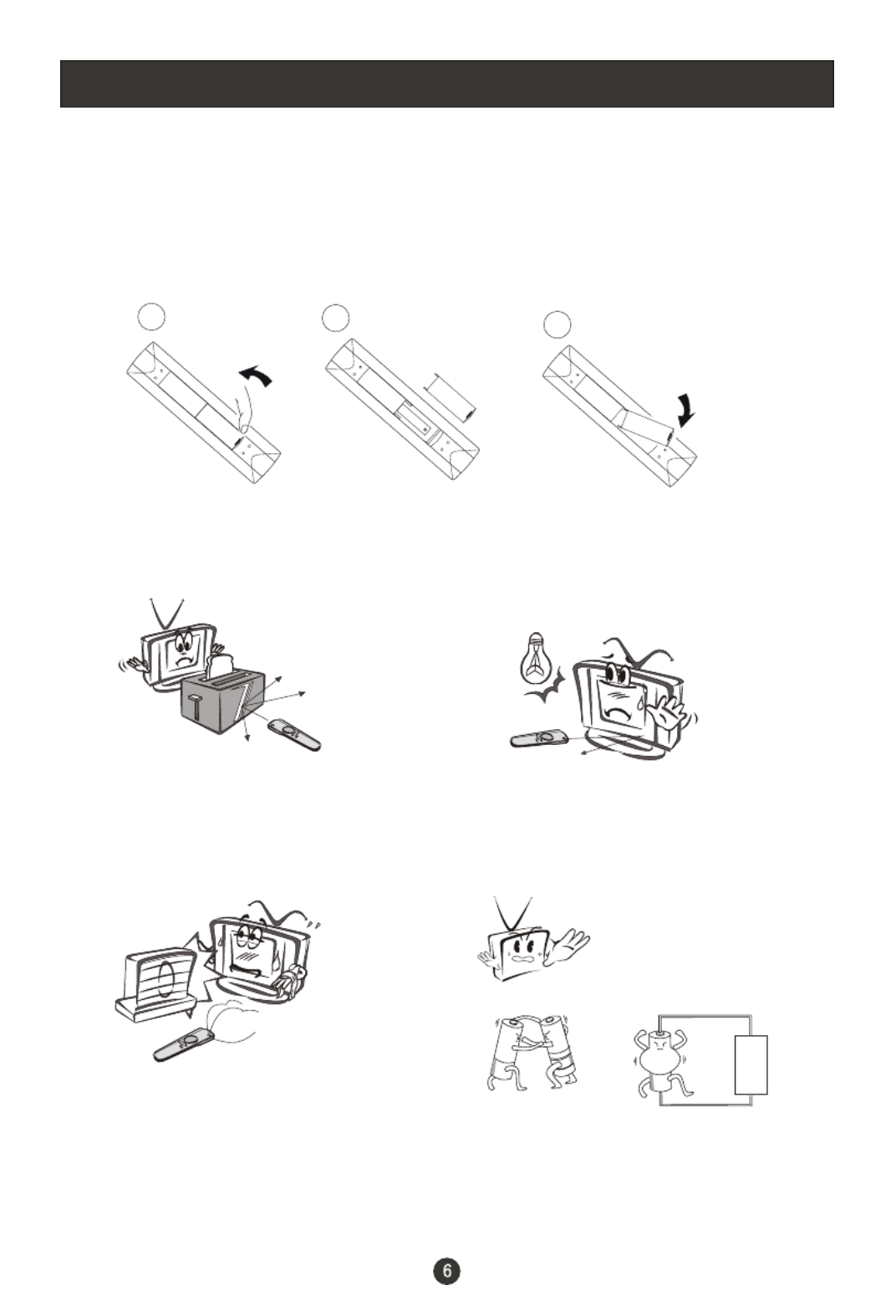

Installing Batteries
3
2
1
1.Open the cover of the battery compartment at the back of the remote
control.
2.Insert two AA alkaline batteries in the compartment. (plus and minus poles to
respective mark)
3.Replace the cover of the battery compartment.
Precautions
Make sure that there is no
obstacle between the remote
controller and television set.
As strong light may interfere the
signals, change your position to
operate the remote controller if
the television cannot be turned
on or off as you expect.
Keep the remote controller
away from heat source or
humid area to ensure
effective performance of
the remote controller.
Make sure that two AA 1.5V alkaline
batteries are loaded. The batteries
must be of the same type. The batteries
must be located properly. The batteries
are not rechargeable.
Customer helpline:0845 604 0105

Connection Instructions
Ensure that you connect the grounding / earth wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connecting it to telephone wires, lightening rods, or gas pipes.
Grounding
External Equipment Connections

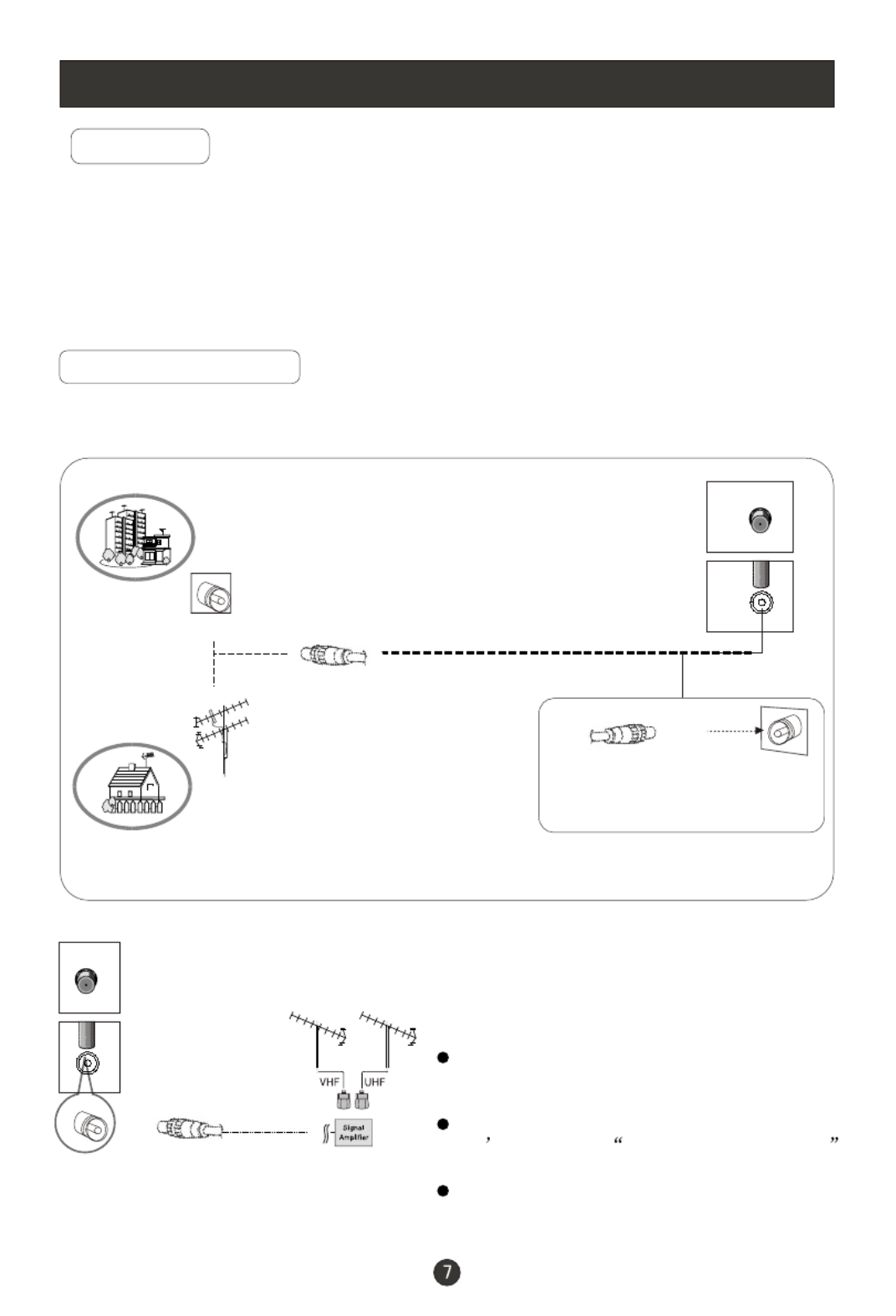

Antenna Connection
- Antenna or Cable Service with a Cable Box Connections
- For optimum picture quality, adjust antenna direction if needed.
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
wall antenna
socket
VHF antenna
UHF antenna
outdoor
antenna
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Be careful not to bend the bronze
wire when connecting the antenna.
To improve picture quality in a poor
signal area, purchase and install a
signal amplifier.
If the antenna needs to be split for two
TV s, install a 2-Way Signal Splitter
in the connections.
If the antenna is not installed properly,
contact your dealer for assistance.
NOTE: All cables shown are just for example.
RF coaxial wire (75 ohm)
ANT IN
ANT IN
Customer helpline:0845 604 0105

Connection Instructions
You can use your LCD-TV as a monitor for your personal computer using a VGA
cable (not supplied).

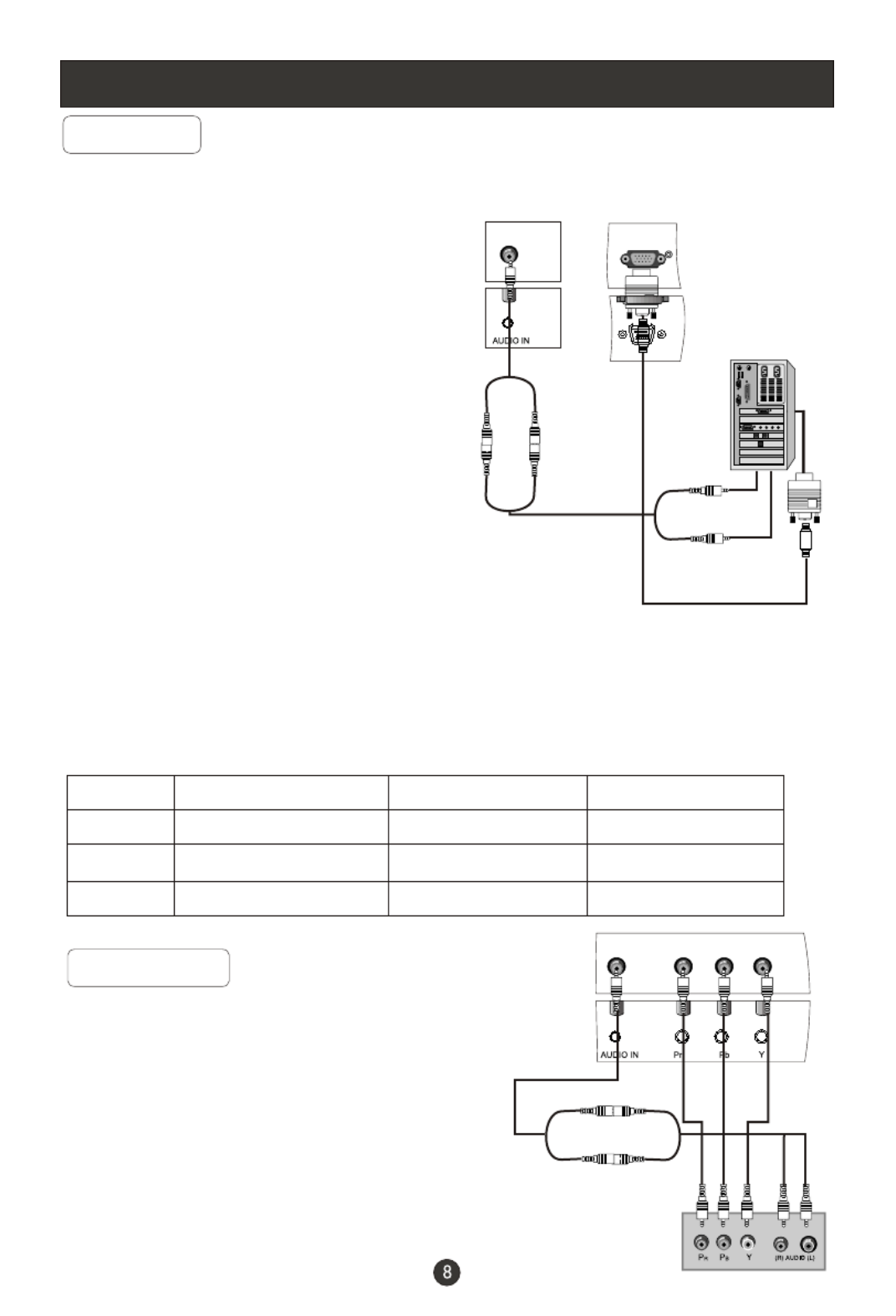

VGA Input
Connection and use steps:
1.Read the user guide supplied with
your computer and ensure that it has
a VGA connector;
2.Make sure that the power of the LCD
-TV and the PC are off;
3.Connect a D type 15-pin VGA interface
cable ( not supplied ) to the VGA video
interface connector on the PC. Then
connect the other end to the PC video
interface connector on the back of the
LCD-TV.Tighten the screws on the VGA
connectors once they are firmly
connected;
4.Turn on the power of the LCD-TV first ,
and then turn on the power of the PC;
5.Press the SOURCE button to set the video
input mode of the LCD-TV to PC-RGB;
6.Check the image on your TV. There may be noise associated with the resolution,
vertical pattern, contrast or brightness in PC mode. If noise is present, change
the PC mode to another resolution, change the refresh rate to another rate or
adjust the brightness and contrast on the menu until the picture is clear. If the
refresh rate of the PC graphic card cannot be changed,change the PC graphic
card or consult the manufacturer of the PC graphic card.
Frame frequency (Hz)Line frequency (Khz)
VGA
SVGA
XGA
640*480 31.5KHz 60Hz
800*600 37.9KHz 60Hz
1024*768 48.4KHz 60Hz
Resolution
Mode Resolution
Note: All above listed are subject to VESA Criteria.
YPbPr Input
How to connect
Connect the DVD video outputs (Y, PB, PR)
to the COMPONENT(Y, Pb, Pr) IN socks on
the TV and connect the DVD audio outputs
to the AUDIO IN jacks on the TV, as shown
in the figure.
NOTE: If your DVD player does not have
component video output, use S-Video.
How to use
1. Turn on the DVD player, insert a DVD.
2. Use the SOURCE button on the remote control to select
VGA IN
Customer helpline:0845 604 0105

Connection Instructions
COMPONENT (If connected to S-VIDEO,select the S-VIDEO external
input source.)
3. Refer to the DVD player's manual for operating instructions.

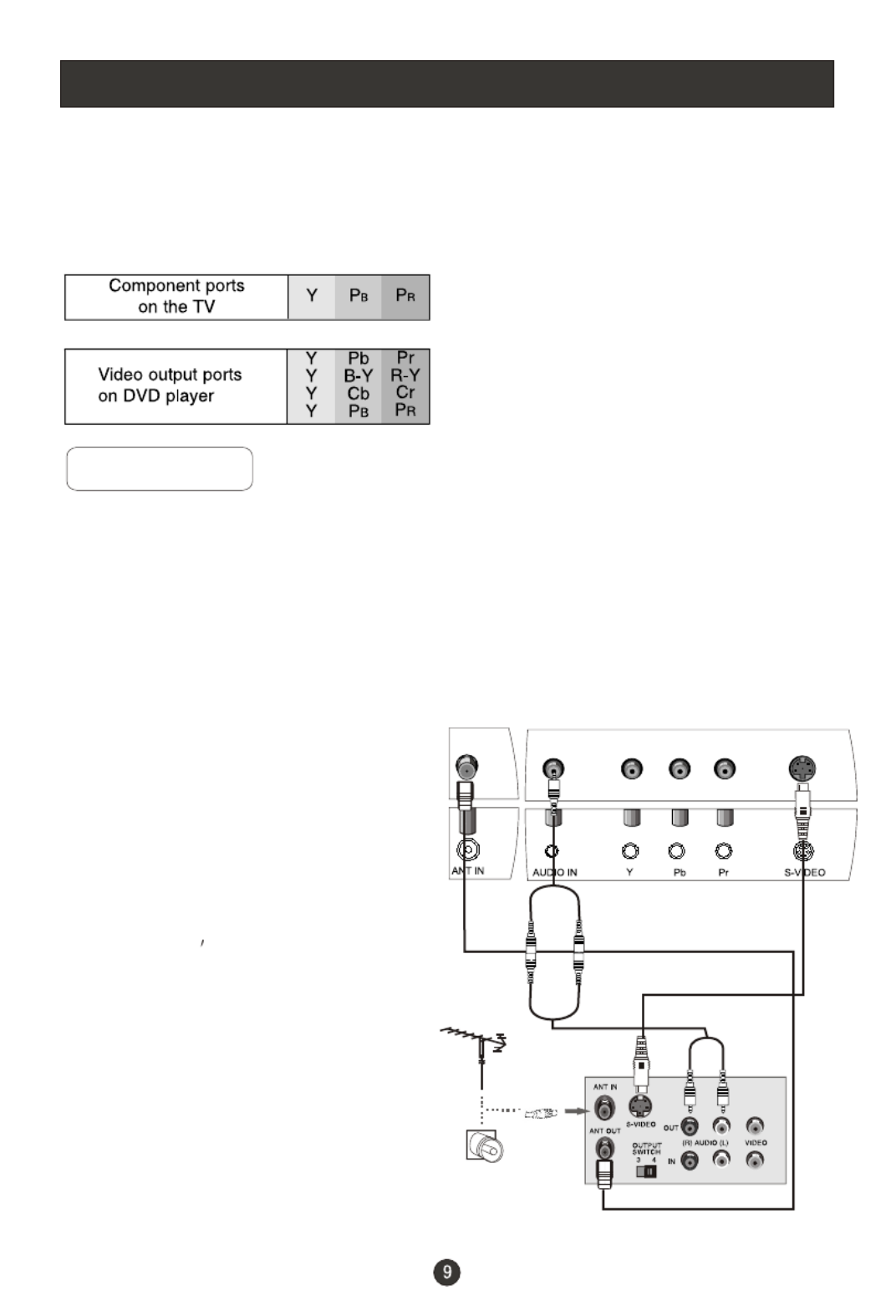

Component Input ports
To get better picture quality, connect a DVD player to the component
input ports as shown below.
S-VIDEO Input
Connection and use steps:
1.Read the user guide supplied with your AV devices and ensure that it has
S-Video connectors;
2.Make sure that the power of the LCD-TV and the AV device are switched off;
.Turn on the power of the LCD-TV first ;
and then turn on the power of the AV
device;
4.Press the button to set the videoSOURCE
input mode of the LCD-TV to SVIDEO
mode .
Connection Option 1
Set VCR output switch to 3 or 4 and then
tune TV to the same channel number.
Connection Option 2
1. Connect the audio and S-VIDEO cables
from the VCR's output jacks to the TV
input jacks, as shown in the figure.
2. Insert a video tape into the VCR and
press PLAY on the VCR. (Refer to the
VCR owner s manual.)
3
- To avoid picture noise (interference), leave an adequate distance between the
VCR and TV
.
VCR
1
2
Customer helpline:0845 604 0105

Connection Instructions
SCART Input
1.Connect the scart lead from the external device(DVD
players, settop boxes or game consoles, to the TV SCART
socket.
2.Press SOURCE to select SCART mode.
3. Press Play button on external equipment and it should
appear on the screen.
HDMI
HDMI
HDMI Input
HDMI Devices
Connect the cable from the HDMI devices
to the TV HDMI, as shown in the figure.
How to use
1. Select the iHDMI source by using the SOURCE
button on the remote control.
2. Operate the corresponding external equipment.
Refer to external equipment operating guide.
SCART
External equipment
Note: The audio cable included with the TV should be used when connected with PC/
COMPONENT/S-VIDEO.
TV
HDMI Devices
Customer helpline:0845 604 0105
Produkt Specifikationer
Mærke: | Wharfedale |
Kategori: | televisión |
Model: | L20T11W-C |
Har du brug for hjælp?
Hvis du har brug for hjælp til Wharfedale L20T11W-C stil et spørgsmål nedenfor, og andre brugere vil svare dig
televisión Wharfedale Manualer
16 August 2024
15 August 2024
14 August 2024
13 August 2024
13 August 2024
13 August 2024
12 August 2024
10 August 2024
10 August 2024
televisión Manualer
- Iiyama
- Salora
- Difrnce
- CHiQ
- Techwood
- Woxter
- Inno-Hit
- Samsung
- H&B
- Tucson
- Magnavox
- Walker
- Grunkel
- JTC
- Logik
Nyeste televisión Manualer
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
