Side 1/4

WH/II/FD/GB

How to use the appliance

Further indications are given in the single chapters and in the user instructions.

Press the

button.

Compartment

With each wash cycle.

Compartment

For programmes with pre-wash only.

If using combined action dishwasher

tabs, follow the user instructions!

Mechanical indicator

Electric indicator on control panel (if provided).

On models with water softener

system only.

Mechanical indicator

. Electric

indicator on control panel (if provided).

Refer to the dishwasher loading instructions.

The display shows the last programme selected.

Press

or until the selected programme lights up.

If necessary (and if provided) the corresponding indicator lamp lights up.

The selected programme is

then memorised (even in the

event of power failure).

- Only open the dishwasher if necessary

(Warning: beware of hot steam).

- If the appliance is switched off during a

wash cycle, when switched on again it

will resume the cycle from where it was

interrupted.

At the end of the programme an acoustic signal will sound.

Only after the START button has switched off: press the

OFF

button.

All the indicator lamps switch off.

Warning: when the door is opened steam comes out!

Unload the appliance, starting from the lower rack.

Open the door,

switch on the appliance

How to fill the

detergent dispenser

ABC

Check the rinse aid level

Check the regeneration

salt level

Load the racks

Select a programme

Select options

Press the Start button

“Change programme in progress”

Press the START button for 2 sec. until

the Start indicator lamp switches off;

Select another programme and press

the START button again.

Turn on the water tap

close the dishwasher door

Wash cycle

Switch off the appliance

Turn off the water tap,

unload the racks

WH/III/GB

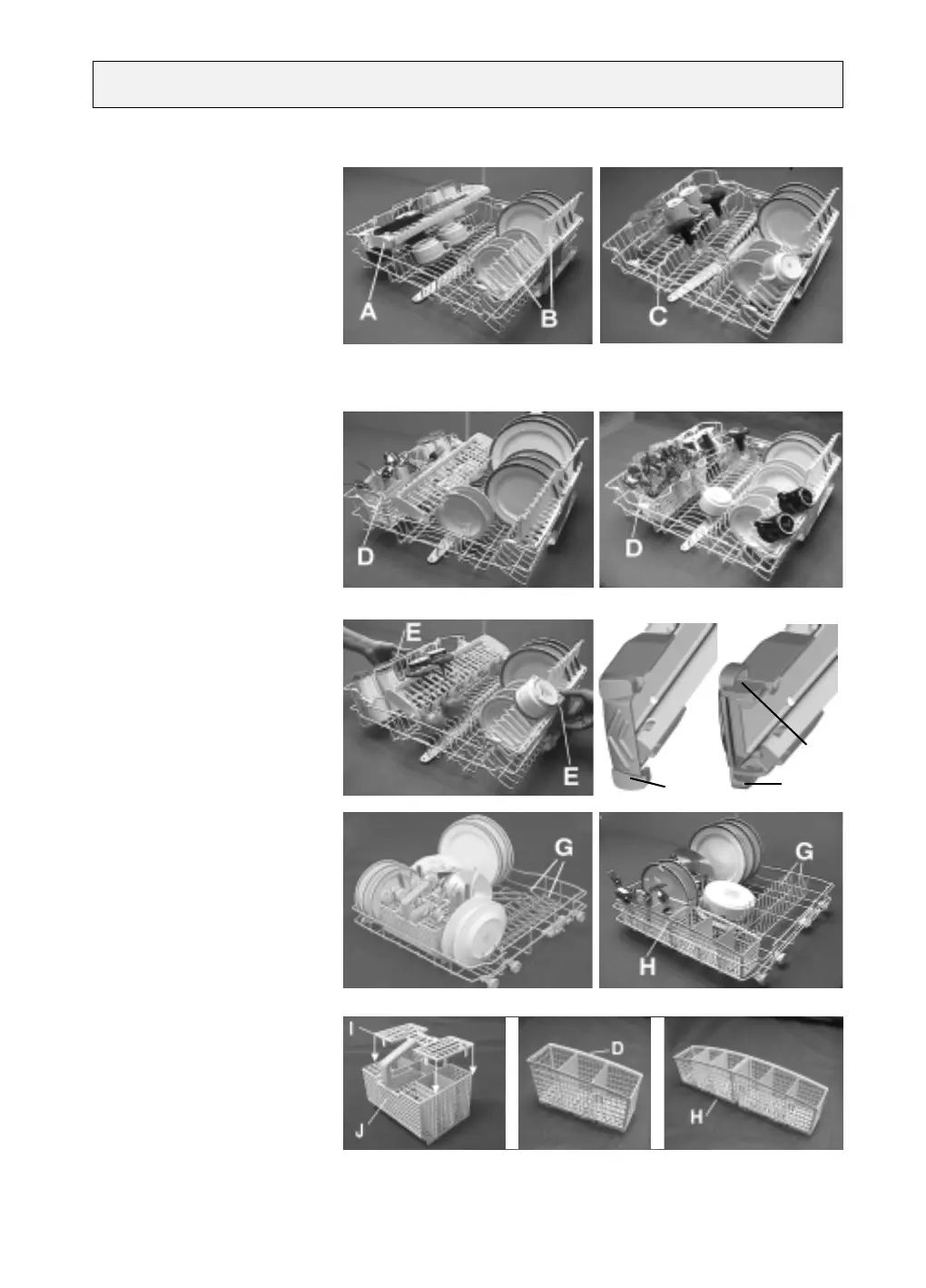

Dishwasher loading instructions and racks provided

Upper rack:

depending on the model

Multi-purpose support (A):

Depending on the position, for long-

handles utensils, cups and glasses. May

be used in three different positions.

Crockery holders (B):

Depending on the position, for example

plates, cups and long-stemmed glasses.

Revolving glass support (C):

Depending on the position, for example

small or long-stemmed glasses.

Long-handled utensils (e.g.

carving forks, knives) must be

arranged with the sharp end

facing in towards the appliance

Half Load:

Load the upper rack (see description

of Options).

Place the cutlery basket (D) in the

upper rack.

Rack height adjustment

(also when loaded):

• Lower adjustment: pull out the

two rack handles outwards (E)

and lower the rack.

• Upper adjustment: pull the two

handles (E) upwards until the rack

clicks into place (Factory setting).

The rack must be level on both

sides.

Removing the top rack to provide

clearance for large items of

crockery in the bottom rack:

Open the rack guide retainers (F) on

the right and left and remove the top

rack.

When the upper rack is in place the

retainers must always be closed.

Lower rack:

Depending on the model with fixed or

tilting plate holders (G).

Half Load:

Load the lower rack (see description

of Options).

Greater washing power, particularly

for plates and saucepans.

Cutlery basket (J) or (H):

Some models are provided with a grid

(I) that can be fitted onto the cutlery

basket to keep items separated.

Cutlery basket (D), if provided, for

appliances with half load only.

Sharp knives and forks that might

cause injury must be placed in the

cutlery basket with the sharp end

facing downwards.

Only use dishwasher-proof crockery and dishes. Do not use the appliance for items not suitable for washing in a

dishwasher, for example wooden items, aluminium, plastic utensils, tin, hand-decorated crockery (unglazed), silver cutlery.

Spare parts which are sold separately:

Multi-purpose support (A) - N. AMH 369 series.

Revolving glass support (C) - N. WGH 1000 series.

Retainer

closed

Retainer

open

Produkt Specifikationer

Mærke:	Whirlpool
Kategori:	Opvaskemaskiner
Model:	ADG 7430
Vekselstrømsindgangsspænding:	220 - 240 V
Vekselstrømsindgangsfrekvens:	50 Hz
Bredde:	597 mm
Dybde:	555 mm
Højde:	820 mm
Vægt:	41000 g
Kontroltype:	Berøring
Indbygget skærm:	Ingen
Strøm:	13 A
Pakkevægt:	42200 g
Pakkedybde:	660 mm
Pakkebredde:	640 mm
Pakkehøjde:	840 mm
Energieffektivitetsklasse (gammel):	A
Årligt energiforbrug:	327 kWh
Placering af apparat:	Fuldt indbygget
Installationsrum bredde:	600 mm
Installationsrum dybde:	555 mm
Tilsluttet belastning:	2200 W
Støjniveau:	48 dB
Tilløbsslange, længde:	1.5 m
Antal vaskeprogrammer:	4
Justerbare fødder:	Ja
Dør farve:	Ikke anvendelig
Vaskeklasse:	A
Vandforbrug pr. cyklus:	15 L
Farve på kontrolpanel:	Rustfrit stål
Antal kuverter:	12 kuverter
Cyklustid:	165 min.
Opvaskeprogrammer:	Eco, Intensive
Halv belastning:	Ja
Tørringsklasse:	A
Årligt vandforbrug:	4200 L
Indikator for afspændingsmiddel:	Ja
Energiforbrug pr. cyklus:	1.15 kWh
AquaStop funktion:	Ja
Installationsrum højde (min.):	820 mm
Installationsrum højde (maks.):	900 mm
Udøsslange længde:	1.6 m
Saltindikator:	Ja
Selvrensende filter:	Ja
