Side 1/4

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT

This manual and the appliance itself provide important safety messages, to be read and observed at all times.

All Safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what

can happen if the instructions are not followed.

- The appliance must be disconnected from the power supply before carrying out any installation work.

- Installation and maintenance must be carried out by a qualified technician, in compliance with the manufacturer’s

instructions and local safety regulations. Do not repair or replace any part of the appliance unless specifically stated in

the user manual.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this appliance.

The electrical and gas connections must comply with local regulations.

- When the hob is installed, provide a multi-pole circuit breaker with a contact

separation of at least 3 mm, that provides full disconnection.

- Regulations require that the appliance is grounded.

- The power cable must be long enough for connecting the appliance, once fitted in

its housing, to the power supply

- Use only flexible or rigid metal hose for gas connection.

- If necessary, the electrical power cable must be replaced exclusively with a power

cable having identical characteristics to the original supplied by manufacturer. This

operation must be performed by a qualified electrician.

- The manufacturer cannot be held responsible for any injury to persons or animals

or damage to property arising from failure to comply with these requirements.

- Do not use multiple plug adapters or extension cords.

- Do not pull the power cable to disconnect it from the electrical supply.

- The electrical components must not be accessible to the user after installation.

- Do not touch the appliance with any wet part of the body and do not operate it

when barefoot.

- This hob (class 3) is designed solely for private household use for cooking food. Do

not use this appliance as a space heater to heat or warm the room. Doing so may

result in carbon monoxide poisoning and overheating of the hob. The

Manufacturer declines all responsibility for inappropriate use or incorrect setting of

the controls.

- The appliance and its accessible parts become hot during use. Care should be taken

to avoid touching heating elements. Children less than 8 years of age shall be kept

away unless continuously supervised. This appliance can be used by children aged

from 8 years and above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved. They shall not play with the appliance. Cleaning

and user maintenance shall not be made by children without supervision.

- The use of a gas appliance produces heat and humidity in the room. Make sure the

room is well-ventilated, or install an extractor hood with exhaust duct.

- Domestic animals should be kept away from the appliance.

- In case of prolonged use, additional ventilation may be necessary (by opening a

window or increasing the hood extraction speed).

- After use, make sure the knobs are in off position and close the main gas supply

cock or the gas cylinder valve.

- Overheated oils and fats catch fire easily. Always remain vigilant when cooking

foods rich in fat, oil or alcohol (e.g. rum, cognac, wine).

- Keep the packaging materials out of the reach of children.

- Before cleaning or maintenance wait for hob to cool down.

- Unattended cooking on a hob with fat or oil can be dangerous and may result in

fire. NEVER try to extinguish a fire with water, but switch off the appliance and then

cover flame e.g. with a lid or a fire blanket.

- Danger of fire: do not store items on the cooking surfaces.

After unpacking the hob, make sure that it has not been damaged during transport. In the event of problems, contact the

dealer or your nearest After-sales Service.

These instructions are only valid for the countries whose symbols is given on the data plate (under the hob).

TECHNICAL INFORMATION FOR THE INSTALLER

• This product can be embedded in a worktop 20 to 50 mm thick.

• If there is no oven beneath the hob, insert a separator panel that has a surface at least equal to the opening in the

work surface. This panel, that has to close completely the cutout in order to avoid any contact with the bottom

part of the hob, must be positioned at a maximum distance of 150 mm below the upper surface of the work

surface but, in no case less than 20 mm from the bottom of the hob. In the case that you intend to install an oven

beneath the hob, make sure that it is manufactured by Whirlpool and equipped with a cooling system. The

manufacturer declines all liability if another brand oven is installed beneath the hob.

IMPORTANT SAFETY INSTRUCTIONS

This is the safety alert symbol, pertaining to safety, which alerts users to potential hazards to themselves and others.

All safety messages will follow the safety alert symbol and either the terms:

DANGER

Indicates a hazardous situation which, if not avoided, will cause serious injury.

WARNING

Indicates a hazardous situation which, if not avoided, could cause serious injury.

WARNING

If the information in this manual is not followed exactly, a fire or explosion may result

causing property damage or injury.

What to do if you smell gas:

- Do not try to light any appliance.

- Do not touch any electrical switch.

- Do not use any phone in your building.

- Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

- If you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, service agency or the gas supplier.

- Use appliance in well ventilated rooms only.

SAVE THESE INSTRUCTIONS

INSTALLATION

5019 600 00827 Manufacturer: Whirlpool Europe S.r.l. Viale G. Borghi, 27 21025 Comerio (VA) ITALY

BUILT-IN GAS HOB INSTRUCTIONS

• Before installation, make sure that:

- the local gas delivery conditions (nature and pressure) are compatible with the settings of the hob (see the

rating plate and injector table);

- the outer surfaces of the furniture or appliances adjacent to the hob are heat resistant according to local regulations;

- this appliance is not connected to a fume exhaust device. It shall be installed in accordance with current installation

regulations. Particular attention shall be given to the relevant requirements regarding ventilation;

- combustion products are discharged outdoors through specific hoods or wall and/or window mounted electrical fans.

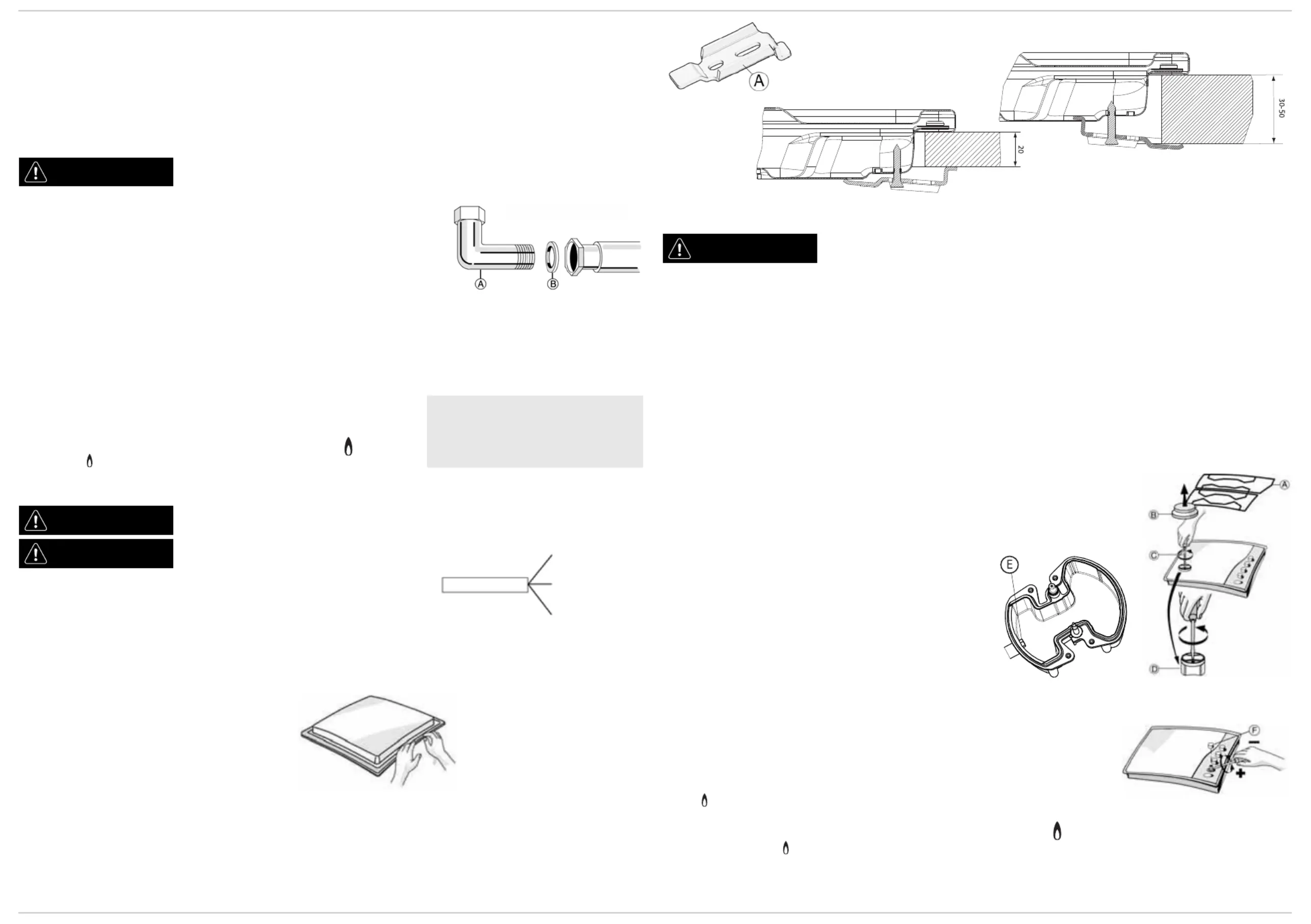

GAS CONNECTION

ELECTRICAL CONNECTION

IMPORTANT: the data relevant to the voltage and power absorption are indicated on the rating plate.

ASSEMBLY

ADJUSTMENT TO DIFFERENT TYPES OF GAS

If the appliance is intended to operate with a different gas from the gas type stated on the rating plate and information label

on the top of the hob, change the injectors.

Remove the information label and keep it with the instructions booklet.

Use pressure regulators suitable for the gas pressure indicated in the Instruction.

• The gas nozzles must be changed by After Sales Service or a qualified technician.

• Nozzles not supplied with the appliance must be ordered from After Sales Service.

• Adjust the minimum setting of the taps.

NOTE: when liquid petroleum gas is used (G30/G31), the minimum gas setting screw must be tightened as far as it

will go.

IMPORTANT: should you experience difficulty in turning the burners knobs, please contact the After Sales Service for

the replacement of the burner tap if found to be faulty.

REPLACING THE INJECTORS (see the injector table in the Instruction)

ADJUSTING MINIMUM GAS SETTING OF TAPS

WARNING

This operation must be performed by a qualified technician.

• The gas supply system must comply with local regulations.

• You can find specific local regulations for some countries in the paragraph

“Reference to Local Regulations”. If no information concerning your Country

is given, please ask details to your Installer.

• The connection of the hob to the gas pipe network or gas cylinder must be

made by means of a rigid copper or steel pipe with fittings complying with

local regulations, or by means of a continuous-surface stainless steel hose

complying with local regulations. Interpose gasket (B) in the elbow

connection.The maximum length of the hose is 2 m.

•FOR BELGIUM ONLY: It is necessary to replace the elbow connection (A) on

the appliance, with the one supplied (if present).

IMPORTANT: if a stainless steel hose is used, it must be installed so as not to

touch any mobile part of the furniture. It must pass through an area where

there are no obstructions and where it is possible to inspect it on all its

length.

• After connection to the gas supply, check for leaks with soapy water.

Light up the burners and turn the knobs from max position to minimum

position to check flame stability.

WARNING

This operation must be performed by a qualified technician.

WARNING

• The electrical connections must comply

with local regulations.

• The earthing of this appliance is

compulsory by law.

• Do not use an extension cord.

After having cleaned the perimeter surface,

apply the supplied gasket to the hob as shown

in the figure.

Position the hob in the worktop opening made respecting the dimensions indicated in the Instruction.

NOTE: the power supply cable must be long enough to permit its upward extraction.

To secure the hob, use the brackets (A) provided with it. Fit the brackets into the relevant bores shown by the arrow and

fasten them by means of their screws in accordance with the thickness of the worktop (see the following figures).

Earth

(yellow/green)

WARNING

This operation must be performed by a qualified technician.

• Remove grids (A).

• Extract burners (B).

• Using a socket spanner of the appropriate size unscrew

the injector (C), unscrew the injector to be replaced.

• Replace it with the injector suitable for the new type of

gas.

• Re-assemble the injector in (D).

• If you have a multiple crown burner use side spanner to

replace the injector (E).

Before installing the hob, remember to affix the gas

calibration plate supplied with the injectors in such a way

that it covers the existing information relating to gas

calibration.

To ensure that the minimum setting is correctly adjusted, remove the knob and

proceed as follows:

• tighten screw to reduce the flame height (-);

• loosen screw to increase the flame height (+).

The adjustment must be performed with the tap in minimum gas setting position (small

flame) .

• The primary air of the burners does not need to be adjusted.

• At this stage, light up the burners and turn the knobs from max position to

minimum position to check flame stability.

Upon completion of adjustment, reseal using sealing wax or an equivalent material.

Top 20 mm

Top 30-50 mm

(Apply the label from warranty here)

Produkt Specifikationer

Mærke:	Whirlpool
Kategori:	Komfur
Model:	AKM 394/NA
Tænd-/slukkontakt:	Ingen
Vekselstrømsindgangsspænding:	230 V
Vekselstrømsindgangsfrekvens:	50 Hz
Bredde:	680 mm
Dybde:	500 mm
Højde:	41 mm
Vægt:	9000 g
Produktfarve:	Anthracit
Kontroltype:	Dreje
Indbygget skærm:	Ingen
Pakkedybde:	595 mm
Pakkebredde:	770 mm
Pakkehøjde:	185 mm
Timer:	Ingen
Placering af apparat:	Indbygget
Installationsrum bredde:	560 mm
Installationsrum dybde:	480 mm
Installationsrum højde:	30 mm
Komfurtype:	Gaskomfur
Overfladetype:	emaljeret
Antal kogeplader / madlavningsområde:	5
Blus/kogeplade zone 1 strøm:	1000 W
Blus/kogeplade zone 2 strøm:	3000 W
Blus/kogeplade zone 1 type:	Simre
Kogezone 1 form:	Rund
Blus/kogeplade zone 1 position:	Venstre front
Blus/kogeplade zone 1 strømkilde:	Gas
Blus/kogeplade zone 2 type:	Stor
Kogezone 2 form:	Rund
Blus/kogeplade zone 2 position:	Venstre bagende
Blus/kogeplade zone 2 strømkilde:	Gas
Kontrolposition:	Front
Nem at rengøre:	Ja
Tilsluttet belastning (elektrisk):	0 W
Ovnbredde størrelse:	70 cm
Blus/kogeplade zone 3 type:	Regelmæssig
Blus/kogeplade zone 4 type:	Regelmæssig
Blus/kogeplade zone 4 strømkilde:	Gas
Kogezone 4 form:	Rund
Blus/kogeplade zone 3 strømkilde:	Gas
Kogezone 3 form:	Rund
Blus/kogeplade zone 3 position:	Højre bagende
Blus/kogeplade zone 4 position:	Højre forside
Tilsluttet belastning (gas):	10600 W
Blus/kogeplade zone 5 position:	Central
Blus/kogeplade zone 5 strømkilde:	Gas
Antal gasbrændere:	5
Blus/kogeplade zone 5 type:	Tredobbelt krone
Blus/kogeplade zone 4 strøm:	1650 W
Blus/kogeplade zone 5 strøm:	3300 W
Blus/kogeplade zone 3 strøm:	1650 W
Kogezone 5 form:	Rund
Simre kogeplade / madlavningsområde:	1000 W
Almindelige kogeplade / madlavningsområde:	1650 W
Stor kogeplade / madlavningsområde:	3000 W
Understøttet grydemateriale:	Støbejern
Wokbrænder:	Ja
Ekstra stor hurtig kogeplade / madlavningsområde:	3300 W
