MICROWAVE HOOD COMBINATION
INSTALLATION INSTRUCTIONS
MICROWAVE HOOD COMBINATION SAFETY
This product is suitable for use above electric or gas cooking products up to and including 36" (91.4 cm) wide. See “Installation
Requirements” section for further notes.
These installation instructions cover different models. The appearance of your particular model may differ slightly from the illustration in
these installation instructions.
Table of Contents
MICROWAVE HOOD COMBINATION SAFETY ..............................1
INSTALLATION REQUIREMENTS ...................................................2
Tools and Parts...............................................................................2
Remove Cardboard Template ........................................................2
Location Requirements...................................................................2
Product Dimensions .......................................................................3
Electrical Requirements..................................................................3
INSTALLATION INSTRUCTIONS .....................................................4
Remove Mounting Plate .................................................................4
Rotate Blower Motor.......................................................................4
Locate Wall Stud(s).........................................................................6
Mark Rear Wall................................................................................7
Drill Holes in Rear Wall....................................................................7
Attach Mounting Plate to Wall........................................................8
Prepare Upper Cabinet...................................................................8
Install Damper Assembly ................................................................9
Install the Microwave Oven ............................................................9
Complete Installation ....................................................................10
VENTING DESIGN SPECIFICATIONS............................................11
ASSISTANCE ...................................................................................12
Replacement Parts .......................................................................12
Accessories...................................................................................12
W10247296B
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
INSTALLATION REQUIREMENTS
Tools and Parts
Tools Needed
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools
listed here.
Parts Supplied
For reorder information, see “Replacement Parts” section.
NOTE: The hardware items listed here are for wood studs. For
other types of wall structures, be sure to use appropriate
fasteners.
NOTE: Depending on model, aluminum grease filter and charcoal
filter may be combined.
Materials needed
■ Standard fittings for wall or roof venting. See “Venting Design
Specifications” section.
Remove Cardboard Template
The cardboard piece from the top of the microwave oven
packaging is perforated. The piece inside the perforation is for use
as a rear wall template.
1. Cut along the perforation to separate the template from the
rest of the cardboard packaging.
2. Set the cardboard template to the side and refer to it during
the “Mark Rear Wall” part of installation.
Location Requirements
Check the opening where the microwave oven will be installed.
The location must provide:
■ Minimum installation dimensions. See “Installation
Dimensions” illustration.
■ Minimum one 2" x 4" (50.8 x 101.6 mm) wood wall stud and
minimum 3/8" (10 mm) thickness drywall or plaster/lath within
cabinet opening.
■ Support for weight of 150 lbs (68 kg), which includes
microwave oven and items placed inside the microwave oven
and upper cabinet.
■ Grounded electrical outlet inside upper cabinet. See
“Electrical Requirements” section.
NOTES:
■
If installing the microwave oven
near a left sidewall, make sure
there is at least 6" (15.2 cm) of clearance between the wall and
the microwave oven, so that the door can open fully.
■ Some cabinet and building materials are not designed to
withstand the heat produced by the microwave oven for
cooking. Check with your builder or cabinet supplier to make
sure that the materials used will not discolor, delaminate or
sustain other damages.
Special Requirements
For Wall Venting Installation Only:
■ Cutout must be free of any obstructions so that the vent fits
properly, and the damper blade opens freely and fully.
For Roof Venting Installation Only:
■ If you are using a rectangular to round transition piece, the
3" (7.6 cm) clearance needs to exist above the microwave
oven so that the damper blade can open freely and fully. See
“Rectangular to Round Transition” illustration in “Venting
Design Specifications” section.
■ Measuring tape
■ Pencil
■ Masking tape or thumbtacks
■ Scissors
■ No. 2 Phillips screwdriver
■ No. 3 Phillips screwdriver for
1/4-20 x 3" bolts
■ Drill
■ 3/16" (5 mm), 3/8" (10 mm)
drill bits
■ 3/4" (19 mm) hole saw
■ Stud finder
■ 7/16" socket wrench
(or box wrench) for 1/4" x 2"
lag screws
■ 1½" (3.8 cm) diam. hole drill
bit for wood or metal
cabinet
■ Keyhole saw
■ Caulking gun and
weatherproof caulking
compound
■ Duct tape

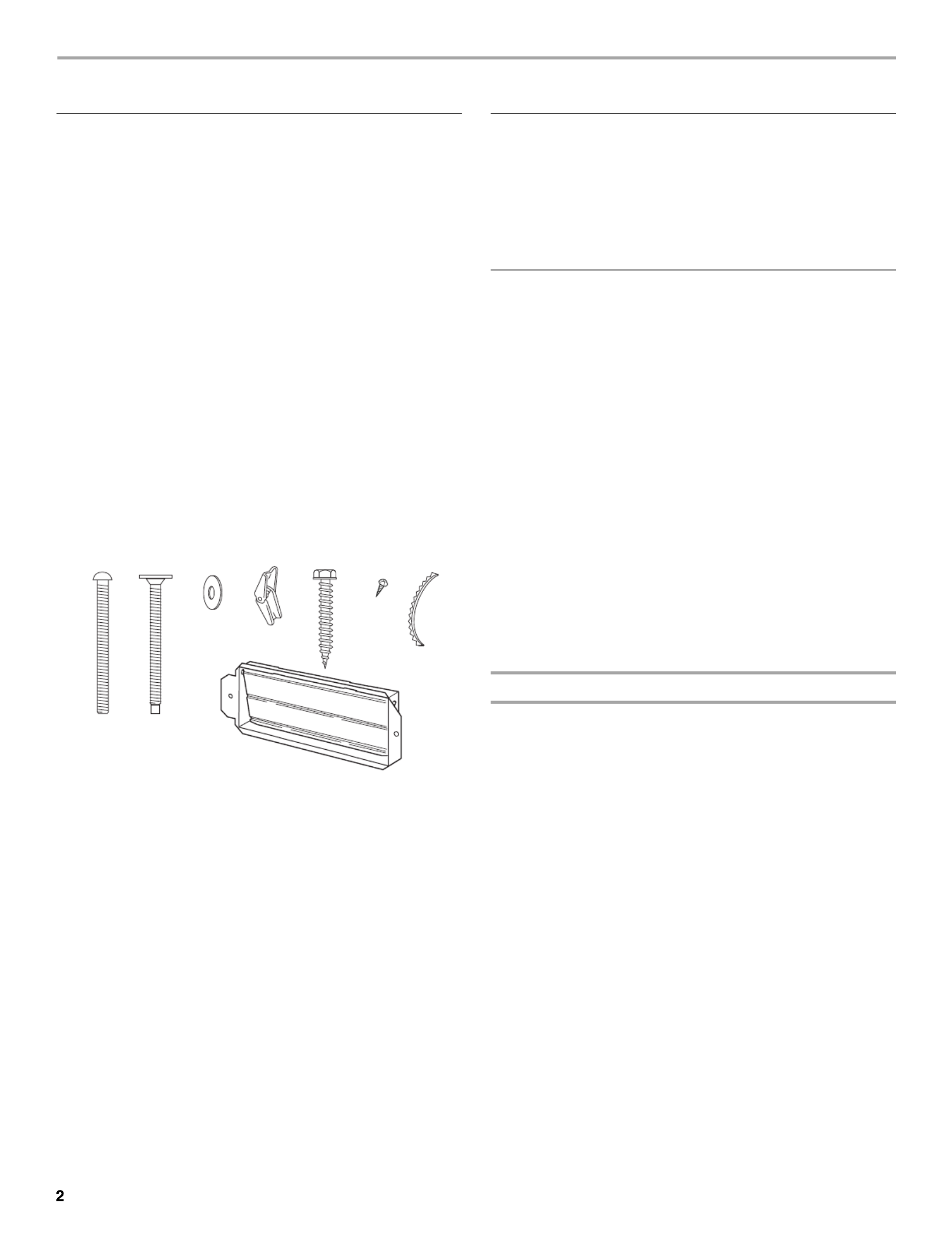

A. 1/4-20 x 3" round-head bolts (2)
B. 1/4-20 x 3" flat-head bolts (2)
C. Washers (2)
D. Toggle nuts (2)
E. 1/4" x 2" lag screws (2)
F. Sheet metal screws (2)
G. Power supply cord bushing (1)
H. Damper assembly (for wall or roof
venting)
Not Shown:
Upper cabinet template
Mounting plate (attached to
back of microwave oven)
Cardboard template (part of
packaging)
Aluminum grease filters
Charcoal filters (Depending
on model, charcoal filters
may not be included. See
User Instructions.)
A B C D E F G
