INSTALLATION INSTRUCTIONS

SLIDE-IN ELECTRIC RANGES

INSTRUCTIONS D’INSTALLATION DES CUISINIÈRES

ÉLECTRIQUES ENCASTRABLES

RANGE SAFETY

Table of Contents/Table des matières

RANGE SAFETY .............................................................................1

INSTALLATION REQUIREMENTS................................................2

Tools and Parts ............................................................................2

Location Requirements................................................................2

Electrical Requirements - U.S.A. Only.........................................4

Electrical Requirements - Canada Only.......................................5

Countertop Preparation ...............................................................5

INSTALLATION INSTRUCTIONS..................................................5

Unpack Range..............................................................................5

Adjust Leveling Legs....................................................................6

Install Anti-Tip Bracket.................................................................6

Electrical Connection - U.S.A. Only.............................................7

Verify Anti-Tip Bracket Is Installed and Engaged ......................12

Level Range................................................................................13

Complete Installation .................................................................13

Moving the Range......................................................................13

SÉCURITÉ DE LA CUISINIÈRE ...................................................14

EXIGENCES D'INSTALLATION...................................................15

Outillage et pièces......................................................................15

Exigences d'emplacement.........................................................15

Spécifications électriques ..........................................................17

Préparation du plan de travail ....................................................17

INSTRUCTIONS D'INSTALLATION.............................................17

Déballage de la cuisinière ..........................................................17

Réglage des pieds de nivellement .............................................18

Installation de la bride antibasculement ....................................18

Vérifier que la bride antibasculement est bien

installée et engagée....................................................................19

Réglage de l'aplomb de la cuisinière.........................................19

Achever l'installation ..................................................................20

Déplacement de la cuisinière.....................................................20

IMPORTANT:

Save for local electrical inspector's use.

IMPORTANT :

À conserver pour consultation par l'inspecteur local des installations électriques.

W10430949A

You can be killed or seriously injured if you don't immediately

You can be killed or seriously injured if you don't follow

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

follow instructions.

instructions.

DANGER

WARNING

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools listed

here.

Tools needed

Parts supplied

Check that all parts are included.

■ 3 - #10-32 hex nuts (attached to terminal block)

■ 3 - Terminal lugs

■ 2 or 3 - Oven racks (depending on your model)

■ 2 - #12 x 1⁵⁄₈" screws (for mounting anti-tip bracket)

■ Anti-tip bracket

Anti-tip bracket must be securely mounted to back wall or

floor. Thickness of floor may require longer screws to anchor

bracket to subfloor. Longer screws are available from your

local hardware store.

Parts needed

If using a power supply cord:

■ A UL listed power supply cord kit marked for use with ranges.

The cord should be rated at 250 volts minimum, 40 amps or

50 amps that is marked for use with nominal 1³⁄₈" (3.5 cm)

diameter connection opening and must end in ring terminals

or open-end spade terminals with upturned ends.

■ A UL listed strain relief.

Check local codes. Check existing electrical supply. See

“Electrical Requirements” section.

It is recommended that all electrical connections be made by a

licensed, qualified electrical installer.

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

■ It is the installer’s responsibility to comply with installation

clearances specified on the model/serial rating plate. The

model/serial rating plate is located on the side of the oven

frame behind the storage drawer or warming drawer panel.

■ The range should be located for convenient use in the

kitchen.

■ To eliminate the risk of burns or fire by reaching over heated

surface units, cabinet storage space located above the

surface units should be avoided. If cabinet storage is to be

provided, the risk can be reduced by installing a range hood

that projects horizontally a minimum of 5" (12.7 cm) beyond

the bottom of the cabinets.

■ Cabinet opening dimensions that are shown must be used.

Given dimensions are minimum clearances.

■ The floor anti-tip bracket must be installed. To install the anti-

tip bracket shipped with the range, see “Install Anti-Tip

Bracket” section.

■ Grounded electrical supply is required. See “Electrical

Requirements” section.

IMPORTANT: To avoid damage to your cabinets, check with your

builder or cabinet supplier to make sure that the materials used

will not discolor, delaminate or sustain other damage. This oven

has been designed in accordance with the requirements of UL

and CSA International and complies with the maximum allowable

wood cabinet temperatures of 194°F (90°C).

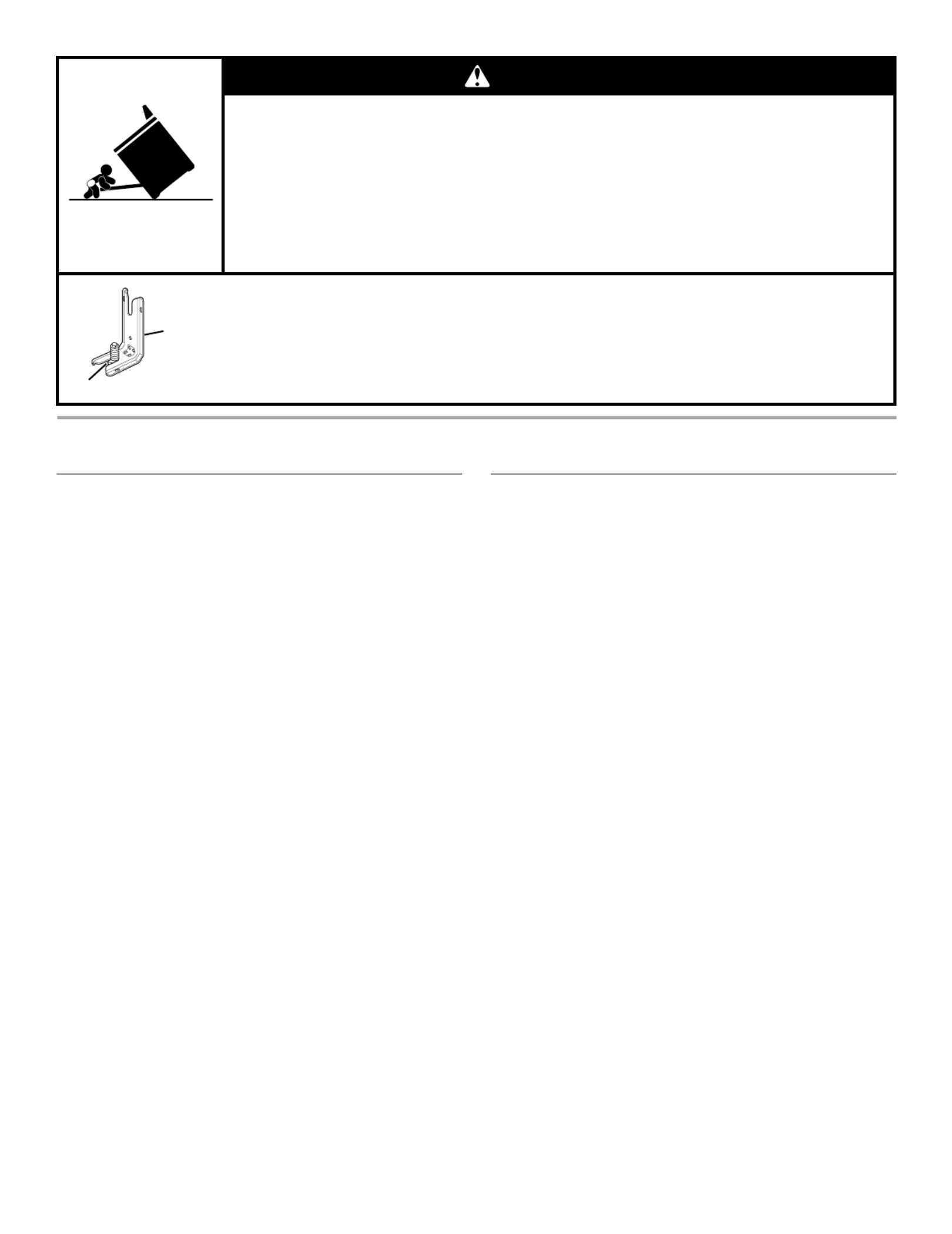

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death or serious burns to children and adults.

To verify the anti-tip bracket is installed and engaged:

• Slide range forward.

• Look for the anti-tip bracket securely attached to floor or wall.

• Slide range back so rear range foot is under anti-tip bracket.

• See installation instructions for details.

WARNING

Anti-Tip

Bracket

Range Foot

■ Tape measure

■ Level

■ Phillips screwdriver

■ Flat-blade screwdriver

■ Wrench or pliers

■ ³⁄₈" nut driver

■ Drill

■ ¹⁄₈" (3.2 mm) drill bit
