Side 1/36

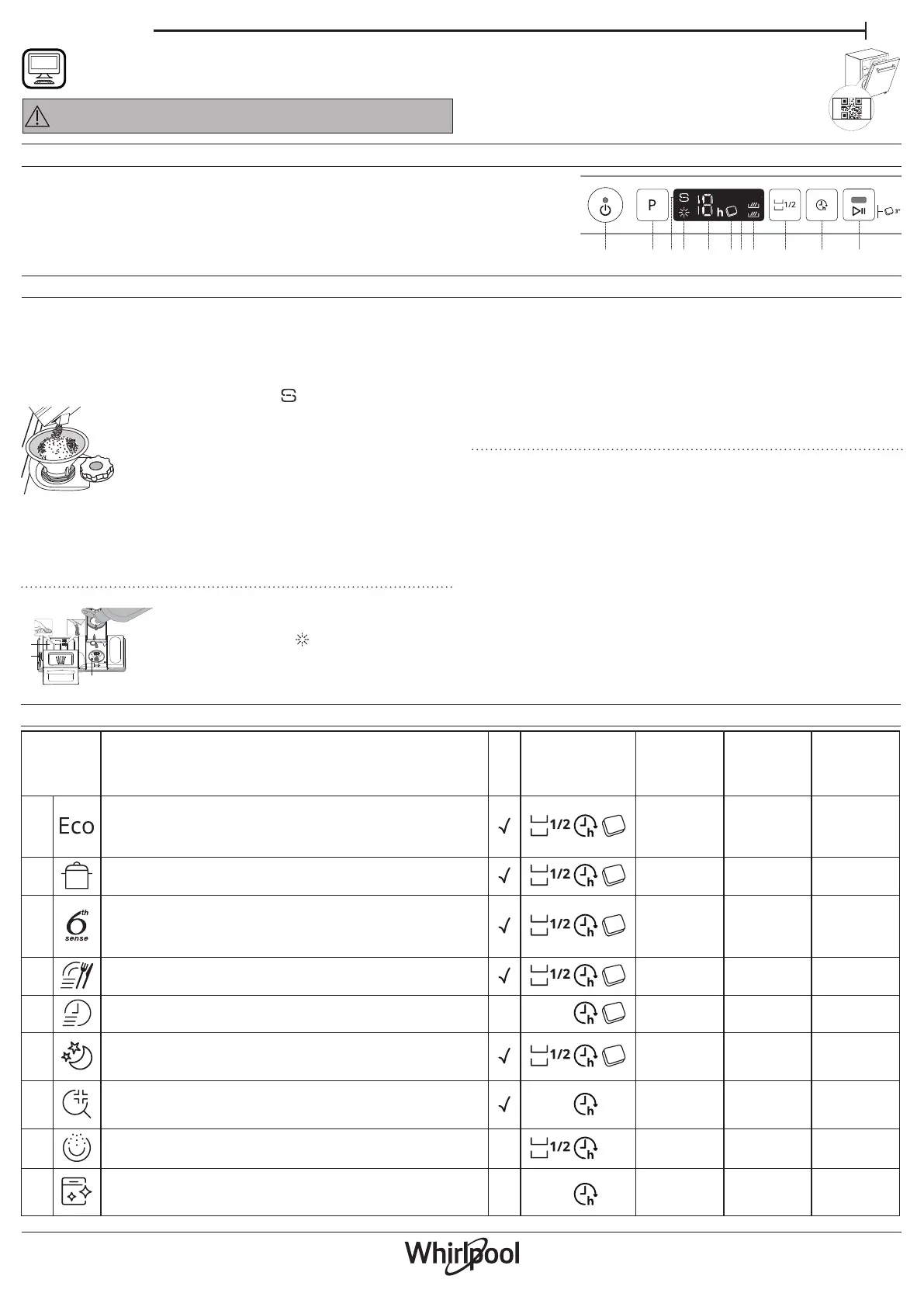

ENQuick Guide

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

In order to receive a more complete assistance, please register

your appliance on: www.whirlpool.eu/register

CONTROL PANEL

FIRST TIME USE

Before using the appliance carefully read Safety Instructions

guide.

PROGRAMS TABLE

PLEASE SCAN THE QR CODE ON YOUR

APPLIANCE IN ORDER TO HAVE MORE

DETAILED INFORMATION

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on

the machine’s functional components.

• It is mandatory that the salt reservoir never be empty.

• It is important to set the water hardness.

The salt reservoir is located in the lower part of the dishwasher and must be

lled when the SALT REFILL indicator light in the control panel is lit.

1. Remove the lower rack and unscrew the reservoir cap

(anticlockwise).

2. Position the funnel (see gure) and ll the salt reservoir

right up to its edge (approximately 1 kg); it is not unu-

sual for a little water to leak out.

3. Only the rst time you do this: ll the salt reservoir

with water.

4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly, so that no detergent can get into

the container during the wash program (this could damage the water

softener beyond repair).

Whenever you need to add salt, it is mandatory to complete the proce-

dure before the beginning of the washing cycle to avoid corrosion.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid

dispenser A should be lled when the RINSE AID

REFILL indicator light in the control panel is lit.

NEVER pour the rinse aid directly into the

appliance tub.

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the

detergent into the dry dispenser D only. Place the amount of detergent for

pre-washing directly inside the tub.

If all-in-one detergents are used, we recommend using the TABLET button,

because it adjusts the program so that the best washing and drying results

are always achieved.

Usage of detergent not designed for dishwashers may cause

malfunction or damage to the appliance.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently pre-

venting scale buildup on heater, contributing also to better cleaning e-

ciency. This system regenerates itself with salt, therefore it is required

to rell salt container when empty.

Frequency of regeneration depends on water hardness level setting - regen-

eration takes place once per 6 Eco cycles with water hardness level set to 3.

Regeneration process starts in nal rinse and nishes in drying phase, be-

fore cycle ends.

• Single regeneration consumes: ~3.5L of water;

• Takes up to 5 additional minutes for the cycle;

• Consumes below 0.005kWh of energy.

1. ON-OFF/Reset button with indicator light

2. Program selection button

3. Salt rell indicator light

4. Rinse Aid rell indicator light

5. Program number and delay time indicator

6. Tablet indicator light

7. Display

8. Half Load indicator lights

9. Half Load button

10. Delay button

11. START/Pause button with indicator light /

Tablet (Tab)

Program Programs description

Drying

phase

Available

options

Duration

of wash

program

(h:min)

**)

Water

consumption

(litres/cycle)

Energy

consumption

(kWh/cycle)

Eco 50°- Eco program is suitable to clean normally soiled

tableware. that for this use. it is the most ecient program in

terms of its combined energy and water consumption. and that

it is used to assess compliance with the EU Ecodesign legislation.

3:35 9.5 0.95

Intensive 65° - Program recommended for heavily soiled crockery.

especially suitable for pans and saucepans (not to be used for delicate items).

2:40 18.0 1.60

Sense® 55° - For normally soiled dishes with dried food residues.

Senses the level of soiling on the dishes and adjusts the program

accordingly. When the sensor is detecting the soil level an

animation appears in the display and the cycle duration is updated.

2:10-2:20 15.5-16.5 1.30-1.50

Fast Wash&Dry 50° - Normally soiled crockery. Everyday cycle, that

ensures optimal cleaning and drying performance in shorter time.

1:30 11.5 1.30

Rapid 28’ 50° - Program to be used for half load of lightly-soiled

dishes with no dried food residues. Does not have drying phase.

0:28 9.0 0.50

Silent 50° - Suitable for night-time operation of the appliance.

Ensures optimal cleaning and drying performance with the lowest

noise emission.

3:35 16.6 1.30

Sanitizing 65° - Normally or heavily soiled crockery, with

additional antibacterial wash. Can be used to perform

maintenance of the dishwasher.

2:00 12.0 1.50

Pre-Wash - Use to refresh crockery planned to be washed later. No

detergent to be used with this program.

0:12 4.7 0.01

Self-Clean 65° - Program to be used to perform maintenance of the

dishwasher, to be carried out only when the dishwasher is EMPTY

using specic detergents designed for dishwasher maintenance.

0:50 10.0 0.80

1 2 3 4 5 6 7 8 9 10

PROBLEMS POSSIBLE CAUSES SOLUTIONS

The dishwasher does

not ll the water.

Display shows: H,

6 and On/O LED is

blinking rapidly

No water in the water supply or the tap is closed.

Make sure there is water in the water supply or the tap running.

The inlet hose is bent.

Make sure the inlet hose is not bent (see INSTALLATION) reprogram the dishwa-

sher and reboot.

The sieve in the water inlet hose is clogged;

it is necessary to clean it

After having carried out the verication and cleaning, turn o and turn on the

dishwasher and restart a new program.

Dishwasher nishes the

cycle prematurely. Display

shows: 15 and On/O

LED is blinking rapidly

Drain hose positioned too low or siphoning

into home sewage system.

Check if end of drain hose is placed at correct height (see INSTALLATION).Check

for siphoning into home sewage system, install air admittance valve if necessary.

Air in water supply. Check water supply for leaks or other issues letting air inside.

In case your dishwasher doesn’t work properly, check if the problem can be solved by going through the following list. For other errors or issues

please contact authorized After-sales Service which contact details can be found in the warranty booklet. Spare parts will be available for a period

of either up to 7 or up to 10 years, according to the specic Regulation requirements.

TROUBLESHOOTING

Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Using QR code on your product.

• Visiting our website docs.whirlpool.eu and parts-selfservice.whirlpool.com

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-

sales Service, please state the codes provided on your product‘s identication plate.

The model information can be retrieved using the QR-Code reported in the energy label. The label also includes the model

identier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu.

IEC 436

Please scan the QR code on your product in order to have more detailed information.

400011662622

02/2023 dk - Xerox Fabriano

DELAY -The start of the program may be delayed for a period of time

between 1 and 12 hours.

The DELAY function cannot be set once a wash cycle has been started.

TABLET (Tab)- If you use powder or liquid detergent, this option

should be o.

OPTIONS AND FUNCTIONS

OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL). If an option is not compatible with the selected

program (see PROGRAMS TABLE), the corresponding LED ashes rapidly 3 times and beeps will sound. The option will not be enabled.

HALF LOAD - If there are not many dishes to be washed, a half loading

may be used in order to save water, electricity and detergent.

Remember to halve the amount of detergent.

Please scan the QR code on your product in order to have more detailed information.

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020. Note for Test Laboratories: For information on

comparative EN testing conditions, please send an email to the following address: dw_test_support@whirlpool.com

Pre-treatment of the dishes is not needed before any of the programs.

*) Not all options can be used simultaneously.

**) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and

pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor cali-

bration. The sensor calibration can increase program duration up to 20 min.

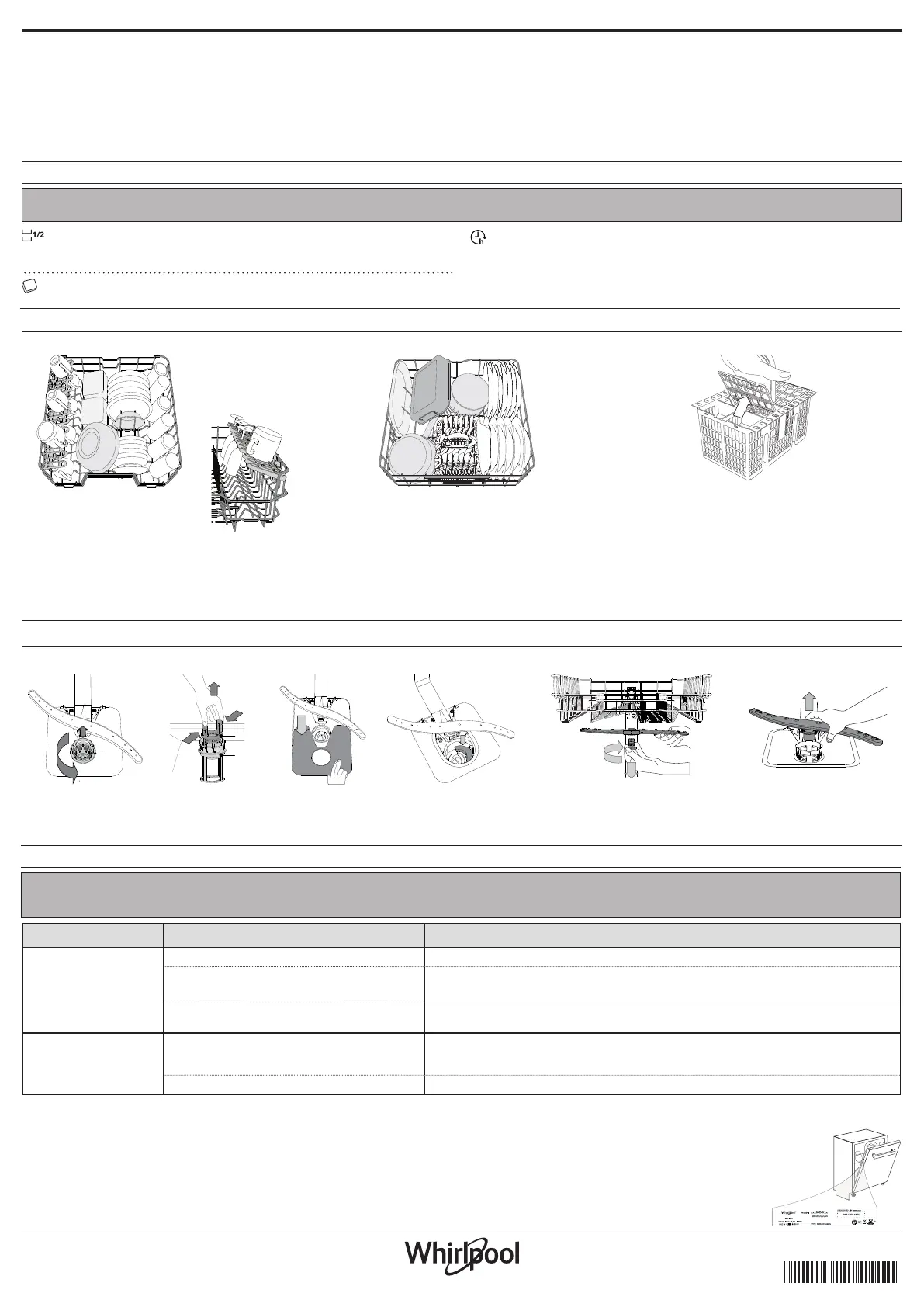

CUTLERY BASKET

The basket is equipped with top

grilles for

improved cutlery arrangement.

The cutlery basket

should be positioned only at the front of the

lower rack.

Knives and other utensils with sharp edges

must be placed in the cutlery basket with the

points facing downwards or they must be

positioned horizontally in the tip-up com-

partments on the upper rack.

LOADING THE RACKS

CAPACITY: 14 standard place-settings

More information in the Daily Reference Guide on website.

CLEANING AND MAINTENANCE

CLEANING THE FILTER ASSEMBLY CLEANING THE SPRAY ARMS

In case you nd foreign objects (such as broken glass, porcelain, bones, fruit seeds

etc.) please remove them carefully.

NEVER REMOVE the wash-cycle pump protection (black detail) (Fig 4).

To remove the upper spray arm,

turn the plastic locking ring in a

clockwise direction.

The lower spray arm may

be removed by pulling it

upwards.

UPPER RACK

(loading example for the

upper rack)

Load delicate and light

dishes: glasses, cups, saucers,

low salad bowls.

LOWER RACK

(loading example for the lower rack)

For pots, lids, plates, salad bowls, cutlery etc.. Lar-

ge plates and lids should ideally be placed at the

sides to avoid interferences with the spray arm.

The lower rack has tip-up supports which can be

used in a vertical position when arranging plates

or in a horizontal position (lower) to load pans and

salad bowls easily.

FOLDABLE

FLAPS WITH

ADJUSTABLE

POSITION

Produkt Specifikationer

Mærke:	Whirlpool
Kategori:	Opvaskemaskine
Model:	W2I HD524 AS
Vekselstrømsindgangsspænding:	220-240 V
Vekselstrømsindgangsfrekvens:	50 Hz
Bredde:	598 mm
Dybde:	555 mm
Højde:	820 mm
Vægt:	35500 g
Kontroltype:	Knapper
Indbygget skærm:	Ja
Strøm:	10 A
Ledningslængde:	1.3 m
Pakkevægt:	37500 g
Placering af apparat:	Fuldt indbygget
Installationsrum bredde:	600 mm
Installationsrum dybde:	560 mm
Tilsluttet belastning:	1900 W
Støjniveau:	44 dB
Tilløbsslange, længde:	1.55 m
Antal vaskeprogrammer:	9
Forsinket start-timer:	Ja
Justerbare fødder:	Ja
Dør farve:	Ikke anvendelig
Vandforbrug pr. cyklus:	9.5 L
Bestik rum type:	Kurv
Farve på kontrolpanel:	Sølv
Antal kuverter:	14 kuverter
Cyklustid:	215 min.
Forsinket start (maks.):	12 t
Opvaskeprogrammer:	Daily 50°C, Eco 50°C, Hygiene, Intensive 65°C, Pre-wash, Quick, Self-Clean 65°C, Silent 50°C
Halv belastning:	Ja
Indikator for afspændingsmiddel:	Ja
Energieffektivitetsskala:	A til G
Selvrensende:	Ja
AquaStop funktion:	Ingen
Installationsrum højde (min.):	820 mm
Installationsrum højde (maks.):	900 mm
Udøsslange længde:	1.5 m
Produktstørrelse:	Fuld størrelse (60 cm)
Vandpåfyldning:	Cold, Hot
Overløbsbeskyttelse:	Ja
Støjemissionsklasse:	B
Energieffektivitetsklasse:	E
Energiforbrug pr. 100 cyklusser:	95 kWh
Brugerdefineret panel klar:	Ja
Temperatur (maks):	65 °C
Saltindikator:	Ja
Kurves indstillelige placering:	Øvre
Maksimal varmtvandsforsyning temperatur:	60 °C
