Side 1/181

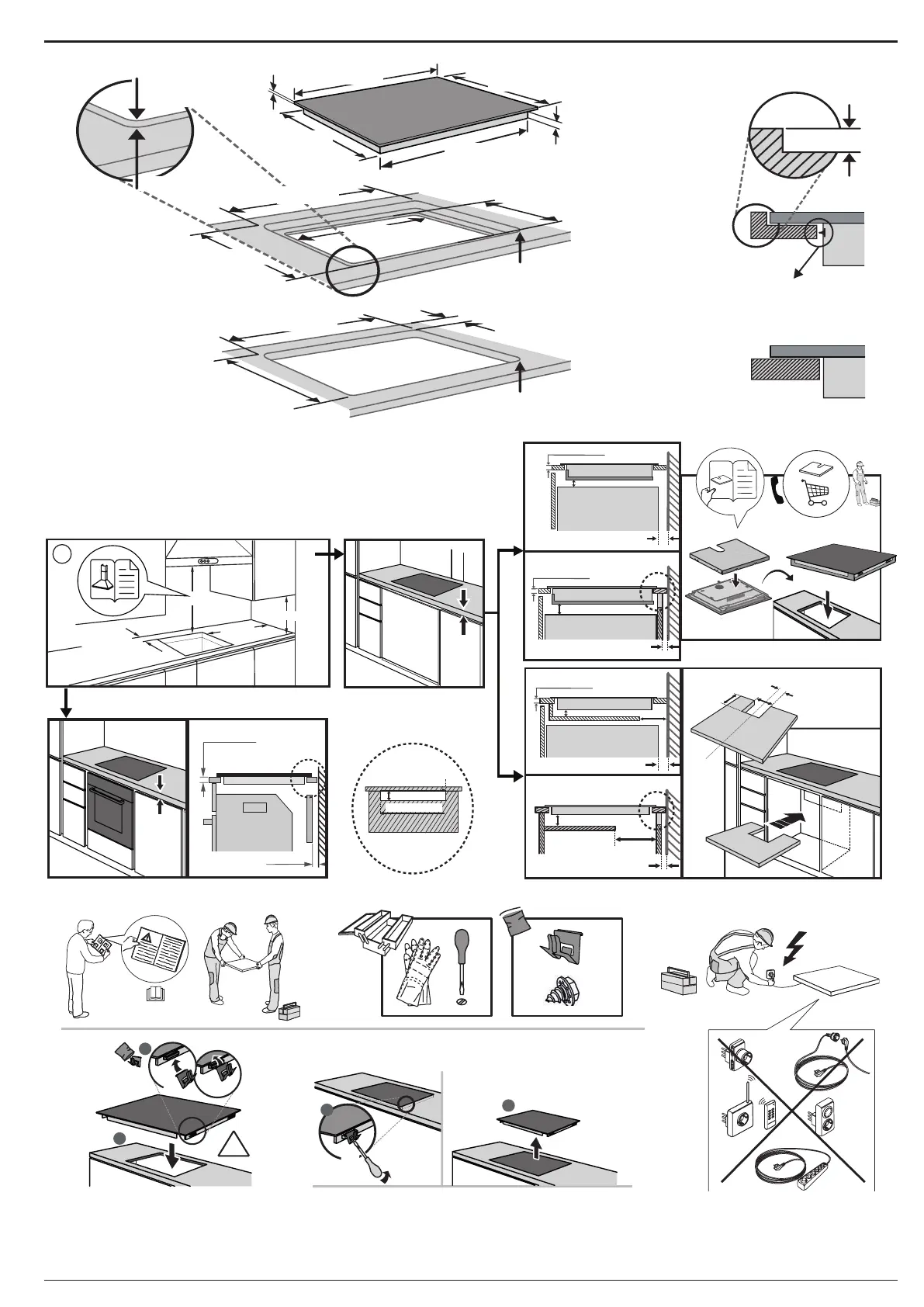

560 mm

R = Max. 10 mm

Min. 35 mm

560 mm

R = 11.5 mm

593 mm

513 mm

Min. 480 mm

Max. 492 mm

50 mm

6mm

kit *

R = Max. 10 mm

R = 11.5 mm

4 mm

551 mm

510 mm

479 mm

590 mm

Min. 480 mm

Max. 492 mm

28 mm-

No Max.

Min. 35 mm

Min. 400 mm

Min.100 mm

45 mm

90 mm

120 mm

Min. 28 mm

20 mm

min. 45 mm

min. 550 mm

12 mm-

No Max.

min. 20 mm

60 mm

min. 10 mm

60 mm

min. 20 mm

min. 10 mm

Min. 12 mm

A-A

Min. 12 mm

min. 10 mm

min. 20 mm

90°C

x8*

* Available only on certain models - Налично само при определени модели - Dostupné pouze u určitých modelů - Kun disponibel på visse modeller - Nur für bestimmte Modelle erhältlich - Διατίθεται μόνο

σε ορισμένα μοντέλα - Disponible en determinados modelos solamente - Saadaval ainult teatud mudelitel - Saatavana vain eräissä malleissa - Disponible sur certains modèles seulement - Dostupno samo na

određenim modelima - Kizárólag bizonyos típusok esetén - Disponibile solo su alcuni modelli - Tik tam tikruose modeliuose - Pieejams tikai atsevišķiem modeļiem - Alleen verkrijgbaar voor bepaalde modellen -

Kun tilgjengelig på noen modeller - Dostępne tylko w wybranych modelach - Disponível apenas em determinados modelos - Disponibile numai la anumite modele - K dispozícii len na niektorých modeloch - Na

voljo le pri določenih modelih - Dostupno samo na određenim modelima - Endast på vissa modeller - Доступно лише в деяких моделях-



Before using the appliance, read these safety

instructions. Keep them nearby for future reference.

These instructions and the appliance itself provide

important safety warnings to be observed at all

times. The manufacturer declines any liability for

failure to observe these safety instructions, for

inappropriate use of the appliance or incorrect

setting of controls.

WARNING: If the hob surface is cracked, do not

use the appliance - risk of electric shock.

WARNING: Danger of re: Do not store items on

the cooking surfaces.

CAUTION: The cooking process has to be

supervised. A short cooking process has to be

supervised continuously.

WARNING: Unattended cooking on a hob with fat

or oil can be dangerous - risk of re. NEVER try to

extinguish a re with water: instead, switch o the

appliance and then cover ame e.g. with a lid or a

re blanket.

Do not use the hob as a work surface or support.

Keep clothes or other ammable materials away

from the appliance, until all the components have

cooled down completely - risk of re.

Metallic objects such as knives, forks, spoons and

lids should not be placed on the hob surface since

they can get hot.

Very young children (0-3 years) should be kept

away from the appliance. Young children (3-8years)

should be kept away from the appliance unless

continuously supervised. Children from 8years old

and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge can use this appliance only if they

are supervised or have been given instructions on

safe use and understand the hazards involved.

Children must not play with the appliance. Cleaning

and user maintenance must not be carried out by

children without supervision.

After use, switch o the hob element by its

control and do not rely on the pan detector.

WARNING: The appliance and its accessible parts

become hot during use. Care should be taken to

avoid touching heating elements. Children less than

8 years of age shall be kept away unless continuously

supervised.

The food must not be left in or on the product for

more than one hour before or after cooking.

PERMITTED USE

CAUTION: the appliance is not intended to be

operated by means of an external switching device,

such as a timer, or separate remote controlled

system.

This appliance is intended to be used in household

and similar applications such as: sta kitchen areas

in shops, oces and other working environments;

farm houses; by clients in hotels, motels, bed &

breakfast and other residential environments.

No other use is permitted (e.g. heating rooms).

This appliance is not for professional use. Do not

use the appliance outdoors.

WARNING: Induction hob may generate the

acoustic sound when something is left on the

control panel. Switch o the cooktop through the

ON/OFF button.

INSTALLATION

The appliance must be handled and installed by

two or more persons - risk of injury. Use protective

gloves to unpack and install - risk of cuts.

Installation, including water supply (if any),

electrical connections and repairs must be carried

out by a qualied technician. Do not repair or replace

any part of the appliance unless specically stated in

the user manual. Keep children away from the

installation site. After unpacking the appliance,

make sure that it has not been damaged during

transport. In the event of problems, contact the

dealer or your nearest After-sales Service. Once

installed, packaging waste (plastic, styrofoam parts

etc.) must be stored out of reach of children - risk of

suocation. The appliance must be disconnected

from the power supply before any installation

operation - risk of electric shock. During installation,

make sure the appliance does not damage the

power cable - risk of re or electric shock. Only

activate the appliance when the installation has

been completed.

Carry out all cabinet cutting operations before

tting the appliance and remove all wood chips and

sawdust.

If the appliance is not installed above an oven, a

separator panel (not included) must be installed in

the compartment under the appliance.

ELECTRICAL WARNINGS

It must be possible to disconnect the appliance

from the power supply by unplugging it if plug is

accessible, or by a multi-pole switch installed

upstream of the socket in accordance with the

wiring rules and the appliance must be earthed in

conformity with national electrical safety standards.

Do not use extension leads, multiple sockets or

adapters. The electrical components must not be

accessible to the user after installation. Do not use

the appliance when you are wet or barefoot. Do not

operate this appliance if it has a damaged power

cable or plug, if it is not working properly, or if it has

been damaged or dropped.

Installation using a power cable plug is not

allowed unless the product is already equipped with

the one provided by the Manufacturer.

If the supply cord is damaged, it must be replaced

with an identical one by the manufacturer, its service

SAFETY INSTRUCTIONS

IMPORTANT TO BE READ AND OBSERVED

Produkt Specifikationer

Mærke:	Whirlpool
Kategori:	Kogesektioner
Model:	WB S2560 NE
Vekselstrømsindgangsspænding:	220 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	590 mm
Dybde:	510 mm
Højde:	54 mm
Vægt:	9400 g
Produktfarve:	Sort
Kontroltype:	Berøring
Indbygget skærm:	Ja
Skærmtype:	LED
Strøm:	33.1 A
Ledningslængde:	1.2 m
Timer:	Ja
Placering af apparat:	Indbygget
Installationsrum bredde:	560 mm
Installationsrum dybde:	480 mm
Installationsrum højde:	28 mm
Børnesikring:	Ja
Komfurtype:	Zone induktionskogeplade
Overfladetype:	Keramisk
Antal kogeplader / madlavningsområde:	4
Antal elektriske kogeplader:	4
Kontrolposition:	Top forside
Gryde detektering:	Ja
Tilsluttet belastning (elektrisk):	7200 W
Ovnbredde størrelse:	59 cm
Timer type:	Digital
Indbygget hætte:	Ingen
Tilsluttet belastning (gas):	- W
Sensorkog:	4
Boost funktion:	Ja
Bridge-funktion:	Ja
Antal faser:	1
