Top Mount Refrigerator
(WRTX7419S*)

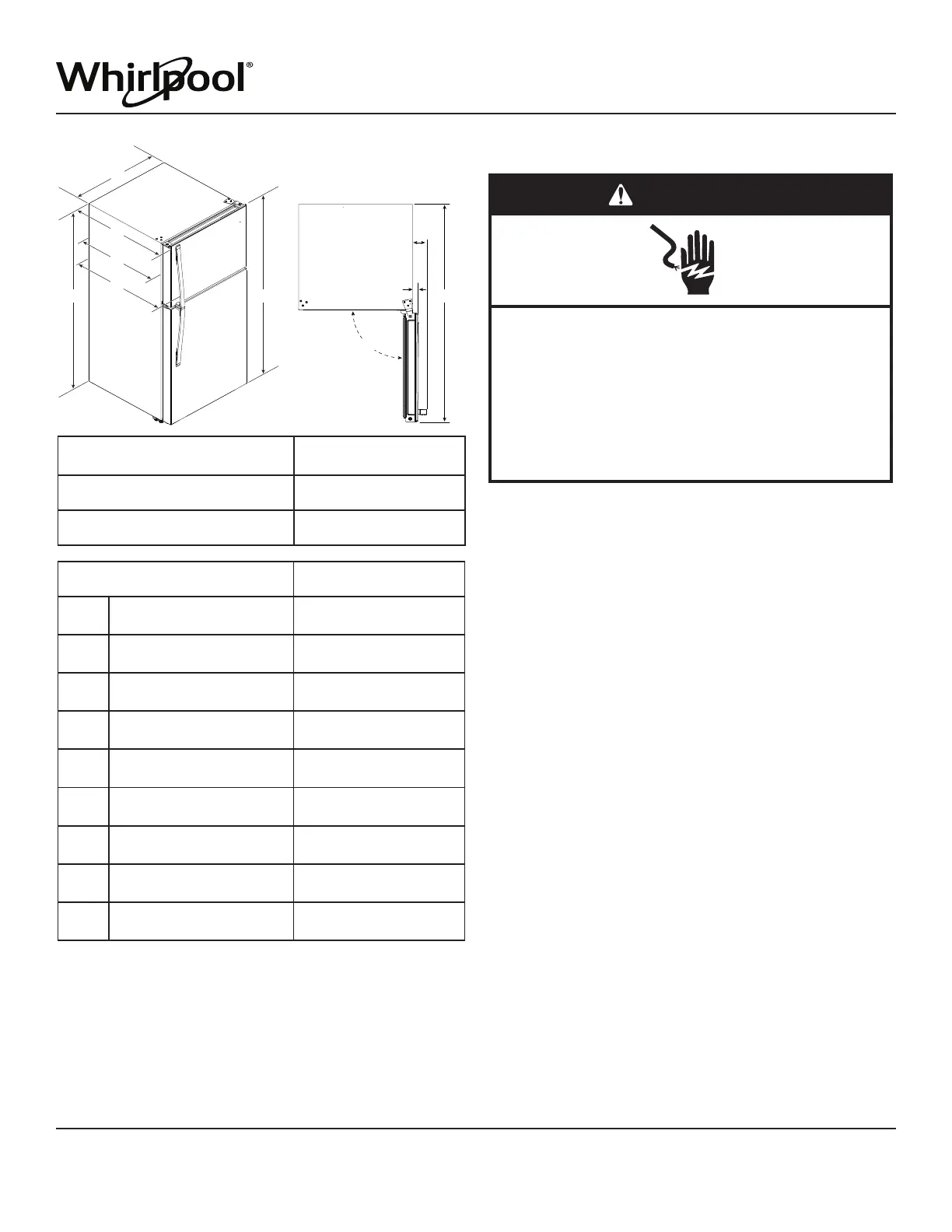

PRODUCT DIMENSIONS
Electrical Requirements
Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical
connection.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person.
Do not use a cord that shows cracks or abrasion damage along
its length or at either the plug or connector end.
Recommended Grounding Method
A 115 V, 60 Hz, AC only, 15A or 20A fused, grounded electrical
supply is required. It is recommended that a separate circuit
serving only your refrigerator be provided. Use an outlet that
cannot be turned off by a switch. Do not use an extension cord.
NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, turn the refrigerator to Off. Depending on
your model, turn the refrigerator control to the word Off, or press
the refrigerator down arrow touch pad until a dash (–) appears in
refrigerator displays. Disconnect the refrigerator from the
electrical source. When you are finished, reconnect the
refrigerator to the electrical source and reset the temperature
controls to the desired setting. See “Using the Controls” in the
Quick Start Guide.
Description Dimensions
A Overall Height 1681.2 mm (66
3
/
16
")
B Height to top of cabinet 1662.1 mm (65
7
/
16
")
C Depth with door open 90° 1520.8 mm (59
7
/
8
")
D Overall Depth 874.7 mm (34
7
/
16
")
E Cabinet Depth only 720 mm (28
3
/
8
")
F Width of cabinet 749.3 mm (29
1
/
2
")
G Door Opening Clearance 39 mm (1
9
/
16
")
H Handle Opening Clearance 95 mm (3
3
/
4
")
I
Overall Depth including
Handle
874.7 mm (34
7
/
16
")
Model Number WRTX7419S*
Model Size 19.3 cu ft (546.51 L)
Reversible Doors Yes
Because Whirlpool Corporation policy includes a continuous commitment
to improve our products, we reserve the right to change materials and
specifications without notice.
W11656230A
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
Dimensions are for planning purposes only. For complete details, see
Installation Instructions packed with product. Specifications subject to
change without notice.
