WARRANTY

This product is guaranteed to be free

from defects in materials and workmanship

to the original purchaser for a period of 2

years from the date of purchase. Should

service be required, return the unit postage

prepaid along with the original sales receipt

to:

whirlwind

Attention - Repair

99 Ling Road

Rochester, New York 14612

The warranty on this product shall not

apply to defects or damage resulting from

abuse, abnormal use or from repairs or

modifications performed by anyone other

than whirlwind. If it is determined a

manufacturing defect has occurred,

whirlwind will repair or replace the unit at our

option and pay the postage back to you.

Specifications

Freq. Response at 50 dB gain (Not limiting)

Freq. Response at 40 dB gain (Limiting)

± 1 dBv 20-10 kHz; -2.5 dB at 20 kHz

± 1 dBv 20-20 kHz

THD + N at 50 dB gain (Not limiting)

THD + noise at 40 dB gain (Limiting)

THD + noise in limiting

± .1% 20-20 kHz

± .1% 100-20 kHz; ± 1.5% 20 – 50 Hz

At Threshold < 0.05%;In Limiting <0.11%

Equivalent Input Noise -115 dBV

Total Gain 70 dB; 83 dB w/ Bass and Treble at Max.

Gain of Microphone Preamp 10 to 49 dB

Gain of Master Volume +/- 15 dB

Range of level pot Input Gain: 38.6 dB; Output Level 29.8 dB

Common Mode Rejection of Input 80 dB at 60 Hz

Maximum Input level +4 dBV

Input Impedance 20 kOhm differential

Maximum output level +23 dBV

Output Impedance XLR 95 Ohms; RCA 1.6 kOhm

Noise at unity gain -104 dBV

Phantom Power Yes, 23.7 VDC

Power consumption Typically 62 mA @ 24 VDC

Power requirements 24V 200 mA, unregulated; 2.1mm-center positive

Internal Mains fuse Automatic reset internal fuse; 100 mA

Size 1.6 H x 5.7 W x 2.8 D inches

Unit Weight 0.7 lbs, 1.1lbs w/ Power Supply

Shipping Weight 1.25 lbs

LMPRE

The Whirlwind LMPRE is a convenient single channel

microphone preamplifier with tone controls and a built in peak

limiter. Use it anywhere mic level to line level conversion is

required. Common applications include adding a microphone

to consumer audio receivers, feeding line level inputs of any

professional audio processor or directly into a power amp,

distribution amplifier or powered speaker system.

Features

Two place tone controls to enhance the intelligibility of

voice applications

Phantom power (24VDC) supplied for condenser

microphones

Peak limiter protects audio systems from signal

overload and distortion

Level metering and Limit Threshold LEDS

Balanced male XLR and dual mono RCA output

connections

MIC TO LINE CONVERTER

whirlwindusa.com

Operation

The LMPRE has simple intuitive controls for boosting

the gain of a microphone to drive a line level device.

Both dynamic and condenser type microphones can be

used, as the LMPRE supplies 24 Volt phantom power to

the female XLR input jack. A rear panel switch turns the

phantom power on and off and a front panel LED

illuminates when the phantom is turned on.

Microphone signal amplification is set using a

combination of the Input Gain and the Output Level Set

potentiometers. There is a 10 dB fixed gain stage

directly at the input and a fixed 6 dB of gain at the

balanced XLR output. The Input Gain pot adds another

39 dB at full CW position. The Output Level Set has a

range of ±15 dB and can boost the maximum gain to 70

dB at full CW position. Setting both pots to the 12 o'clock

position provides approximately 40 dB of gain from XLR

input to XLR output. The RCA output jacks deliver the

same signal, unbalanced, at levels usually required by

consumer equipment such as receivers. The XLR and

RCA outputs can be used simultaneously, if required.

LED metering provides a visual indication of the output

level of the LMPRE. The output meter consists of two

green and a yellow LED. When the 0 VU green LED is

illuminated, the signal level at the XLR balanced output

is +4 dBu. The level at the RCA outputs is approximately

14 dB lower.

Peak limiting with the LMPRE can protect audio

systems from signal overload and distortion that can

occur from improper or unexpected microphone usage.

The Input Gain control is used to set the amount of input

level that determines when the limiter will activate.

Increasing the input gain initiates limiting more quickly.

The output level control has no effect on the operation of

the limiter.

For limiter setup, determine the normal user

microphone placement and adjust input gain to activate

the limiter at the loudest expected level. The red “LIMIT”

LED illuminates when the limiter becomes active. Then

set the system drive level with the Output Level Set

control. The red “LIMIT” LED is not part of the output

metering and it is possible to have the “LIMIT” LED lit

without any output level LEDs being illuminated.

Low and High Tone controls are tailored to enhance

the intelligibility of voice applications of the LMPRE. The

Low frequency band is centered around 250 Hz and is

used to reduce “muddiness” or increase “warmth”. The

High band centers around 4 kHz and is used to reduce

“harshness” or increase “brightness”. Both are center

detent controls, in which position no tonal changes

occur.

Power Supply requirements for the LMPRE are 24

VDC at 200 mA. The Whirlwind PS242.1 wall adapter

with a 2.1mm, center positive, barrel plug is included.

With power is applied to the LMPRE, the red “POWER”

LED illuminates.

VU Meter XLR Output Level RCA Output Level

Yellow +16 dBu +2 dBV

Top green +4 dBu -10 dBV

Lower green -14 dBu -28 dBV

Output Level Reference

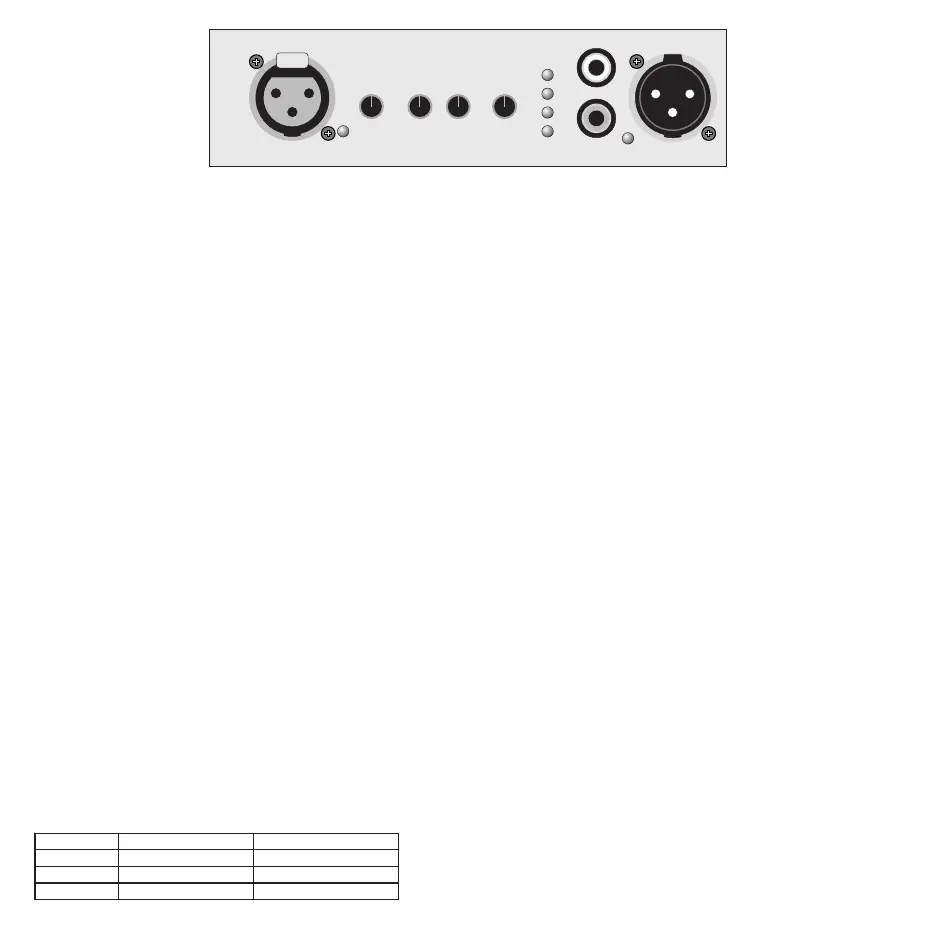

PHTM

MIC INPUT

LIMIT

POWER

MIC TONE OUTPUT

MONO+12

-18

INPUT

GAIN

LOW

250 Hz

HIGH

4 kHz

LEVEL

SET
