Side 1/2

The door can be installed to open either left or right by

changing the position of the key latch strike or by rotating

the entire frame. The strike is installed with 2

(SCR#4X3/8PPB) screws on either side of the frame. It has

slots that allow for ﬁnal adjustment with the door latch. The

six door mounting screws (SCR832X5/16PPMB) go into

the PEM inserts located along the inside edge on the top

and bottom of the frame. Some or all of these screws may

need to be removed to install the connector panel. For ﬁnal

door installation, start all six of the screws and then slide

the door ﬂanges into place. Push the door frame against

the back box and tighten the screws.

whirlwind · 99 Ling Road Rochester, NY 14612 · 800 733-9473 · http://whirlwindusa.com

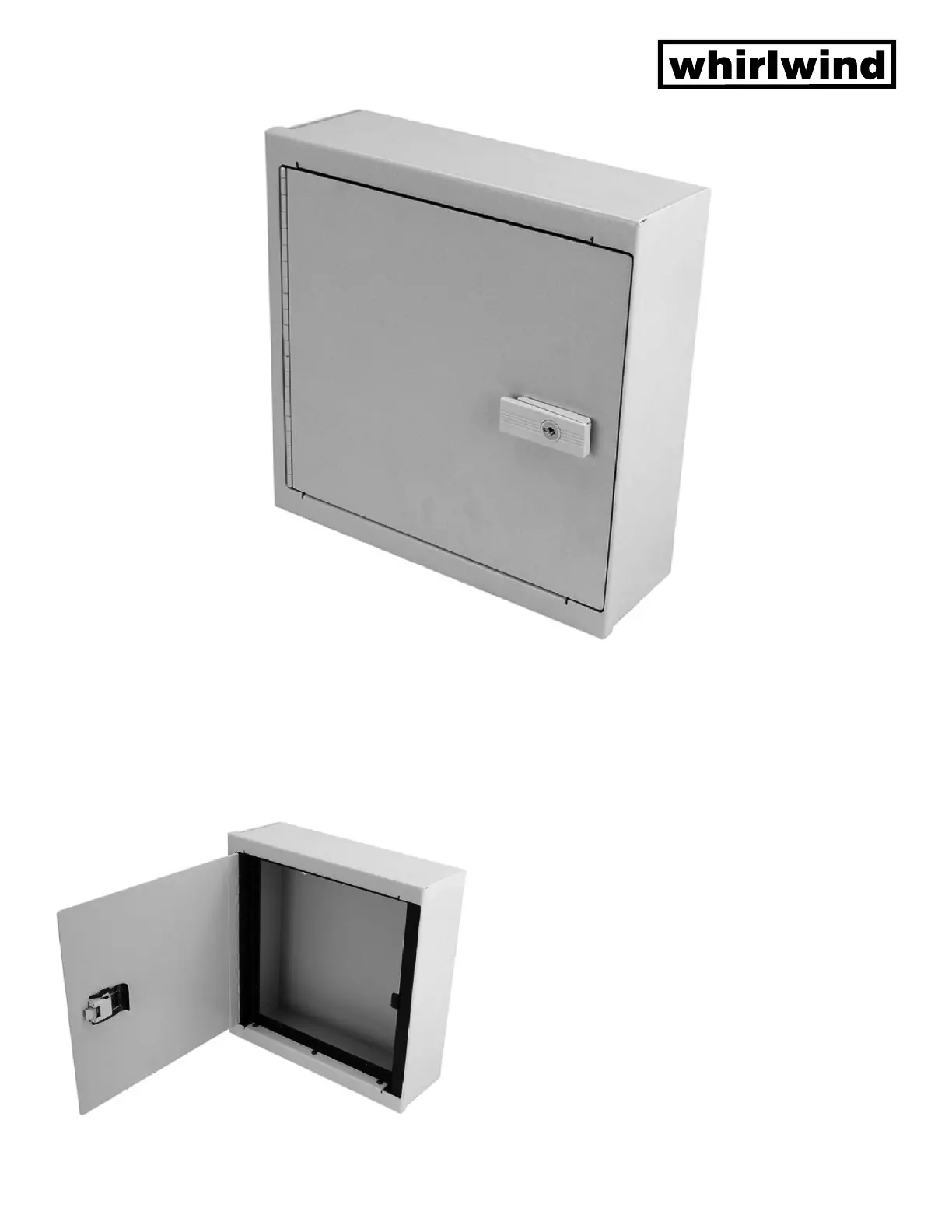

WFSD 12" Surface Mount Enclosures

with Locking Door

are surface mount, hinged door assemblies attached to a

matching 12”x 12” NEMA Type 1 style back box. These units

provide an attractive, locking door enclosure with a

recessed connector panel inside the back box. Two recess

depths are available: 1” and 2.5”. A blank connector

mounting plate (part# WFI12X12) is included with the

complete assembly.

Whirlwind can also punch, load and engrave identical

panels that replace the one included, ready to wire and

install for contractor convenience.

The WFSD12 enclosure is almond in color, the 12x12" back

box is 4" deep and has no conduit knockouts. Back box

mounting holes are added by the installer to suit the

application.

The Whirlwind WFSD12X1KIT and WFSD12X2.5KIT

10.5"

9.5"

USABLE AREA

CONNECTOR INSERT PLATE

WFI12x12

The key latch body is installed from the back of the door and secured by

pushing the spring clip under the protruding ears and snapping the back

edge into the latch cutout in the door. Two keys are included with each

latch and all latches are keyed alike.

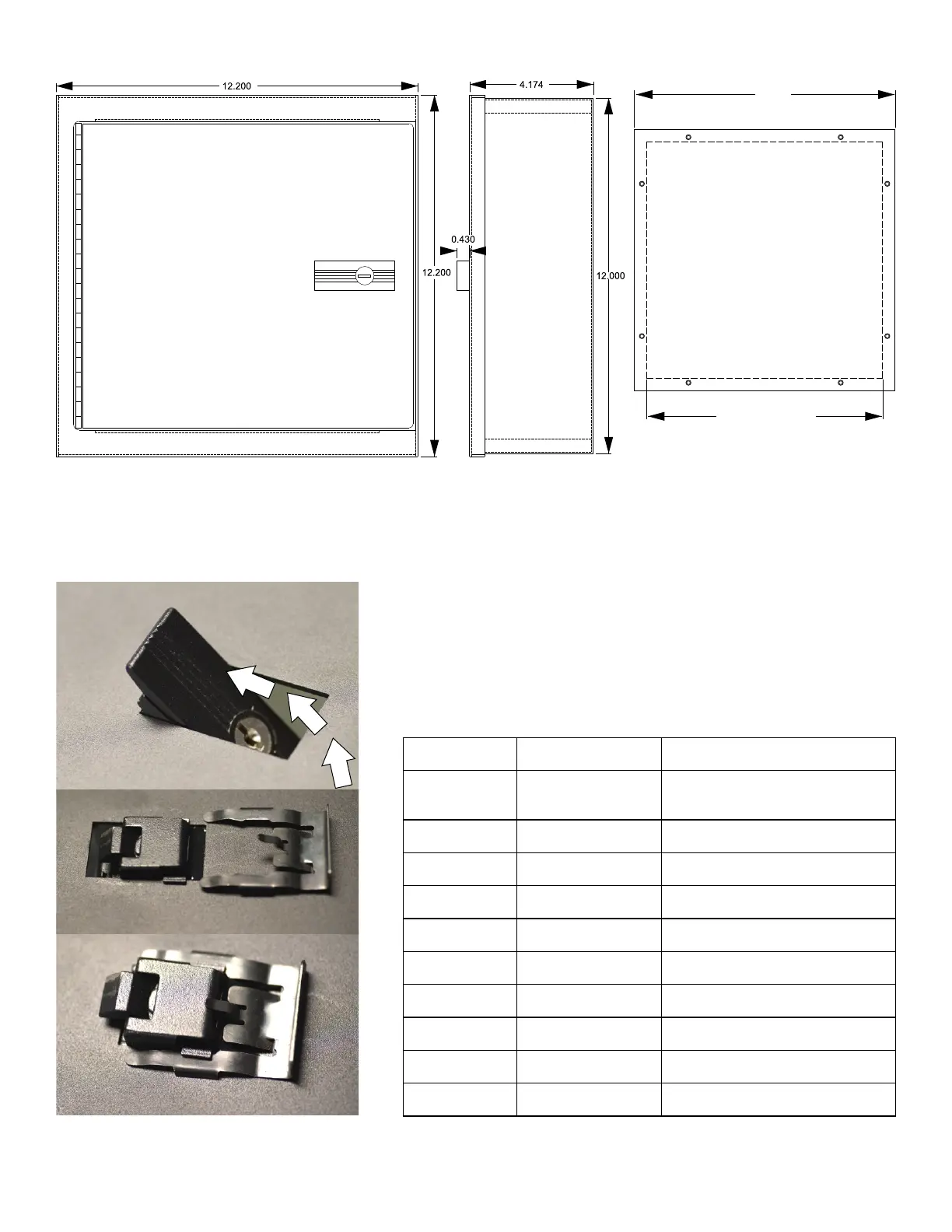

TYPE 1 NEMA DESIGN MOUNTING DIMENSIONS

BACKBOX MOUNTING HOLES BY INSTALLER

INCLUDED PARTS

Both the door and the connector plate attach to the separate black recess frame. The door attaches to the top and bottom of the

frame, which must be mounted to the 12X12” back box so that the holes for the cover mounting screws are positioned correctly.

Mounting holes for the frame are provided on all four edges and it is recommended that screws be installed in each side.

Flathead screws (SCR832X3/8FPU) are included.

whirlwind · 99 Ling Road Rochester, NY 14612 · 800 733-9473 · http://whirlwindusa.com

1 WFSD12 DOOR UNIT/ALMOND

WFSD12X1

WFSD12X2.5

1” RECESSED FRAME 0R

2.5” RECESSED FRAME

2) 1” MAGSTRIP3/4 MAGNETIC STRIPS

8 SCR832X3/8FPU

FRAME TO BOX MOUNTING

SCREWS

6 SCR832X5/16PPMB DOOR MOUNTING SCREWS

1 KEYLATCHAMD

BODY WITH SPRING CLIP AND

KEYS/ALMOND

1 KEYLATCH STRIKE LATCH STRIKE

2 SCR#4X1/4PPB STRIKE MOUNTING SCREWS

8 SCR632X5/16FPM

CONNECTOR PLATE

MOUNTING SCREWS

1 WFI12X12 CONNECTOR PLATE

1 WFSD12BB 12X12X4 BACK BOX/ALMOND
