Side 1/2

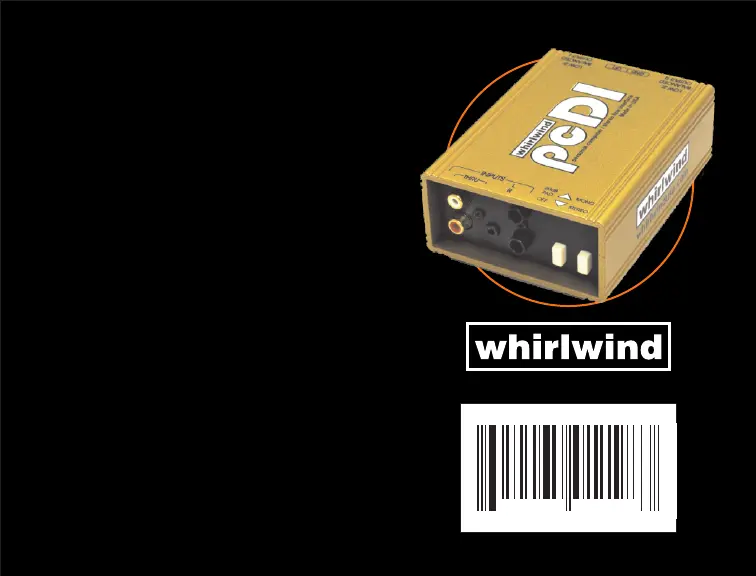

pcDI

Dual channel stereo direct box. Use to

connect CD and tape players, computer

sound card outputs, DJ mixers, etc. to

professional equipment with balanced

microphone inputs such as a mixing

console.

Signal is input via 3.5mm (1/8") stereo

TRS, color-coded RCA phono type or

independent left and right ¼” jacks.

The 3.5mm and RCA jacks are wired as

”loop through” connections. The ¼”

inputs disconnect the other input jacks

to provide complete left and right

ground isolation. Output is via color-

coded XLRs.

Features a "STEREO / MONO" switch to

combine stereo sources into a mono

signal and a “20dB PAD” switch for

connecting to "hot" signal sources.

Separate ground lift switches for each

output help eliminate hum and buzz.

PCDI

www.whirlwindusa.com

6 3

9 2 4 6 5 0 1 1 9 8

INPUT (RCA phono jacks and 3.5mm

stereo TRS jack)

Use to connect the audio outputs of

computer sound cards, CD players,

tape decks, etc. The 3.5mm (1/8”)

jack is a tip/ring/sleeve type. The tip

is connected to the + side of the white

RCA (Left), the ring is wired to the +

side of the red RCA (Right) and the

sleeve is common ground to both

jacks. Signal applied to one type of

connector will “loop through” to the

other. Use only one type as an input at

a time.

INPUT (1/4” tip-sleeve jack X 2)

Use to connect the audio of equipment

with ¼” outputs. These inputs allow

the use of two separate mono devices

simultaneously. Plugging into the ¼”

inputs disconnects the RCA and 3.5mm

jacks to provide 2 channel operation

with complete ground isolation.

PAD (Switch)

Most instruments will operate properly

when set to the “OFF” position. The

“20dB PAD” position adds 20dB of

attenuation to both the left and right

inputs, to reduce the possibility of

distortion with very “hot” signals.

Whirlwind will, at its

option, repair or replace

the unit. This warranty does

not cover damage resulting

from abuse, unauthorized

modifications or use of the

product in unintended

applications.

STEREO / MONO (Switch)

When placed in the “STEREO”

position, signals are routed to their

respective output. In the “MONO”

position, the left and right input

jacks are summed into a mono signal

that is fed to both XLR outputs.

LOW-Z BALANCED OUTPUT (XLR jack

X 2)

Male XLRs, which provide balanced

low impedance, mic level signals

suitable for connection to balanced,

low-Z equipment (mixing console,

workstation, etc.) The output signal

is attenuated approximately 20dB

below the input level. These jacks

are color coded to indicate left and

right.

GND/LIFT (Switch X 2)

These switches are usually left in the

“GND” position (grounds are

connected from input to output). If

hum occurs in either channel when

using the pcDI, setting the switch to

the “LIFT” position may help to

reduce it. (This disconnects the

ground between the input and the

corresponding XLR output.)

www.whirlwindusa.com

This product is warranted to

be free of defects in

materials or workmanship

to the original purchaser for

a period of 3 years from the

date of purchase. Should

w a r r a n t y s e r v i c e b e

required, return the unit

postage paid along with the

original sales receipt to:

Whirlwind Music Dist., Inc.

99 Ling Road

Rochester NY 14612
