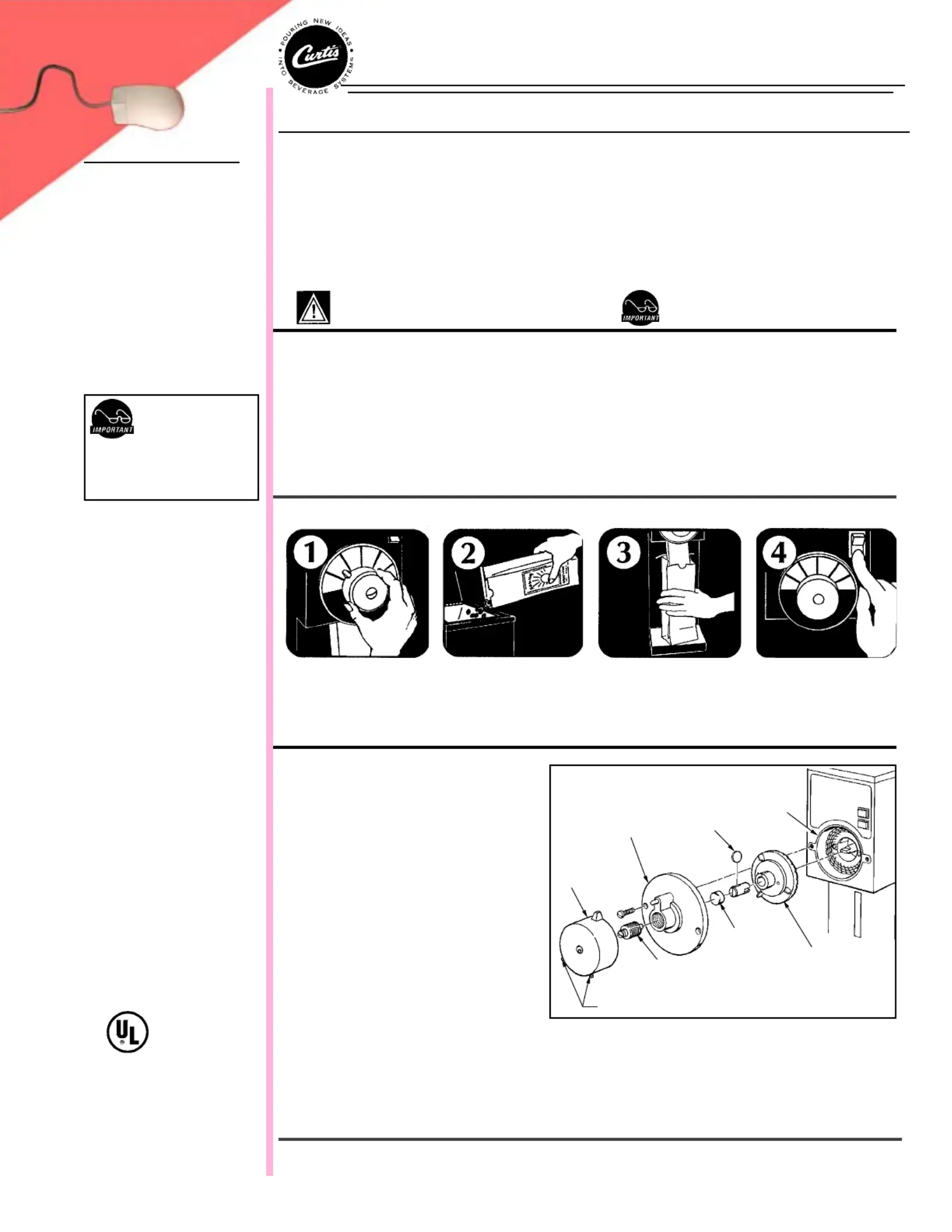

Gourmet Coffee Grinders - Instructions

FOR THE LATEST SPECIFICATIONS AND INFORMATION GO TO

WWW.WILBURCURTIS.COM

This appliance is designed for commercial use. Any servicing other than cleaning and maintenance should be performed by an

authorized Wilbur Curtis service center.

• Do NOT immerse the unit in water or any other liquid

• To reduce the risk of fire or electric shock, do NOT open top panel. No user serviceable parts inside. Repair should be done

only by authorized service personnel.

• Keep hands and other items away from hot parts of unit during operation.

• Never clean with scouring powders or harsh implements.

Important Safeguards/Conventions

ConventionsConventions

Conventions

ARNINGS – ARNINGS –

ARNINGS –

o help ao help a

o help a

void personal injurvoid personal injur

void personal injur

Important Notes/Cautions – from the factorImportant Notes/Cautions – from the factor

Important Notes/Cautions – from the factor

Quick Start & SetupQuick Start & Setup

Quick Start & Setup

S E T U PS E T U P

S E T U P

1. Read this manual before attempting to operate the GSG coffee grinder.

2. Unpack the carton contents carefully. Inspect the container at the time of delivery for visual or concealed

damage. The carrier must be notified immediately in case of punctured or damaged cartons.

3. Install the grinder on a firm, level base in a location where it can be connected to a grounded electrical outlet of 120VAC,

rated at 15 amps.

4. Test the unit by running some whole bean coffee through the grinder. If any problems are encountered, refer to the

troubleshooting section complete at www.wilburcurtis.com or call Technical Service at 800-995-0417.

Changing a Broken Shear DiskChanging a Broken Shear Disk

Changing a Broken Shear Disk

1. Unplug the power cord.

2. Empty the hopper of beans.

3. Remove the housing cover, held in place by two

slotted screws.

4. Take off the shear cap. Pull out the feed worm/

grinding burr assembly. These parts are slipped

together and usually come out in one piece.

5. Discard the broken shear disk.

6. Clean out the housing. Look for and remove any

debris that may have caused the shear disk to snap.

7. Reinsert the feed worm/grinding burr assembly on

the motor shaft.

8. Slide the shear drive through the center hole on the

feed worm/grinding burr assembly. The end with the

large slot goes in first. Align this slot with the

tongue on the motor shaft as you push in the shear

drive.

9. Rotate feed worm/grinding burr assembly to align the narrow slot with the narrow slot on the shear drive.

10. Insert a new shear disk into this slot and cover with the shear cap.

11. Clean off the inside surfaces of the housing cover. Replace the housing cover. If the housing cover doesn't seat properly, the

shear drive is probably not aligning with the motor shaft (repeat step 8).

12. Plug in the power cord.

ILBURILBUR

ILBUR

C C

URTISURTIS

URTIS

C C

OMPOMP

OMP

ANYANY

ANY

, I, I

, I

NCNC

Models Included

••

• GSG-3BLK

••

• GSG-3RED

Operating the GSG GrinderOperating the GSG Grinder

Operating the GSG Grinder

Select the kind of grind

desired by turning the

selector knob on the face of

the grinder.

Pour whole bean coffee

through the door on top of

the grinder.

Place your coffee bag under

the spout. Lift the bag

upward.

Push the start switch. When

coffee beans are finished

grinding, lowering the bag

will stop the motor.

SELECTOR

KNOB

HOUSING

COVER

SHEAR

DISK

GRIND

HOUSING

SHEAR

CAP

GRINDING

BURR

ADJUSTMENT

SCREW

SET SCREWS

Adjusting the Grind TextureAdjusting the Grind Texture

Adjusting the Grind Texture

1. Empty the hopper of coffee beans.

2. Turn the selector knob clockwise as far as you can, to the ESPRESSO position.

3. Locate the two set screws, under the selector knob. Use an 1/8th inch Allen wench; loosen these screws one turn to free the knob from the adjusting screw.

4. Run the grinder. Turn the adjusting screw slowly clockwise until you hear the grinding burrs making a clicking noise. Back off on the adjusting screw 1/8th turn.

5. Tighten the set screws on the selector knob, your finest adjustment on the selector scale, ESPRESSO, is now set and the rest of the dial positions will be accurate.

CleaningCleaning

Cleaning

1. Clean the painted outside case of the grinder with a cloth dampened with dishwashing detergent and water. Dry thoroughly with a soft cloth.

2. Clean the stainless steel front area of the grinder with a stainless steel polish.

3. Clean the inside of the hopper with a dry cloth.

4. Use a stiff brush to remove debris from the housing (see REPLACING A BROKEN SHEAR DISK for opening the grind housing). Keep moisture out of this area.

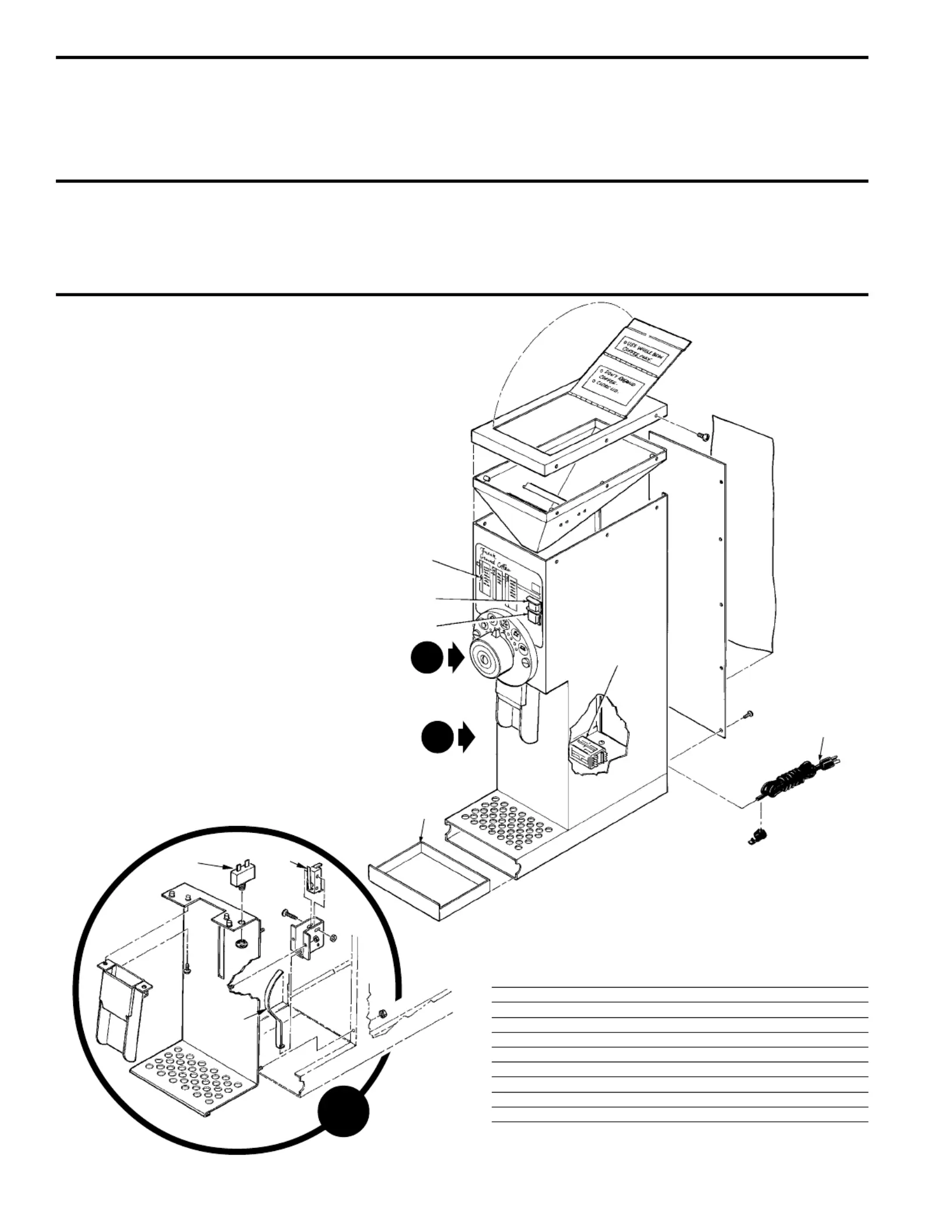

PARTS DIAGRAM
