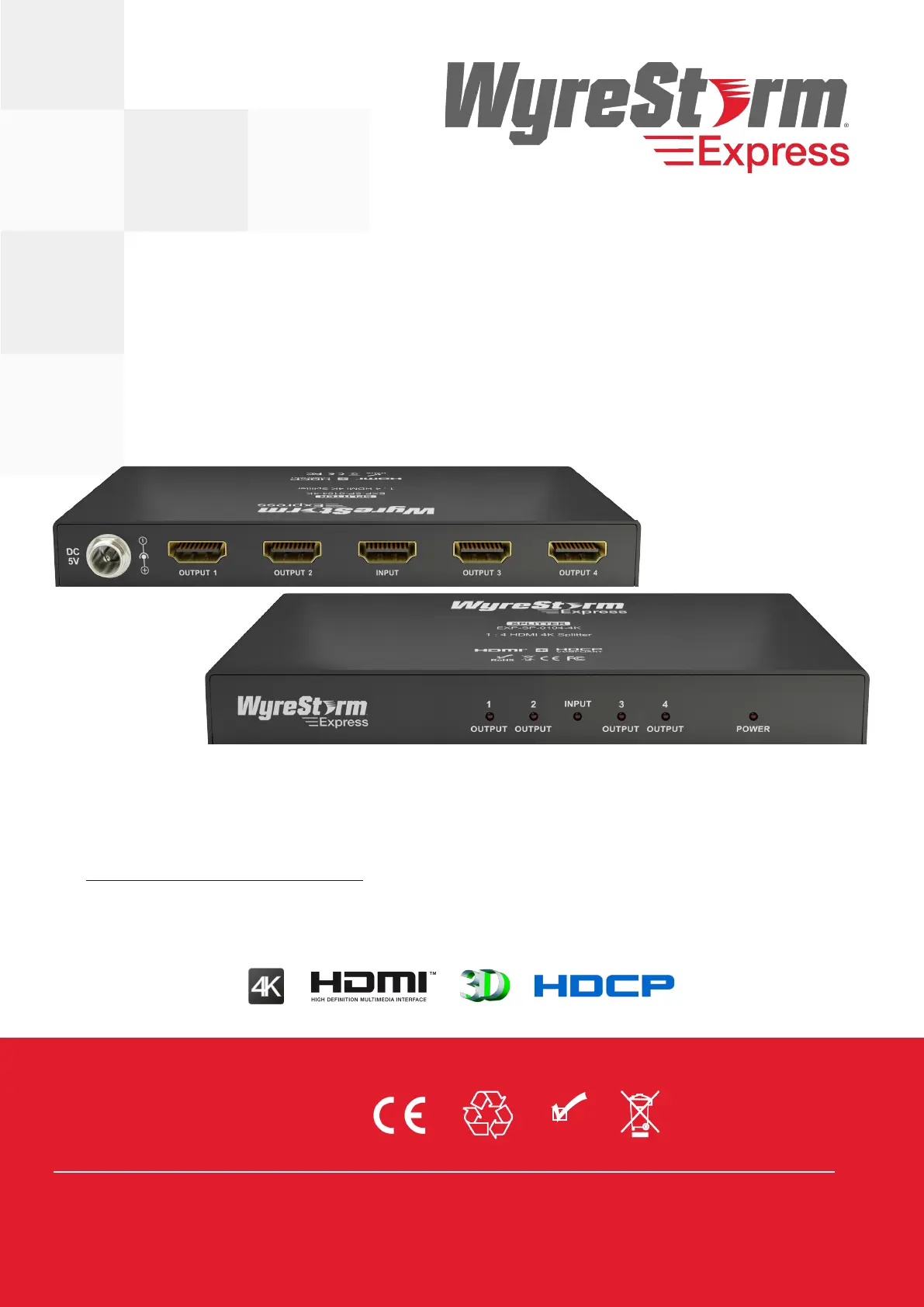

Side 1/12

Thank you for choosing this WyreStorm Express product.

Please read these instructions carefully before installing to avoid complications later.

Instruction Manual

exp-SP-0104-4K

WyreStorm Express™ 1x4 HDMI 4K Splitter

RoHS

Contents

Introduction

Features

Introduction

Features

Safety Precautions

Specication

Panel Description

i. Front

ii. Rear

Connection & Operation

Troubleshooting

FAQ

Maintenance

Product Service

Mail In Service

Warranty

Warranty Limits and Exclusions

Installation Notes

Ultra Slim, Ultra High Denition. The WyreStorm Express

EXP-SP-0104-4K 1x4 4K Splitter enables lossless

duplication and distribution of a single HDMI UltraHD

or HD source to up to 4 connected outputs for simple,

exible and reliable content replication to multiple display

devices supporting resolutions up to 4Kx2K.

Featuring HDMI 1.4a specication supporting data rates

up to 10.2Gb/s, for lossless audio/video formats, full

3D and Lip Sync, the EXP-SP-0104-4K also includes

24bit True Color with chroma subsampling rate of 4:2:2

for 4K color palette and 36bit Deep Color for 1080p

transmissions.

Automatic HDCP and EDID management continuously

negotiates and authenticates communication between

connected devices, ensuring simultaneous distribution

of source content to all outputs, while also maintaining

signal integrity via internal equalization and amplication

to output devices.

Systems can be further expanded by cascading multiple

EXP-SP-0104-4K units to create larger distributions; with

4K transmissions cascaded twice and 1080p signals up

to 12 times to the same model units for exible, scalable

solutions for residential and commercial applications.

Furthermore, with the addition of an in-line WyreStorm

EXP-SCL-DAC-4K scaler/Dolby downmixer between

splitter and display device, combined 4K, HD and

multichannel or stereo audio distributions can be created

without risking resolution or audio disparity between

devices.

As such, the EXP-SP-0104-4K represents an ideal

solution wherever simple-yet-reliable distribution of single

HDMI source to multiple outputs is required, with the

versatility and cost-eciency to ensure systems are just

as easily expanded or adjusted to meet the needs of any

application.

• 1 HDMI Input to 4 simultaneous HDMI Outputs

• Fully 4K compatible - 3840 (UHD) and 4096 (DCI) 2160

@ 30Hz with 4K color palette 4:2:2

• Plug and Play connectivity - automatic EDID and HDCP

device communication

• Low prole 18mm/0.7 for greater installation

convenience

• Create combined 4K/HD distributions with additional

WyreStorm inline scaler (sold separately)

• Supports 4K resolutions up to 4096x2160@30Hz and

HD resolutions up to 1080p@60Hz

• 4K color @ 24bit with 4K chroma subsampling color

palette 4:2:2, 1080p @ 36bit

• Supports HD resolutions up to 1080p@60Hz

• Transmission distances up to 10m/33ft (4K/1080p

input, 4K output), 15m/49ft (1080p output) using

standard HDMI cables

• Multichannel audio supported (mirrors source)

• Full 3D compatibility up to 1080p - frame packing/

sequential (Blu-ray) and interlaced stereoscopic

(satellite/cable broadcasts)

• Threaded power port for locking or standard 5v DC

connection

• Front panel LED indication for I/O and Power

connectivity

• Slimline chassis for space-saving local installation

• Supports HDMI 1.4a with automatic HDCP and EDID

management between devices

• Automatically adjusts signal feedback, equalization and

amplication for easy, reliable installation

• Units cascadable to create larger systems: 1080p up

to 12 times, UHD 4K up to two times

• Easily create cost eective, scalable combined 4K/HD

distributions by connecting WyreStorm EXP-SCL-DAC-

4K scaler with Dolby downmixer (sold separately)
