MOUNTING ACCESSORY

BRK-TV2

Installation Manual

Published 09/2023

IP-A0

BRK-TV2 is a mounting bracket for attaching video conference system CS-800/CS-500 to a TV.

Installation conditions for BRK-TV2

This bracket can be attached to the VESA mount of a 40" to 90" TV. Make sure that the TV to which the bracket will be mounted meets all

three of the following conditions.

1. Spacing between screw holes (A and B must be

any of the following measurements.)

A = 100 / 200 / 300 / 400mm

B = 100 / 200 / 300 / 400 / 600mm

2. TV height

= 490mm or more

3. Distance from edge of TV to VESA hole

When installing the device above the TV:

= 980 mm or less

When installing the device below the TV:

= 980 mm or less

Before installation

Before installing BRK-TV2 and the device, we recommend connecting the cables to the device and pairing the remote control. For the

pre-installation procedure for the device, refer to “Procedures preparing for use” in the User Guide for the corresponding model.

About this manual

• This manual provides details on installing BRK-TV2. For details on using and connecting the CS-800/CS-500, refer to the corresponding

User Guide.

• The illustrations in this manual are for instructional purposes only.

• Be sure to have the mounting bracket installed by the dealer where you purchased the product or a professional

contractor.

• After installation, make sure that the device is ﬁrmly secured. Also, regularly check that there is no possibility of the

device falling or tipping over. We cannot be held responsible for accidents caused by incorrect installation.

• After installation, do not lean against the device or apply a strong force to it from above. If the device falls, injuries or

damage may result.

WARNING

• The installation procedure may vary depending on the speciﬁcations of the metal ﬁttings on the TV stand.

• For details on assembling the TV stand and mounting the TV to it, follow the instructions in the manual for the TV stand.

• The TV should be mounted to the TV stand by two or more people.

NOTICE

• Neither a TV stand nor wall-mounted TV stand is included.

• The VESA standards are international standards that deﬁne the spacing between screw holes used when attaching

video equipment, such as TVs, to wall mounts and TV stands.

NOTE

Items to prepare

1. Items included with BRK-TV2

Mounting bracket

A B C D

is used when installing the device onto a large TV. (Refer to step

in “Installation procedure”.)

Spacers/screws

E F G H

G H

25 × t18 mm M4 × 10 mm

with washer

M6 × 12 mm or

M6 × 30 mm

Flat washer (M6)

Spring washer (M6)

M8 × 15 mm or

M8 × 35 mm

Flat washer (M8)

Spring washer (M8)

Use

depending on the

conﬁguration of the TV stand.

Use only four of

. Use screws of the size suitable for the TV stand.

2. Wall mounting bracket

When installing CS-800

Use the wall mounting bracket included with CS-800.

I J

Wall mounting bracket M3 × 8 mm

When installing CS-500

Use the separately sold wall mounting bracket BRK-WL1.

I J

Wall mounting bracket 1/4 inch

3. Items to prepare yourself

VESA-compatible TV stand (or wall mount)

Phillips screwdriver or electric screwdriver

Measuring tape

Included with CS-800

Separately sold BRK-WL1

CS-500

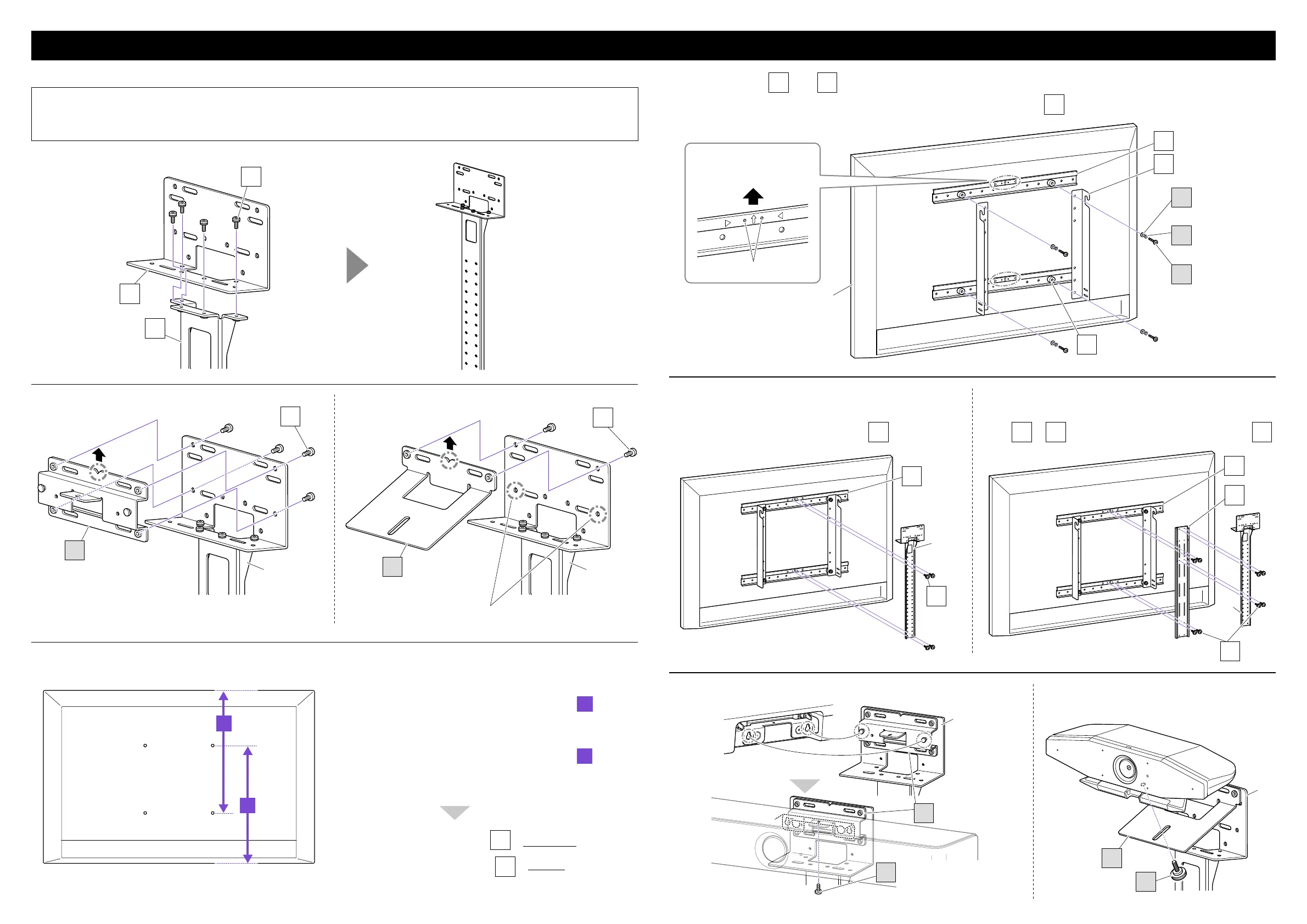

Installation procedure

The illustrations in this “Installation procedure” are for “When installing the device above the TV”.

When installing the device below the TV

Step

: Turn the part assembled in step

upside down before installing it.

Steps

and

: Turn the part assembled in step

upside down before installing it.

Install parts

and

aligned with the screw holes in the TV.

Depending on the conﬁguration of the TV stand, tighten the parts together with

between them to adjust the spacing to the TV.

Flat washer

Spring washer

Location where device

is to be installed.

Screw holes

When the distance measured in step

505mm or less

Attach the part from step

directly to

When the distance measured in step

is 506mm

or more

Attach

, and then attach the part from step

CS-800

CS-500

* When installing the device below the TV,

use the lower screw holes.

Measure the distance from the edge of the TV to the VESA hole. (This measurement will be used in step

When installing the device above the TV:

Measure the distance from the top edge of the TV to the lower

VESA hole.

When installing the device below the TV:

Measure the distance from the bottom edge of the TV to the upper

VESA hole.

When 505 mm or less: Extension

is not required.

When 506 mm or more: Extension

is required.

CS-800

(back)

CS-500

CS-800

(front)

Tighten with a long

screwdriver.
