PM5DV2/DSP5D Editor Owner’s Manual

❏Special Notices

• The software and this owner’s manual are the exclusive copyrights of Yamaha Corporation.

• Copying of the software or reproduction of this manual in whole or in part by any means is expressly forbidden without the

written consent of the manufacturer.

• Copying of the commercially available music sequence data and/or digital audio ﬁles is strictly prohibited except for your per-

sonal use.

• Yamaha makes no representations or warranties with regard to the use of the software and documentation and cannot be held

responsible for the results of the use of this manual and the software.

• The screen displays as illustrated in this owner’s manual are for instructional purposes, and may appear somewhat different

from the screens which appear on your computer.

• Future upgrades of application and system software and any changes in speciﬁcations and functions will be announced separately.

• Windows is a registered trademark of Microsoft Corporation in the U.S. and other countries.

• Apple, Mac and Macintosh are trademarks of Apple Inc., registered in the U.S. and other countries.

• The company names and product names in this Owner’s Manual are the trademarks or registered trademarks of their respec-

tive companies.

Yamaha Pro Audio Global Site

http://www.yamahaproaudio.com/

Contents

Getting Started .................................................. 2

INPUT CH window ............................................. 8

ST IN window................................................... 11

FX RTN window................................................ 13

MIX window..................................................... 15

MATRIX window .............................................. 17

STEREO window............................................... 19

DCA window .................................................... 21

Selected Channel window ............................... 22

If an input channel is selected ....................... 22

If a MIX channel is selected........................... 31

If a MATRIX channel is selected..................... 36

If a STEREO A/B channel is selected............... 37

Patch Editor window........................................ 40

Surround Editor window.................................. 45

GEQ window .................................................... 47

Effect Editor window........................................ 50

DCA/Mute Group window............................... 54

Scene window .................................................. 57

Library window ................................................ 66

Meter window.................................................. 68

Timecode Counter window.............................. 69

Sync window .................................................... 69

Preference window .......................................... 70

User Defined Keys Setup window.................... 72

Fader Mode Assign window............................. 73

Output Port Att window .................................. 73

Word Clock window......................................... 74

Oscillator window ............................................ 77

Cue/Solo window............................................. 79

Port Trim window ............................................ 82

Keyboard Shortcuts.......................................... 83

Index................................................................. 84

* Speciﬁcations and descriptions in this owner ’s manual are

for information purposes only. Yamaha Corp. reserves the

right to change or modify products or speciﬁcations at any

time without prior notice. Since speciﬁcations, equipment

or options may not be the same in every locale, please

check with your Yamaha dealer.

PM5DV2/DSP5D Editor

Owner’s Manual

Term Deﬁnition

Studio Manager refers to Studio Manager V2

PM5D Editor refers to PM5DV2 Editor

This editor works with PM5DV2. Make sure that the console’s ﬁrmware has been updated to V2.

Description of menus and buttons

In the event that menu and button names on a Windows system are different from those on a Mac, this manual uses the

Windows menu and button names followed by the Mac menu and button names in parentheses.

PM5DV2/DSP5D Editor Owner’s Manual

What is PM5D/DSP5D Editor?

PM5D Editor and DSP5D Editor allow you to remotely control the parameters of the PM5D or DSP5D, and save the

parameters on your computer.

PM5D/DSP5 Editor are used by starting them up from within Studio Manager. To use PM5D/DSP5D Editor, you

must perform the following steps.

“Start up Studio Manager and make settings” → “Start up PM5D Editor or DSP5D Editor and make settings” →

“Synchronize with the PM5D/DSP5D itself (➥ p.5)”

For details on operations in Studio Manager, refer to the Studio Manager operating manual.

Settings in PM5D/DSP5D Editor

You will need to set the following items individually for each editor that is open.

• Before you make the following settings, you must select the MIDI ports in the Setup window of Studio

Manager.

• To start up PM5D Editor or DSP5D Editor in the Setup window of Studio Manager, double-click the cor-

responding icon in the Studio Manager window.

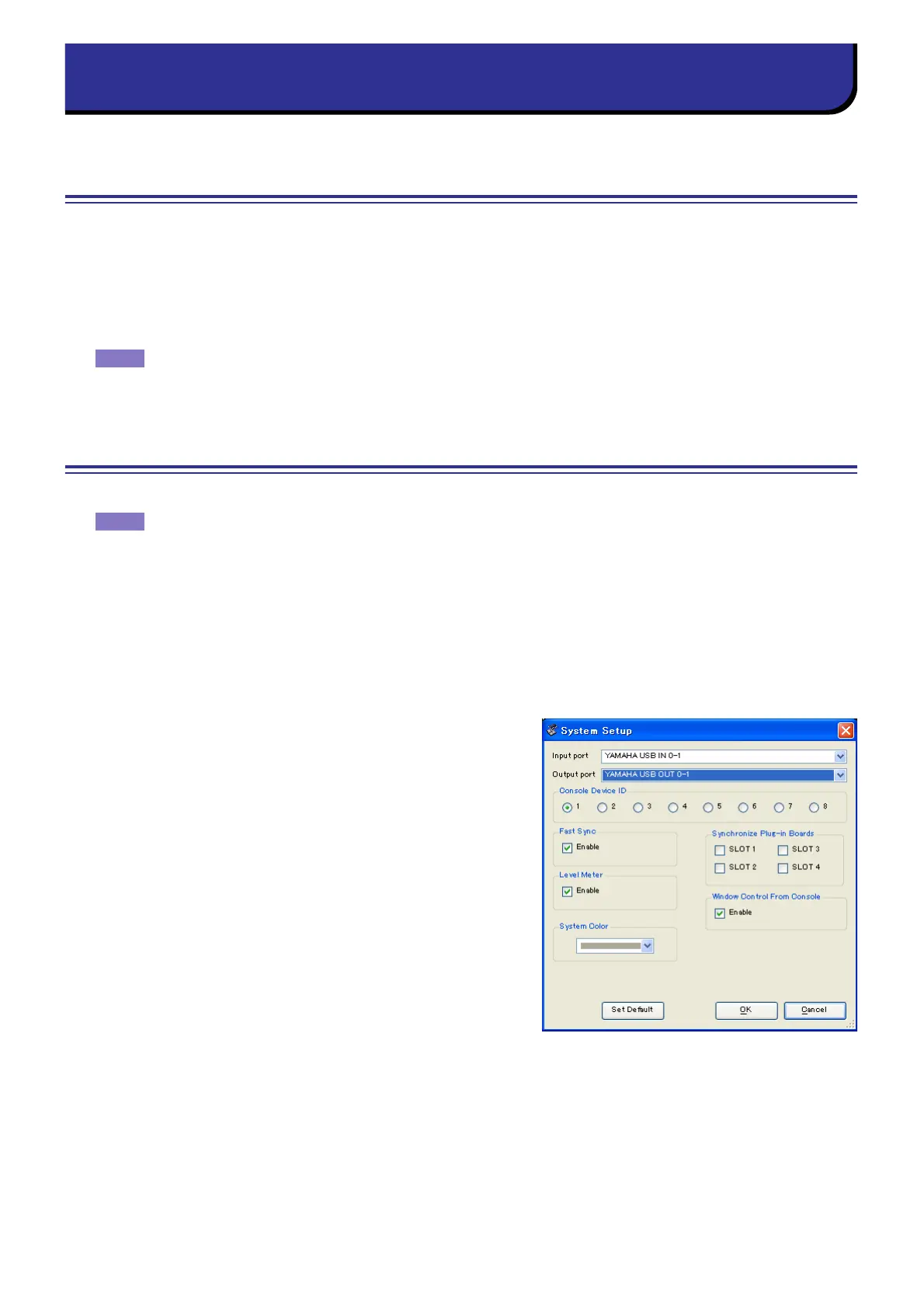

❏PM5D Editor: System Setup

To open the System Setup window, choose the [File] menu item [System Setup].

You must specify the Input port and the Output port.

Input port/Output port: From the ports you have previ-

ously speciﬁed in Studio Manager, select the ports you will use

for communication with the PM5D.

Console Device ID: PM5D Editor can control the desired

single unit chosen from a maximum of eight units that each

have their own ID. Select the ID of the unit you want to control.

Fast Sync: This shortens the synchronization time with the

PM5D itself. If synchronization fails, clear this check box.

Level Meter: This speciﬁes whether level meter data will be

included in the communication with the PM5D itself. If this

check box is selected, level meter data from the PM5D will be

received, but the response speed may be slower. If you feel that

the response is slow, clear this check box.

System Color: You can change the workspace color of

PM5D Editor. Choose one of eight colors from the pulldown

menu. This is convenient when you need to distinguish

between multiple instances of PM5D Editor.

Synchronize Plug-in Boards: If these option boxes are selected, the data of the Y96K plug-in board

installed in the corresponding slot will be synchronized along with the scene data.

Window Control from Console: PM5D Editor windows can be opened or closed remotely from the

PM5D itself by using user-deﬁned keys. This option enables remote control.

Set Default: By clicking this button, you can store the current System Setup settings as the default values for

PM5D Editor.

Getting Started

NOTE
