English Franc¸ ais Deutsch Espan˜ ol Русский

NS-BP200/

NS-BP150

Speaker Package

Package Enceintes

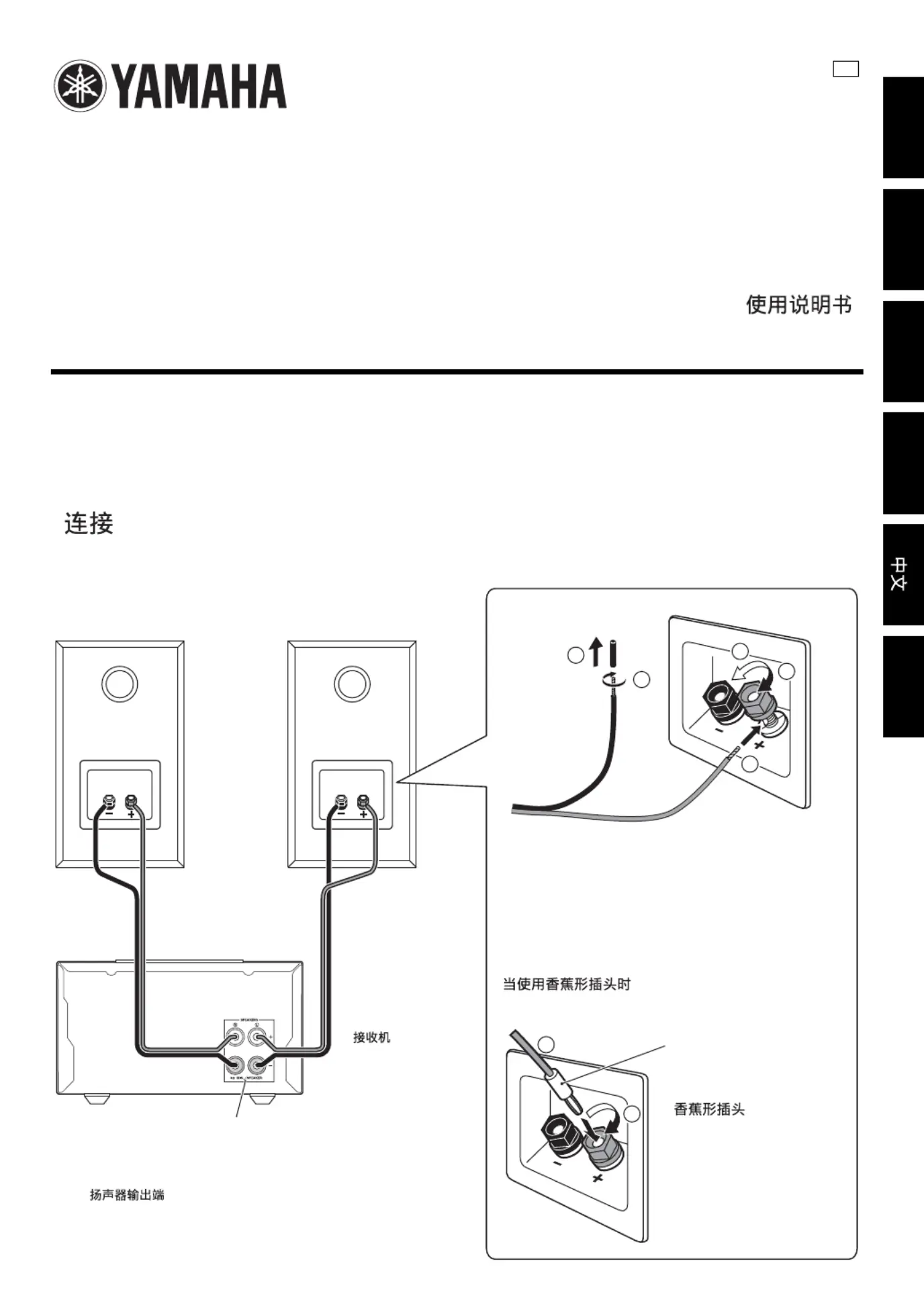

CONNECTION

CONNEXION

ANSCHLUSS

CONEXIÓN

ПОДКЛЮЧЕНИЕ

When using a banana plug

Lorsqu’une fiche banane est utilise´ e

Bei Verwendung von Bananensteckern

Cuando utilice una clavija tipo banana

Использование вилки штекерного типа

Banana plug

Fische Banane

Bananenstecker

Clavija tipo banana

Вилка штекерного типа

NS-BP200 (R)

NS-BP150 (R)

NS-BP200 (L)

NS-BP150 (L)

Receiver

Re´ cepteur

Receiver

Receptor

Ресивер

Speaker output terminal

Borne de sortie d’enceinte

Lautsprecherausgangsklemme

Terminal de salida para altavoz

Выходной терминал колонок

OWNER’S MANUAL

MODE D’EMPLOI

BEDIENUNGSANLEITUNG

MANUAL DE INSTRUCCIONES

ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ

2 En

EnglishFranc¸ ais

• Install the speakers in a cool, dry, clean, stable and horizontal

place.

• To avoid electric shock, fire, injury, damage to the speakers, and

discoloration of the cabinet, install away from windows, heat

sources, sources of excessive vibration, dust, moisture, cold, rain,

water, falling objects, noise sources (transformers, motors, etc.)

and direct sunlight.

• Do not insert a hand or object into the port or pick up the speaker

by holding the port, as it may cause personal injury or damage to

the speaker.

• Any time you note distortion, reduce the volume control on your

receiver to a lower setting. Never allow your receiver to be driven

into “clipping”. Otherwise the speakers may be damaged.

• When using a receiver with a rated output power higher than the

nominal input power of the speakers, care should be taken never

to exceed the speakers’ maximum input.

• Do not attempt to clean the speakers with chemical solvents (ex.

alcohol or thinners etc.); this might damage the finish. Use a

clean, dry cloth.

• Do not attempt to modify or fix the speakers. Contact qualified

Yamaha service personnel when any service is needed. The

cabinet should never be opened for any reasons.

•Secure placement or installation is the owner’s

responsibility. Yamaha shall not be liable for any

accident caused by improper placement or installation

of speakers.

The following items are included.

Speaker cable (2 m) × 2 / Grille × 2

The speaker and the grille are packed

separately. To attach the grille, line up

the projections (magnets) on the reverse

side of the grille with their

corresponding screw heads on the

speaker.

When the grille is removed, be sure not to touch the

speaker units with your hands or to exert excessive force

with tools.

BEFORE MAKING CONNECTIONS, MAKE SURE THAT

THE RECEIVER IS SWITCHED OFF.

When this unit is connected to the receiver, refer also to the owner’s

manual supplied with the receiver.

See page 1 for the connection method.

• Place the speakers on a sturdy, vibration-free surface.

• Better stereo images will be obtained when the speakers are

slightly angled in towards the listening position.

• Be sure to connect the left channel (L) and right channel (R)

properly.

Placing the speakers too close to a CRT-type TV may

impair the picture color or cause a buzzing noise. In this

case, move the speakers away from the TV. This is not an

issue with LCD and plasma TVs.

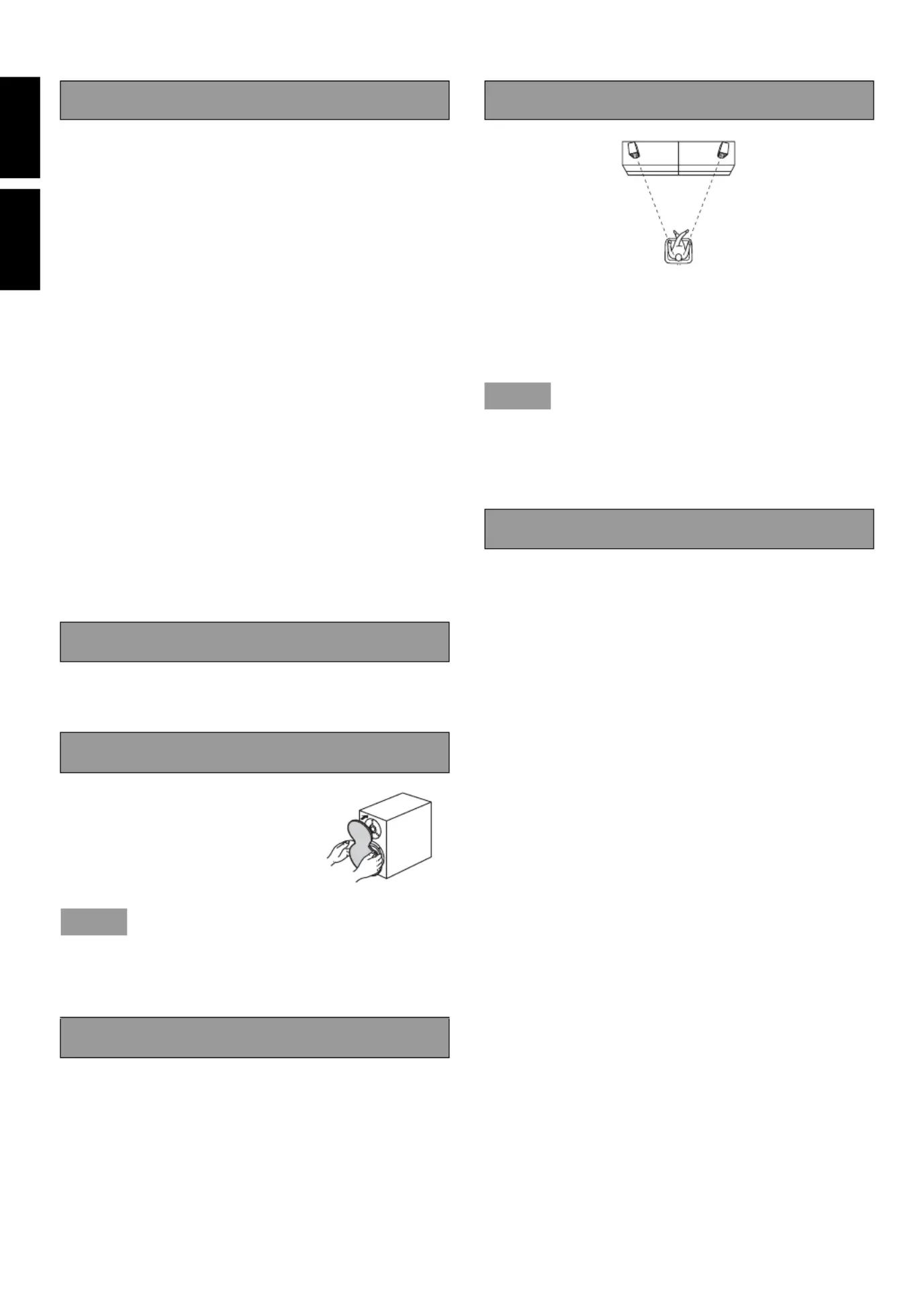

<NS-BP200>

Type ..............................................2-way bass-reflex speaker system

Non-magnetic shielding Type

Driver.....................................................12 cm (4-3/4”) cone woofer

3 cm (1”) soft dome tweeter

Impedance................................................................................... 6 Ω

Frequency Response................................. 55 Hz to 28 kHz (-10 dB)

80 kHz (-30 dB)

Nominal Input Power ................................................................40 W

Maximum Input Power............................................................110 W

Sensitivity ............................................................. 85 dB/2.83 V, 1 m

Crossover Frequency .............................................................4.5 kHz

Dimensions (W × H × D) ...............................154 × 274 × 287 mm

(6-1/8” × 10-3/4” × 11-1/4”)

Weight................................................................ 3.9 kg (8 lbs. 10 oz)

<NS-BP150>

Type ..............................................2-way bass-reflex speaker system

Non-magnetic shielding Type

Driver.....................................................11 cm (4-1/2”) cone woofer

2.5 cm (1”) balanced dome tweeter

Impedance.................................................................................... 6 Ω

Frequency Response................................. 55 Hz to 38 kHz (-10 dB)

70 kHz (-30 dB)

Nominal Input Power.................................................................30 W

Maximum Input Power..............................................................90 W

Sensitivity ............................................................. 83 dB/2.83 V, 1 m

Crossover Frequency ................................................................5 kHz

Dimensions (W × H × D) .................................154 × 274 × 237 mm

(6-1/8” × 10-3/4” × 9-3/8”)

Weight....................................................................... 2.6 kg (5.7 lbs.)

* Specifications are subject to change without notice due to

product improvements.

* Care should be taken not to exceed the input power values noted

above.

PRECAUTIONS

ACCESSORIES

ATTACHING THE GRILLE

Note

CONNECTION TO YOUR RECEIVER

PLACING THE SPEAKERS

Note

SPECIFICATIONS

(L) (R)

Produkt Specifikationer

Mærke:	Yamaha
Kategori:	Højttaler
Model:	NS-BP150
Produktfarve:	Sort
Udgangseffekt (RMS):	30 W
Volumenkontrol:	Dreje
Anbefalet brug:	Universel
Frekvensområde:	55 - 38000 Hz
Impedens:	6 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	2-vejs
Lyd-output kanaler:	2.0 kanaler
Højttaler, placering:	Bordplade/bogreol
Antal drivere:	1
Driver diameter:	110 mm
Sensitivitet:	83 dB
Forstærker:	Indbygget
Egnet til udendørs brug:	Ingen
