Side 1/4

PRECAUTIONS

This model is designed to be used as a center speak-

er system.

Read these precautions carefully before using your speak-

er.

●Any time you note distortion, reduce the volume control

on your ampliﬁer to a lower setting. Never allow your

ampliﬁer to be driven into “clipping”. Otherwise the

speaker may be damaged.

●When using an ampliﬁer with a rated output power high-

er than the nominal input power of the speaker, care

should be taken never to exceed the speaker’s maximum

input.

●Do not attempt to clean the speaker with chemical sol-

vents as this might damage the ﬁnish. To clean, wipe

with a dry, soft cloth.

●To prevent the enclosure from warping or discoloring, do

not place the speaker where it will be exposed to direct

sunlight or excessive humidity.

●Do not place the speaker where it is liable to be knocked

over or struck by falling objects. Stable placement will

also ensure better sound performance.

●Placing the speaker on the same shelf or rack as the

turntable can result in feedback.

●Secure placement or installation is the owner’s

responsibility.

YAMAHA shall not be liable for any accident caused

by improper placement or installation of the speaker.

Place the speaker on top of the TV or on the ﬂoor under

the TV or inside the TV rack so that it is stabilized.

When placing the speaker on top of the TV, to prevent the

speaker from falling down, put the provided velcro strips at

two points on both bottom of the speaker and top of the

TV.

Notes

●Do not place the speaker on top of the TV whose

area is smaller than the bottom area of the speaker.

If placed, the speaker may drop out causing an

injury to you.

●Though this speaker is a magnetic shielding type,

there may be some inﬂuence on a TV picture

depending on the type of TV or the placement of the

speaker. In such a case, place the speaker apart

from the TV so that there is no inﬂuence on TV pic-

ture.

NS-P60

“NS-P60” is the package number which includes the YAMAHA speaker system NS-C55 and NS-E55.

Thank you for selecting this Yamaha NS-P60 speaker system.

NS-C55 Natural Sound Center Speaker System

PLACING THE SPEAKER

Velcro

strip

TV set

Screen

HOME CINEMA CENTER

& EFFECT SPEAKERS

G R

BEFORE MAKING CONNECTIONS, MAKE SURE THAT

THE AMPLIFIER IS SWITCHED OFF.

■ CONNECTIONS

●Connect the screw-type input terminals at the rear of the

speaker to the speaker output terminals of your ampliﬁer

with the provided speaker cords.

●One side of the speaker cord is red and the other side is

black. Connect the (+) terminals on both the ampliﬁer

and the speaker using this red side. Connect the (–) ter-

minals on both components using the black side of the

cord.

●Be careful not to reverse the polarity (+, –). If connected

with reversed polarity, the sound will be unnatural and

lack bass.

Procedures:

➀Loosen the terminal knob.

➁Insert the bare speaker wire end properly into the ter-

minal hole. [Remove approx. 10 mm (3/8”) insulation

from the speaker cord.]

➂Tighten the knob.

➃Test the security of the connection by pulling lightly the

cord at the terminal.

Note

Do not let the bare speaker wires touch each other as

this could damage the speaker or

the ampliﬁer, or both of them.

SPECIFICATIONS

Type..........................2-way 3-speaker acoustic-suspension

speaker system

Magnetic-shielding type

Speaker Unit....................................10 cm cone woofer x 2

2.2 cm dome tweeter

Input Terminal.....................................................Screw-type

Impedance .................................................................6 ohm

Frequency Response ..................................70 Hz – 30 kHz

Nominal Input Power.....................................................60W

Maximum Input Power ................................................180W

Sensitivity (2.83V, 1m) ................................................91 dB

Crossover Frequency..................................................5 kHz

Dimensions (WxHxD).......................465 x 135 x 173.5 mm

(18-5/16” x 5-5/16” x 6-7/8”)

Weight .................................................3.5 kg (7 lbs. 12 oz.)

Accessories ......................................Speaker cord (4m) x 1

Velcro strip x 2

* Speciﬁcations subject to change without notice due to

product improvements.

* Care should be taken not to exceed the input power val-

ues noted above.

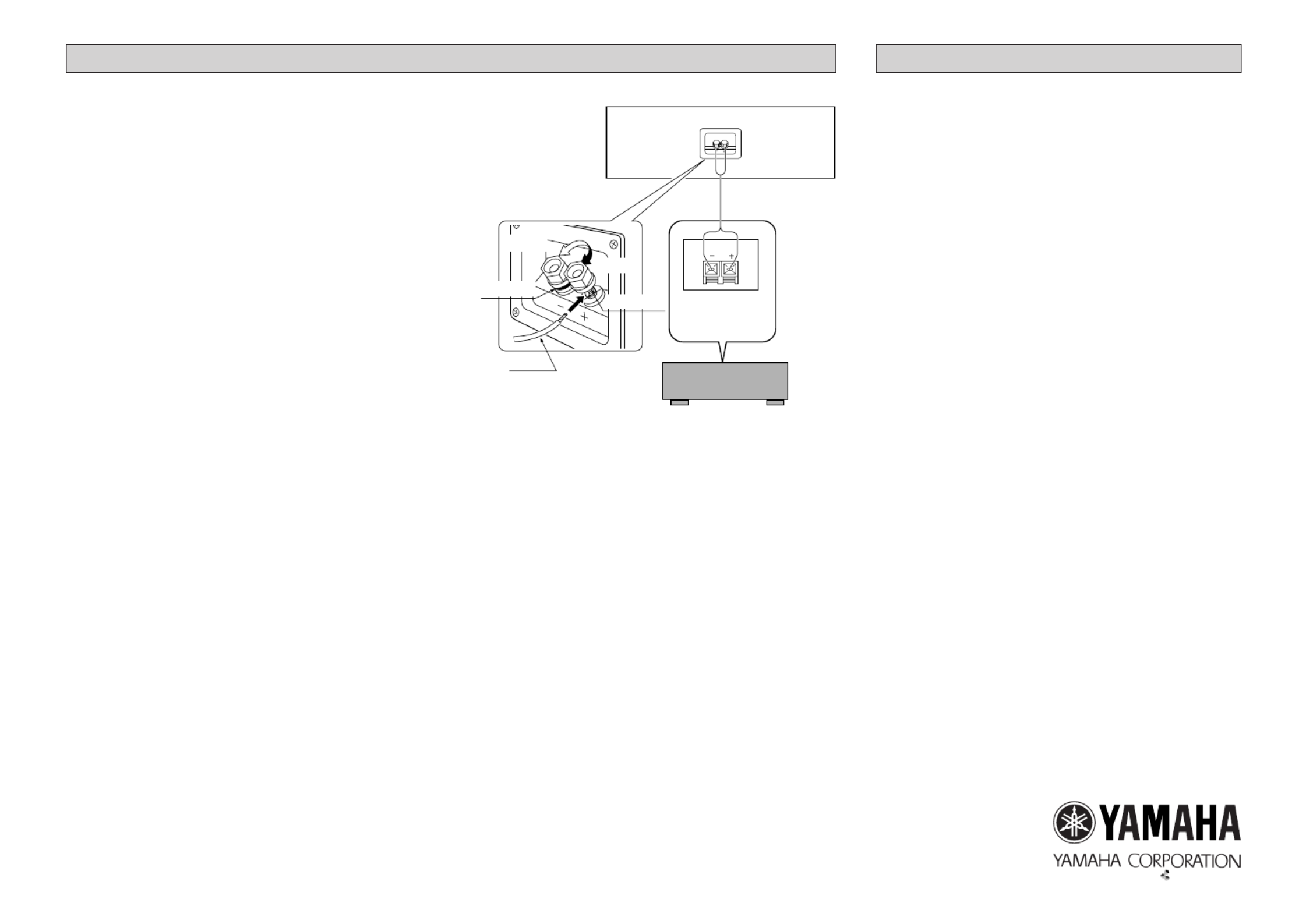

CONNECTION TO YOUR AMPLIFIER

Center speaker

output terminals

of the ampliﬁer

NS-C55

Tighten

Red (+)

Black (–)

Red

Loosen

Ampliﬁer

V415010

Produkt Specifikationer

Mærke:	Yamaha
Kategori:	Højttaler
Model:	NS-P60
Type:	Hjemmebiograf højttalere
Produktfarve:	Sort
Udgangseffekt (RMS):	60 W
Frekvensområde:	80 - 30000 Hz
Impedens:	6 ohm (Ω)
Lyd-output kanaler:	5.1 kanaler
Diskanthøjttaler:	Ja
Peak Music-Udgangseffekt (PMPO):	180 W
Sensitivitet:	90 dB
Delefrekvens:	5000 Hz
Højttalere:	2-vejs
Bas indstillinger:	Ja
Diskant diameter:	22 mm
Woofer diameter:	100 mm
Centerhøjttaler dimensioner (BxDxH):	465 x 135 x 174 mm
Centerhøjttaler vægt:	3500 g
Surroundhøjttaler vægt:	2300 g
Surroundhøjttaler, mål (B x H x D):	150 x 156 x 265 mm
