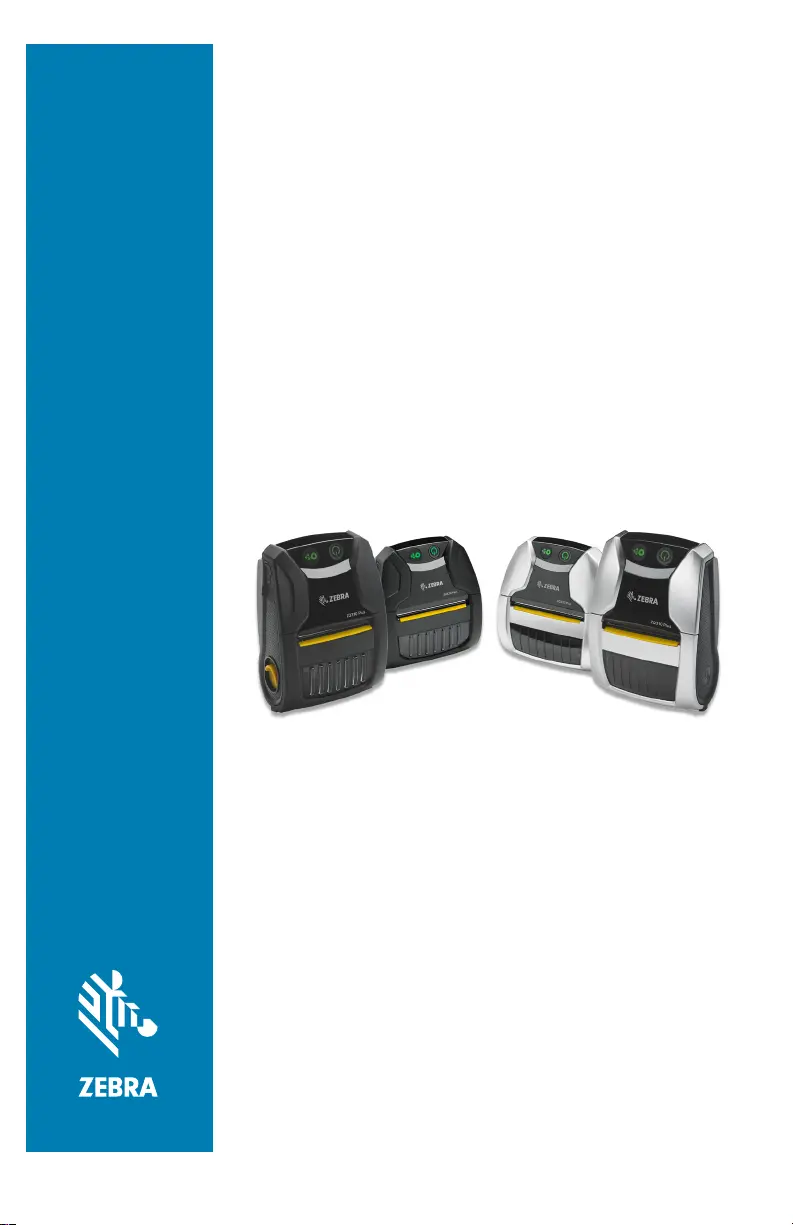

Mobile Printers

User Guide

ZQ310 Plus

ZQ320 Plus

P1131153-01EN

ZQ310 Plus and ZQ320 Plus User Guide

Table of Contents

Proprietary Statements ............................................................... 4

Document Conventions ..............................................................5

Introduction to the ZQ300 Plus Series ......................................6

Unpacking and Inspection .................................................................7

Reporting Damage ............................................................................7

ZQ300 Plus Series Technology ..................................................................... 8

Features Overview .....................................................................11

Getting Ready to Print...............................................................12

Battery .............................................................................................12

Installing/Removing Battery and Battery Tape Insulator .............................. 12

Battery Tape Insulator......................................................................13

Battery Safety ..................................................................................15

Charger Safety ............................................................................................ 15

Charging the Battery ................................................................................... 16

Designing Labels ......................................................................................... 23

Using Pre-Printed Receipt Media ....................................................24

Loading the Media ...................................................................................... 29

Media Spacers ............................................................................................ 30

Operator Controls ............................................................................31

Forced Download Description and LED Behavior ....................................... 36

Power Save Mode ....................................................................................... 38

Draft Mode ................................................................................................... 38

Verify the Printer Is Working ............................................................39

Cable Communication ................................................................................. 40

Installing Drivers and Connecting to a Windows-Based Computer 42

What to Do If You Forget to Install Printer Drivers First ..................49

Connect to a Phone or Tablet ..........................................................52

Zebra Printer Setup Utilities ............................................................. 52

Wireless Communications with Bluetooth ................................................... 60

Bluetooth Networking Overview .................................................................. 60

NFC Use Cases .......................................................................................... 63

WLAN Overview ..............................................................................64

Setting Up the Software ..................................................................65

Wearing the Printer ...................................................................66

Belt Clip ....................................................................................................... 66

Adjustable Shoulder Strap ........................................................................... 67

Soft Case ..................................................................................................... 68

Preventive Maintenance ............................................................69

Extending Battery Life .....................................................................69

General Cleaning Instructions .........................................................69

ZQ300 Plus Series Cleaning ....................................................................... 70

Troubleshooting.........................................................................72

Printer Status Indicators ..................................................................72

Troubleshooting Topics .................................................................... 72

Troubleshooting Tests ......................................................................74

Printing a Conguration Report ................................................................... 74

Communications Diagnostics ...................................................................... 74

Calling Technical Support ............................................................................ 75

Produkt Specifikationer

Mærke:	Zebra
Kategori:	Etiketprinter
Model:	ZQ320 Plus
Bredde:	117.7 mm
Dybde:	130 mm
Højde:	49.5 mm
Produktfarve:	Black, Grey
Batterispænding:	7.2 V
Batterikapacitet:	2280 mAh
Wi-Fi:	Ja
Bluetooth:	Ja
USB-port:	Ja
Batteriteknologi:	Lithium-Ion (Li-Ion)
Opbevaringstemperatur (T-T):	-20 - 60 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Antal USB 2.0-porte:	1
Wi-Fi-standarder:	Wi-Fi 5 (802.11ac)
Driftstemperatur (T-T):	-15 - 50 °C
Udskrivningsteknologi:	Direkte termisk
Maksimal opløsning:	203 x 203 dpi
Sikkerhedsalgoritmer:	AES, EAP, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP, TKIP, WPA, WPA2
Skærm:	Ingen
Intern hukommelse:	128 MB
Hurtig start guide:	Ja
Kabler inkluderet:	USB
Batterier inkluderet:	Ja
Bluetooth-version:	4.2
Forbindelsesteknologi:	Trådløs
Batteritype:	Indbygget batteri
Understøttede mobile operativsystemer:	Android, iOS
Bæredygtighedscertifikater:	C-TICK, CCC, Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM), PSE, VCCI
Understøttede Windows-operativsystemer:	Ja
Farve:	Ingen
Bluetooth Low Energy (BLE):	Ja
Sidebeskrivelsessprog:	CPCL-native, ZPL
Flashhukommelse:	256 MB
Overholdelse af bæredygtighed:	Ja
Udskrivningshastighed:	100 mm/sek.
Maksimal udskrivningsbredde:	72 mm
Udskrivbare priknumre:	8 prik
Maksimal rullediameter:	40 mm
Medietykkelse:	0.05334 - 0.16 mm
Indbyggede stregkoder:	AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39, UPC-A, UPC-E
Mindste udskrivningslængde:	12.5 mm
Udskrivning af tegn:	2D-stregkode
