Thank you for selecting the ZOOM 508 (hereafter simply called the "508").

Please take the time to read this manual carefully so you can get the most out of

your 508 and ensure optimum performance and reliability.

Retain this manual for future reference.

ZOOM CORPORATION

NOAH Bldg., 2-10-2, Miyanishi-cho, Fuchu-shi, Tokyo 183, Japan

PHONE: 0423-69-7116 FAX: 0423-69-7115

Printed in Japan 508-5000

• Compact, dedicated delay unit with up to 4000 ms delay time and eight delay

types (Four types x two variations).

• On-board "Zfx-2" DSP (Digital Signal Processor) developed by Zoom, and

an innovative design used solely for its delay effects. Achieves superior

quality delay sound on a par with high-end devices.

• You can switch between 24 patches to store diverse settings based on your

preference.

• Seamless function that enables smooth patch transitions without cutting the

delay sound when the patch is switched.

• Ample functions to support powerful live performances, including a hold

function for continuing the delay sound until the foot switch is pressed, and a

tap function for setting the delay time in the interval between when the foot

switch is pressed.

• Integrated auto-chromatic tuner for guitar. You can tune your insturment

easily anywhere, any time. You can also leave the tuning function disabled all

the time.

• The optional FP01 expression pedal enables foot control of the mix level for

the delay sound.

• Dual power supply design allows the unit to be powered from an alkaline

battery (6LR61) or an AC adapter.

USAGE AND SAFETY PRECAUTIONS

In this manual, symbols are used to highlight warnings and

cautions for you to read so that accidents can be prevented. The

meanings of these symbols are as follows:

Please observe the following safety tips and precautions to ensure

hazard-free use of the 508.

Since power consumption of this unit is fairly high, we

recommend the use of an AC adapter whenever possible.

When powering the unit from a battery, use only an alkaline

type.

AC adapter operation

• Be sure to use only an AC adapter which supplies 9 V DC,

300 mA and is equipped with a "center minus" plug (Zoom

AD-0006). The use of an adapter other than the specified type

may damage the unit and pose a safety hazard.

• Connect the AC adapter only to an AC outlet that supplies the

rated voltage required by the adapter.

• When disconnecting the AC adapter from the AC outlet,

always grasp the adapter itself and do not pull the cable.

• If the unit is not to be used for a long time, disconnect the AC

adapter from the outlet.

Battery operation

• Use only a 9 V (alkaline) battery (6LR61).

• The 508 cannot be used for recharging.

Pay close attention to the labelling of the battery to make sure

you choose the correct type.

• If the 508 is not to be used for an extended period of time,

remove the battery from the unit.

• If battery leakage has occurred, wipe the battery compartment

and the battery terminals carefully to remove all remnants of

battery fluid.

• While using the unit, the battery compartment cover should

be closed.

Avoid using your 508 in environments where it will be

exposed to:

• Extreme temperature

• High humidity or moisture

• Excessive dust or sand

• Excessive vibration or shock

• The 508 is a precision instrument. Except for the foot

switches, do not push other parts with your feet or subject

them to strong force.

• Take care that no foreign objects (coins or pins etc.) or liquids

enter the unit.

• Be sure to turn the power to all equipment off before making

connections.

• Before moving the unit, turn the power off and disconnect all

cables and the AC adapter.

Never open the case of the 508 or attempt to modify the

product in any way since this can result in damage to the unit.

Usage precautions

For safety considerations, the 508 has been designed to provide

maximum protection against the emission of electromagnetic

radiation from inside the device, and from external

interference.However, equipment that is very susceptible to

interference or that emits powerful electromagnetic waves

should not be placed near the 508, as the possibility of

interference cannot be ruled out entirely.

Whatever the type of digital control device, the 508 included,

electromagnetic damage can cause malfunctioning and corrupt

or destroy data. Since this is an ever-present danger, thorough

care should be taken to minimize the risk of damage.

Use a soft, dry cloth to clean the 508. If necessary, slightly

moisten the cloth. Do not use abrasive cleanser, wax, or

solvents (such as paint thinner or cleaning alcohol), since these

may dull the finish or damage the surface.

Connecting cables and input and output jacks

You should always turn off the power to the 508 and all other

equipment before connecting or disconnecting any cables. Also

make sure to disconnect all cables and the AC adapter before

moving the 508.

Major Features

Safety Precautions

！

Warning

This symbol indicates explanations about extremely

dangerous issues. If users ignore this symbol and handle

the device incorrectly, serious injury or death could

result.

！

Caution

This symbol indicates explanations about dangerous

issues. If users ignore this symbol and handle the

device the wrong way, bodily injury and damage to the

equipment could result.

！

Warning

About power

！



Caution

Environment

！



Caution

Handling

！



Caution

Alterations

Electrical interference

Cleaning

Operation Manual

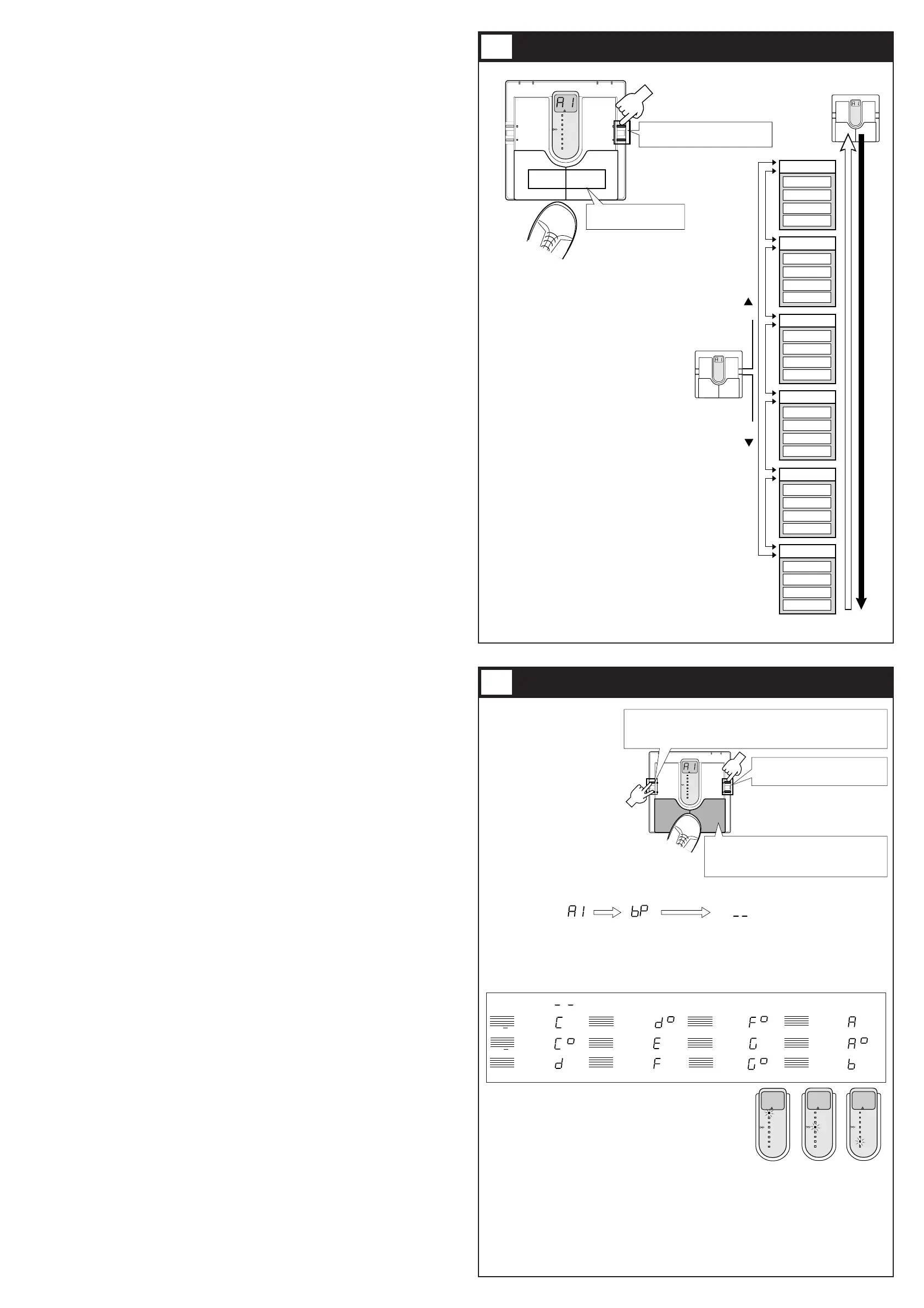

The 24 patches can be easily selected by

pressing the patch pedals. The right patch

pedal switches to the next patch and the

left patch pedal switches to the previous

patch.

In the initial condition, the 508 is set up

so that the patch pedals select patches

continuously, but you can also set up the

unit so that patches are switched only

within a certain bank of four patches. [For

details, see section 9 Patch Switching

(Application: Bank Hold ON).]

Banks are selected with the VALUE +/-

keys. Press the VALUE+ key to select the

next bank, and the VALUE- key to select

the previous bank.

For example, to switch from Patch 2,

Bank A to Patch 3, Bank C, the patch

pedal would have to be pressed nine

times. Instead, you can press the

VALUE+ key twice to switch to Bank C,

and then press the patch pedal (UP) just

once to select Patch 3.

The effects of the 508 can

be turned off (bypassed)

temporarily, so that only the

original sound of the

instrument is heard. In this

mode, the auto-chromatic

tuning function via the LED

display is also active.

Bypass mode

Pressing both patch pedals

simultaneously activates the

Bypass mode.

To cancel the Bypass mode,

simply press one of the patch pedals. The unit then reverts to the previously selected patch.

Tuner mode

The 508 is initially set so that the auto-chromatic tuning function for the guitar activates

automatically when the Bypass mode is invoked. In Bypass mode, pick an open string to be

tuned. The closest note will be shown on the display.

When the tuning function is active, the parameter cursor

LEDs serve as tuning meter, designed to enhance tuning

precision during fine adjustments.

Turning tuning function off

If you do not want to activate the tuning function in Bypass

mode, press the STORE and EDIT keys simultaneously for

more than one second in Play mode. The tuning function will be turned off, and this setting will

be stored even when the power is turned off. When you turn the function off, the display will

show "tunEr oFF" (tuning function off).

To turn the tuning function on, press the same keys simultaneously again. The display will show

"tunEr on" (tuning function on).

NOTE: Please note that the tuning function may not operate properly if other effect modules between the

guitar and the 508 are on.

Selecting Patches

Using the Bypass/Tuner Mode

PATCH

DOWN

PATCH

Patch switching

24 patches are available

Bank switching

Banks A, b, C, d, E, F are available

BANK UP

BANK DOWN

BANK F

PATCH 1

PATCH 2

PATCH 3

PATCH 4

BANK E

PATCH 1

PATCH 2

PATCH 3

PATCH 4

BANK d

PATCH 1

PATCH 2

PATCH 3

PATCH 4

BANK C

PATCH 1

PATCH 2

PATCH 3

PATCH 4

BANK b

PATCH 1

PATCH 2

PATCH 3

PATCH 4

BANK A

PATCH 1

PATCH 2

PATCH 3

PATCH 4

Bypass ON/OFF

The bypass function is invoked by pressing the left and right

patch pedals simultaneously.

To cancel the Bypass/Tuner mode, just press one of the

patch pedals.

Calibration

Select reference pitch for auto-chromatic

guitar tuner (calibration).

Press both

pedals together

* The reference pitch (A) can be adjusted in the range

from 435 to 445 Hz. When the BANK key is pressed

in Bypass/Tuner mode, this is shown as "35" to "45"

on the display for a second. Adjust to the suitable

value. At power-on, the setting is 440 Hz (40).

Tuner ON/OFF

Pressing the EDIT key and the STORE key simultaneously for more than one second in

Play mode will allow you to select whether or not to activate the tuning function in Bypass

mode. When you change the setting, the display will show"tunEr oFF" (tuning function off)

or "tunEr on" (tuning function on) according to the setting.

Pitch is too high Correctly tuned Pitch is too low

Press Release immediately Tuning function (only when the tuning function is ON)

Currently selected

patch is displayed

Do = C

Do# = C#

Re = D

Regular tuning

6th string

1st string

4th string

Mi = E

Fa = F

Fa# = F#

Regular tuning

3rd string

Regular tuning

5th string

Regular tuning

2nd string

Re# = D#

So = G

So# = G#

La = A

La# = A#

Si = B

Input signal

standby condition

Bank/patch switching

when Bank Hold is off

(initial setting)
