97165C (Rev. K - 08/16)

EDFB12C*A EDFB12FC*A EDFBC212C*A

Page 1

Installation/Care/Use Manual

Fully Recessed Fountain/Cuspidor

with FLEXI-GUARD

IMPORTANT

ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON

To assure you install this model easily and correctly, PLEASE READ THESE

SIMPLE INSTRUCTIONS BEFORE STARTING TH INSTALLATION. CHECK YOUR

INSTALLA-TION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL AND OTHER

APPLICABLE CODES. After installation, leave these instructions inside the fountain

for future reference.

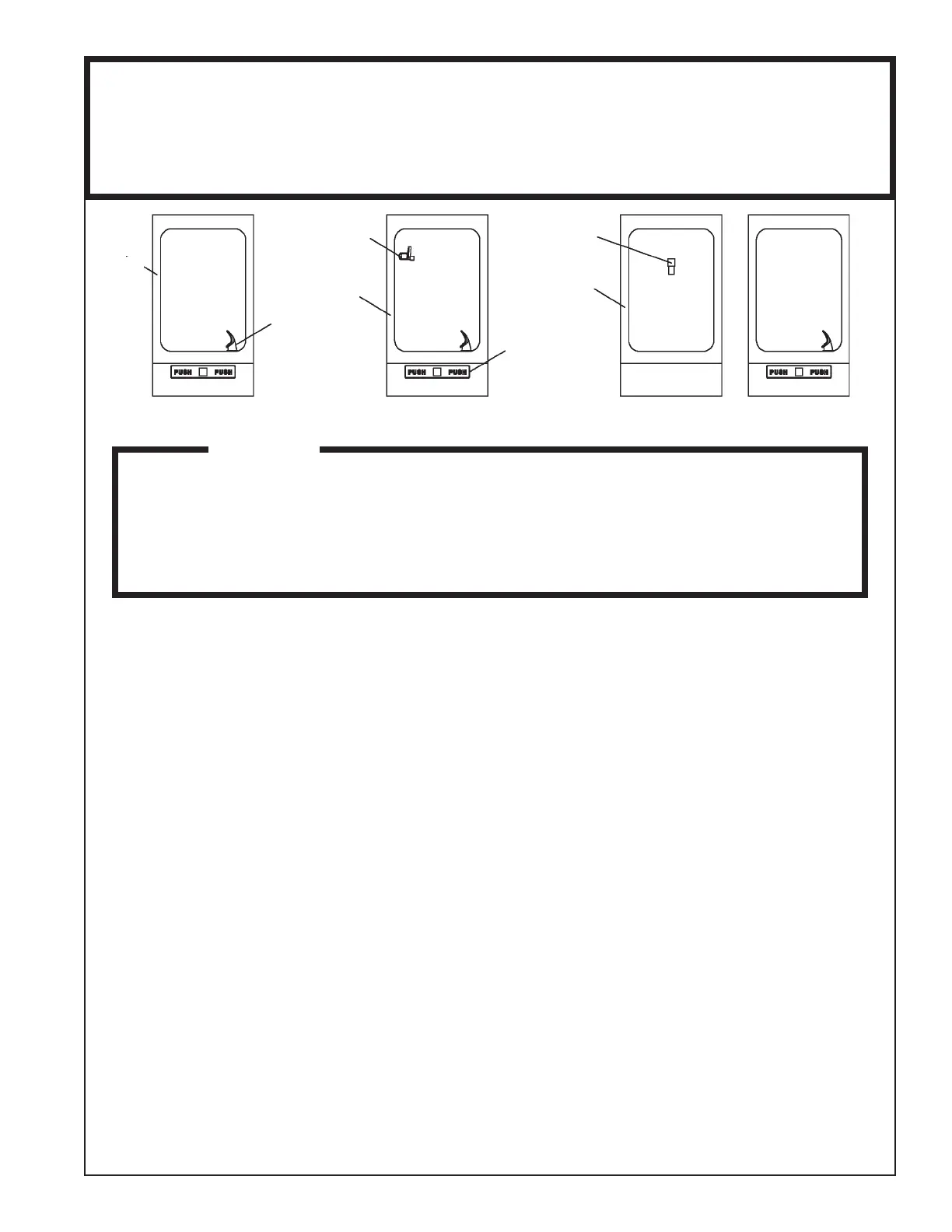

SEE FIG. 3

EDFB12C EDFBC212CEDFB12FC

SEE FIG. 7

SEE FIG. 9

SEE FIG. 4

INSTALLATION INSTRUCTIONS

1. Prepare wall opening(s) and attach wall hanger bracket(s) for the fountain (and cuspidor when applicable) using dimensions shown in

Figures 1 and 2.

2. Remove lower panel from drinking fountain (and cuspidor) by removing the two screws at the lower corners. Rotate the bottom of the

panel out to clear the push bar, and pull gently downward to remove.

3. Water supply is 3/8" O.D. unplated copper and waste tailpiece(s) are 1-1/4" O.D. Contractor is to supply waste trap(s) and service stop

valve in accordance with local codes.

4. Connecting lines to be unplated copper and thoroughly ushed to remove all foreign matter before connecting to fountain assembly.

5. Install fountain (and cuspidor) into rough-in opening(s).

6. Connect the fountain to the supply line with a shut off valve and install a 3/8" (10mm) unplated copper water line between the valve and

strainer. Push the tubes straight into the ttings until they reach a positive stop, approximately 3/4". See Figs. 5 and 6.

DO NOT SOLDER TUBES INSERTED INTO THE STRAINER AS DAMAGE TO THE O-RINGS MAY RESULT.

7. On cuspidor models, connect 1/4 tube coiled in fountain to spreader.

8. Turn water supply on and check thoroughly for leaks.

9. Release air from water line by depressing push bar; a steady stream of water assures all air is removed.

10. Re-check for leaks.

11. Stream height is factory set at 35 PSI. If supply pressure varies greatly from this, turn adjustment screw on regulator (item 1). Clockwise

adjustment will raise the stream height and counter-clockwise adjustment will lower stream height. For best adjustment, stream should hit

basin approximately 6-1/2" from the bubbler.

TROUBLE SHOOTING AND MAINTENANCE

1. Orice Assy: Mineral deposits on orice can cause water ow to spurt or not regulate. Mineral deposits may be removed from orice with

a small round le not over 1/8 diameter or a small diameter wire. CAUTION: Do not le or cut orice materials.

2. Actuation of Quick Connect Water Fittings: Cooler is provided with lead-free connectors which utilize an o-ring water seal. To remove

tubing from the tting, relieve water pressure, push in on the gray collar while pulling on the tubing (See Fig. 6). To insert tubing, push tube

straight into the tting until it reaches a positive stop, approximately 3/4".

THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES

IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM

THE BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO A FOUNTAIN, CREATING AN

ELECTROLYSIS WHICH CAUSES A METALLIC TASTE OR AN INCREASE IN THE METAL CONTENT OF THE WATER.

THIS CONDITION IS AVOIDABLE BY USING THE PROPER MATERIALS AS INDICATED. ANY DRAIN FITTINGS

PROVIDED BY THE INSTALLER SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE FOUNTAIN

FROM THE BUILDING PLUMBING SYSTEM.

IMPORTANT! INSTALLER PLEASE NOTE.

Installer
