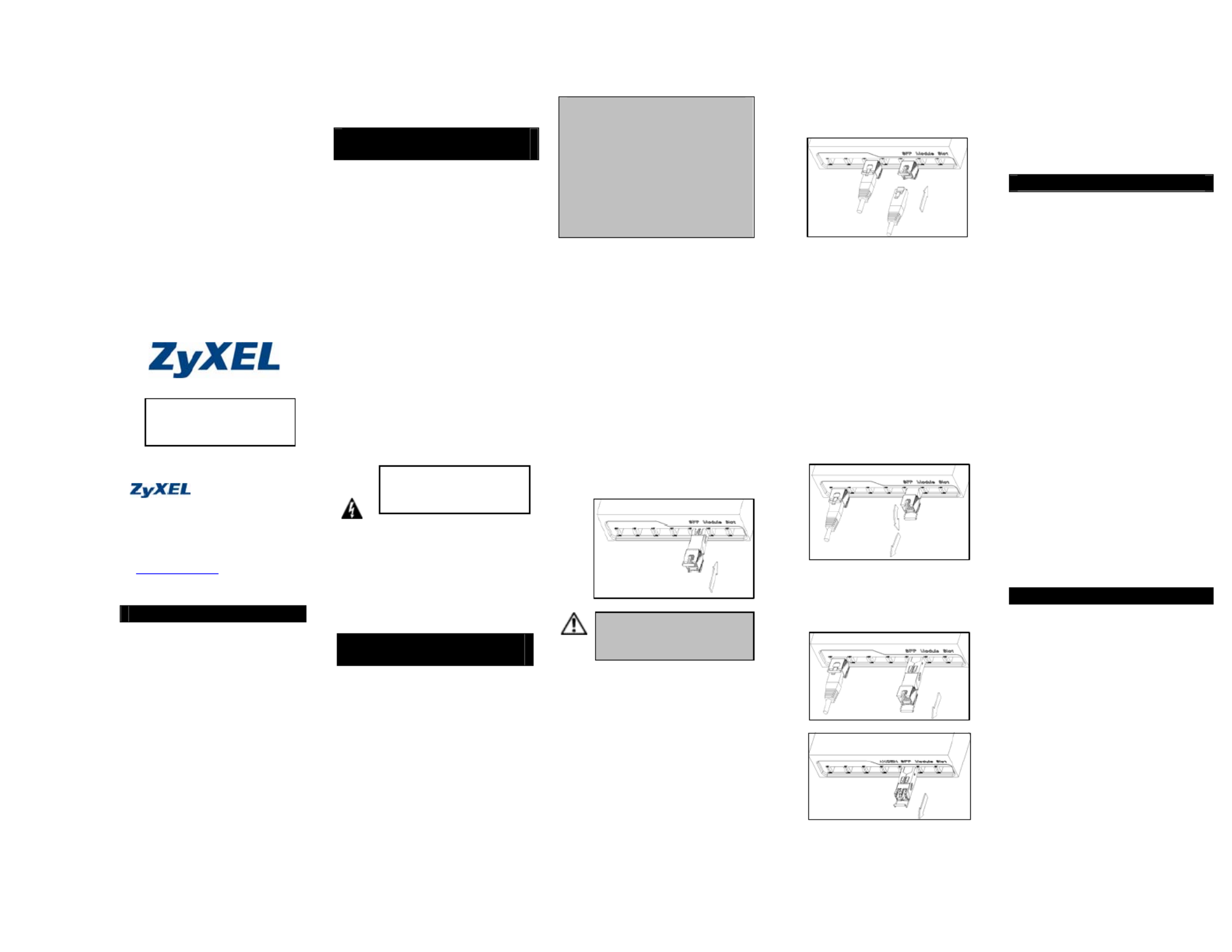

Side 1/5

Copper SFP

Transceivers

User’s Guide

Version 1.0

Edition 2

11/2007

Corporate Headquarters ZyXEL Communications Corp.

Tel: +886-3-578-3942

Fax: +886-3-578-2439

Email:sales@zyxel.com.tw

http://www.zyxel.com

http://www.zyxel.com.tw

Introduction

This user’s guide provides information

for Copper SFP transceiver modules,

as well as instructions for installing,

connecting and removing these

transceivers.

Copper SFP transceiver modules are

hot-pluggable - you can insert them

into SFP module slots and remove

them without interrupting the host

system.

Copper SFP Transceiver Modules:

The SFP modules uses 3.3V power

input and RJ-45 connectors.

Handling, Safety, and

Environmental Guidelines

Read the following guidelines before

installing and using Copper SFP

transceiver modules.

Handling Warning

Copper SFP are static sensitive. To

prevent damage from electrostatic

discharge (ESD), it is recommended to

attach an ESD preventative wrist strap to

your wrist and to a bare metal surface

when you install or remove a Copper SFP

module.

Safety Warning

Copper SFP modules:

Read the following safety and warning

instructions carefully.

Environmental Warnings:

Dispose of your Copper SFP module

according to all national laws and

regulations.

The Copper SFP module installation and

removal procedures are described in this

section.

Note:

Disconnect all UTP (Unshielded

Twisted Pair) cables before removing

or installing a Copper SFP module.

Do NOT remove and insert Copper

SFP modules more often than is

absolutely necessary. Doing so may

shorten the useful life of SFP

modules.

Installing a Copper SFP module:

Follow the steps below to install a Copper

SFP module.

1. Attach an ESD preventive wrist

strap to your wrist and to a bare

metal surface.

2. Remove the Copper SFP module

from its protective packaging.

3. Find the Copper SFP markings on

the SFP module.

4. Align the Copper SFP module in

front of the slot opening.

5. Insert the Copper SFP module into

the slot until you feel the Copper

SFP module snaps into place.

If SFP module resists as

you push it in, do NOT force

it; turn it over and reinsert it.

Connecting UTP Cables

Follow the steps below to connect UTP

cables to the Copper SFP module.

1. Insert UTP cable into the RJ-45

connector of Copper SFP module.

2. Make sure to push UTP cable into

the Copper SFP module with RJ-45

already latched.

Removing a Copper SFP module

Follow the steps below to remove an

SFP module.

1. Attach an ESD preventive wrist

strap to your wrist and to a bare

metal surface

2. Disconnect the UTP cable from the

SFP module.

3. Unlock and remove the Copper

SFP module, as shown in the

figures below.

Pull out the latch and down to

unlock the SFP module.

Using your thumb and index finger,

grasp the tabs on both sides of the

module and carefully slide it out of

the slot.

4. Place the removed SFP module in

the protective packaging or

antistatic bag.

The contents of this publication may not

be reproduced in any part or as a whole,

transcribed, stored in a retrieval system,

translated into any language, or

transmitted in any form or by any means,

electronic, mechanical, magnetic, optical,

chemical, photocopying, manual, or

otherwise, without the prior written

permission of ZyXEL Corporation.

Published by ZyXEL Corporation.

Disclaimer

ZyXEL does not assume any liability

arising out of the application or use

of any products, or software described

herein. Neither does it convey any license

under its patent rights nor the patent

rights of others. ZyXEL further reserves

the right to make changes in any products

described herein without notice. This

publication is subject to change without

notice.

ZyXEL Limited Warranty

ZyXEL warrants to the original end user

(purchaser) that this product is free from

any defects in materials or workmanship

for a period of up to two (2) years from the

date of purchase. During the warranty

period, and upon proof of purchase,

should the product have indications of

failure due to faulty workmanship and/or

materials, ZyXEL will, at its discretion,

repair or replace the defective products or

components without charge for either

parts or labor, and to whatever extent it

shall deem necessary to restore the

product or components to proper

operating condition. Any replacement will

consist of a new or re-manufactured

Installing and Removing

Copper SFP Modules

Only trained and qualified

personnel should be allowed to

install or replace these modules.

Warning

Only trained and qualified

personnel should be allowed to

install or replace these modules.
