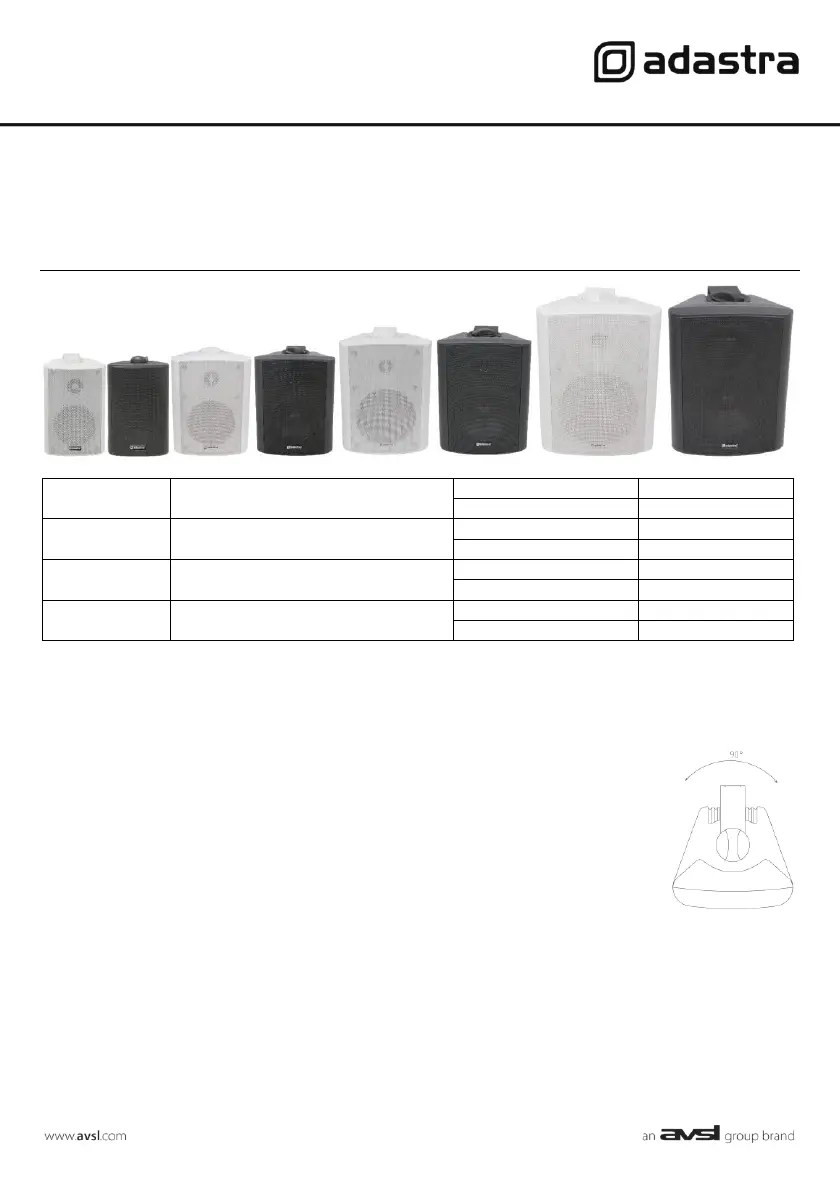

BPV-SERIES

100V Outdoor Speakers

User Manual

BP 3V

75mm (3”), 60Wmax

White

952.8 10

Black

952.8 11

BP 4V

100mm (4”), 70Wmax

White

952.8 12

Black

952.8 13

BP 5V

130mm (5.25”), 90Wmax

White

952.8 14

Black

952.8 15

BP 6V

165mm (6.5”), 120Wmax

White

952.8 16

Black

952.8 17

Introduction

Thank you for choosing the BC-series indoor speakers. These speakers have been designed to offer high

quality sound for low impedance installations. Please read and follow the

instructions in this manual to achieve the best results and avoid damage through

misuse.

Installation

The BC-series speakers are each supplied with a wall-mounting bracket which

allows 90° lateral adjustment. When fixing to a wall or ceiling, use the bracket to

mark out the fixing points and use appropriate fixings for the substrate that the

speaker will be attached to, ensuring that the fixing is strong enough to bear the weight.

Once the bracket is fitted, support the speaker in position and attach top and bottom using the supplied

screw ca and adjust to the required angle. Further mounting points are available at the rear of the ps

speaker, should it be preferred to use different mounting methods (e.g. 129.130 129.124UK) –

Note: Do not over-tighten the screw caps as this can cause the threaded inserts to fail.

BPV-series User Manual

Connection

BPV-series speakers are connected via a hard-wired cable from the rear of

the enclosure. For 100V operation, use double insulated cable rated to the

total maximum current, calculated as total max tapped power divided by

100V. With the amplifier switched off, strip the speaker wire ends and

connect 100V or “+” to the white (or red) wire and connect

Common or “-” to the black . Insulate any connecting joints wire

adequately and seal from moisture if connected outdoors. Each model has

a 100V transformer with various volume settings or “tappings” available

via a rotary switch at the rear P6V example shown) (B .

When used with a 100V line amplifier, select the required maximum

wattage that the speaker should demand from the amplifier. Ensure that

the sum of the wattages of all the speakers attached to the amplifier does

not exceed the recommended output of the amplifier.

When used with a standard (non-100V) amplifier, select the “8Ω” setting and refer to the amplifier

manufacturer’s manual to ensure that total speaker impedance (Ω) is not less than recommended for the

amplifier. It is imperative that the amplifier does not deliver more power than can be handled by the BCV

speaker. Refer to the amplifier manual and specifications below to calculate this. Normally, it is

recommended that the amplifier is capable of the RMS power rating of the speaker but cannot ever

exceed the Max power rating.

Specifications

Model

BP 3V

BP 4V

BP 5V

BP 6V

Woofer

75mmØ (3“)

100mmØ (4”)

130mmØ (5.25”)

165mmØ (6.5”)

Tweeter

50mmØ (2“)

25mmØ (1”)

Freq response

120Hz - 20kHz

110Hz - 20kHz

100Hz - 20kHz

90Hz - 20kHz

Power max : 8 Ω

60W

70W

90W

120W

Power rms : 8Ω

30W

35W

45W

60W

Tappings

1.5/3/ 6W, 8Ω

2.5/5/10/ 20W, 8Ω

5/10/20/ 30W, 8Ω

5/10 20 40W/ / , 8Ω

Dimensions (mm)

106 x 153 x 106

150 x 195 x 150

180 x 240 x 180

220 x 280 x 220

Weight

900g

1.63kg

2.38kg

3.08kg

SPL @ 1W/1m

88dB

89dB

Caution

BPV-series speakers are weatherproof IP54 rated. Avoid immersion or direct water jets to the speaker.

Avoid excess heat and exposure to direct sunlight.

Take care not to overload speakers. HF drivers are especially prone to damage through overload.

For 100V installation, take proper care to insulate any contacts within reach of users.

Seal any outdoor speaker connections from moisture ingress.
