65W rms

Background Music Speakers

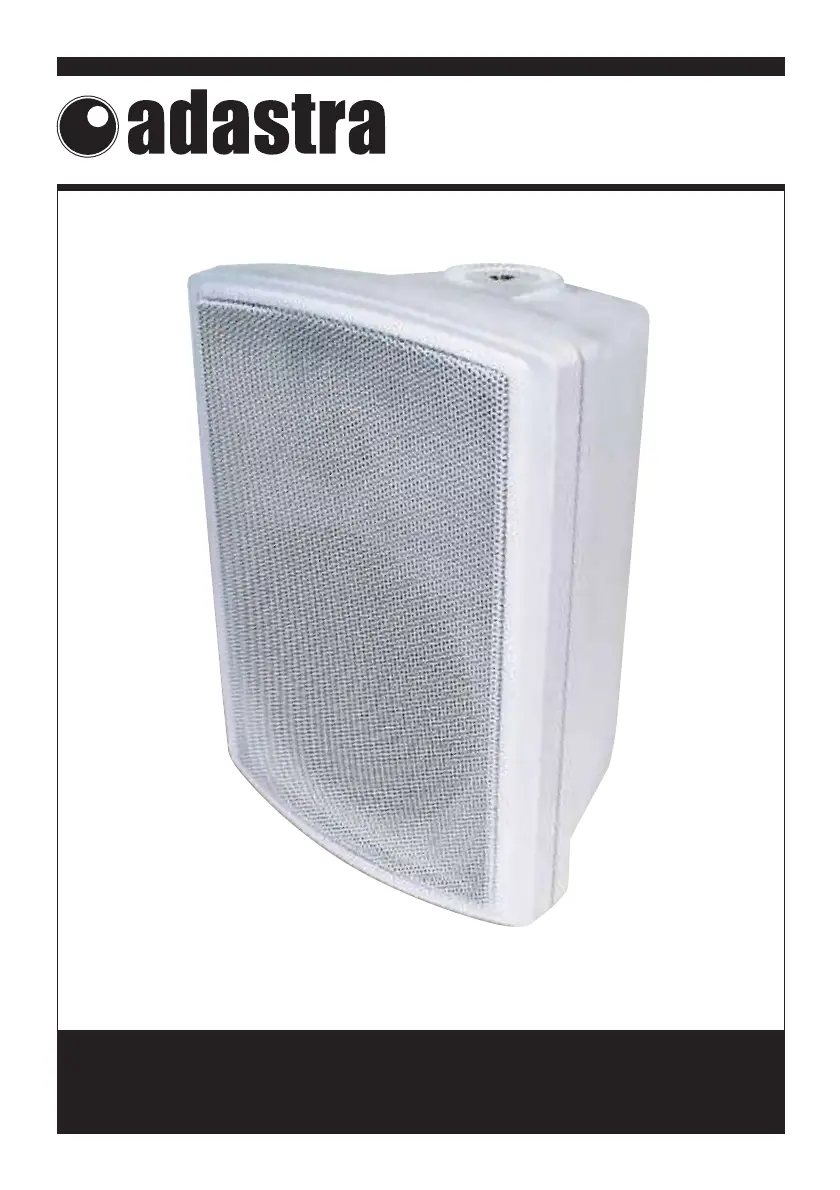

Operation Manual

Model: 932.961

952.963

High quality 2 way background music speakers for indoor

outdoor use. Strong moulded plastic cabinet with metal

speaker grille contains a high quality full response 5.25”

driver, a 0.5” dome tweeter and an integrated crossover

network. Fitted with a 100 volt line matching transformer

tapped at 5 / 10 / 20 / 40 watts and 8 ohm all selectable by

a rotary switch housed in a weatherproof compartment on

the rear of the speaker cabinet which also contains two

high quality gold plated binding posts. An indoor / outdoor

equalisation switch is fitted for maximum performance in

all locations. Supplied complete with sturdy mounting

bracket and available in white or black cabinets.

Speaker size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.25”

Power rms (8 ohm) . . . . . . . . . . . . . . . . . . . . . . . . . . . .65 watts

Power max (8 ohm) . . . . . . . . . . . . . . . . . . . . . . . . . . .190 watts

Frequency range . . . . . . . . . . . . . . . . . . . . . . . . . .50Hz - 20kHz

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . .250 x 180 x 145mm

INDOOR/OUTDOOR BASS BOOST SWITCH:

Audio experts have known for years that

sound and bass frequencies in

particular, lose impact in outdoor

environments. To compensate, many

people will turn up the volume,

overdriving the system, and damaging

the speakers components.

In response, Adastra has designed a unique switch that

increases bass when in the ‘outdoor’ position. At the same

time, it protects the speaker from overdrive damage in

exterior applications. The result is dramatically improved

sound reproduction, more reliable operation, and longer life.

In the ‘indoor’ position, performance is automatically

adjusted to produce optimum results for indoor use.

ALL WEATHER DESIGN:

The materials used in the manufacture of Adastra speakers

have been carefully selected to stand up to extremes of

temperature (from -50°F to 200°F), rain, snow, heat, salty,

water and the suns UV rays. Adastra speakers are ruggedly

constructed with a combination of a low-resonance

mineral-filled polypropylene cabinet, brass stainless steel

and aluminium hardware, and gold-plated binding posts.

CONNECTING THE INDIVIDUAL SPEAKERS

TO YOUR AMPLIFIER OR RECEIVER:

First turn your amplifier or

receiver off to avoid damage

which may result from

accidental shorting of the

speaker leads.

Correct phase polarity is

critical for proper stereo

imaging and bass

performance. The red (+)

terminal on your amplifier or

receiver must be connected

to the red (+) terminal on

your speaker. The same applies for the black (-) terminal.

Connect one loudspeaker at a time to ensure proper

connection of left and right channels. Make sure all wires

are firmly fastened.

If you notice a great lack of bass and/or central imaging

focus, double check your connections for proper polarity.

MOUNTING THE BRACKET:

Remove the bracket knobs

and the bracket from the

speaker.

Hold the bracket up to the

mounting surface. The

speaker can be mounted

either horizontally or

vertically. Hold the bracket

so that the speaker wire fits

through the large, circular in the bracket. Align the bracket

to be square with the surroundings (use level for accuracy).

Mark the locations of the three shaped screw holes. Use all

of the holes

Drill pilot holes into the mounting surface.

Gently pull the speaker wire through the wire hole in the

centre of the mounting bracket. Align the bracket so that

the holes all line up.

Securely fasten the bracket to the mounting surface.

FINAL ADJUSTMENTS

After checking that the speaker is in-phase and works

correctly, angle the speaker for the best sound.

Hand tighten the bracket knobs only. Power tools may over-

tighten the knob, and strip the threads of the insert.

Check that the entire installation is safe and secure.

OPERATION MANUAL BACKGROUND MUSIC SPEAKERS 65W rms GB

250mm

(9 7⁄8")

180mm

(7 1⁄8")

145mm

(5 3⁄4")

Red

(+)

Connect to

positive

terminal of

amplifier or

receiver

Connect to

negative

terminal of

amplifier or

receiver

Black

(-)

Transformer

Switch

±66°

Weatherproofed to IP35 & UV protected

to standard ASTM D4329
