Side 1/26

9/14

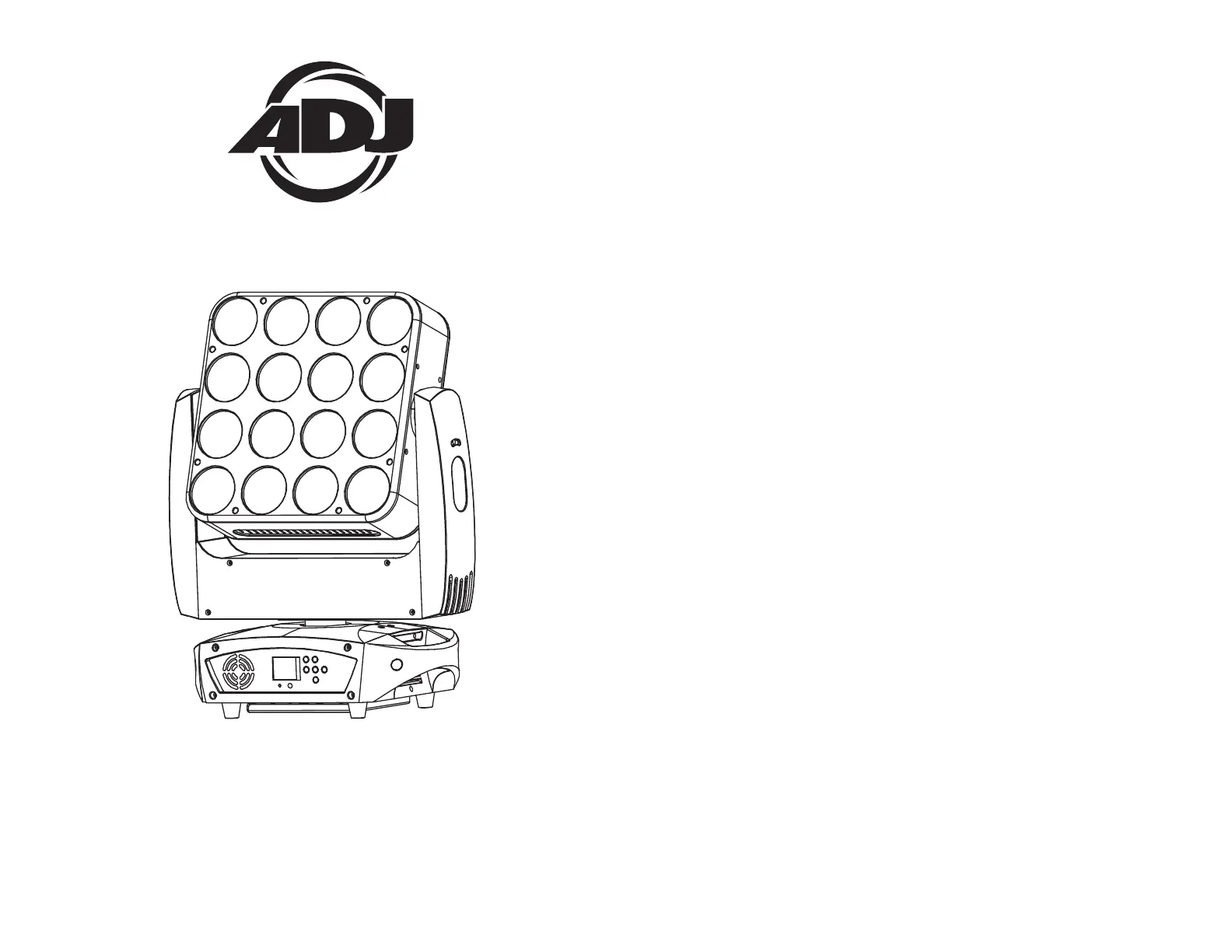

User Instructions

Illusion Dotz 4.4

specications, diagrams, images, and instructions herein are

subject to change without notice. ADJ Products, LLC logo and

identifying product names and numbers herein are trademarks

of ADJ Products, LLC. Copyright protection claimed includes all

forms and matters of copyrightable materials and information

now allowed by statutory or judicial law or hereinafter granted.

Product names used in this document may be trademarks or

registered trademarks of their respective companies and are

hereby acknowledged. All non-ADJ Products, LLC brands and

product names are trademarks or registered trademarks of their

respective companies.

ADJ Products, LLC and all aliated companies hereby dis-

claim any and all liabilities for property, equipment, building,

and electrical damages, injuries to any persons, and direct or

indirect economic loss associated with the use or reliance of

any information contained within this document, and/or as a

result of the improper, unsafe, unsucient and negligent as-

sembly, installation, rigging, and operation of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment.

Please turn o all electrical products when they are not in use. To

avoid power consumption in idle mode, disconnect all electrical

equipment from power when not in use. Thank you!

Unpacking: Thank you for purchasing the Illusion Dotz 4.4 by ADJ

Products, LLC. Every Illusion Dotz 4.4 has been thoroughly tested and

has been shipped in perfect operating condition. Carefully check the

shipping carton for damage that may have occurred during shipping.

If the carton appears to be damaged, carefully inspect your xture for

any damage and be sure all equipment necessary to operate the unit

has arrived intact. In the event damage has been found or parts are

missing, please contact our toll free customer support number for fur-

ther instructions. Please do not return this unit to your dealer without

contacting customer support rst.

Introduction: The Illusion Dotz 4.4 is a DMX intelligent, moving head

fixture. The Illusion Dotz 4.4 can be a 12 channel, 14 channel, or 59

Channel DMX unit. The fixture can operate in three different operating

modes; show mode, sound-active, or under DMX control. The Illusion

Dotz 4.4 can be used as a stand alone unit or in a master/slave con-

figuration. For best results use fog or special effects smoke to enhance

the beams projections.

Customer Support: ADJ Products, LLC provides a toll free cus-

tomer support line, to provide help and to answer any question should

you encounter problems during your set up or initial operation. You

may also visit us on the web at www.adj.com for any comments or

suggestions. Service Hours are Monday through Friday 8:00 a.m. to

4:30 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2610

E-mail: support@americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Warning! This may cause severe eye damage. Avoid looking directly

into the light source at all times!

Illusion Dotz 4.4 General Information

ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 3ADJ Products, LLC - www.adj.com - Illusion Dotz 4.4 Instruction Manual Page 2

Table of Contents

Unpacking......................................................................3

Introduction....................................................................3

Customer Support......................................................................3

Safety Precautions......................................................................4

Features.........................................................................5

Handling Precautions..................................................................6

Registration......................................................................6

Mounting.........................................................................7-8

DMX Set-Up...........................................................................9-11

System Menu............................................................................12

Operation............................................................................31-32

Kling-Net/ArtNet Control...........................................................33

DMX Traits............................................................................34-44

Fuse Replacement....................................................................46

Cleaning..................................................................46

Trouble Shooting.......................................................................46

Warranty.........................................................................47

Specifications....................................................................50

Produkt Specifikationer

Mærke:	Adj
Kategori:	Effektmaskine
Model:	Illusion Dotz 4.4
Bredde:	492 mm
Dybde:	393 mm
Højde:	467 mm
Vægt:	16500 g
Produktfarve:	Sort
Kontroltype:	Knapper
Lampe type:	LED
Indbygget skærm:	Ja
Skærmtype:	LED
Produkttype:	Disco spotlight
Ledningslængde:	1.8 m
Strømforbrug (typisk):	468 W
Antal:	1
Strømkilde:	Vekselstrøm
Pæreeffekt:	30 W
Antal lamper:	16 Lampe( r)
Indgangsspænding:	100 - 240 V
Strålevinkel:	15 °
Pære levetid:	100000 t
Indgangsfrekvens:	50 - 60 Hz
Velegnet til indendørsbrug:	Ja
Belysningstilstande:	DMX, Sound activated
Belysningskontrol protokoller:	DMX
Antal DMX kanaler:	3 kanaler
Bold diameter:	- "
