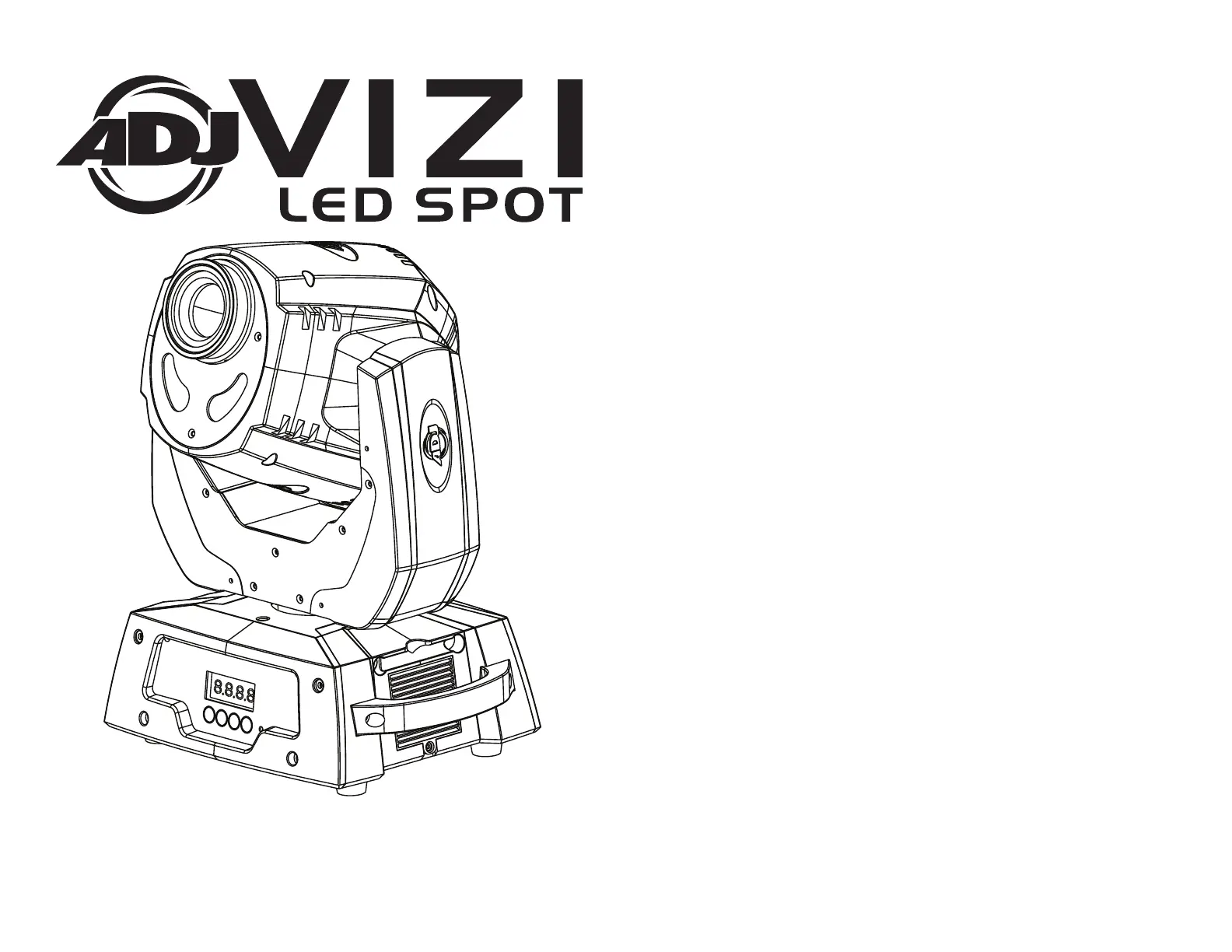

User Instructions

American DJ® - www.americandj.com - Vizi LED Spot - Instruction Manual - Page 2

American DJ®

Vizi LED Spot

Table of Contents

Unpacking......................................................................3

Introduction....................................................................3

Customer Support......................................................................3

Safety Precautions......................................................................4

General Information.....................................................................5

Features.........................................................................5

Registration......................................................................5

Mounting.........................................................................6

Controls and Functions..............................................................8

DMX Set-Up................................................................................8

System Menu............................................................................14

Editing Program.........................................................................33

Error Codes...............................................................................36

Operating Modes.......................................................................38

DMX Traits.................................................................................40

Changing the Gobo...................................................................46

Photometric Chart.....................................................................48

Fuse Replacement....................................................................49

Cleaning..................................................................49

Trouble Shooting.......................................................................49

Warranty.................................................................50

Specifications....................................................................51

Unpacking: Thank you for purchasing the Vizi LED Spot by Ameri-

can DJ®. Every Vizi LED Spot has been thoroughly tested and has

been shipped in perfect operating condition. Carefully check the ship-

ping carton for damage that may have occurred during shipping. If the

carton appears to be damaged, carefully inspect your xture for any

damage and be sure all equipment necessary to operate the unit has

arrived intact. In the event damage has been found or parts are miss-

ing, please contact our toll free customer support number for further

instructions. Please do not return this unit to your dealer without con-

tacting customer support rst.

Introduction: The Vizi LED Spot is a compact, bright, moving head,

DMX intelligent fixture. The Vizi LED Spot can be either a 10 or 12

Channel DMX unit. The fixture can operate in three different operat-

ing modes; show mode, sound-active, or under DMX Control. The Vizi

LED Spot can be used as a stand alone unit or in a master/slave con-

figuration. For best results use fog or special effects smoke to enhance

the beams projections.

Customer Support: American DJ® provides a toll free customer

support line, to provide help and to answer any question should you

encounter problems during your set up or initial operation. You may

also visit us on the web at www.americandj.com for any comments or

suggestions. Service Hours are Monday through Friday 9:00 a.m. to

4:30 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: support@americandj.com

To purchase parts online visit http://parts.americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Warning! This may cause severe eye damage. Avoid looking directly

into the light source at all times!

Vizi LED Spot Introduction

For Your Own Personal Safety, Please Read and Understand This

Manual Completely Before You Attempt To Install Or Operate

This Unit!

• To reduce the risk of electrical shock or re, do not expose this unit

rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Be sure that the local power outlet match that of the required volt-

age for your unit.

• Do not attempt to operate this unit if the power cord has been

frayed or broken.

• Do not attempt to remove or break off the ground prong from

the electrical cord. This prong is used to reduce the risk of electrical

shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user

serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product out-

doors voids all warranties.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to

be walked on or pinched by items placed upon or against them,

paying particular attention to cords at plugs, convenience recep-

tacles, and the point where they exit from the appliance.

• Cleaning -The fixture should be cleaned only as recommended by

the manufacturer. See page 48 for cleaning details.

• Heat -This fixture should be situated away from heat sources such

as radiators, heat registers, stoves, or other appliances (including

amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. Objects have fallen, or liquid has been spilled into the appliance.

B. The appliance has been exposed to rain or water.

C. The appliance does not appear to operate normally or exhibits a

marked change in performance.

Vizi LED Spot Safety Precautions
