Side 1/26

Rev. 2/11

User Instructions

American DJ® - www.americandj.com - Vizi Scan LED PRO Instruction Manual Page 2

American DJ®

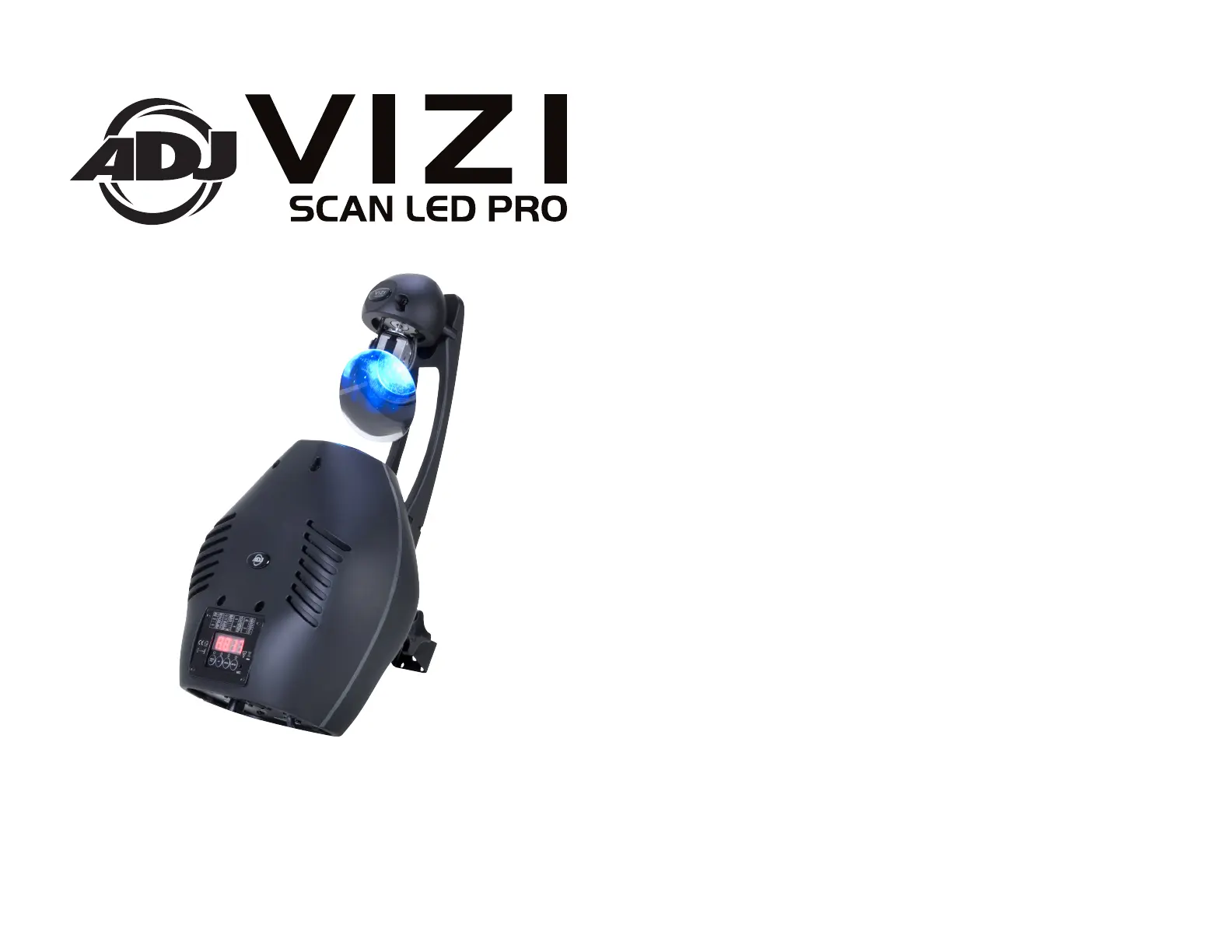

Vizi Scan LED PRO

Table of Contents

General Information.....................................................................4

Features.........................................................................4

Safety Precautions......................................................................5

Registration......................................................................6

Handling Precautions..................................................................6

Mounting.................................................................................7

Controls and Functions..............................................................9

DMX Set-Up..............................................................................12

System Menu............................................................................15

Editing Program.........................................................................33

Operating Modes.......................................................................38

DMX Traits.................................................................................40

Fuse Replacement....................................................................47

Gobo Replacement...................................................................48

Photometric Chart.....................................................................49

Cleaning..................................................................50

Trouble Shooting.......................................................................50

Warranty.................................................................51

Specifications....................................................................52

Unpacking: Thank you for purchasing the Vizi Scan LED PRO by

American DJ®. Every Vizi Scan LED PRO has been thoroughly tested

and has been shipped in perfect operating condition. Carefully check

the shipping carton for damage that may have occurred during ship-

ping. If the carton appears to be damaged, carefully inspect your x-

ture for any damage and be sure all equipment necessary to operate

the unit has arrived intact. In the event damage has been found or parts

are missing, please contact our toll free customer support number for

further instructions. Please do not return this unit to your dealer with-

out contacting customer support rst.

Introduction: The Vizi Scan LED PRO is a bright, high output, intel-

ligent DMX scanner. The Vizi Scan LED PRO can be either a 12 or 14

DMX Channel unit. The fixture can operate in three different operating

modes; sound active, auto run, or DMX control. The fixture can run

as as a Stand Alone unit or in a Master/Slave configuration. The Vizi

Scan LED PRO comes with several built in programs and is best used

in multiples of four. For best results use fog or special effects smoke to

enhance the beams projections.

During the initial start-up or use of this product a light smoke or

smell may arise from the unit. This is a normal process and is

cause by the heat associated with the unit.

Customer Support: American DJ® provides a toll free customer

support line, to provide help and to answer any question should you

encounter problems during your set up or initial operation. You may

also visit us on the web at www.americandj.com for any comments or

suggestions. Service Hours are Monday through Friday 8:00 a.m. to

4:30 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2610

E-mail: support@americandj.com

To purchase parts online visit http://parts.americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Warning! This may cause severe eye damage. Avoid looking directly

into the light source at all times!

Vizi Scan LED PRO General Information

American DJ® - www.americandj.com - Vizi Scan LED PRO Instruction Manual Page 4American DJ® - www.americandj.com - Vizi Scan LED PRO Instruction Manual Page 3

• Micro-Stepping Motors for Smooth Color and Gobo Transitions

• 2 DMX Channel Modes - 12 Channel Mode & 14 Channel Mode

• Independent Gobo and Color Wheels

• 7 Rotating Gobos w/ Shake, 5 Metal and 2 Glass + Spot - All

Replaceable

• 8 Colors, Plus White - With Rainbow

• Prism Wheel: 3 Facet; Trapezoid; Frost

• RDMX - Lets you set the DMX address from any DMX Controller

• 3 Operating Modes - Sound Active, Auto Run, & DMX Control

• Internal Microphone

• Edit and Save Scenes into the Memory

• Remote Focus
