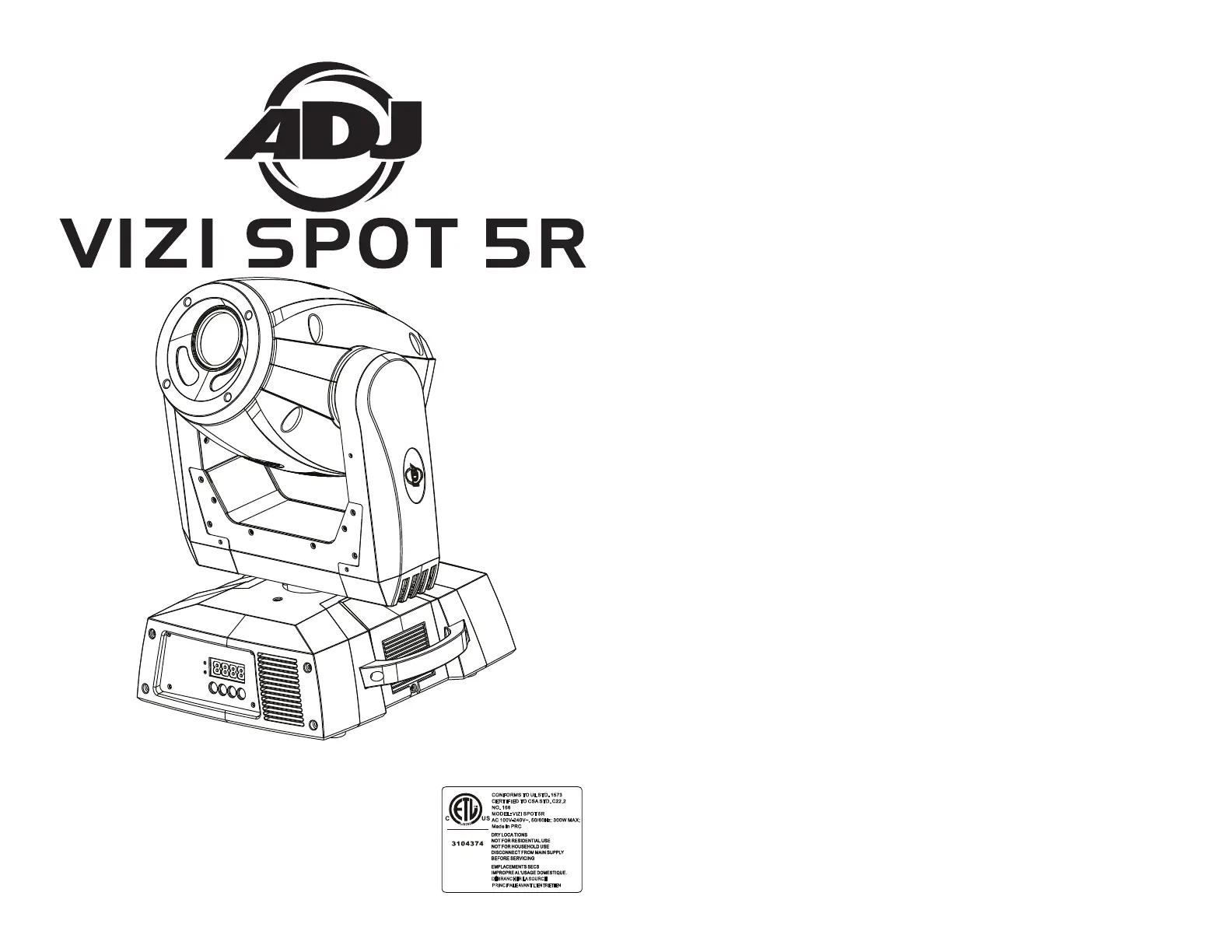

American DJ® - www.americandj.com - Vizi Spot 5R Instruction Manual Page 2
Rev. 5/12
User Instructions
Intertek
CO NFORMS TO UL STD. 1573
CE RTIFI ED TO C SA ST D. C22.2
NO . 166
MO DEL: VIZI S PO T 5R
AC 1 00V-240V ~, 5 0/60Hz; 300 W MA X;
Ma de in PRC
DEBRANCHER LA SOURCE
PRINCIPALE AVANT L'ENTRETIEN
American DJ®
Vizi Spot 5R
Table of Contents
Unpacking......................................................................3
Introduction....................................................................3
Customer Support......................................................................3
Safety Precautions......................................................................4
Features.........................................................................5
RDMX..........................................................................................5
Handling Precautions..................................................................6
Registration......................................................................6
Important Discharge Lamp Warnings.........................................7
Mounting.........................................................................8
Controls and Functions.............................................................10
DMX Set-Up..............................................................................13
System Menu............................................................................16
Editing Program.........................................................................31
Error Codes...............................................................................40
Operating Modes.......................................................................42
DMX Traits.................................................................................44
Gobo Replacement...................................................................52
Lamp & Fuse Replacement........................................................53
Cleaning..................................................................54
Trouble Shooting.......................................................................54
Warranty.........................................................................55
Specifications....................................................................56
Please see page 7 for important lamp instructions!
Unpacking: Thank you for purchasing the Vizi Spot 5R by Ameri-
can DJ®. Every Vizi Spot 5R has been thoroughly tested and has been
shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your xture for any
damage and be sure all equipment necessary to operate the unit has
arrived intact. In the event damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Please do not return this unit to your dealer without con-
tacting customer support rst.
Introduction: The Vizi Spot 5R is a DMX intelligent, moving head fix-
ture. The Vizi Spot 5R can be a 11 channel or 13 channel DMX unit. The
fixture can operate in three different operating modes; show mode,
sound-active, or under DMX control. The Vizi Spot 5R can be used as
a stand alone unit or in a master/slave configuration. For best results
use fog or special effects smoke to enhance the beams projections.
During the initial start-up or use of this product a light smoke or
smell may arise from the unit. This is a normal process and is
cause by the heat associated with the lamp.
Customer Support: American DJ® provides a toll free customer
support line, to provide help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2610
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly
into the light source at all times!
Vizi Spot 5R General Information
For Your Own Personal Safety, Please Read and Understand This
Manual Completely Before You Attempt To Install Or Operate
This Unit!
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required volt-
age for your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken.
• Do not attempt to remove or break o the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience recep-
tacles, and the point where they exit from the appliance.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 54 for cleaning details.
• Heat -This fixture should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Vizi Spot 5R Safety Precautions
American DJ® - www.americandj.com - Vizi Spot 5R Instruction Manual Page 4American DJ® - www.americandj.com - Vizi Spot 5R Instruction Manual Page 3
