Side 1/4

Introduction:

Congratulations and thank you for purchasing the ADJ WiFly D6 Branch. The WiFly D6 Branch is a 6-way

wireless DMX splitter/amplier with ADJ’s WiFly TransCeiver built-in. Each output is electrically and opti-

cally isolated from the input, and from every other output by optical couplers. It makes running DMX cable

to lighting xtures easier and more efcient. It features one DMX input, 6 DMX outputs and 1 DMX thru. The

WiFly D6 Branch alos includes two velcro straps and a clamp-mounting bracket. This unit is perfect for con-

tractors, installers, and professional light companies. This unit is ready to be installed or hung and powered

right out of the box. There is no assembly required. Please refer to your units user manual for its individual

DMX setup and traits.

Customer Support: ADJ Products, LLC provides a toll free customer support line, to provide set up help and

to answer any question should you encounter problems during your set up or initial operation. You may also

visit us on the web at www.americandj.com for any comments or suggestions. For service related issue please

contact ADJ Products, LLC. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m. Pacic Standard

Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: support@americandj.com

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, doing so

will void your manufactures warranty. In the unlikely event your unit may require service please contact ADJ

customer support.

The WiFly D6 Branch carries a 1 Year (365 days) limited warranty. ll out the enclosed warranty card Please

to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid

and accompany a return authorization (R.A.) umber. If the unit is under warranty you must provide a copy of n

your DJ proof of purchase invoice. Please contact A customer support for a R.A. number. For additional war-

ranty info please visit our website.

WIFLY D6 BRANCH

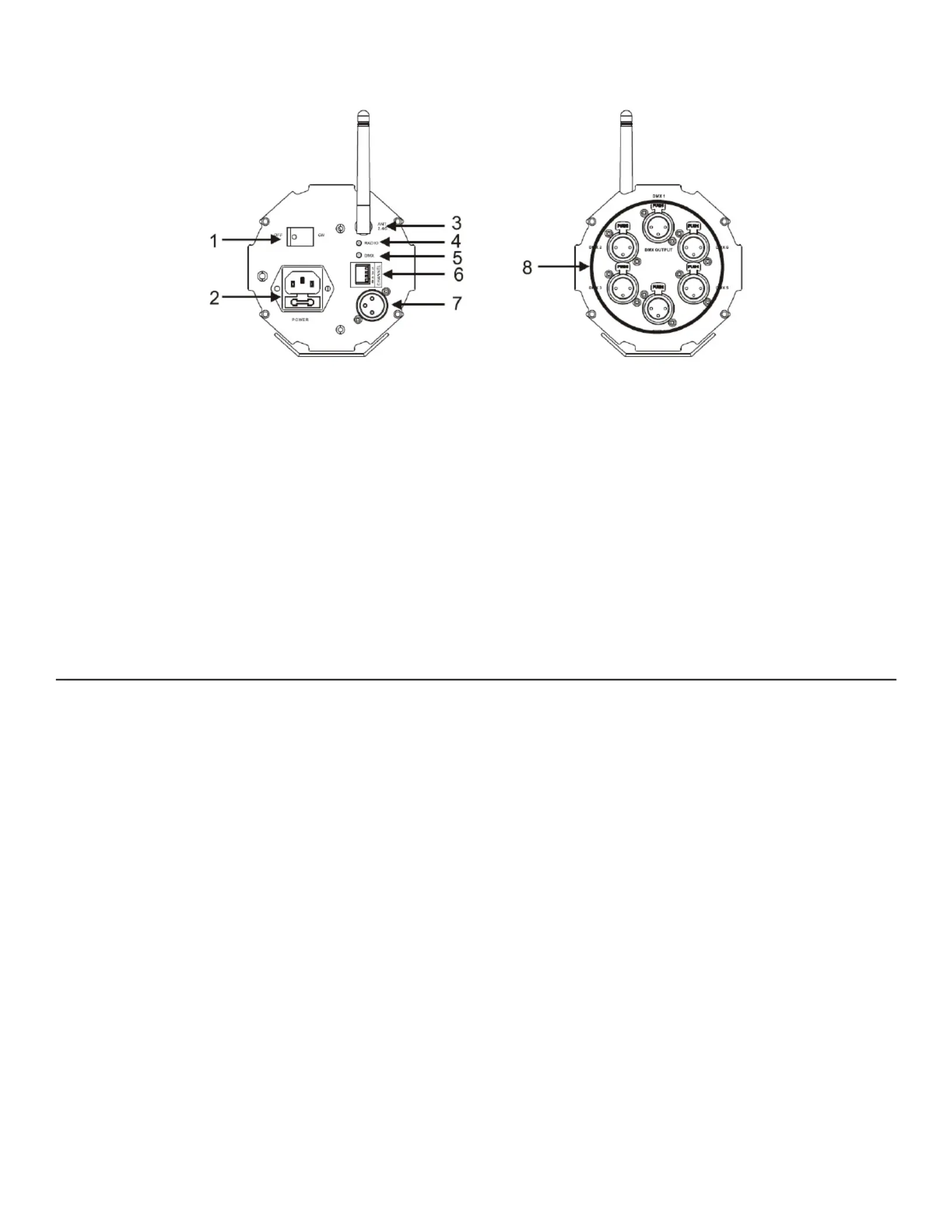

Features & Functions

1. Power Switch - Powers the WiFly D6 Branch on/off.

2. Power Source - Connect the AC power cord to this input.

3. Antenna - Receives and transmits the DMX signal.

4. Radio Receiver Indicator LED - This Green LED indicates the unit is receiving wireless signal.

5. DMX Transmitter Indicator LED - This Yellow LED indicates that a wireless signal is being transmit-

ted.

6. Dipswitches - Use these dipswitches to set the units WiFly channel.

7. 3 Pin DMX In - Input the DMX Signal via 3 pin cable.

8. 6 Groups 3 Pin DMX Out - Output the DMX signal from the 3 pin cable

Setting Up the WiFly D6 Branch:

1. Power on the WiFly D6 Branch.

2. When using the WiFly D6 Branch as a transmitter connect the WiFly D6 Branch to a DMX512

controller via XLR cable. The yellow Transmitting LED indicator will light up.

3. After the LED indicator lights up, use the dipswitches to set the WiFly channel. The channel can

be set between 0-15.

4. With WiFly 6 Branch connected to a DMX Controller, you can use the WiFly D6 Branch to trans-

mit a WiFly signal to other WiFly D6 Branch units making those units receivers.

5. The receiving WiFly D6 Branch units must be set to the same channel frequency as the transmit-

ting WiFly D6 Branch. If the WiFly D6 Branch (receivers) are set up correctly, and receiving a

WiFly signal, the green receiver LED indicator will glow.
