Sinks manufactured by ADVANCE TABCO

are designed and constructed for the use of

liquid containment. Suggested applications include Food Preparation, Manufacturing,

Cooking, Laboratory and Service and the like. ADVANCE TABCO

does not recommend

product use for activities employing harsh and active chemicals. Please consult factory

regarding unusual applications.

CHECK FOR CONCEALED DAMAGE

FILE CLAIM WITH DELIVERING FREIGHT CARRIER

EDGEWOOD, NY 11717-8380

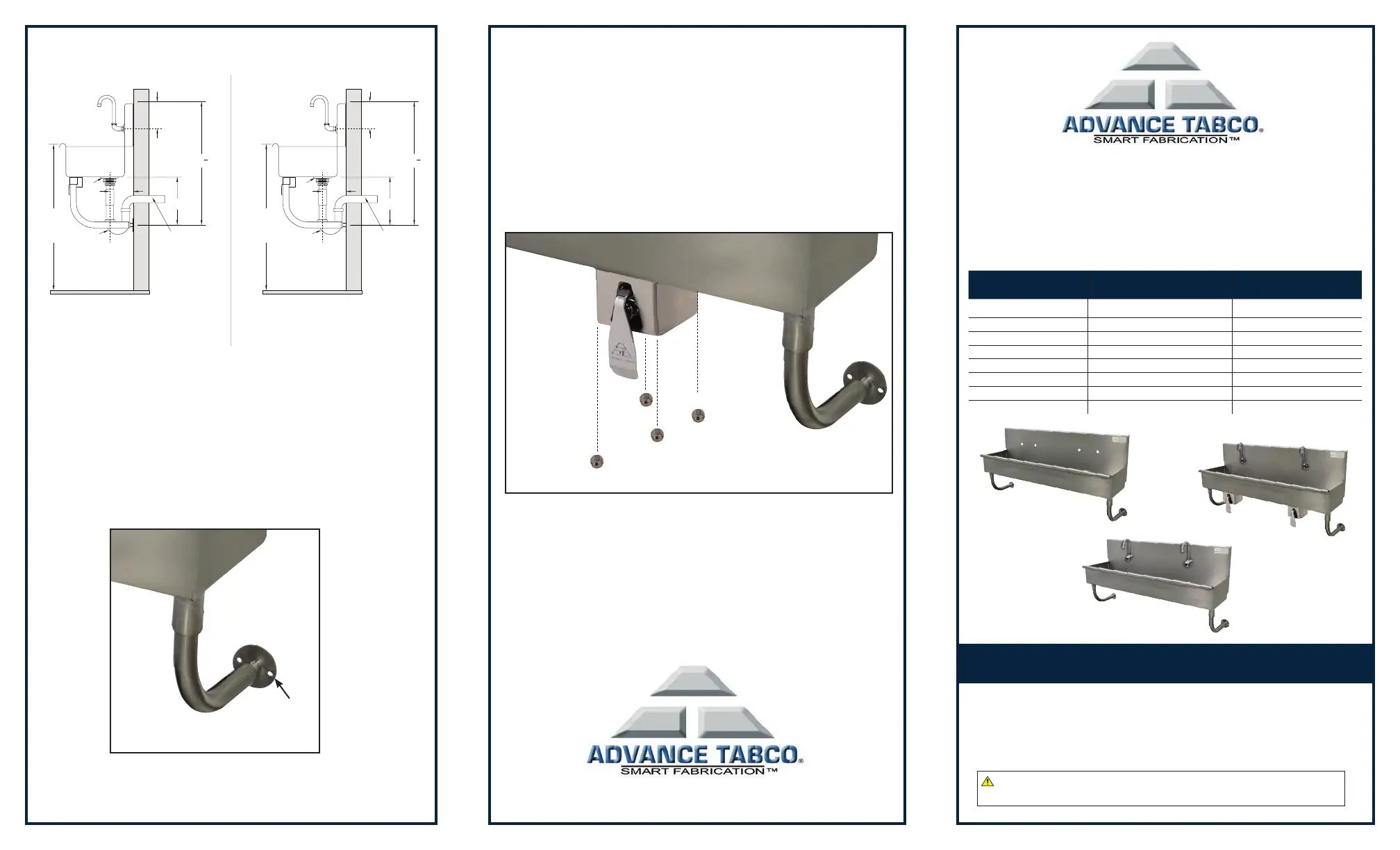

Installation Instructions for

WALL MOUNTED

19-18 SERIES & WSS SERIES SINKS

Suggested Rough-In Plumbing Dimensions

Figure 4

Adjustable

Flange

STEP 5

Adjust the tubular wall support brackets and flanges

to proper alignment. Loosen or tighten each flange

to sit snug against the wall and secure to wall using

screws (Not Included) (Figure 4). Be sure to go

back and hand tighten the set screws at this time.

P-Trap

Drain

To Waste Line

34”

Suggested

Height

12"

Finished Floor

P-Trap

Drain

To Waste Line

34”

Suggested

Height

12"

Finished Floor

For Further Assistance

Contact Customer Service at:

800-645-3166

customer@advancetabco.com

MANUAL FAUCET

OPERATED

ELECTRONIC

OPERATED

KNEE

OPERATED

Model # Model # Model #

19-18-1-ADA 19-18-1-EFADA N/A

19-18-40/19-18-40-ADA 19-18-40EF/19-18-40EFADA 19-18-40KV/19-18-40KV

19-18-60/19-18-60-ADA 19-18-60EF/19-18-60EFADA 19-18-60KV/19-18-60KV

19-18-80/19-18-80-ADA 19-18-80EF/19-18-80EFADA 19-18-80KV/19-18-80KV

19-18-100/19-18-100-ADA 19-18-100EF/19-18-100EFADA 19-18-100KV/19-18-100KV

19-18-120/19-18-120-ADA 19-18-120EF/19-18-120EFADA 19-18-120KV/19-18-120KV

WSS-14-21/WSS-16-25 WSS-14-21EF/WSS-16-25EF WSS-14-21KV/WSS-16-25KV

Electronic Operated

Knee Operated

INSTALLING KNEE VALVES FOR KV SERIES

Knee Valves can be installed before or after sink is

mounted to the wall. Attach each Knee Valve onto the

sink by fitting into existing stud welded screws found

underneath the unit.

Use supplied nuts to secure valve(s) to sink. Tighten with

7/16” open end wrench (Figure 5).

Connect supply lines to knee valve(s) and supply line(s)

from knee Valve(s) to Faucet(s). Connect drain(s).

Figure 5

4 Nuts

Per Valve

Manual Operated

(Faucet Not Included)

WARNING: Equipment that includes a faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.

WARNING: Equipment that includes a faucet may expose you to chemicals, including lead, that are known to the

State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.

WARNING: Faucets on this page may expose you to chemicals, including lead, that are known to the State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.

Manual, Electronic

& Knee Valve Units

A.D.A. Units

CARTON CONTENTS:

MANUAL OPERATED SERIES

# of

Stations

# of Drains

Included

# of Faucets

Included

# of Supports

Included

1 1 Not Included 2 Support Brackets

2 1 Not Included 2 Support Brackets

3 1 Not Included 2 Support Brackets

4 1 Not Included 2 Support Brackets

5 2 Not Included 4 Support Brackets

6 2 Not Included 4 Support Brackets

ELECTRONIC FAUCET OPERATED SERIES (EF Series)

# of

Stations

# of Drains

Included

# of Faucets

Included

# of Supports

Included

1 1 1 2 Support Brackets

2 1 2 2 Support Brackets

3 1 3 2 Support Brackets

4 1 4 2 Support Brackets

5 2 5 4 Support Brackets

6 2 6 4 Support Brackets

KNEE OPERATED SERIES (KV Series)

# of

Stations

# of

Drains

Included

# of

Faucets

Included

# of

Knee Valves

Included

# of Supports

Included

1 1 1 1 2 Support Brackets

2 1 2 2 2 Support Brackets

3 1 3 3 2 Support Brackets

4 1 4 4 2 Support Brackets

5 2 5 5 4 Support Brackets

6 2 6 6 4 Support Brackets

(1) Sink

(2) “Z” Wall Brackets

Tubular Wall Supports*

Faucet(s)*

Drain(s)*

*See Below For Proper Quantities Supplied Per # Of Stations:

TOOLS NEEDED (Not Included):

5/32” Allen Wrench

7/16” Open End Wrench

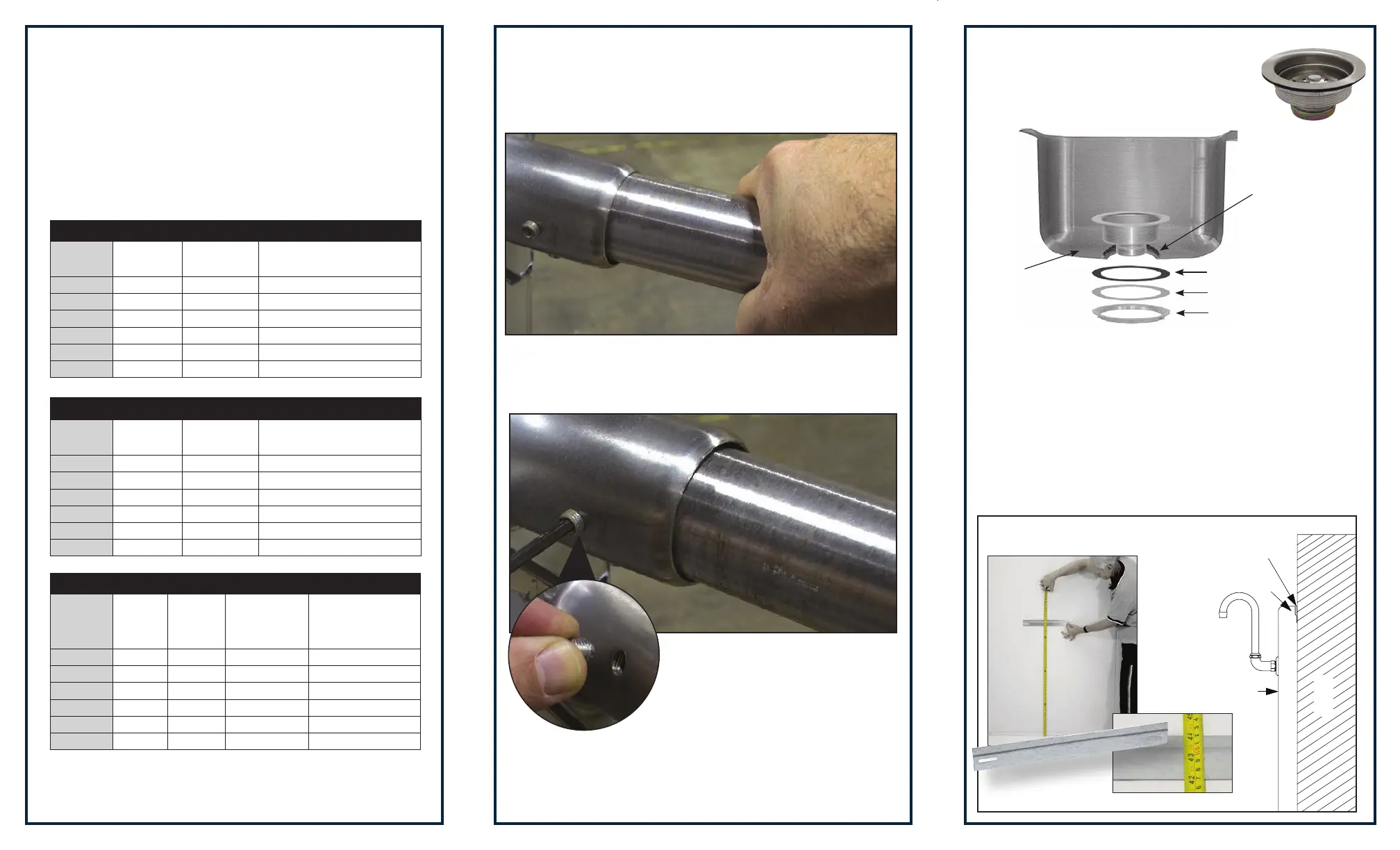

STEP 1

Carefully remove contents of carton/crate. Position sink

upside down on a protected surface so you can access the

underside of the sink. Install tubular wall supports into Sink

gussets (Figure 1).

STEP 2

Lightly tighten each Set Screw using 5/32” Allen

Wrench. Do not over-tighten at this time (Figure 2).

PLEASE NOTE: Some models may require Set

Screws to be inserted into the Set Screw Holes.

Figure 1

Figure 2

STEP 3

Place Sink upright and install drain(s)

and faucet(s) at this time. Your plumbing

contractor is responsible for local code

requirements.

Sink

Bottom

K-6 Basket

Drain shown

1/4” continuous

bead of Plumber’s

Putty or Silicone

Sealer.

Rubber Washer

Paper Washer

Die Cast Nut

STEP 4

Mount the provided wall “Z” brackets to wood studs or

cement walls for strong support. Mount the brackets at

recommended height of 44” from the finished floor to the

to the top of the bracket (Figure 3). When installing

A.D.A. sink models, be sure to review A.D.A. codes

for proper install heights. See suggested rough-in

dimensions on next page.

Slide the sink onto the wall brackets and be sure the sink

sits securely on them.

Back Splash

Silicone Sealer

"Z" Bracket

Wall

Figure 3

Actual “Z”

Bracket Shown
