Sinks manufactured by ADVANCE TABCO
®
are designed and constructed for the use of
liquid containment. Suggested applications include Food Preparation, Manufacturing,
Cooking, Laboratory and Service and the like. ADVANCE TABCO
®
does not recommend
product use for activities employing harsh and active chemicals. Please consult factory
regarding unusual applications.
CHECK FOR CONCEALED DAMAGE
FILE CLAIM WITH DELIVERING FREIGHT CARRIER
EDGEWOOD, NY 11717-8380
© ADVANCE TABCO, OCTOBER 2019
Installation Instructions for
FREE STANDING
NSF MULTI-STATION SINKS
FS-FM/FC-FM SERIES
Suggested Rough Plumbing Dimensions
Figure 7Figure 6
3/8” NPT
Females
Mixing
Valve
42
1
2
"
L
C
P-Trap
Drain
To Waste Line
6
1
2
"
5
"
L
C
For Further Assistance
Contact Customer Service at:
800-645-3166
or
customer@advancetabco.com
WALL BRACKET(S) INSTALLATION
Mount the provided wall “Z” brackets to wood studs or
cement walls for strong support. Mount the bracket(s) at
recommended height of 42.5” from the finished floor to
the to the top of the bracket (Figure 6).
Slide the sink onto the wall brackets and be sure the sink
sits securely on them.
Figure 5
Back Splash
Silicone Sealer
"Z"
Bracket
Wall
Actual “Z”
Bracket Shown
Figure 6
WARNING: Equipment that includes a faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.
WARNING: Equipment that includes a faucet may expose you to chemicals, including lead, that are known to the
State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.
WARNING: Faucets on this page may expose you to chemicals, including lead, that are known to the State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.
FOR KNEE VALVE (KV) OR TOE-PUSH VALVE (FV) MODELS:
Connect water supply lines to valve(s) and water supply
line(s) from valve(s) to faucet(s). Connect drain(s).
(Figure 6).
Adjust mixing valve at front of valve (Figure 7).
KNEE
OPERATED FAUCETS
TOE-PUSH
OPERATED FAUCETS
Model # Model #
FC or FS-FM-23KV/FC or FS-FM-23KV FC or FS-FM-23FV/FC or FS-FM-23FV
FC or FS-FM-40KV/FC or FS-FM-40KV FC or FS-FM-40FV/FC or FS-FM-40FV
FC or FS-FM-60KV/FC or FS-FM-60KV FC or FS-FM-60FV/FC or FS-FM-60FV
FC or FS-FM-80KV/FC or FS-FM-80KV FC or FS-FM-80FV/FC or FS-FM-80FV
FC or FS-FM-100KV/FC or FS-FM-100KV
FC or FS-FM-100FV/FC or FS-FM-100FV
FC or FS-FM-120KV/FC or FS-FM-120KV
FC or FS-FM-120FV/FC or FS-FM-120FV
FC or FS-14-21KV-FM/FC or FS-16-25KV-FM FC or FS-14-21FV-FM/FC or FS-16-25FV-FM
NO FAUCET
INCLUDED
MANUAL FAUCETS
INCLUDED
ELECTRONIC
OPERATED FAUCETS
Model # Model # Model #
FC or FS-FM-1-ADA FC or FS-FM-1-ADA-F FC or FS-FM-1-EFADA
FC or FS-FM-23/FC or FS-FM-23-ADA FC or FS-FM-23-F/FC or FS-FM-23-ADA-F FC or FS-FM-23EF/FC or FS-FM-23EFADA
FC or FS-FM-40/FC or FS-FM-40-ADA FC or FS-FM-40-F/FC or FS-FM-40-ADA-F FC or FS-FM-40EF/FC or FS-FM-40EFADA
FC or FS-FM-60/FC or FS-FM-60-ADA FC or FS-FM-60-F/FC or FS-FM-60-ADA-F FC or FS-FM-60EF/FC or FS-FM-60EFADA
FC or FS-FM-80/FC or FS-FM-80-ADA FC or FS-FM-80-F/FC or FS-FM-80-ADA-F FC or FS-FM-80EF/FC or FS-FM-80EFADA
FC or FS-FM-100/FC or FS-FM-100-ADA FC or FS-FM-100-F/FC or FS-FM-100-ADA-F FC or FS-FM-100EF/FC or FS-FM-100EFADA
FC or FS-FM-120/FC or FS-FM-120-ADA FC or FS-FM-120-F/FC or FS-FM-120-ADA-F FC or FS-FM-120EF/FC or FS-FM-120EFADA
FC or FS-14-21-FM/FC or FS-16-25-FM FC or FS-14-21-FM-F/FC or FS-16-25-FM-F FC or FS-14-21EF-FM/FC or FS-16-25EF-FM
THIS CARTON CONTAINS:
TOE-PUSH OPERATED SERIES (FV Series)
# of
Stations
# of
Drains
# of
Spouts
# of
Toe-Push
Valves
# of Legs
1 1 1 1 4 Support Legs
2 1 2 2 4 Support Legs
3 1 3 3 4 Support Legs
4 1 4 4 4 Support Legs
5 2 5 5 8 Support Legs
6 2 6 6 8 Support Legs
(1) Sink, (2) “Z” Wall Brackets, Legs*, Faucet(s)*, Drain(s)*
*See Below For Proper Quantities Supplied Per # Of Stations:
TOOLS NEEDED (Not Included):
5/32” Allen Wrench

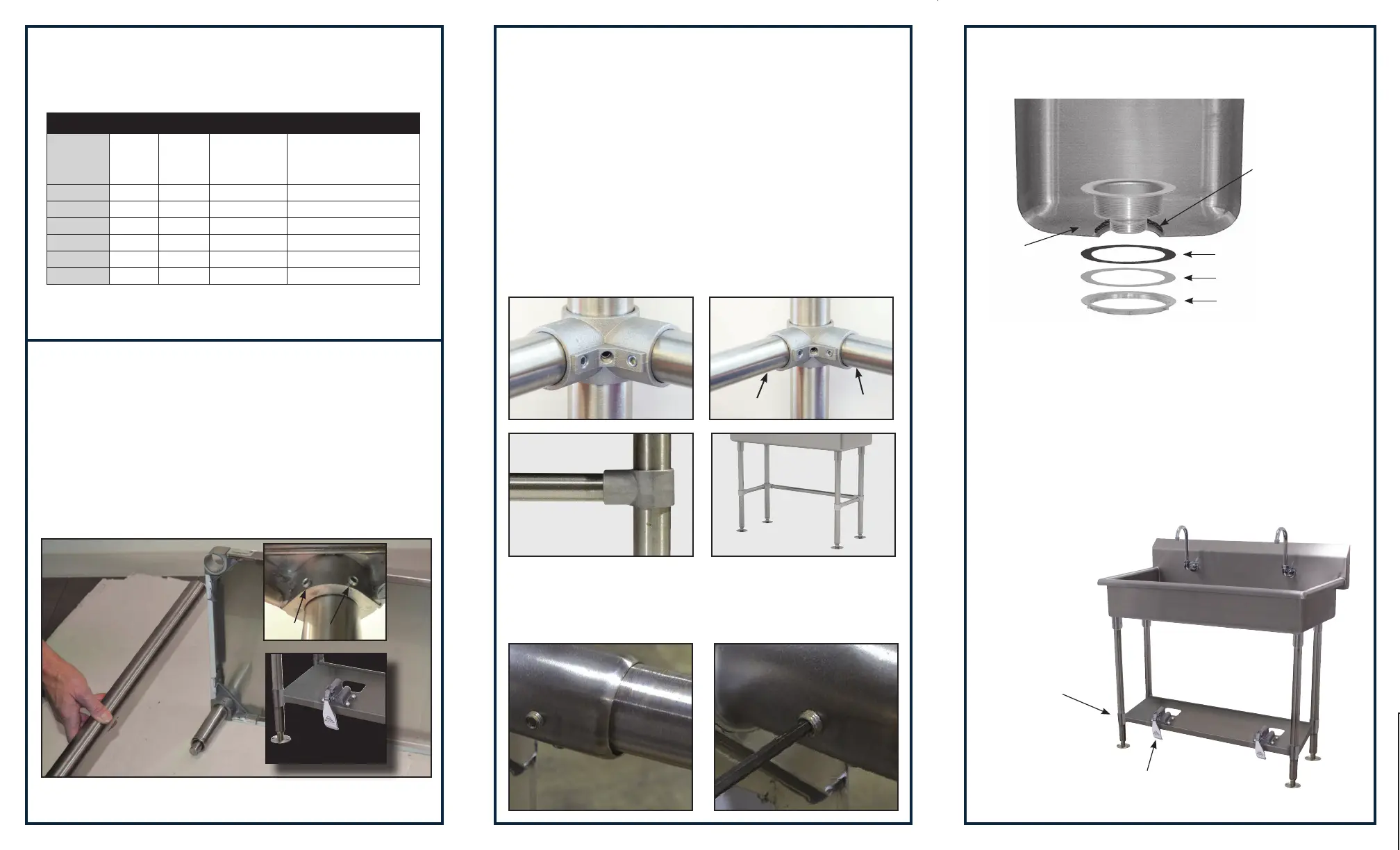

LEG TO SINK INSTALLATION (For All Models)
Slide tubular legs all the way into the gussets (Figure 5).
Tighten each Set Screw using Allen Wrench (Figure 6).
CROSS-BRACING INSTALL (EXCLUDES “FV” MODELS)
STEP 1
Insert the long tubular support for the rear (Figure A),
into the left and right Corner Cross-Bracing Clamps
(Figure 2).
Insert the 2 shorter tubular supports into the fronts of the
left and right Corner Cross-Bracing Clamps (Figure B).
STEP 2
Insert the front Cross-Bracing Clamps onto the ends of
the existing shorter tubular supports (Figure 3).
STEP 3
Slide entire bracing over the legs to desired height and
tighten with Allen Wrench (Figure 3).
Figure 5 Figure 6
DRAIN INSTALLATION
Install drain(s) and faucet(s) at this time. Your plumbing
contractor is responsible for local code requirements.
Sink
Bottom
K-6 Basket
Drain shown
1/4” continuous
bead of Plumber’s
Putty or Silicone
Sealer.
Rubber Washer
Paper Washer
Die Cast Nut
Carefully remove contents of carton/crate. Carefully
position sink upside down on a protected surface so you
can access the underside of the sink.
UNDERSHELF INSTALL FOR “FV” TOE-PUSH MODELS:
Insert top of legs into adjustable shelf corners (bottom of
undershelf). Slide legs leaving desired leg length below
the shelf (Figure 1). Insert Allen Head Set Screws into
adjustable shelf corner and lightly tighten (Figure 1a).
Do not over-tighten at this time.
Toe-Push
Shelf Shown
Hex Screws
Figure 1a
LEVELING AND ADJUSTMENTS
Stand up entire sink. Level undershelf at this time.
If necessary, gently loosen the set screws enough as to
not letting the shelf or cross-bracing to drop down.
FOR TOE-PUSH MODELS (FV):
Make sure foot pedal(s) are clear from rubbing against
the floor when pushed in all the way by pushing with your
toe. (Figure 5).
Once the undershelf is level, tighten all the undershelf
set screws.
For Toe-Push Models (FV),
Be sure to clear the floor when
pedal is pushed in all the way
Level Undershelf
Toe-Push Model FC-FM-40 Shown
Figure 2
Figure 1
Figure 3 Figure 4
Figure A
Figure B
