STARTUP MANUAL

ADAM-3955

50-pin SCSI DIN-rail Wiring Board

Declaration of Conformity

FCC Class A

This equipment has been tested and found to comply with

the limits for a Class A digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when

the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio

frequency energy and,if not installed and used in

accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely

to cause harmful interference in which case the user will

be required to correct the interference at his own expense.

This product has passed the CE test for environmental

specications when shielded cables are used for external

wiring. We recommend the use of shielded cables. This

kind of cable is available from Advantech. Please contact

your local supplier for ordering information.

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com

http://www.advantech.com/eAutomation

For technical support and service:

http://support.advantech.com/

This startup manual is for the ADAM-3955

Part No: 2003395500 2nd Edition

Janauary 2014

Features

1. DIN-rail wiring board for PCI-1220U/1240U/ PCI-

1245/1245E/1245L/1265 application.

2. Dimensions (W x L x H): 103 x 120 x 45mm

(4.12” x 4.8” x 1.8”)

3. DB-26 connector

4. LED indicators

Overview

The ADAM-3955 terminal board provides convenient and

reliable signal wiring for PCI-1220U/1240U/1245/1245E

/1245L/1265 with 50-pin SCSI-II connector. Its D-SUB

26P type connectors give you the quick and easy way to

connect to the Panasonic A5/MINAS A , Yaskawa Sigma

5 , Mitsubishi J3S and Delta A2 servo motors.

Board Components

Optional Cables

PCL-10251-1E 100-pin SCSI to Two 50-pin SCSI

Cable, 1m

PCL-10251-3E 100-pin SCSI to Two 50-pin SCSI

Cable, 1m

PCL-10152-1E 50-pin SCSI Cable, 1m

PCL-10152-3E 50-pin SCSI Cable, 3m

PCL-10153PA5-2E DB26 to SCSI-50 Cable for

Panasonic A5, 2m

PCL-10153PA5LS-2E DB26 to SCSI-50 Cable for

Panasonic MINAS A, 2m

PCL-10153YS5-2E DB26 to SCSI-50 Cable for

Yatsukawa Sigma 5, 2m

PCL-10153MJ3-2E DB26 to SCSI-50 Cable for

Mitsubishi J3S, 2m

PCL-10153DA2-2E DB26 to SCSI-50 Cable for Delta

A2, 2m

Note:

1. PIN 1 on TB3(TB5) is “power source” and PIN 1 on

TB4(TB6) is “pulse output”.

If connecting “power source” to “pulse output” , the

current will damage the line driver & related components

on the motion card connected to ADAM-3955.

2. Using which is included in package to protection key

avoid the accident to damage the motion board.

The assembly method is described in the end of this

manual.

Startup Manual 2

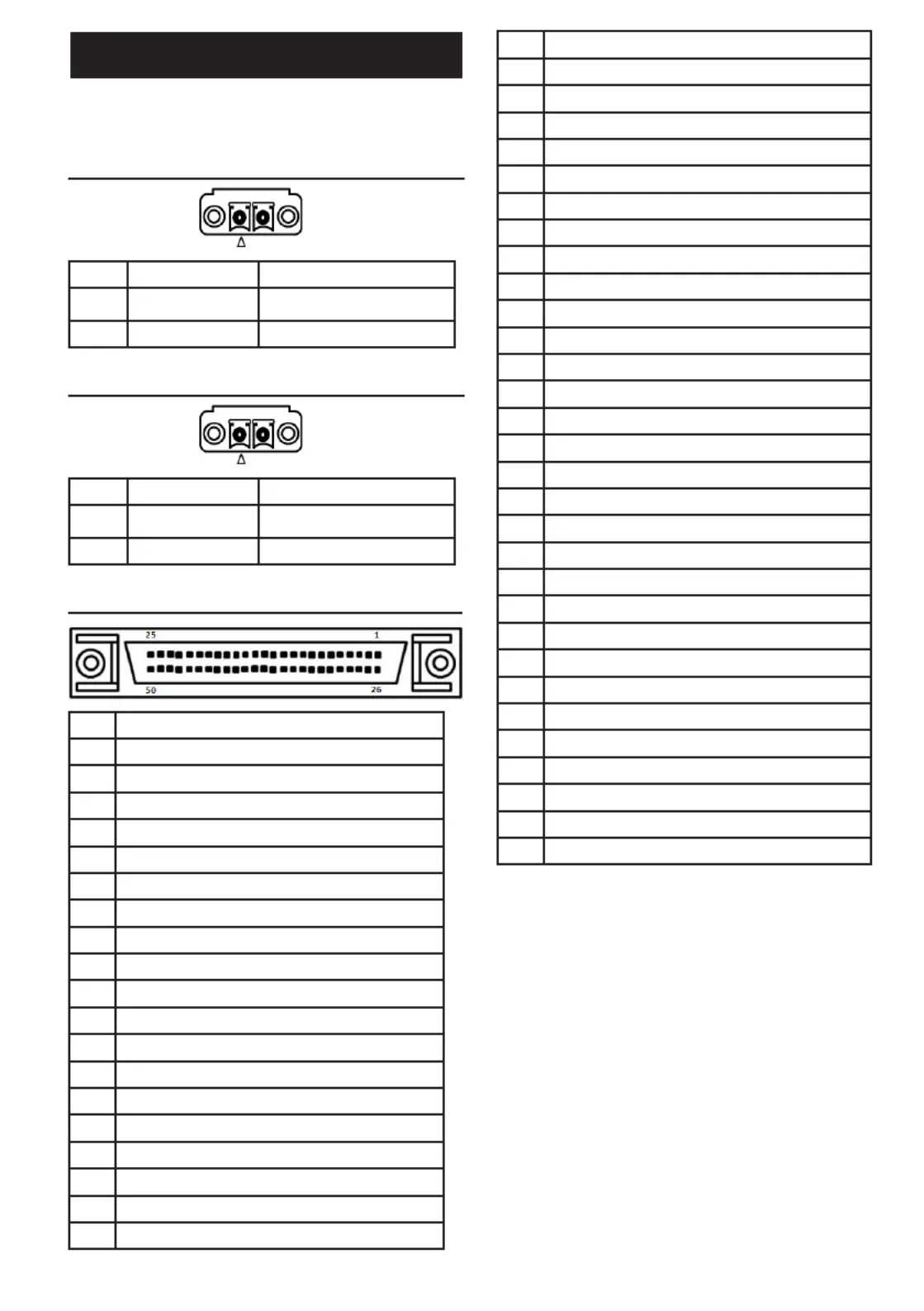

Component Descriptions and Settings

(PCI-1220U)

Note:The pin function is determined by the connected

motion card.

TB1 External Power Input Connector

PIN Name Description

1 PWR 24V Power Input

2 GND ---

Pin Name

1 VEX

2 XLMT+

3 XIN0

4 XORG (X HOME)

5 YLMT-

6 YIN1 (Y RDY)

7 XINPOS

8 XECAP

9 XECBP

10 XEZ+

11 YINPOS

12 YECAP

13 YECBP

14 YEZ+

15 XEXOP+

16 YEXOP+

17 GND

18 XOUT1

19 XOUT3 (X ERC)

TB2 Emergency Stop Input Connector

PIN Name Description

1 EMG Emergency Input

2 GND ---

CN1 SCSI Connector (F) 50P

20 XP+N

21 XP-N

22 YOUT0

23 YOUT2 (Y SVON)

24 YP+P

25 YP-P

26 EMG

27 XLMT-

28 XIN1 (X RDY)

29 YLMT+

30 YIN0

31 YORG (Y HOME)

32 XALARM

33 XECAN

34 XECBN

35 XEZ-

36 YALARM

37 YECAN

38 YECBN

39 YEZ-

40 XEXOP-

41 YEXOP-

42 XOUT0

43 XOUT2 (X SVON)

44 XP+P

45 XP-P

46 GND

47 YOUT1

48 YOUT3 (Y ERC)

49 YP+N

50 YP-N

*All GND pins are connected with each other.
